Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe
Supported model
Data version 2024-06

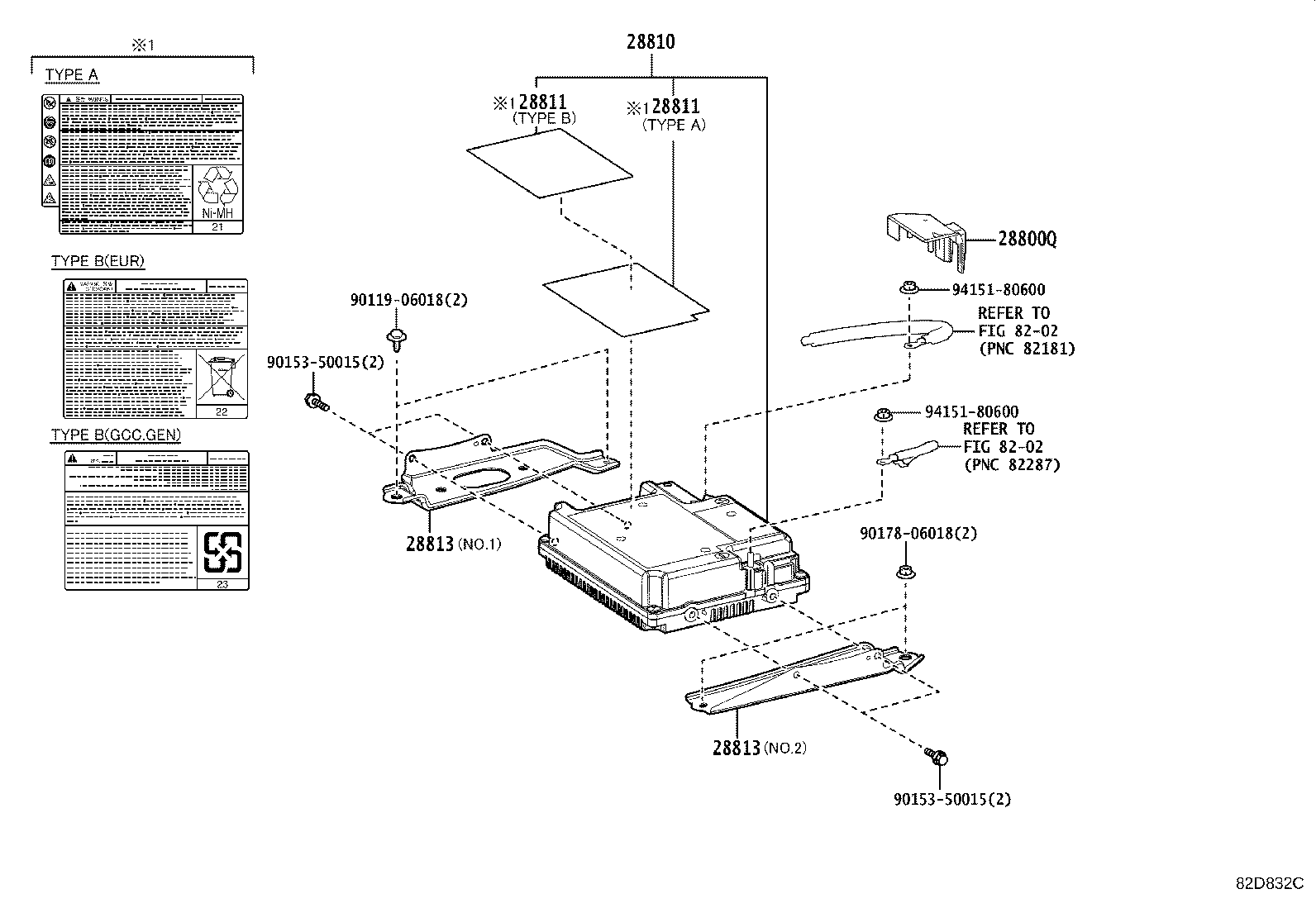

Battery & Battery Cable
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800Q | Cover, Connector(FOR BATTERY) |
| 28810 | Sub-battery Assy, W/Control |
| 28811 | Label, Sub-battery Caution |
| 28813 | Bracket, Sub-battery |
| 28885B | Hose, Battery |
| 28897D | Label, Battery Caution |
| 82651E | Block, Terminal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
