Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe
Supported model
Data version 2024-06
Wiring & Clamp
95 part groups · 18 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

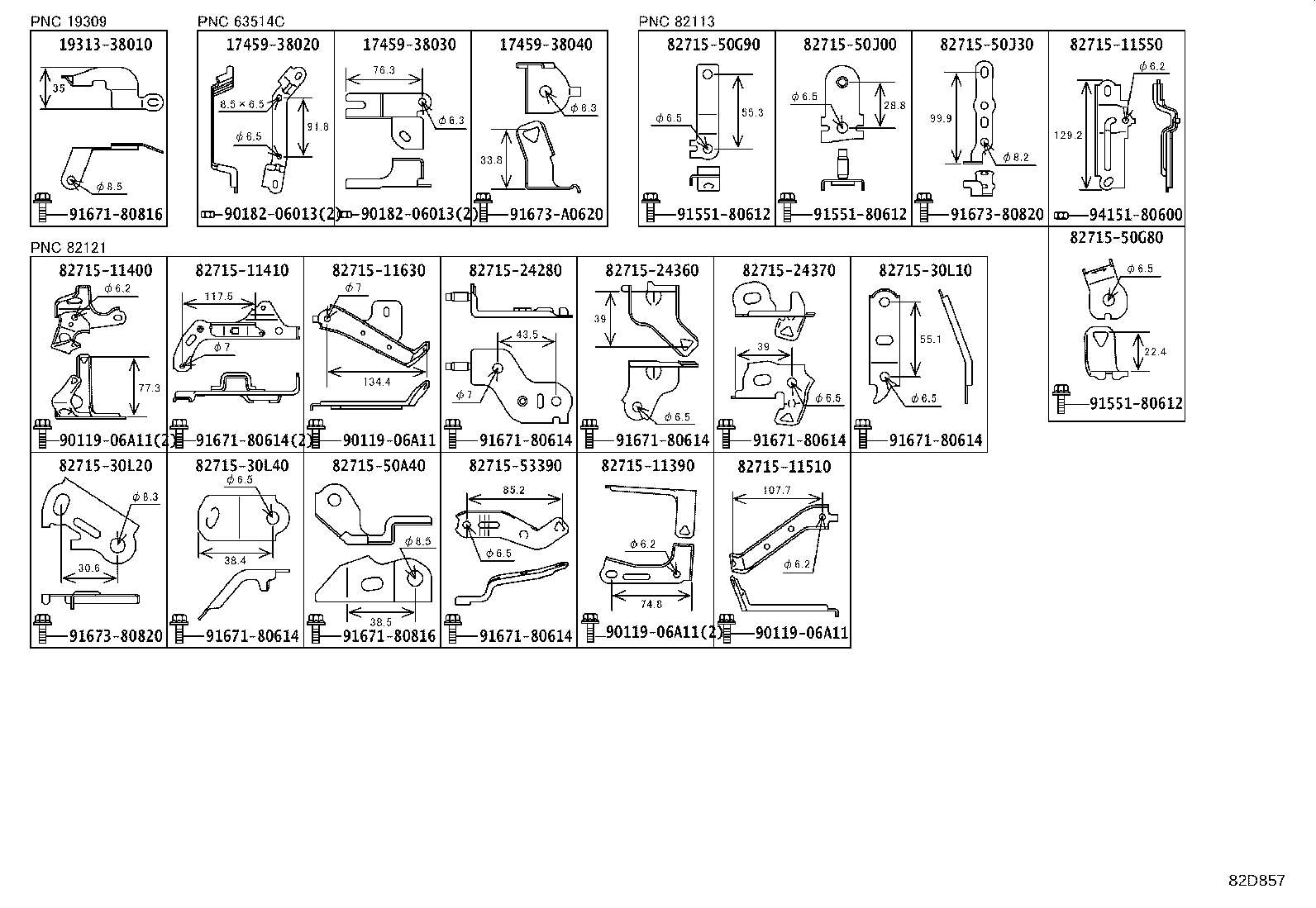

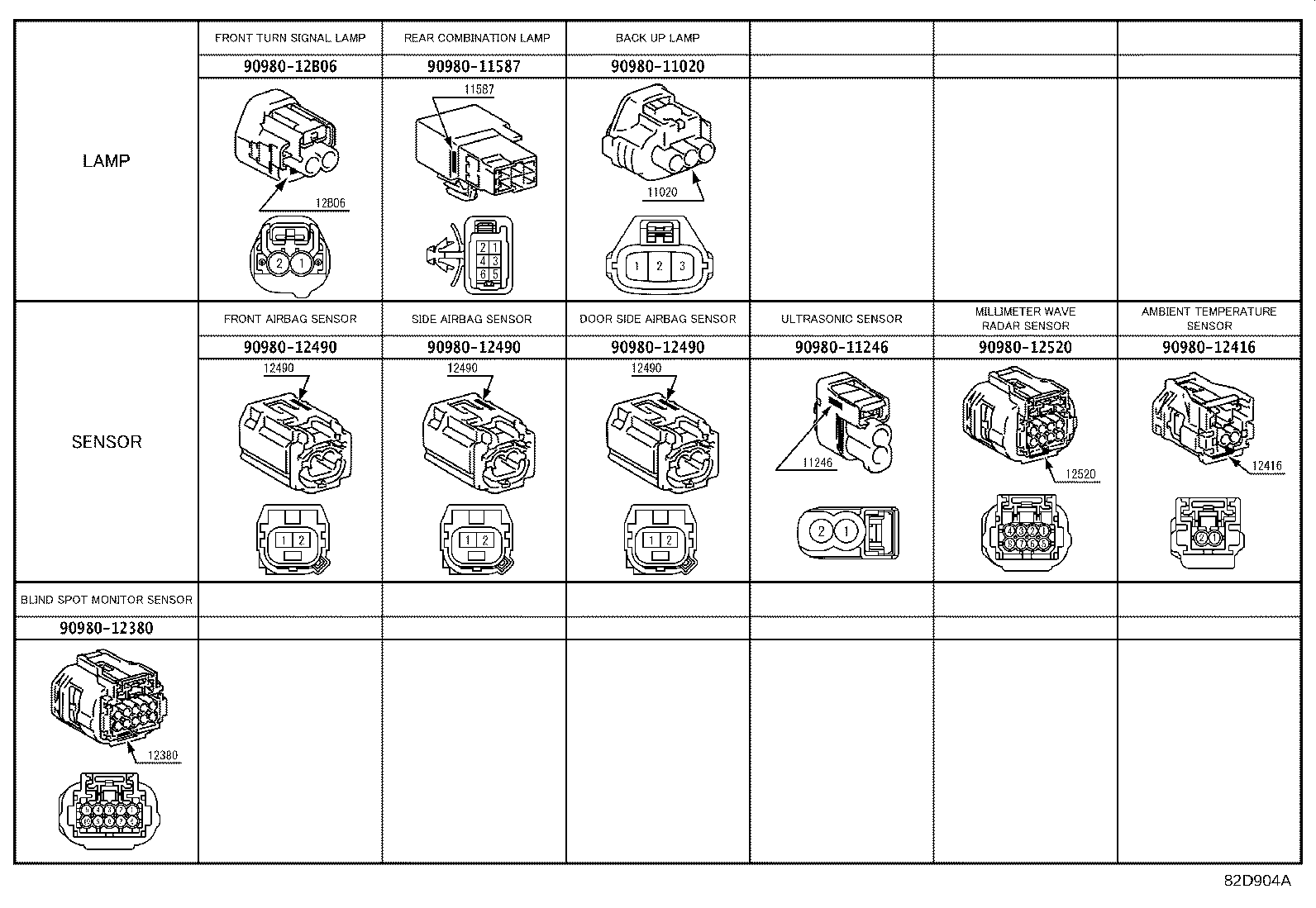

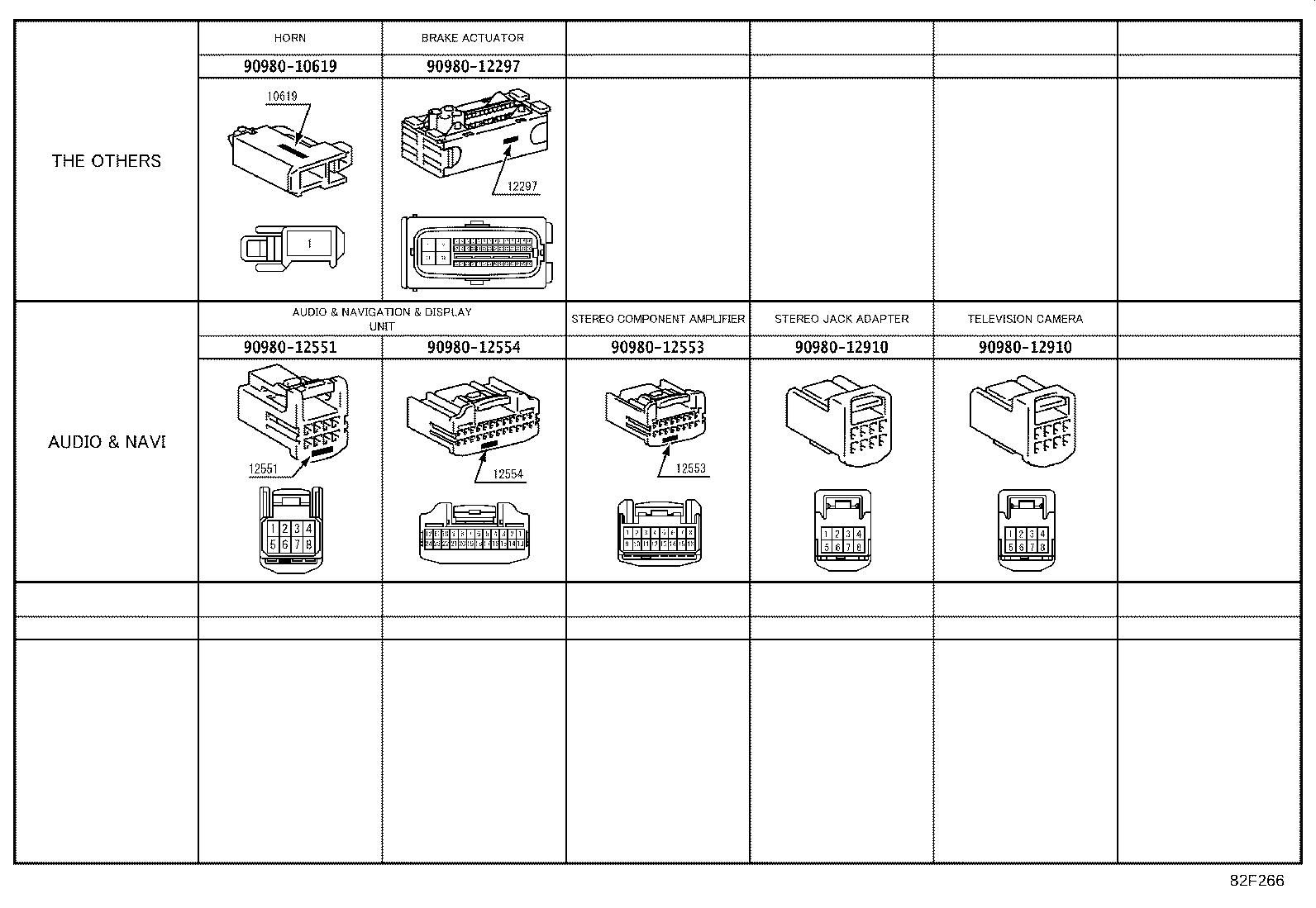

| 19309 | Harness Sub-assy, Cam Position Sensor |
| 63514C | Wire, Connector |

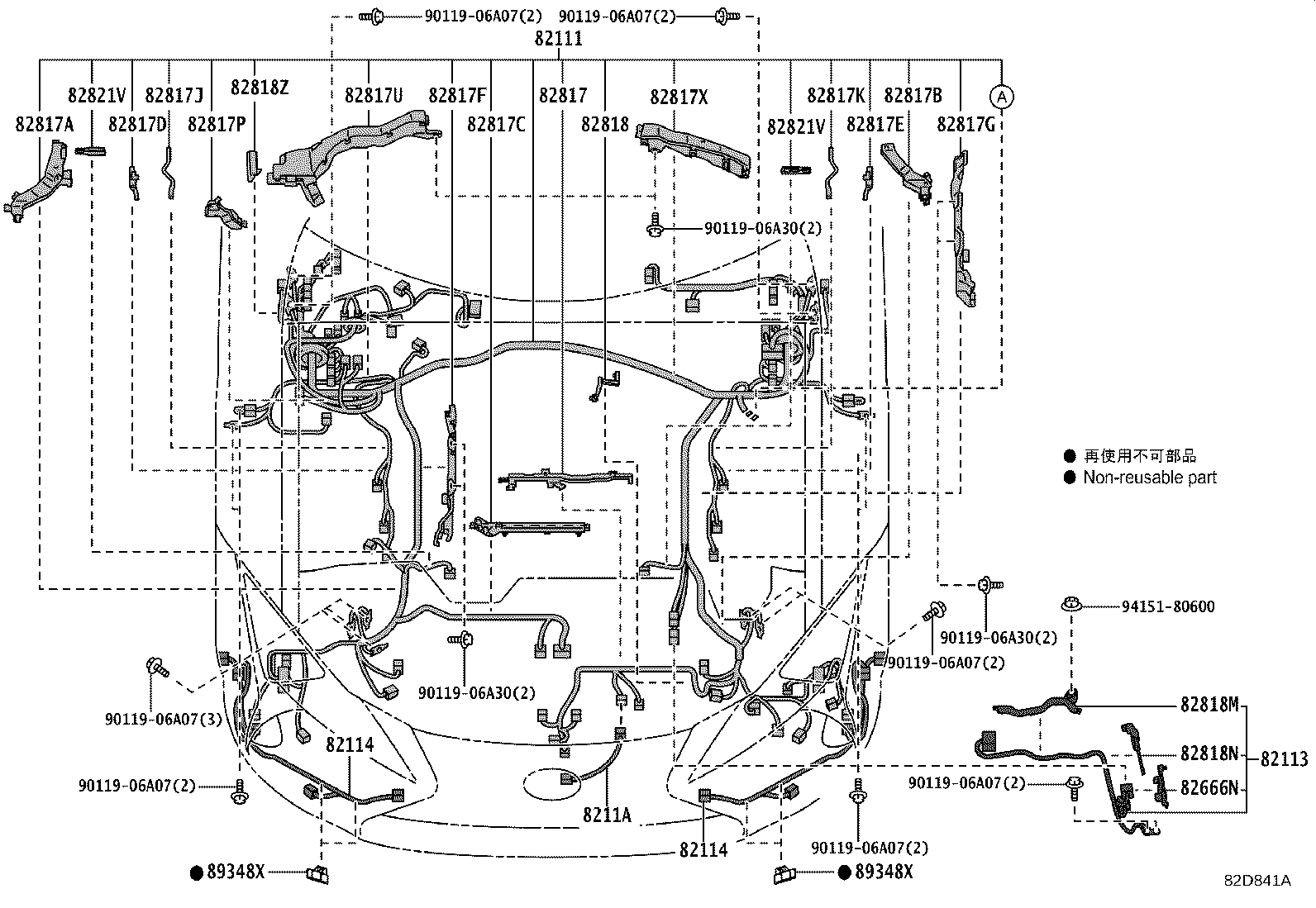

| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |
| 8211A | Wire, Engine Room, NO.6 |

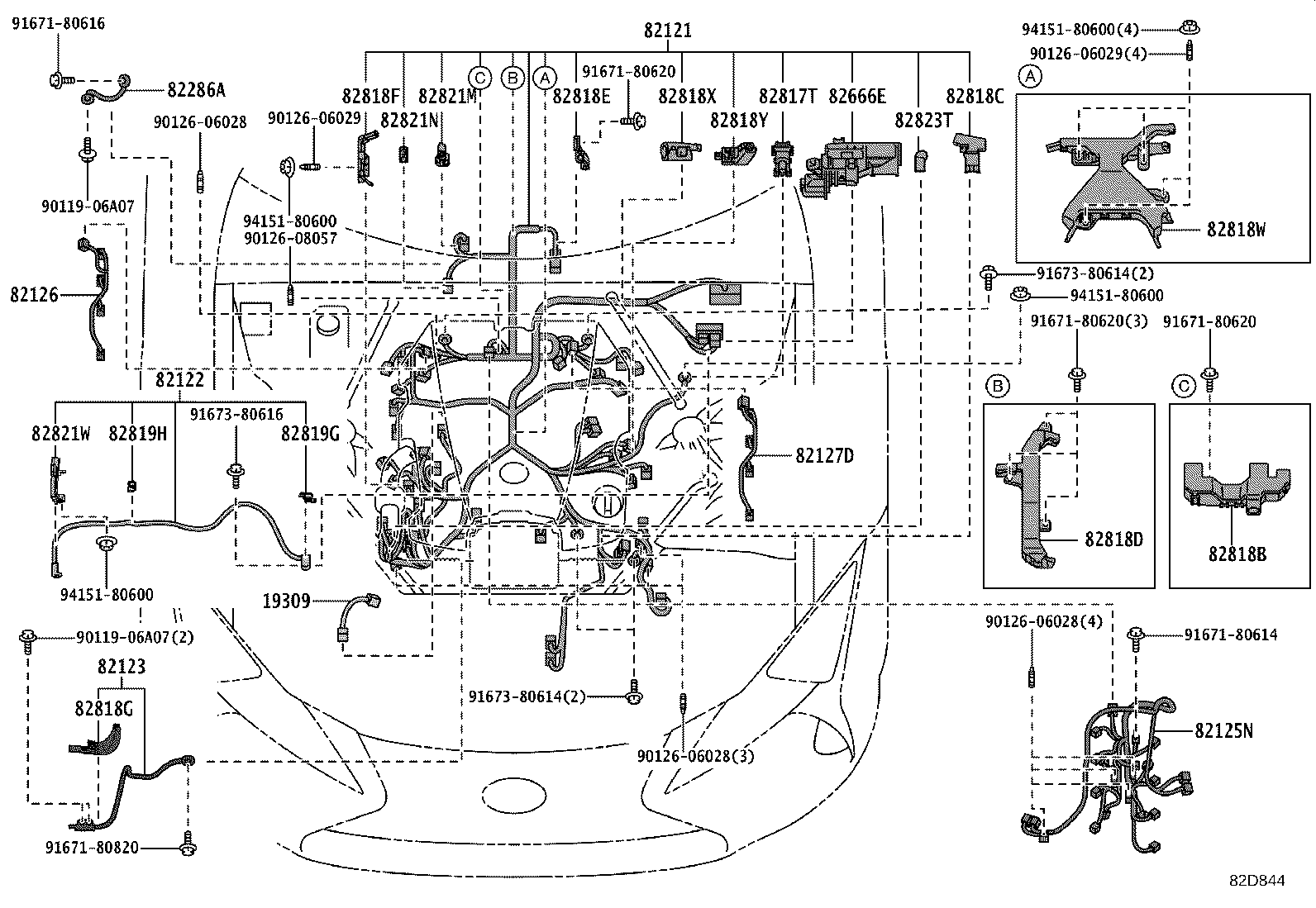

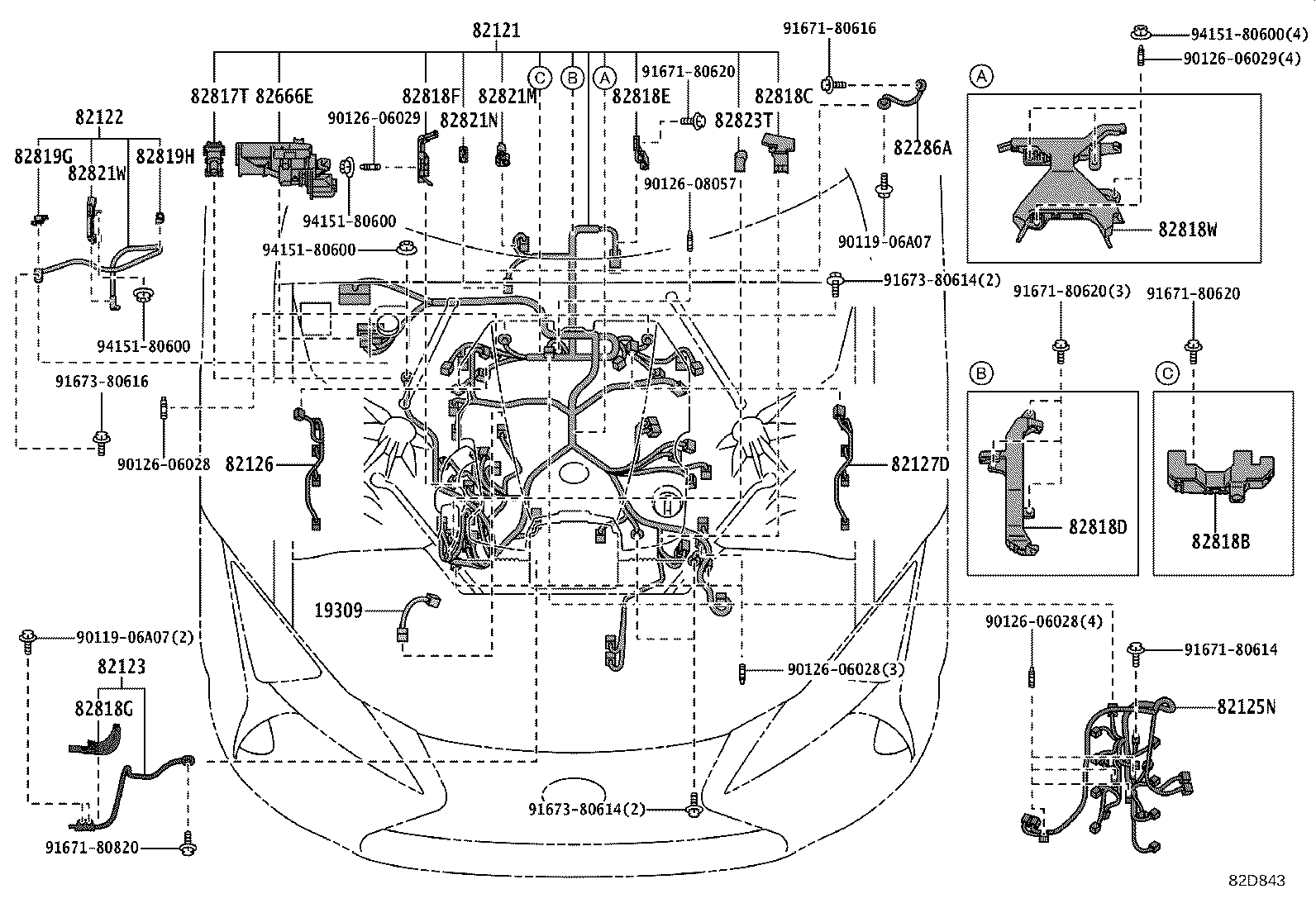

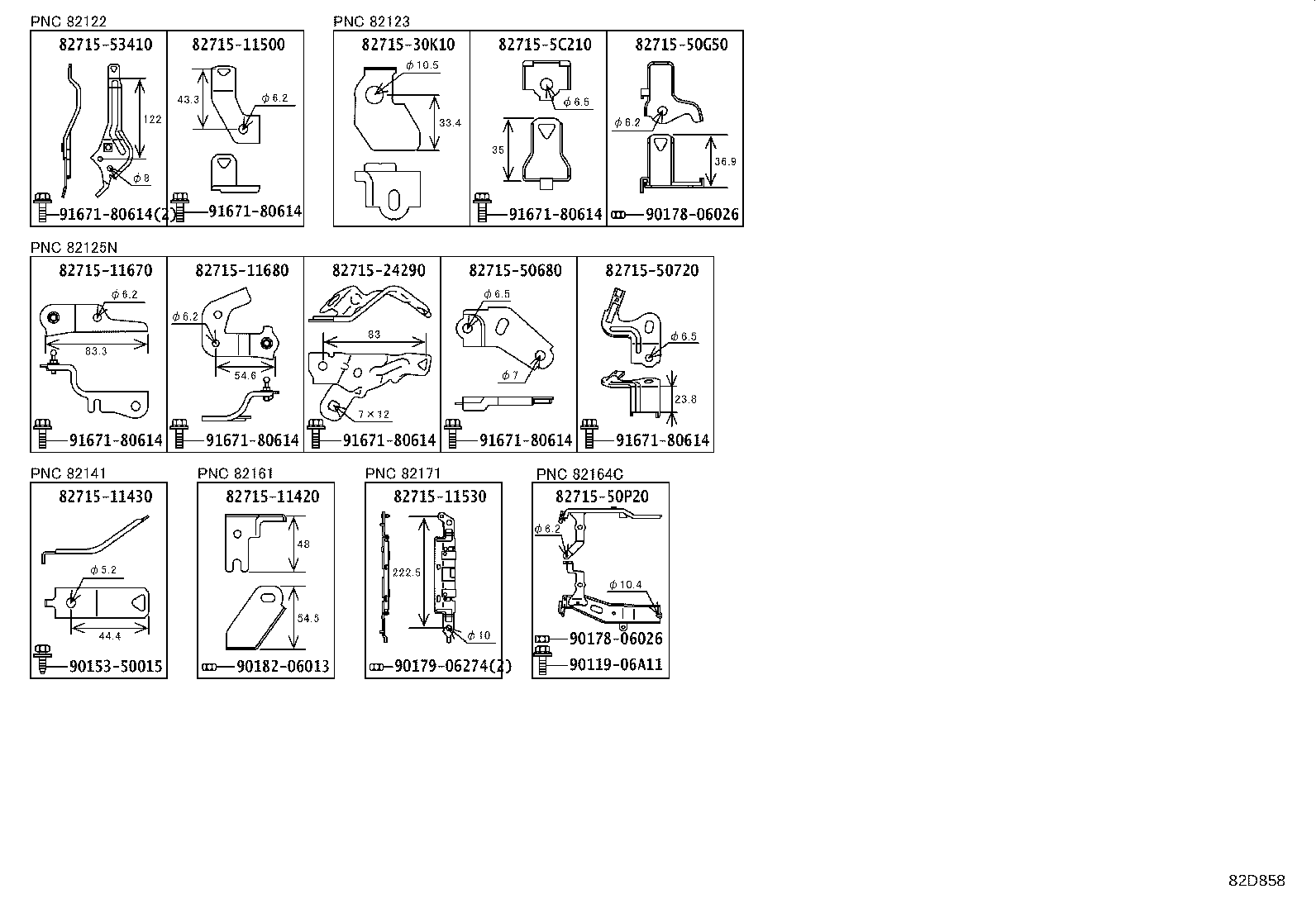

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82125N | Wire, Engine, NO.5 |
| 82126 | Wire, Engine |
| 82127D | Wire, Engine, NO.7 |

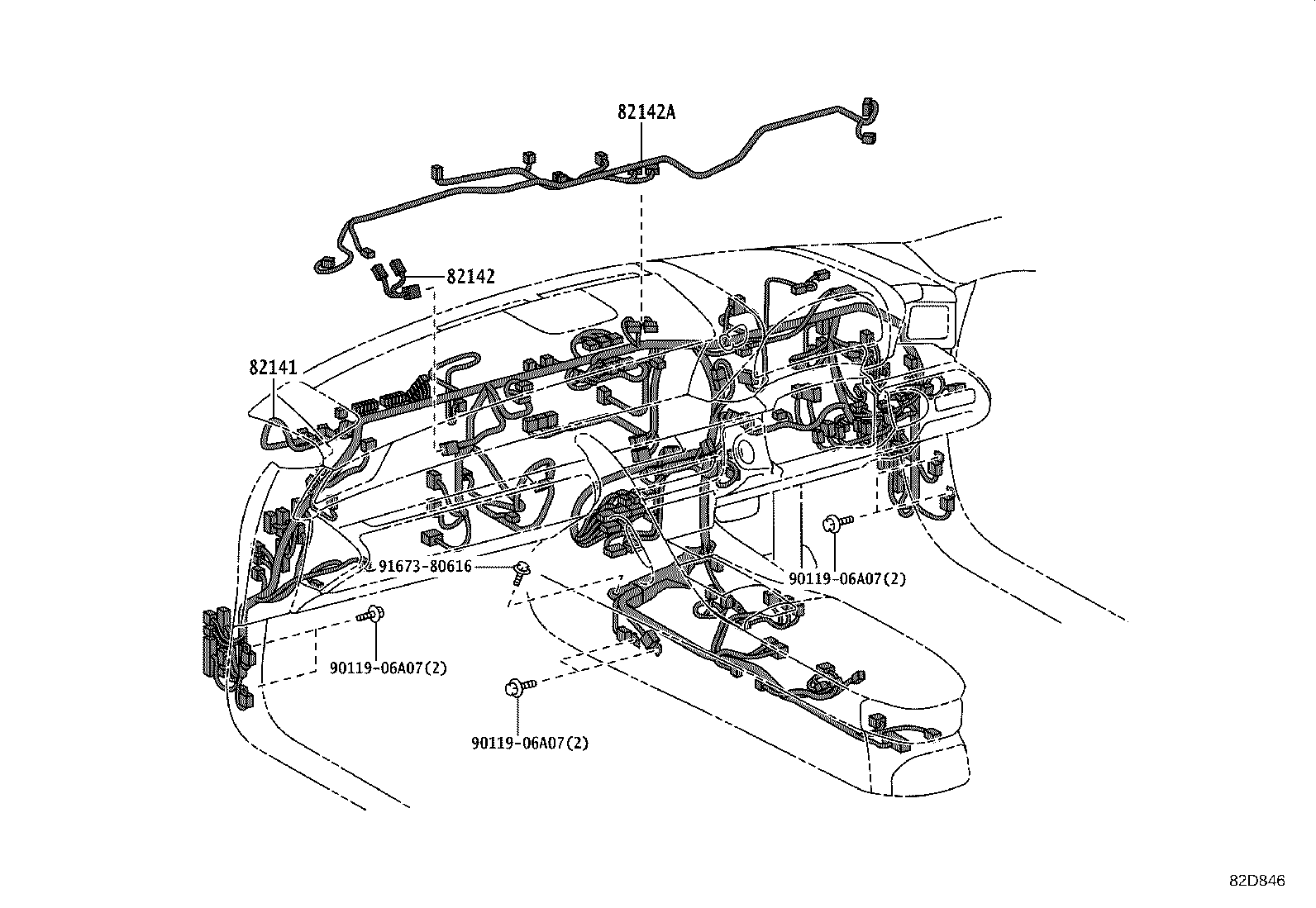

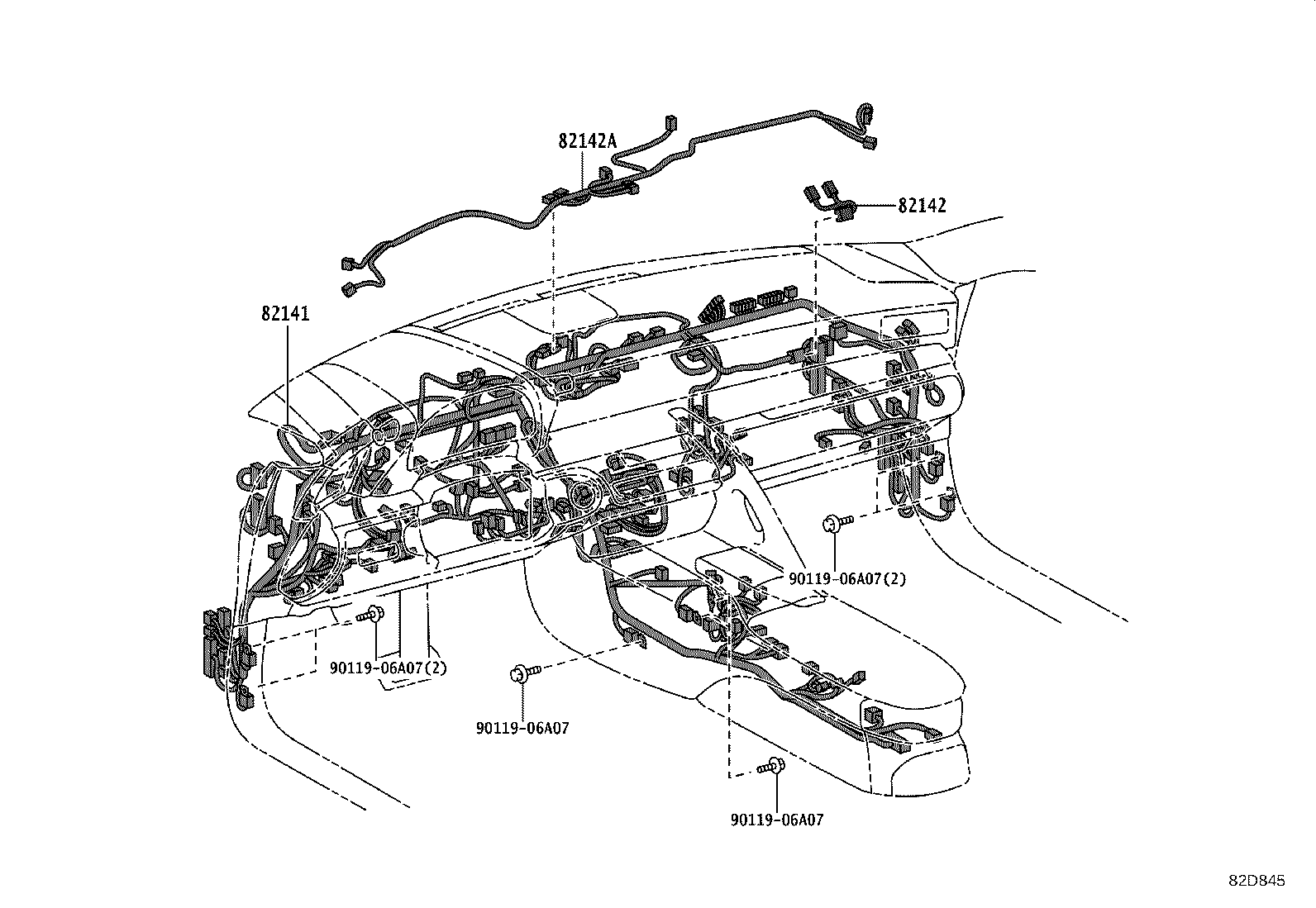

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82142A | Wire, Instrument Panel, NO.2 |

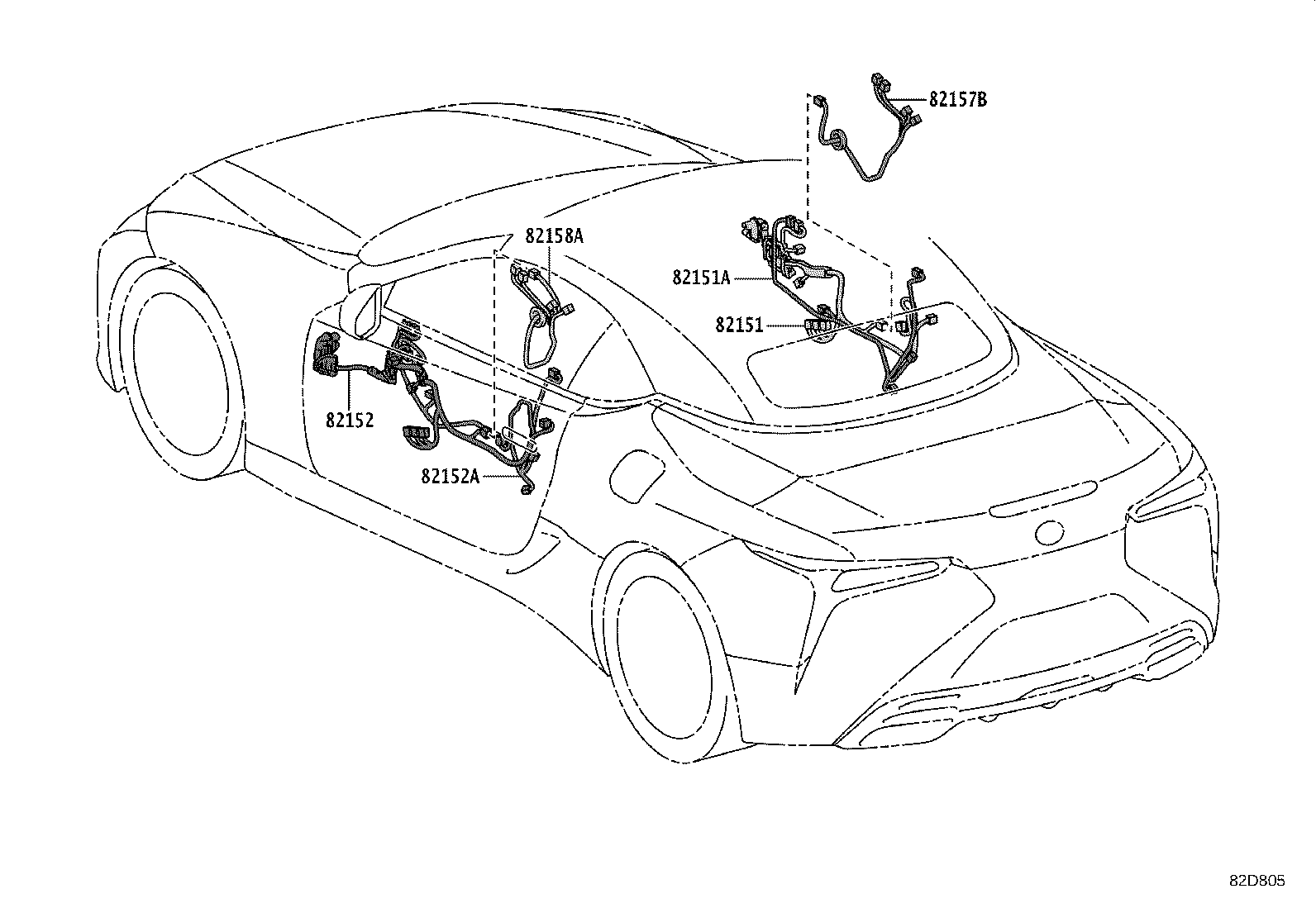

| 82151 | Wire, Front Door, RH |
| 82151A | Wire, Front Door, NO.2, RH |
| 82152 | Wire, Front Door, LH |
| 82152A | Wire, Front Door, NO.2, LH |
| 82157B | Wire, Step Rear Floor, RH |
| 82158A | Wire, Step Panel, LH |

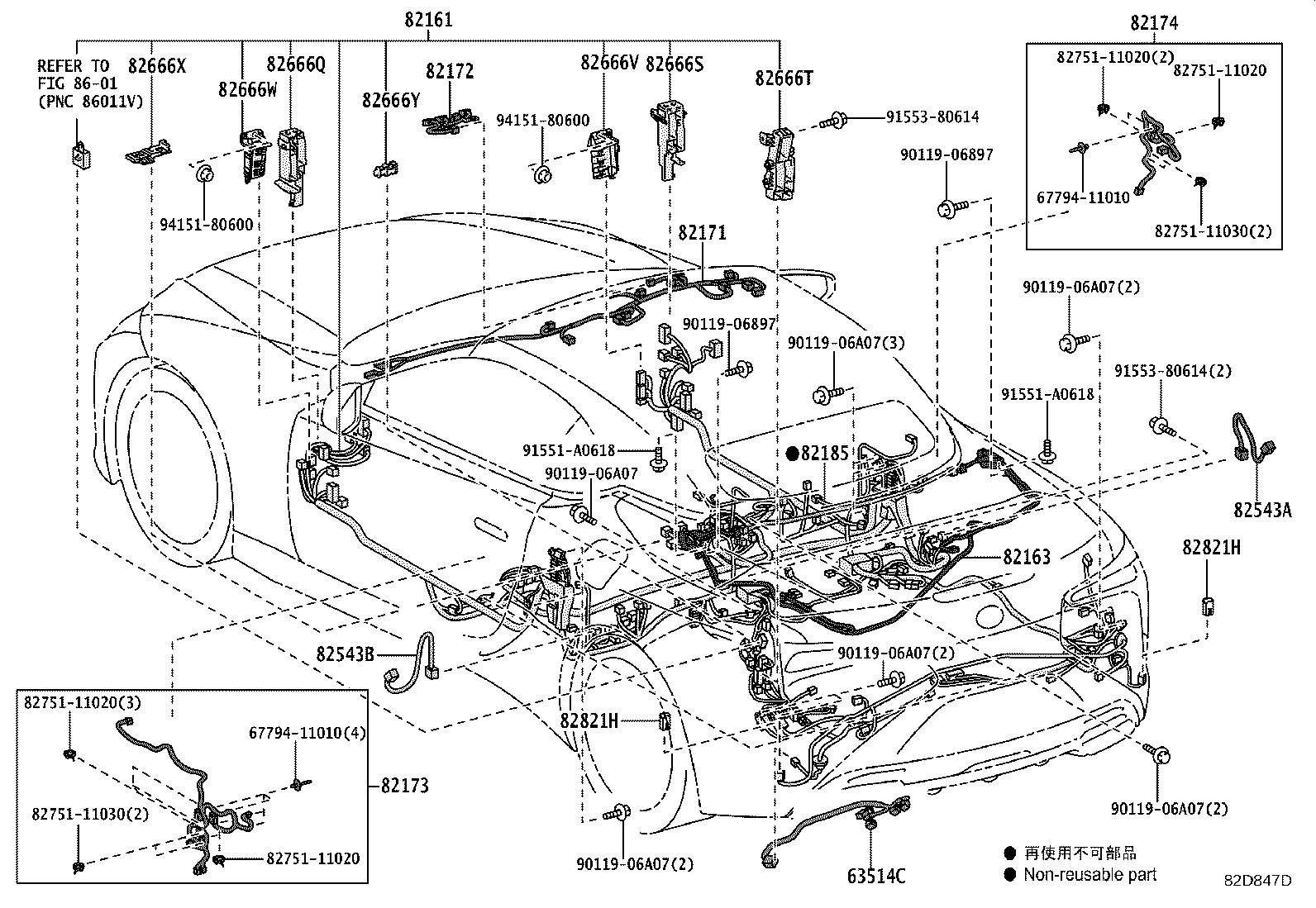

| 82161 | Wire, Floor |
| 82163 | Wire, Floor, NO.3 |

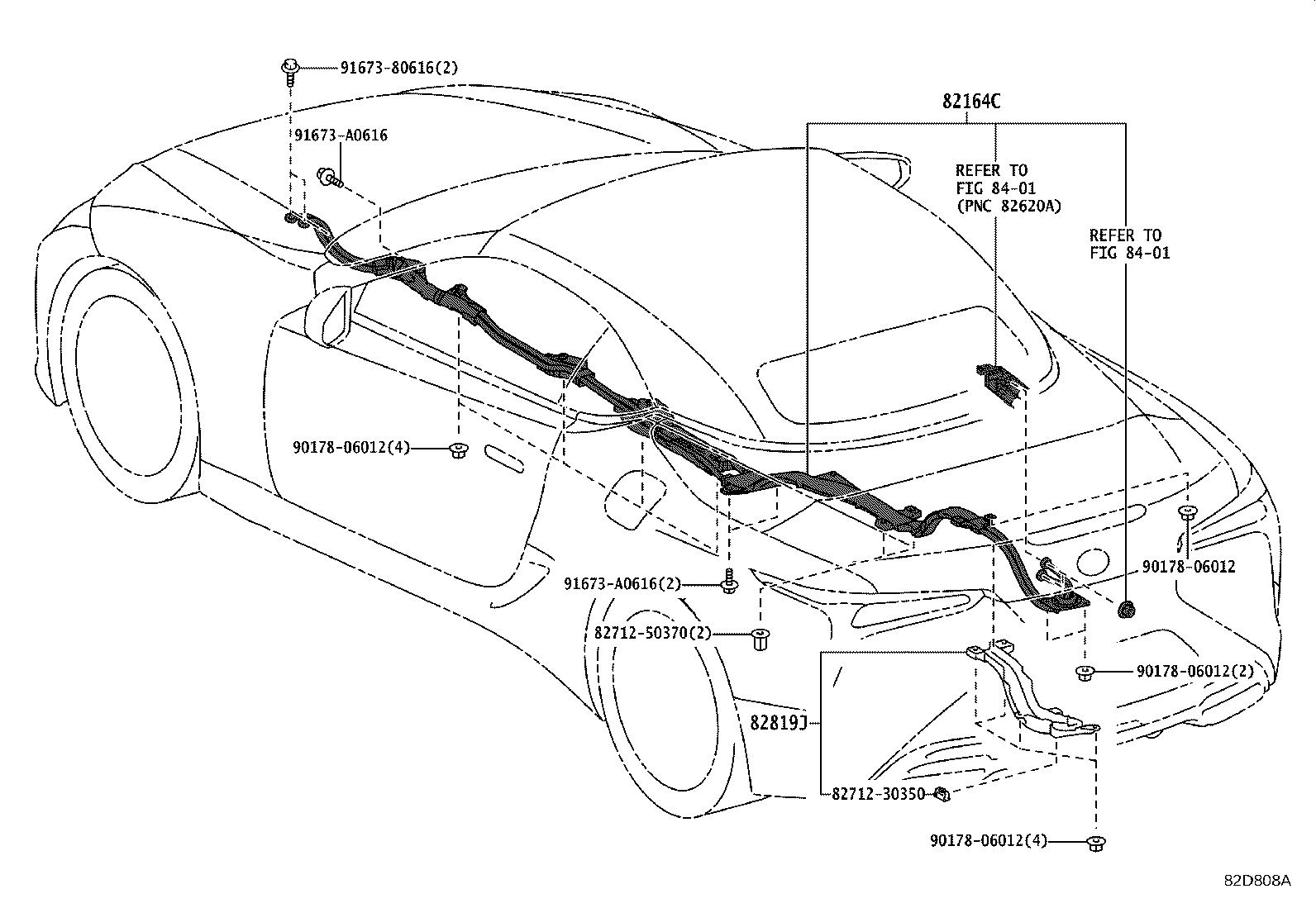

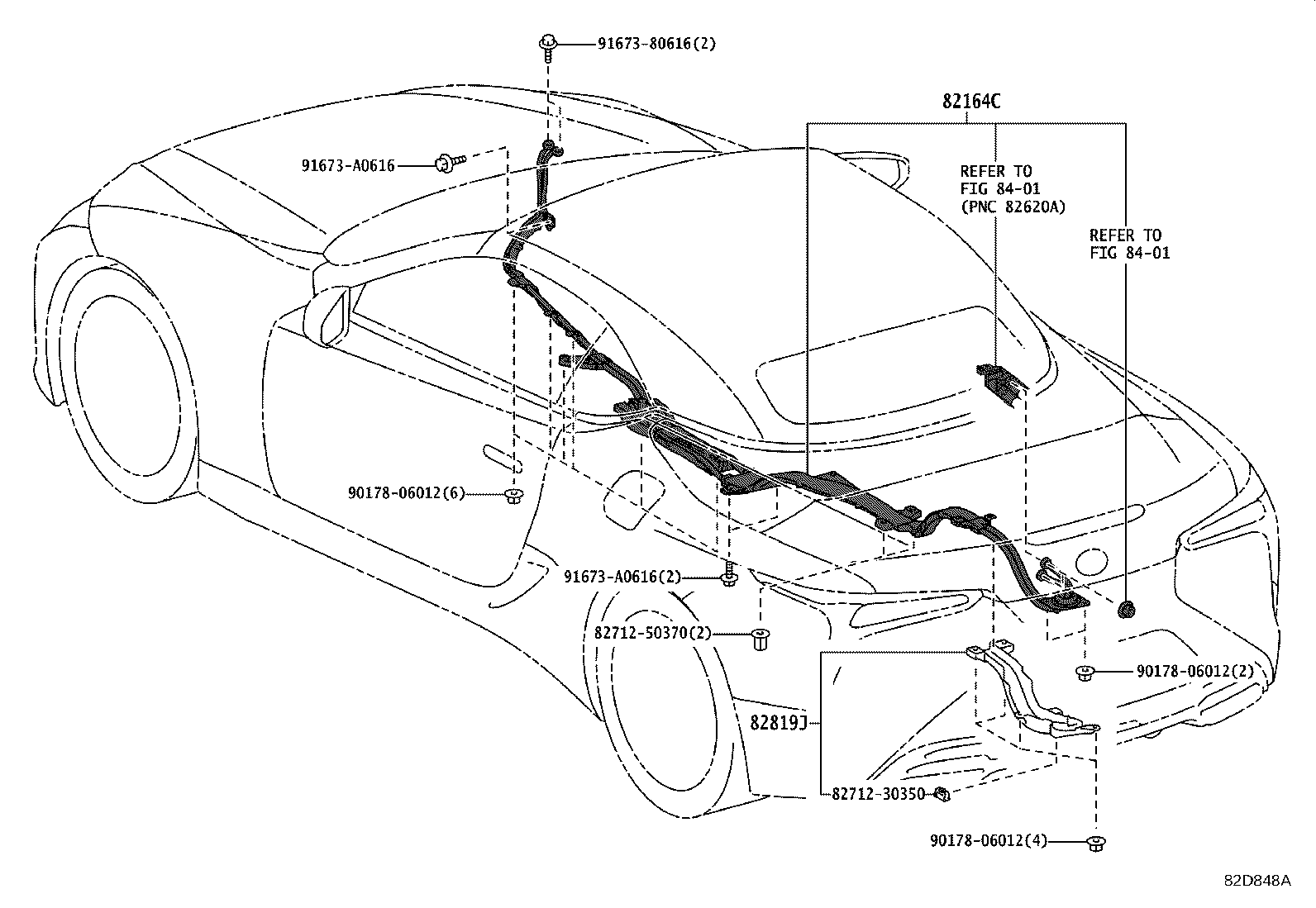

| 82164C | Wire, Floor, NO.4 |
| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82173 | Wire, Roof, NO.3 |
| 82174 | Wire, Roof, NO.4 |

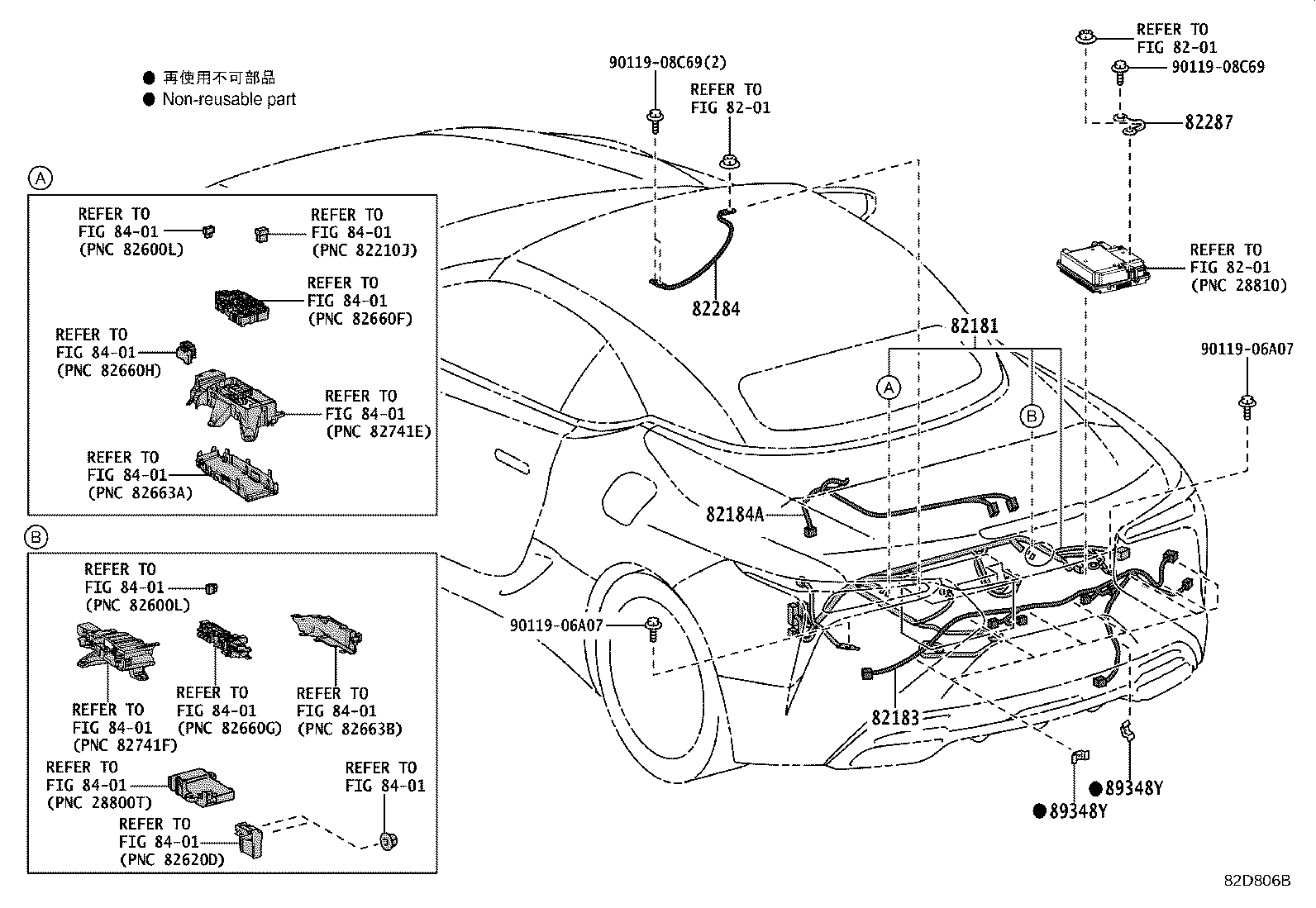

| 82181 | Wire, Luggage Room, NO.1 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184A | Wire, Luggage Room, NO.4 |
| 82185 | Wire, Back Door, NO.2 |

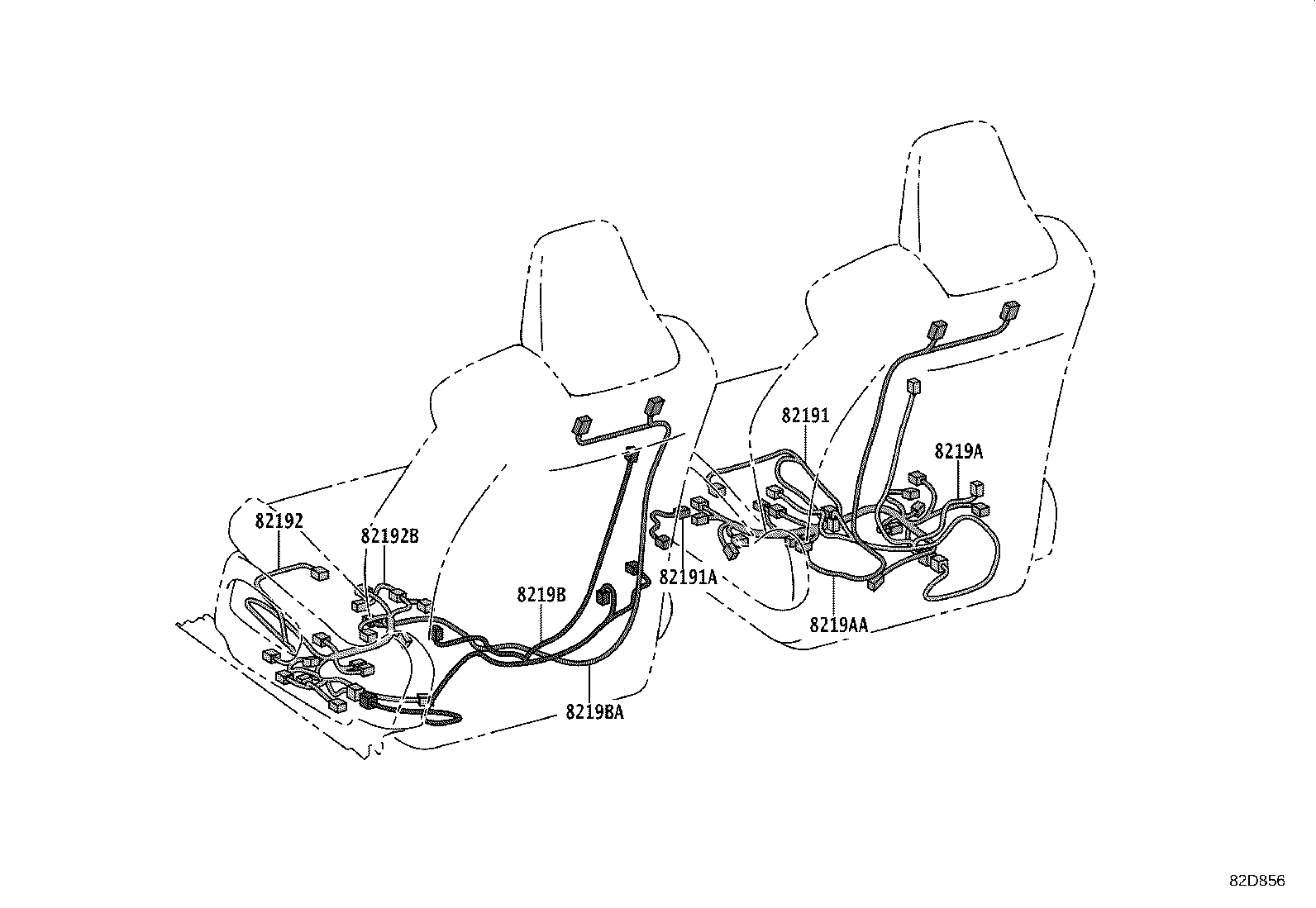

| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219AA | Wire, Front Seat, RH NO.3 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 8219BA | Wire, Front Seat, LH NO.3 |
| 82284 | Wire, Earth |
| 82286A | Wire, Earth, NO.2 |
| 82287 | Wire, Earth, NO.3 |
| 82543A | Wire, Power Window, RH |
| 82543B | Wire, Power Window, LH |

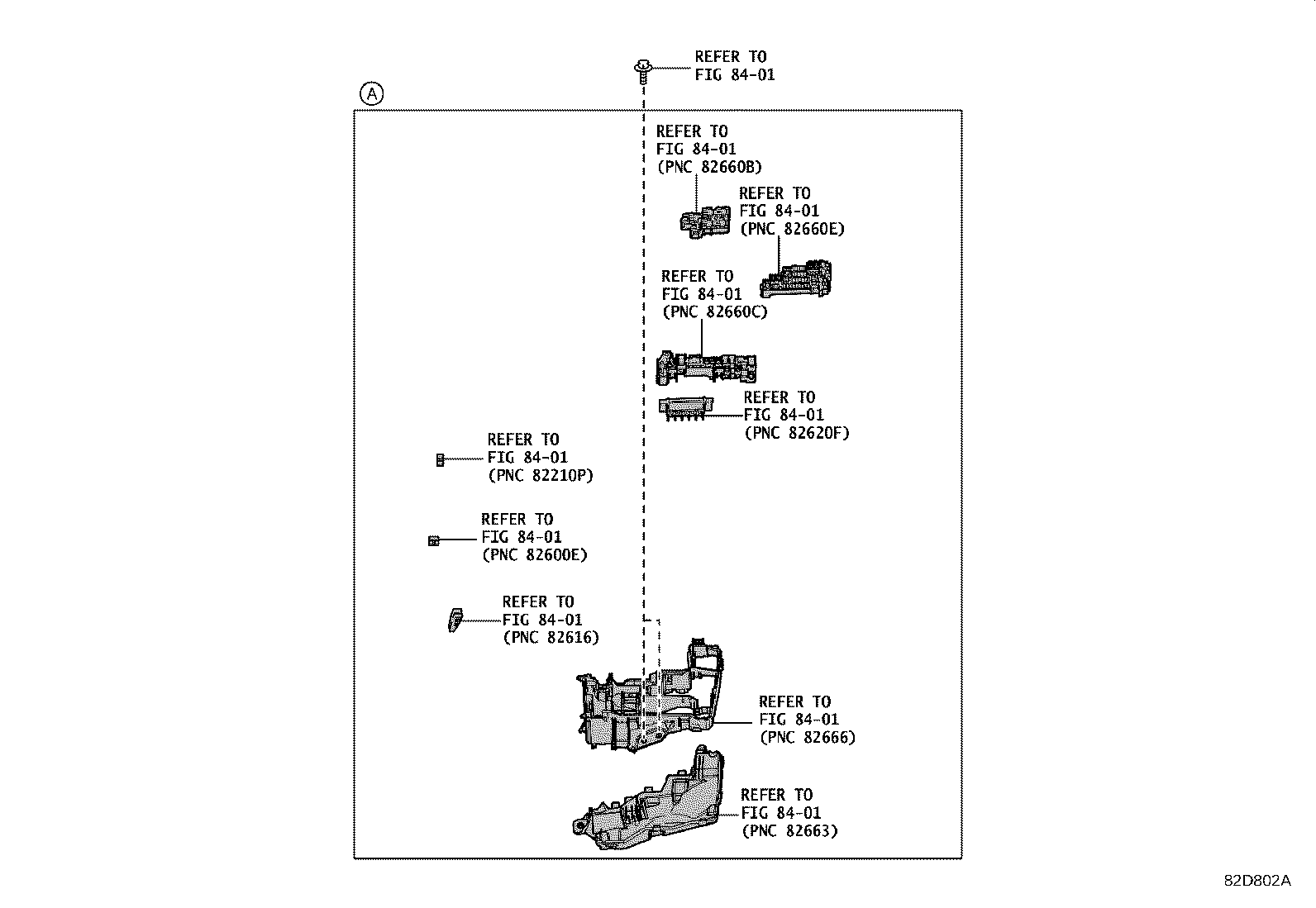

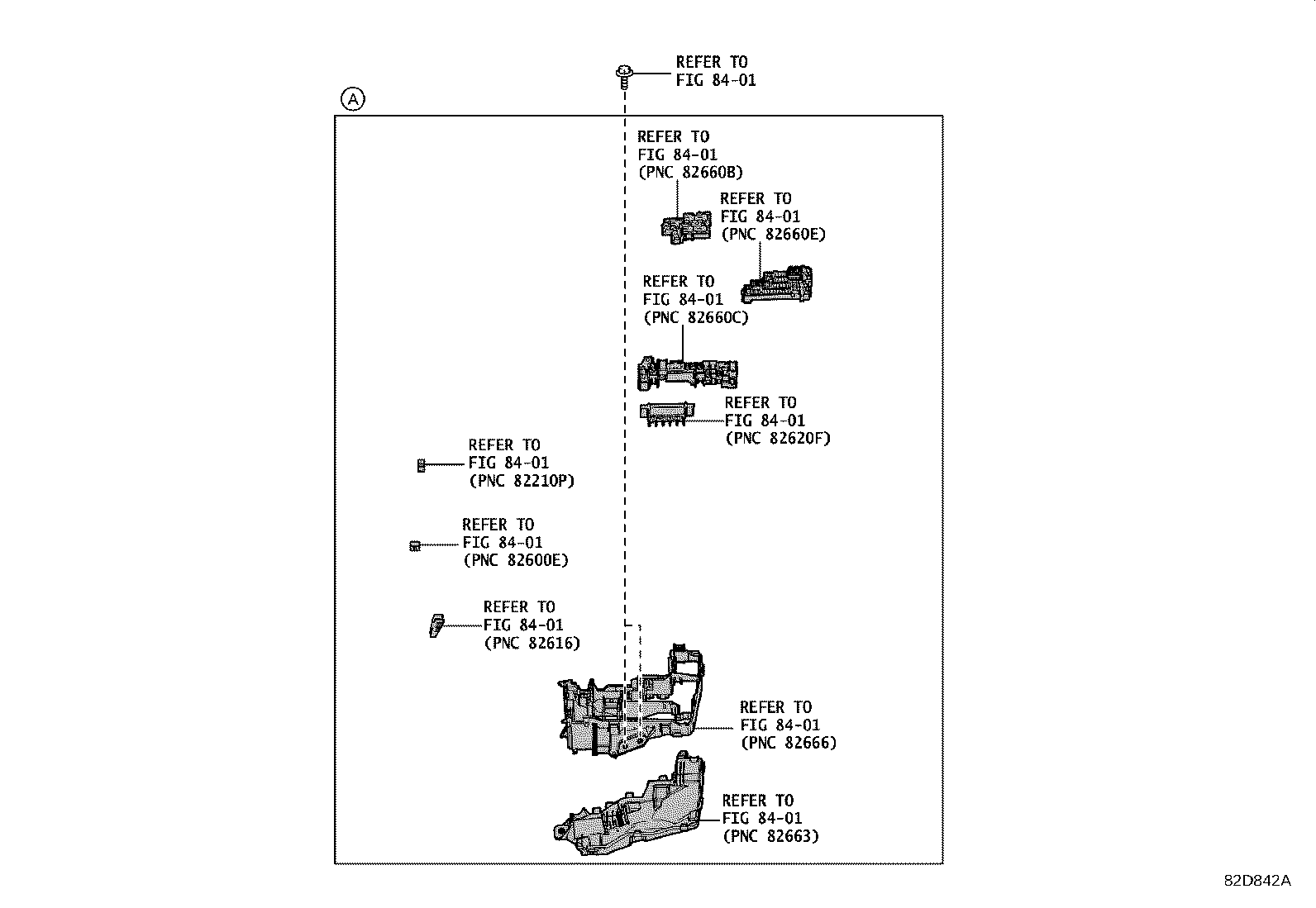

| 82666E | Holder, Connector NO.6 |
| 82666N | Holder, Connector NO.10 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |
| 82666Y | Holder, Connector NO.18 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82818Z | Protector, Wiring Harness, NO.22 |
| 82819G | Protector, Wiring Harness, NO.23 |
| 82819H | Protector, Wiring Harness, NO.24 |
| 82819J | Protector, Wiring Harness, NO.25 |
| 82821H | Cover, Connector |
| 82821M | Cover, Connector |
| 82821N | Cover, Connector |
| 82821V | Cover, Connector |
| 82821W | Cover, Connector |
| 82823T | Cap, Alternator Terminal |
| 89348X | Clip, Ultrasonic Sensor, Front |
| 89348Y | Clip, Ultrasonic Sensor, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
