Toyota Lexus LC500 (CV)

2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

13 part groups · 4 illustrations

Illustrations

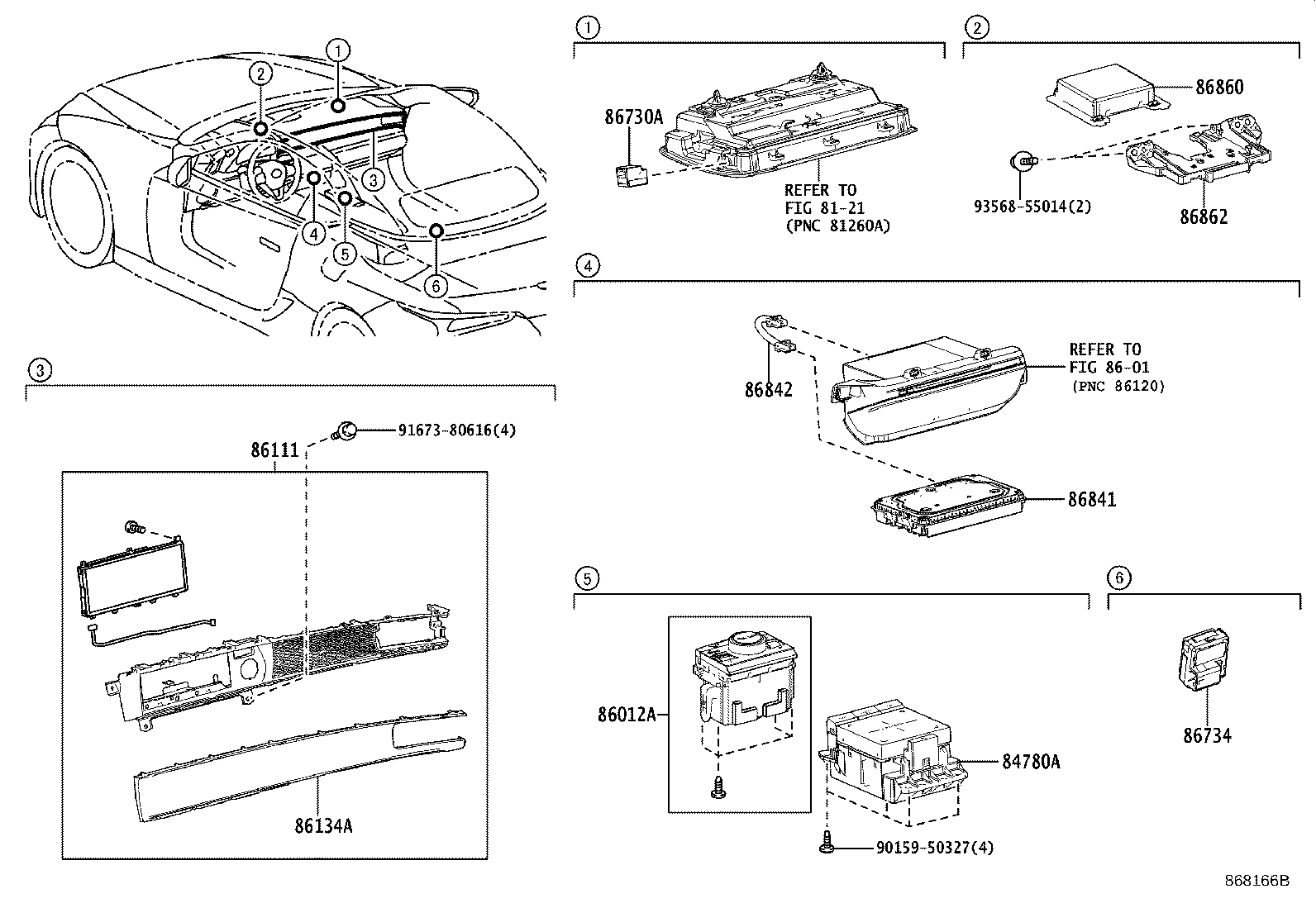

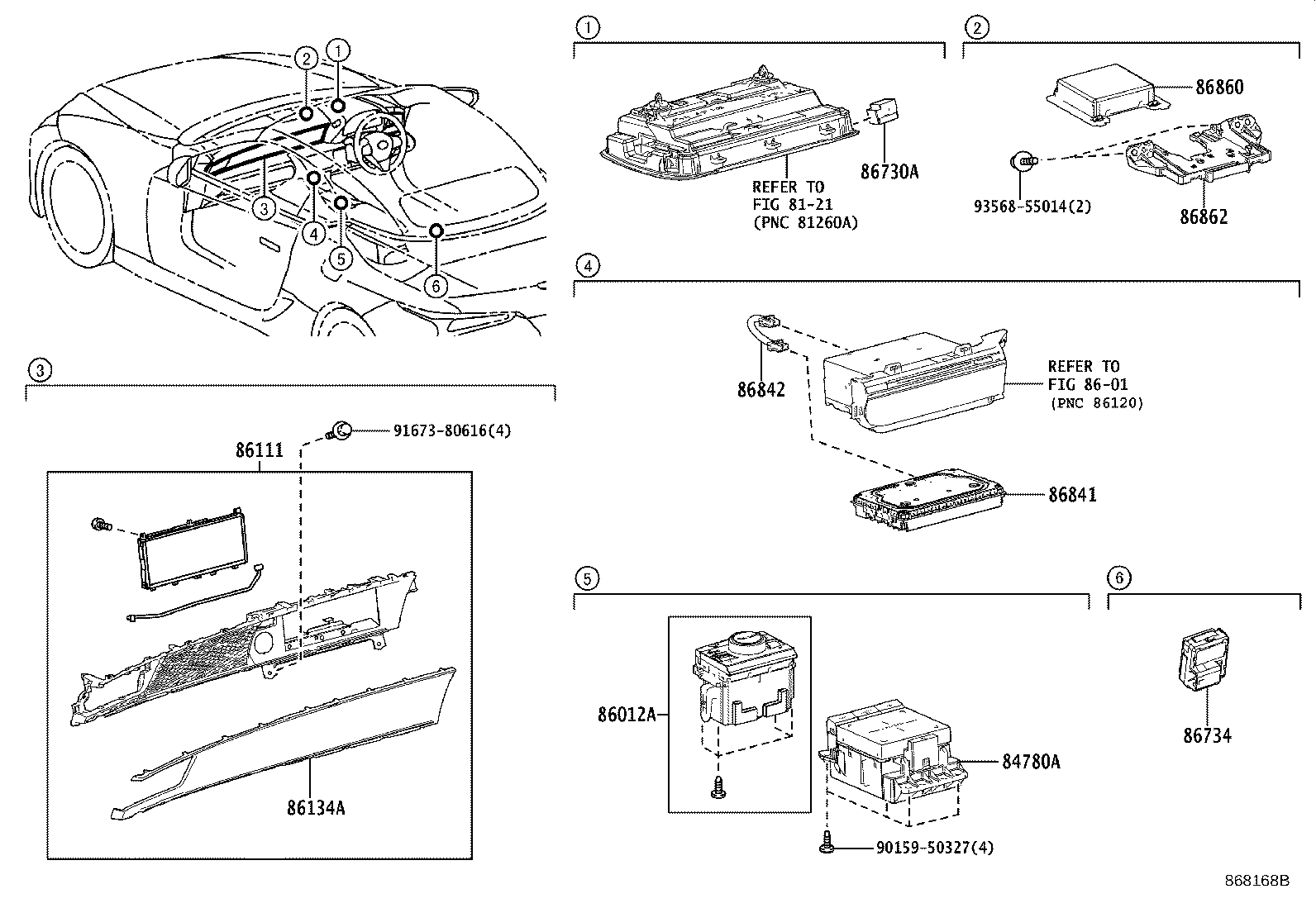

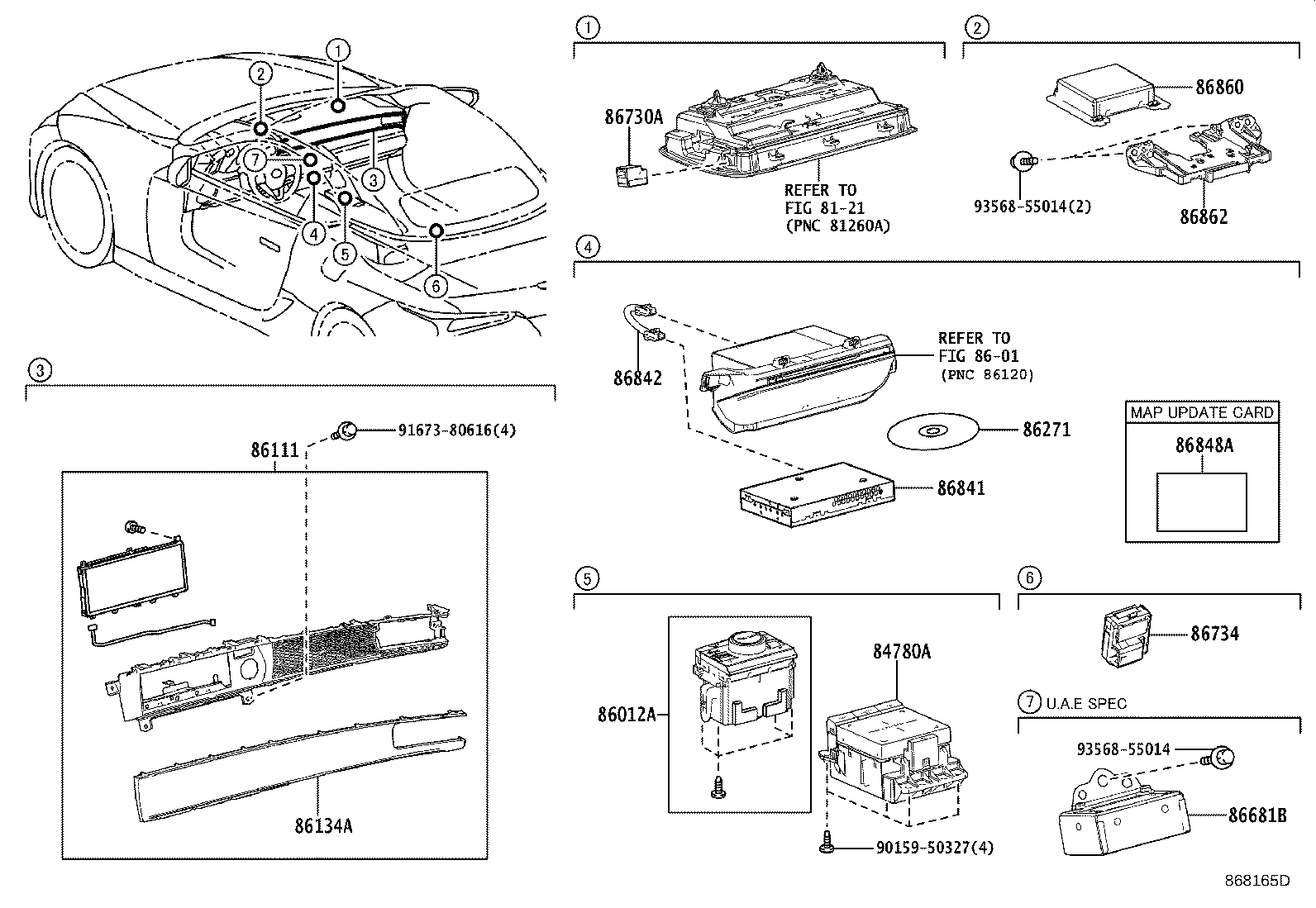

Figure 868164C 868164C 2020-07 → — Figure 868165D 868165D 2020-07 → — Figure 868166B 868166B 2020-07 → — Figure 868168B 868168B 2020-07 → —

Part groups

PNCDescription
84780A Controller Assy, Remote Operation
86012A Parts Set, Radio Setting
86111 Multi-display
86134A Parts, Multi-display
86271 Disc, Disc Player
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86734 Microphone, Active Noise Control
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
