Toyota Lexus LC500 (CV)
2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe
Supported model
Data version 2024-06
Pre-collision System

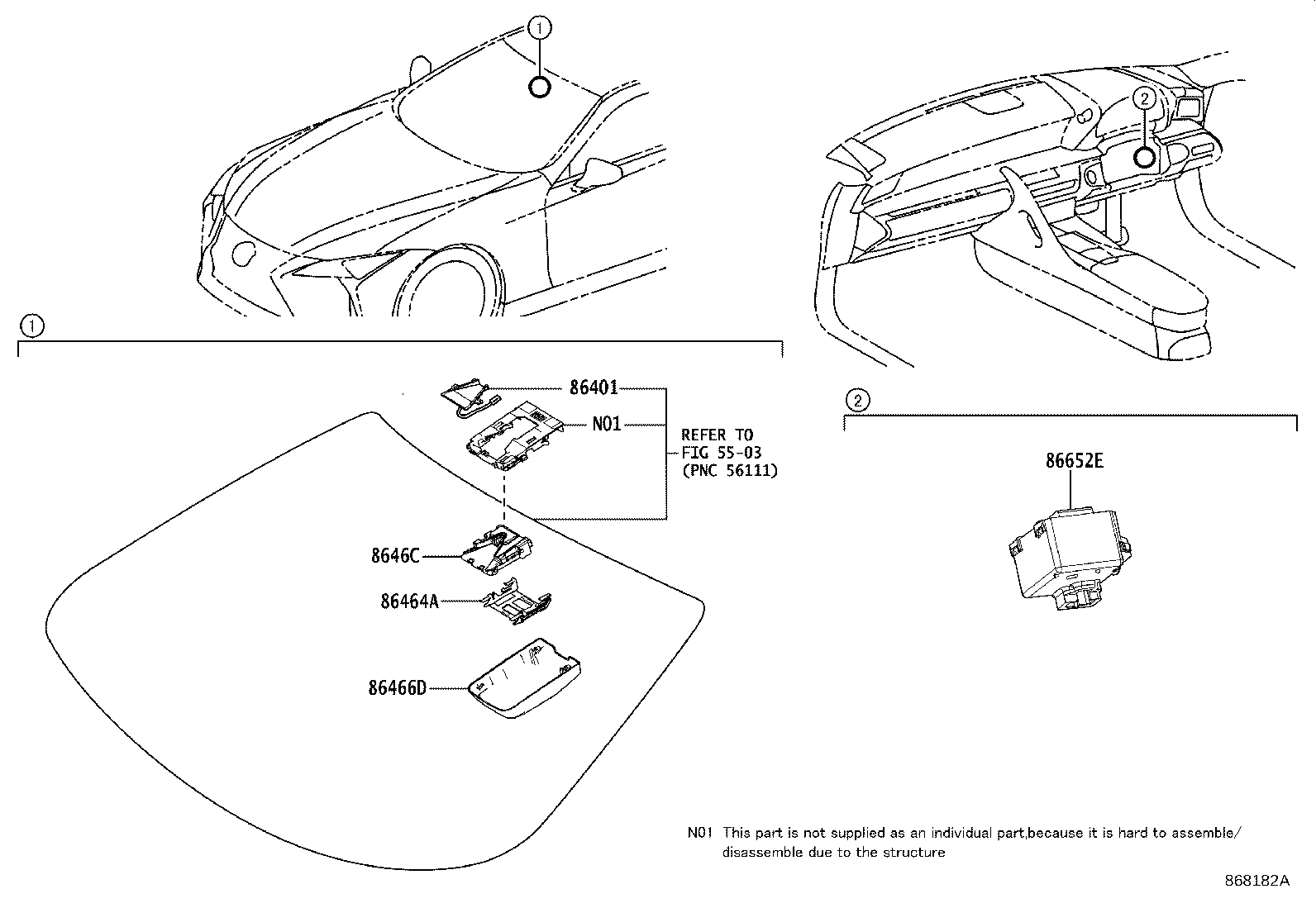

5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86401 | Hood Sub-assy, Forward Recognition W/Heater |
| 86464A | Latch, Forward Recognition |
| 86466D | Cover, Forward Recognition, NO.1 |
| 8646C | Camera, Forward Recognition |
| 86652E | Buzzer, Pre-collision City |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
