Toyota Lexus LC500 (CV)

2020-07 → 2023-05 · chassis URZ100 · catalogue 434210 · Europe

Supported model Data version 2024-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 2 illustrations

Illustrations

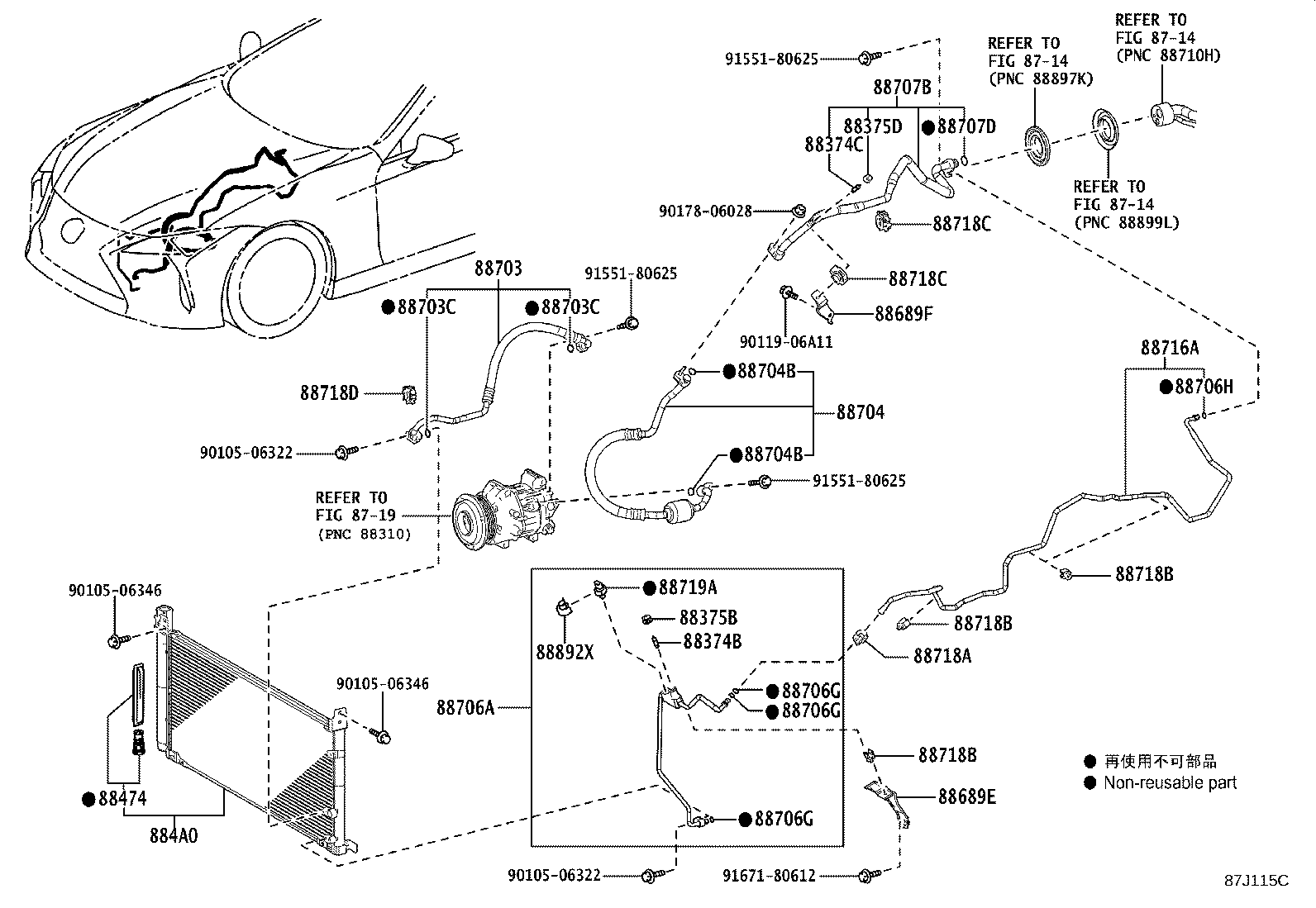

Figure 87J114C 87J114C 2020-07 → — Figure 87J115C 87J115C 2020-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88474 Dryer, Cooler
884A0 Condenser Assy, Cooler
88689E Bracket, Cooler, NO.1
88689F Bracket, Cooler, NO.2
88689G Bracket, Cooler, NO.3
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88706A Tube Sub-assy, Liquid, A
88706G Ring, O(FOR LIQUID TUBE)
88706H Ring, O, NO.2(FOR LIQUID TUBE)
88707B Tube Sub-assy, Suction, B
88707D Ring, O(FOR SUCTION TUBE)
88716A Pipe, Cooler Refrigerant Liquid, A
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88718D Clamp, NO.4(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
