Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

30 part groups · 2 illustrations

Illustrations

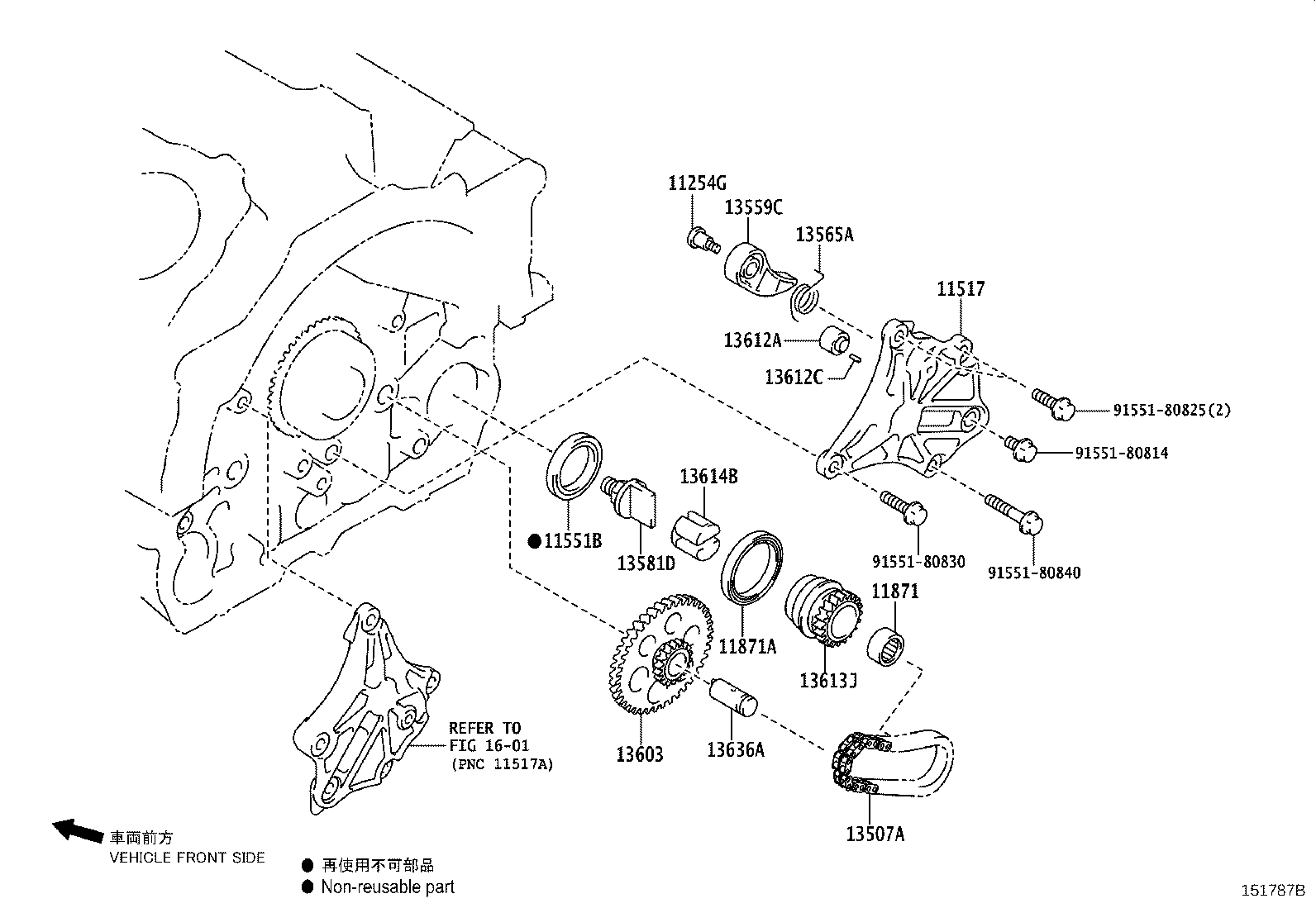

Figure 15382J 15382J 2010-12 → — Figure 151787B 151787B 2010-12 → —

Part groups

PNCDescription
11254G Bolt, V-bank Cover
11517 Housing, Balanceshaft, NO.1
11551B Seal, Crankshaft Rear Oil
11871 Bearing, Oil Pump Drive Shaft, NO.1
11871A Bearing, Oil Pump Drive Shaft, NO.2
13507A Chain Sub-assy, Oil Pump Drive
13559C Slipper, Chain Tensioner
13565A Spring, Chain Damper
13581D Shaft, Idle Gear
13603 Gear Sub-assy, Balanceshaft
13612A Shaft, Pump Drive
13612C Pin, Straight(FOR PUMP DRIVE SHAFT)
13613J Sprocket, Hydraulic Pump Drive
13614B Coupling, Supply Pump Drive
13636A Shaft, Balanceshaft Drive Gear
15100 Pump Assy, Oil
15100T Ring, O(FOR OIL PUMP NO.1)
15100U Ring, O(FOR OIL PUMP NO.2)
15193B Gasket, Oil Pump NO.1
15193C Gasket, Oil Pump NO.2
15193D Gasket, Oil Pump NO.3
15310H Regulator Assy, Oil
15413G Pipe, Oil Pump Outlet, NO.1
15413H Pipe, Oil Pump Outlet, NO.2
15413J Pipe, Oil Pump Outlet, NO.3
15413K Plug, Straight(FOR OIL PUMP OUTLET PIPE)
15413L Gasket(FOR OIL PUMP OUTLET PIPE STRAIGHT PLUG)
15413M Ring, O(FOR OIL PUMP OUTLET PIPE)
15772H Pipe, Oil, NO.2
15772J Ring, O(FOR OIL PIPE NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
