Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

9 part groups · 2 illustrations

Illustrations

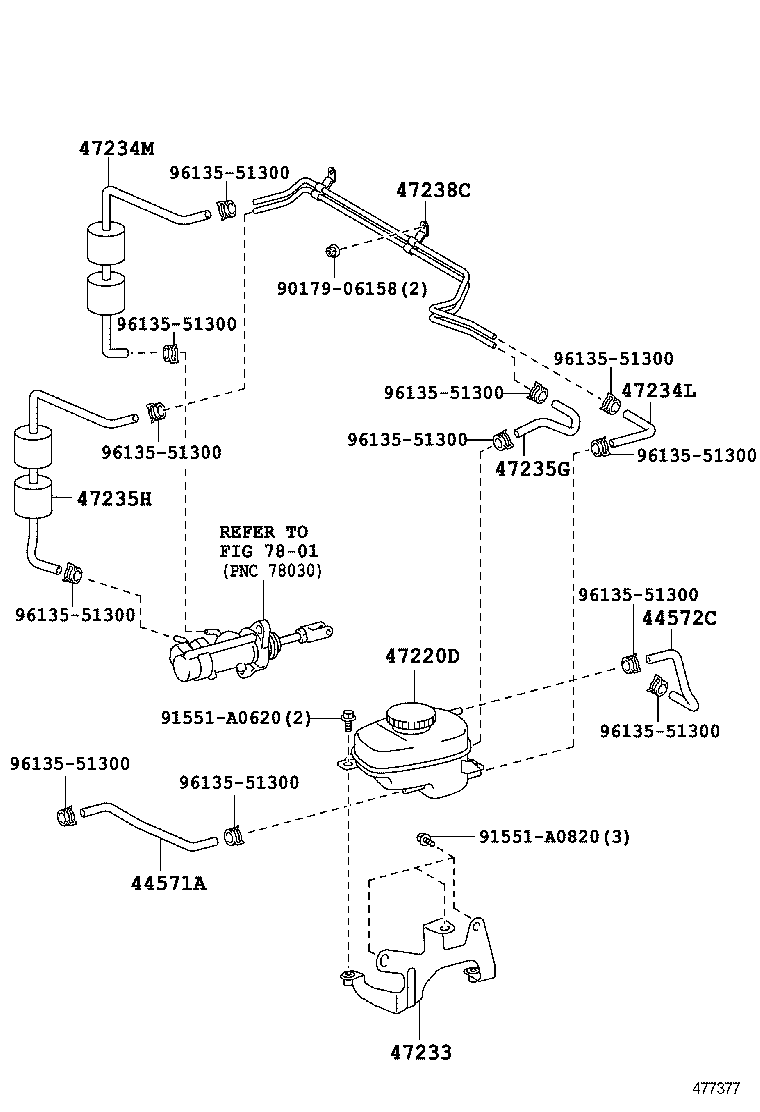

Figure 477378 477378 2010-12 → — Figure 477377 477377 2010-12 → —

Part groups

PNCDescription
44571A Hose, Brake Actuator, NO.1
44572C Hose, Brake Actuator, NO.2
47220D Reservoir Assy, Brake Master Cylinder
47233 Bracket, Reservoir
47234L Hose, Reservoir, NO.1
47234M Hose, Reservoir, NO.1
47235G Hose, Reservoir, NO.2
47235H Hose, Reservoir, NO.2
47238C Tube, Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
