Toyota Lexus Lfa
2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe
Supported model
Data version 2013-01

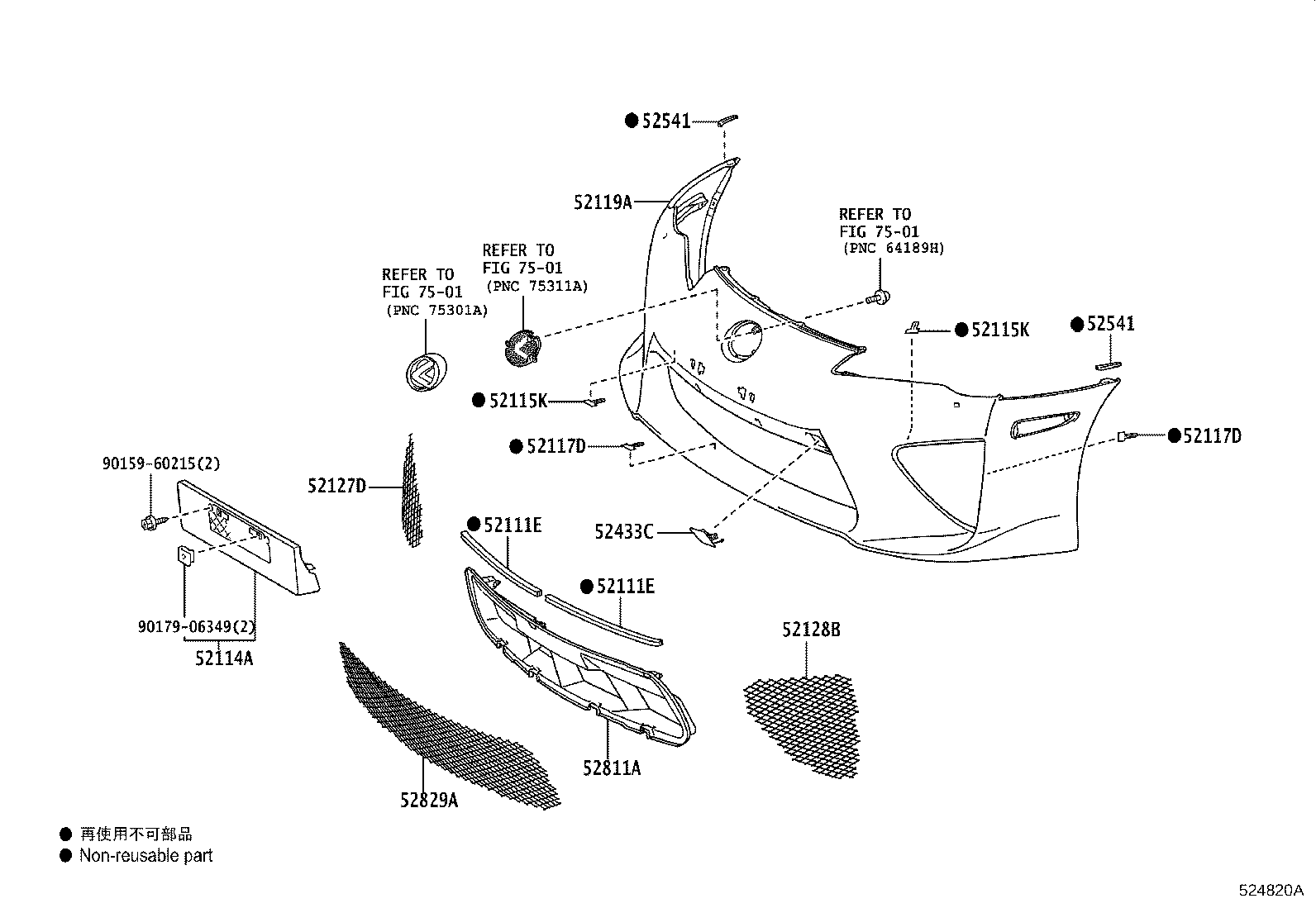

Front Bumper & Bumper Stay
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52011A | Arm Sub-assy, Front Bumper, RH |
| 52012A | Arm Sub-assy, Front Bumper, LH |
| 52111E | Bar, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115K | Support, Front Bumper Side |
| 52117D | Support, Front Bumper Side, Lower |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52131A | Reinforcement, Front Bumper |
| 52141D | Stay, Front Bumper, RH |
| 52142C | Stay, Front Bumper, LH |
| 52197E | Bracket, Front Bumper Seal |
| 52217F | Bolt, Body Mounting |
| 52421A | Pad, Front Bumper |
| 52433C | Plug, Front Bumper Cover Hole |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52541 | Protector, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
| 52675 | Support, Front Bumper Lower Side, RH |
| 52676 | Support, Front Bumper Lower Side, LH |
| 52791B | Bolt, Bumper Moulding Set, NO.1 |
| 52791D | Bolt, Bumper Moulding Set, NO.1 |
| 52811A | Duct, Cool Air Intake, NO.1 |
| 52821 | Duct, Air Intake, RH |
| 52822 | Duct, Air Intake, LH |
| 52829A | Grille, Cool Air Intake |
| 53207C | Duct Sub-assy, Cool Air Intake |
| 53395E | Seal, Hood TO Front End Panel |
| 53879H | Retainer, Front Fender Liner |
| 53879S | Retainer, Front Fender Liner |
| 65487 | Clip, Corner Protector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
