Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

11 part groups · 2 illustrations

Illustrations

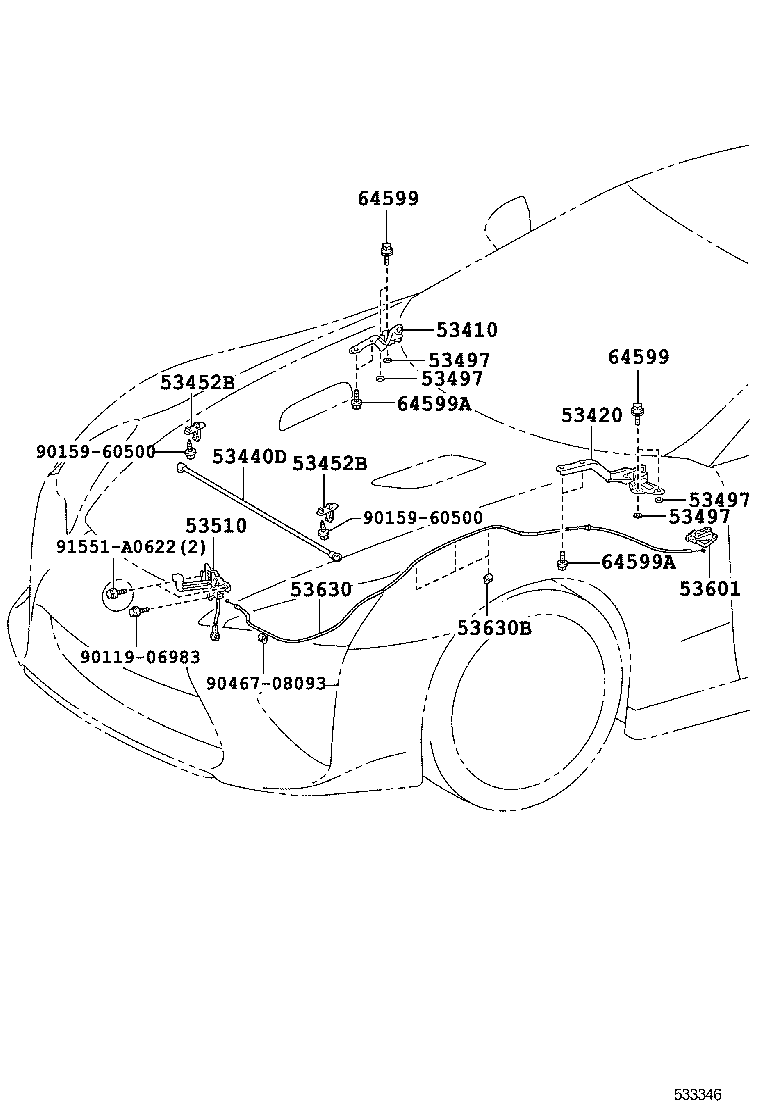

Figure 533345A 533345A 2010-12 → — Figure 533346 533346 2010-12 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53452B Bracket, Hood Support Rod
53497 Pad, Hood Hinge, NO.1
53510 Lock Assy, Hood
53601 Lever Sub-assy, Hood Lock Control
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
64599 Bolt, Luggage Door Hinge
64599A Bolt, Luggage Door Hinge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
