Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

14 part groups · 2 illustrations

Illustrations

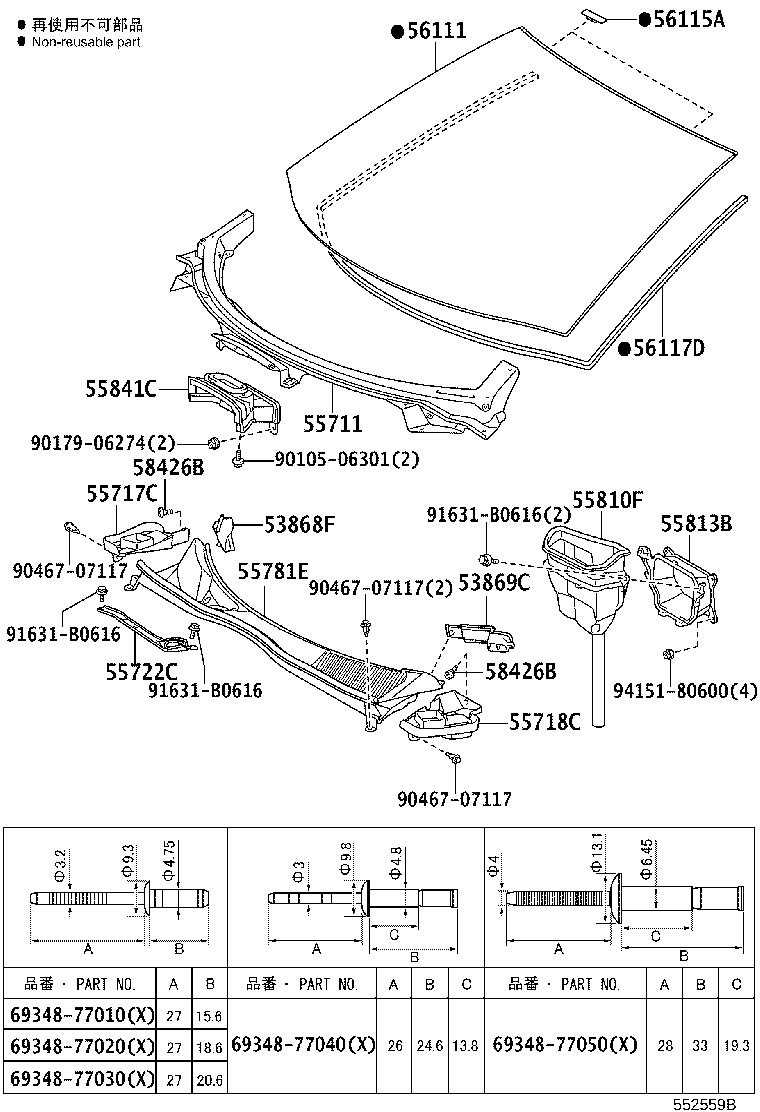

Figure 552558B 552558B 2010-12 → — Figure 552559B 552559B 2010-12 → —

Part groups

PNCDescription
53868F Seal, Front Fender TO Cowl Side, NO.2 RH
53869C Seal, Front Fender TO Cowl Side, NO.2 LH
55711 Panel, Cowl Top, Outer
55717C Protector, Front, Lower RH
55718C Protector, Front, Lower LH
55722C Brace, Cowl Top TO Cowl, Inner
55781E Louver Sub-assy, Cowl Top Ventilator
55810F Ventilator Assy, Front
55813B Duct, Side Ventilator
55841C Duct, Front Register, Upper
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56117D Dam, Windshield Glass Adhesive
58426B Protector, Engine Sub Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
