Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

5 part groups · 2 illustrations

Illustrations

Figure 583970A

583970A 2010-12 → —

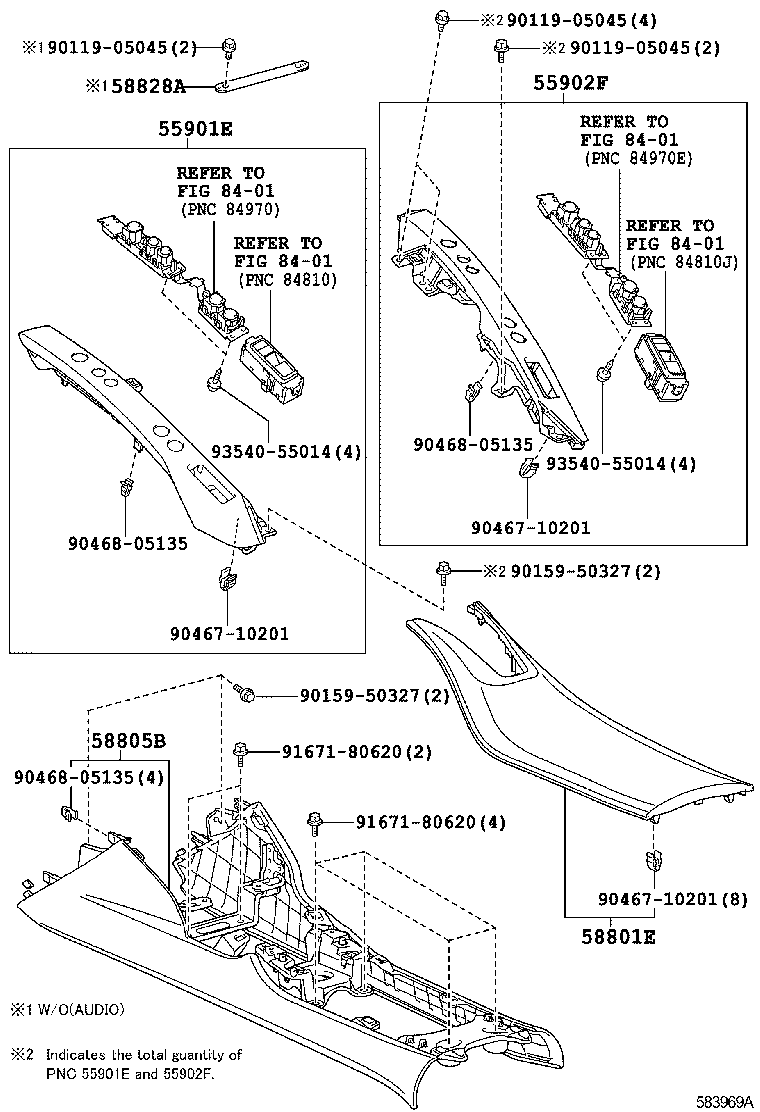

Figure 583969A

583969A 2010-12 → —

Part groups

PNC	Description
55901E	Control Sub-assy, Heater, NO.1
55902F	Control Sub-assy, Heater, NO.2
58801E	Box Sub-assy, Console, Upper
58805B	Panel Sub-assy, Console, Lower
58828A	Bracket, Console Box, Lower

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
