Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01

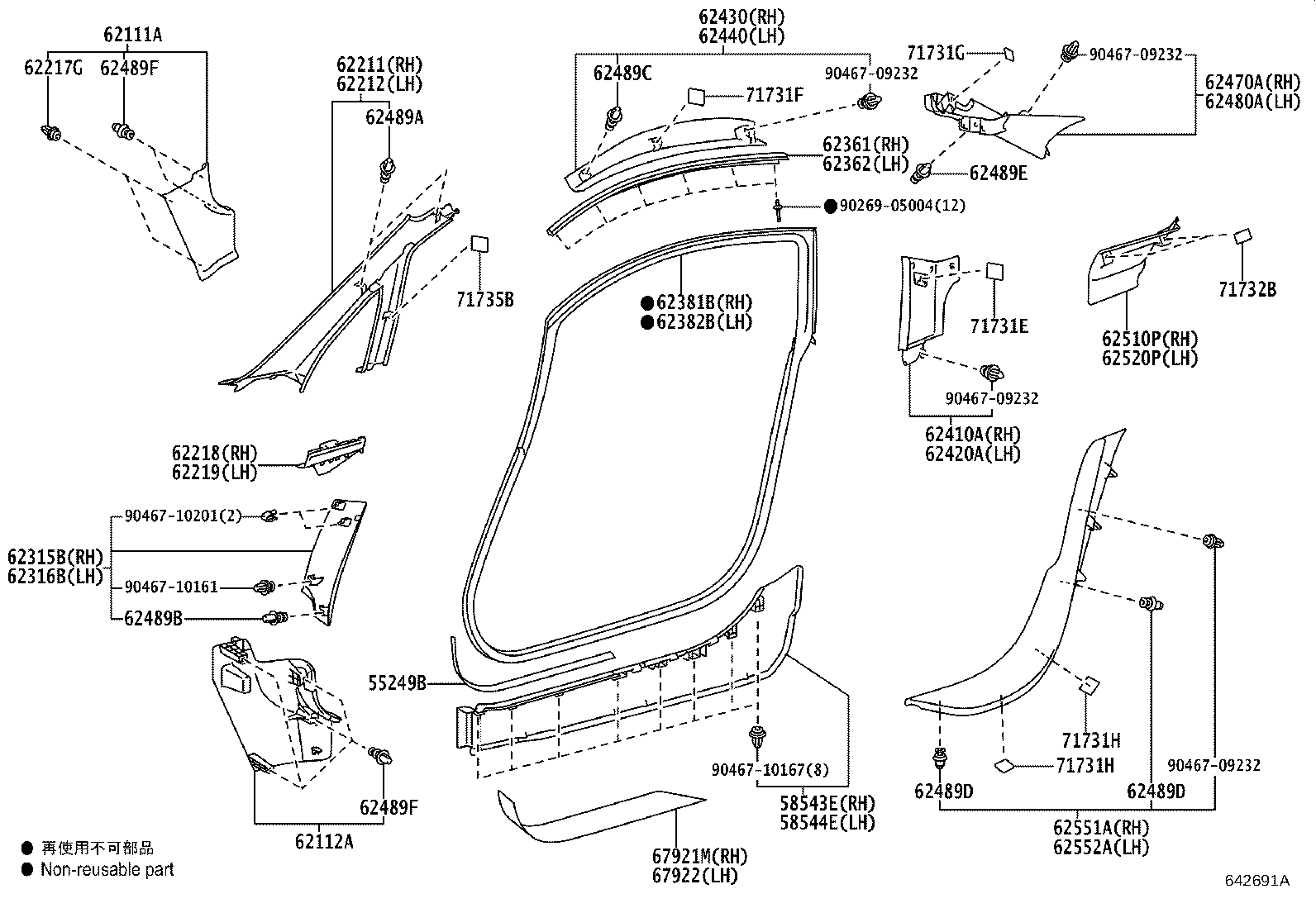

Inside Trim Board & Door Opening Trim Moulding

40 part groups · 2 illustrations

PNC	Description
55249B	Seal, Front Panel
58543E	Carpet, Step Side, RH
58544E	Carpet, Step Side, LH
62111A	Trim Sub-assy, Cowl Side, RH
62112A	Trim Sub-assy, Cowl Side, LH
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62217G	Clip, Front Pillar Garnish
62218	Piece, Front Pillar Garnish Corner, RH
62219	Piece, Front Pillar Garnish Corner, LH
62315B	Cover, Front Door Opening Trim, RH
62316B	Cover, Front Door Opening Trim, LH
62361	Retainer, Roof Side Rail Weatherstrip, Front RH
62362	Retainer, Roof Side Rail Weatherstrip, Front LH
62381B	Weatherstrip, Roof Side Rail, RH
62382B	Weatherstrip, Roof Side Rail, LH
62410A	Garnish Assy, Center Pillar, RH
62420A	Garnish Assy, Center Piller, LH
62430	Garnish Assy, Roof Side Rail, RH
62440	Garnish Assy, Roof Side Rail, LH
62470A	Garnish Assy, Roof Side, Inner RH
62480A	Garnish Assy, Roof Side, Inner LH
62489A	Clip, Roof Side Inner Garnish
62489B	Clip, Roof Side Inner Garnish
62489C	Clip, Roof Side Inner Garnish
62489D	Clip, Roof Side Inner Garnish
62489E	Clip, Roof Side Inner Garnish
62489F	Clip, Roof Side Inner Garnish
62510P	Panel Assy, Quarter Trim, Front RH
62520P	Panel Assy, Quarter Trim, Front LH
62551A	Cover, Rear Seat Side, RH
62552A	Cover, Rear Seat Side, LH
67921M	Panel, Front Door Scuff, RH
67922	Panel, Front Door Scuff, LH
71731E	Fastener, Seat Cover, A
71731F	Fastener, Seat Cover, A
71731G	Fastener, Seat Cover, A
71731H	Fastener, Seat Cover, A
71732B	Fastener, Seat Cover, B
71735B	Fastener, Seat Cover, C

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
