Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

10 part groups · 2 illustrations

Illustrations

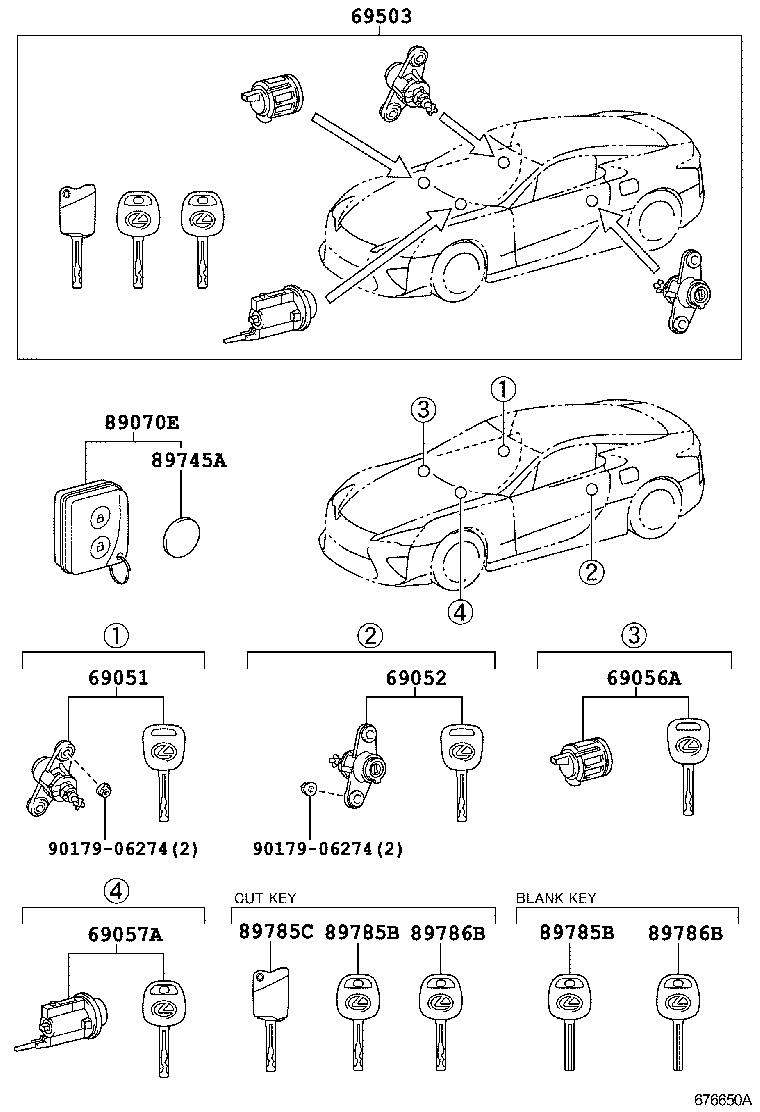

Figure 676649A 676649A 2010-12 → — Figure 676650A 676650A 2010-12 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
89070E Transmitter Assy, Door Control
89745A Battery, Transmitter
89785B Transmitter, Transponder Key Master
89785C Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
