Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

15 part groups · 3 illustrations

Illustrations

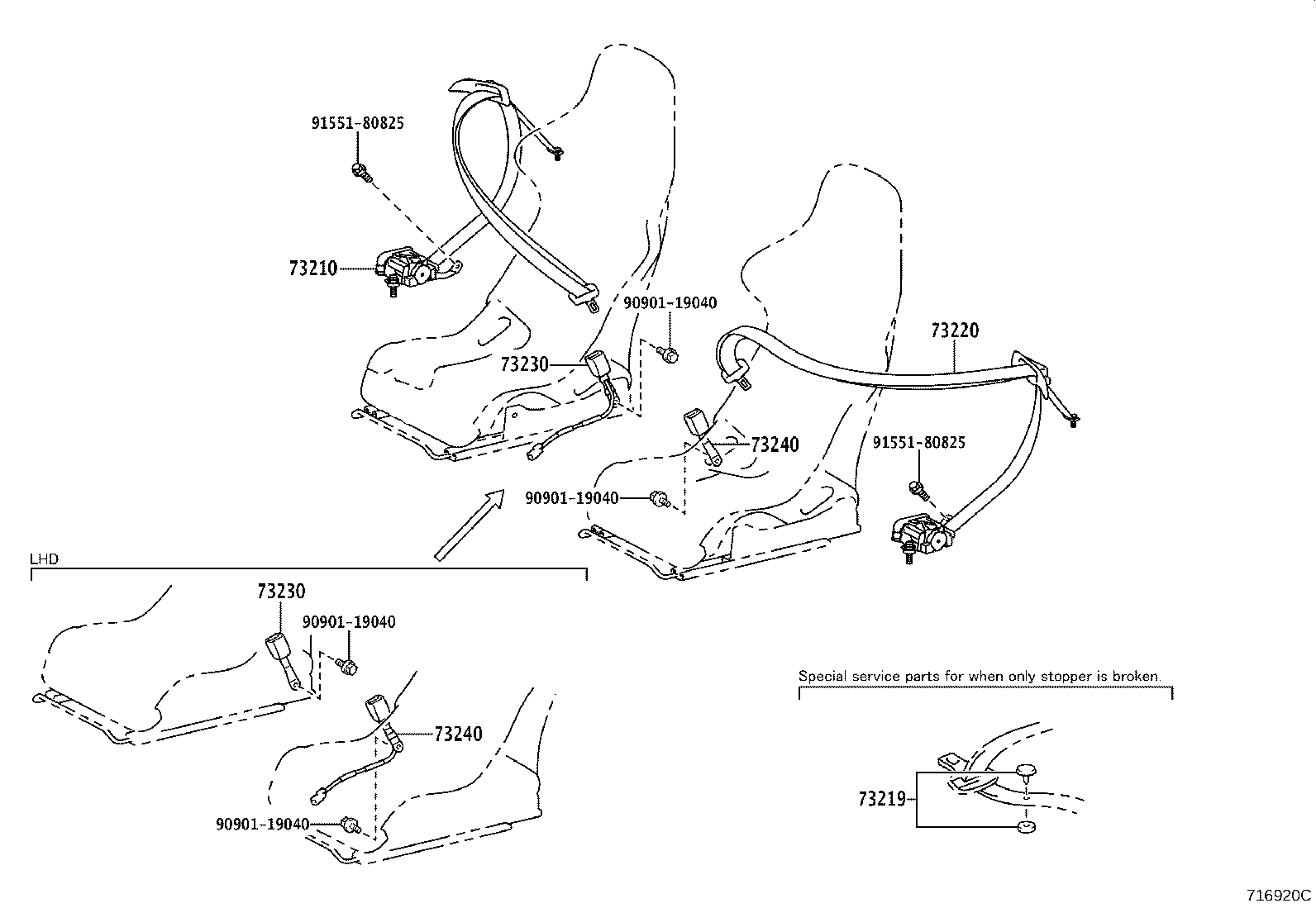

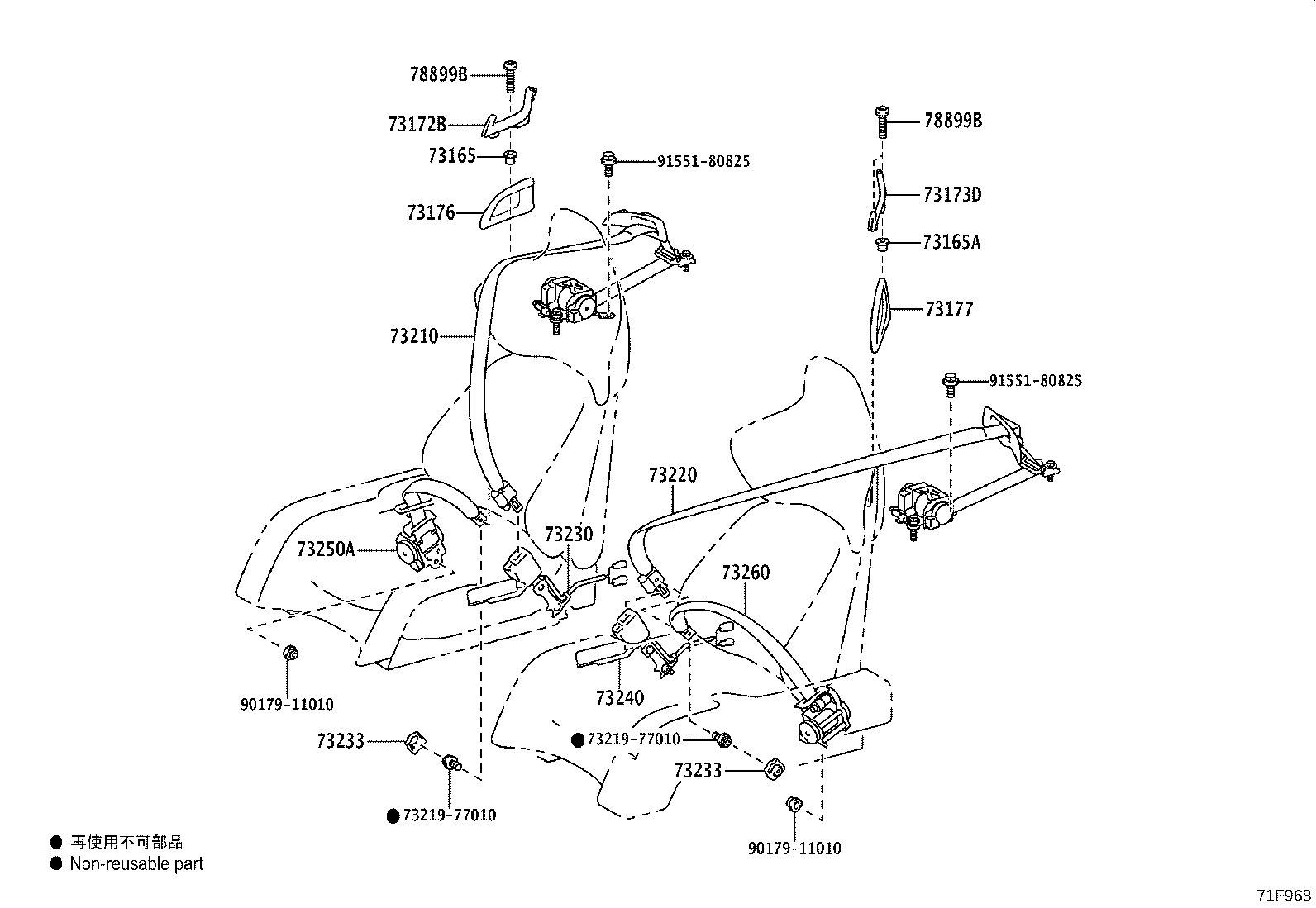

Figure 71B506 71B506 2010-12 → — Figure 71F968 71F968 2010-12 → — Figure 716920C 716920C 2010-12 → —

Part groups

PNCDescription
73165 Insert, Front Shoulder Belt Hanger, RH
73165A Insert, Front Shoulder Belt Hanger, LH
73172B Cap, Front Shoulder Belt Hanger, RH
73173D Cap, Front Shoulder Belt Hanger, LH
73176 Hanger, Front Shoulder Belt, RH (FOR FRONT SEAT)
73177 Hanger, Front Shoulder Belt, LH (FOR FRONT SEAT)
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73250A Retractor Assy, Front Seat Belt, RH
73260 Retractor Assy, Front Seat Belt, LH
78899B Bolt, Front Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
