Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 11 illustrations

Illustrations

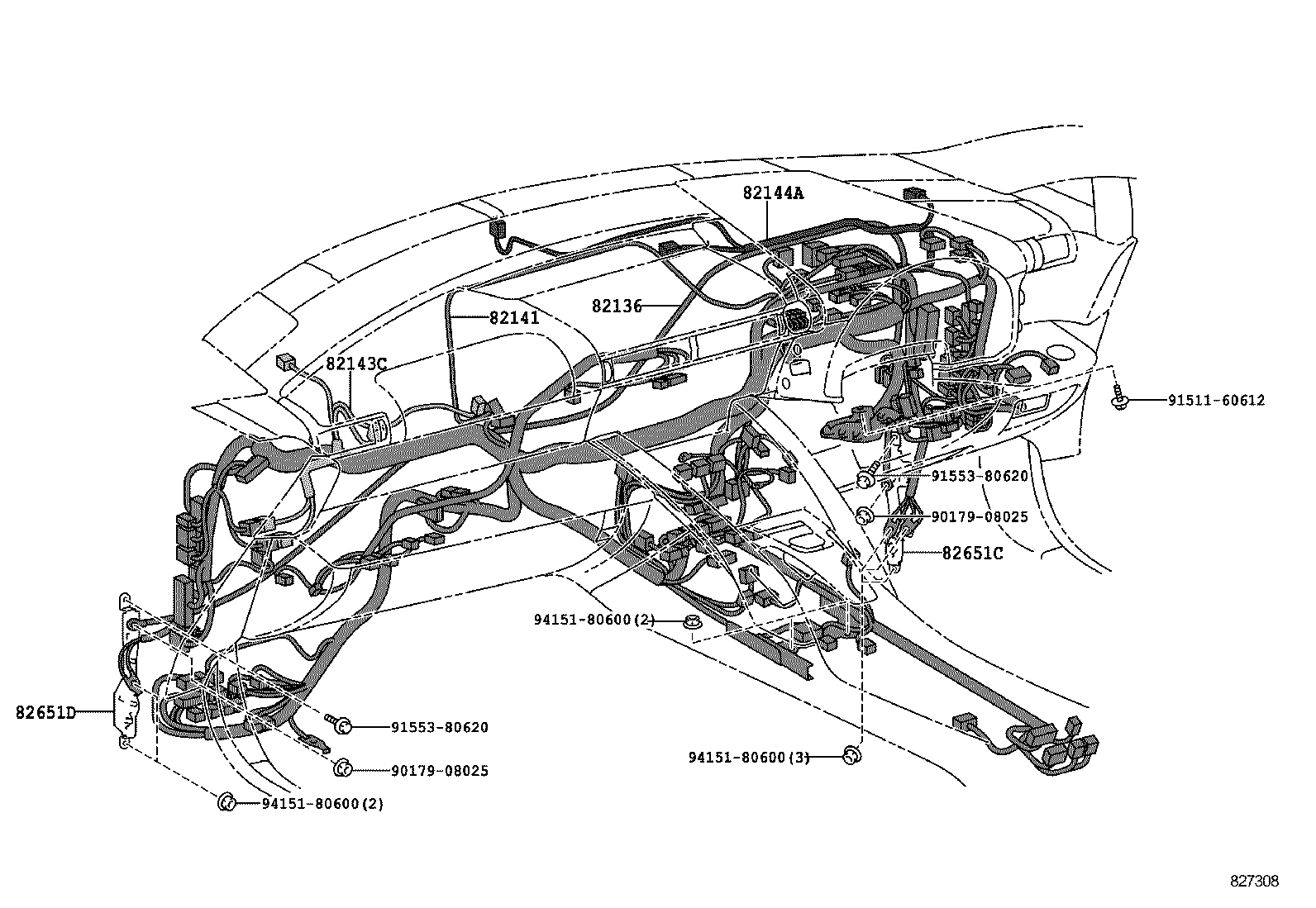

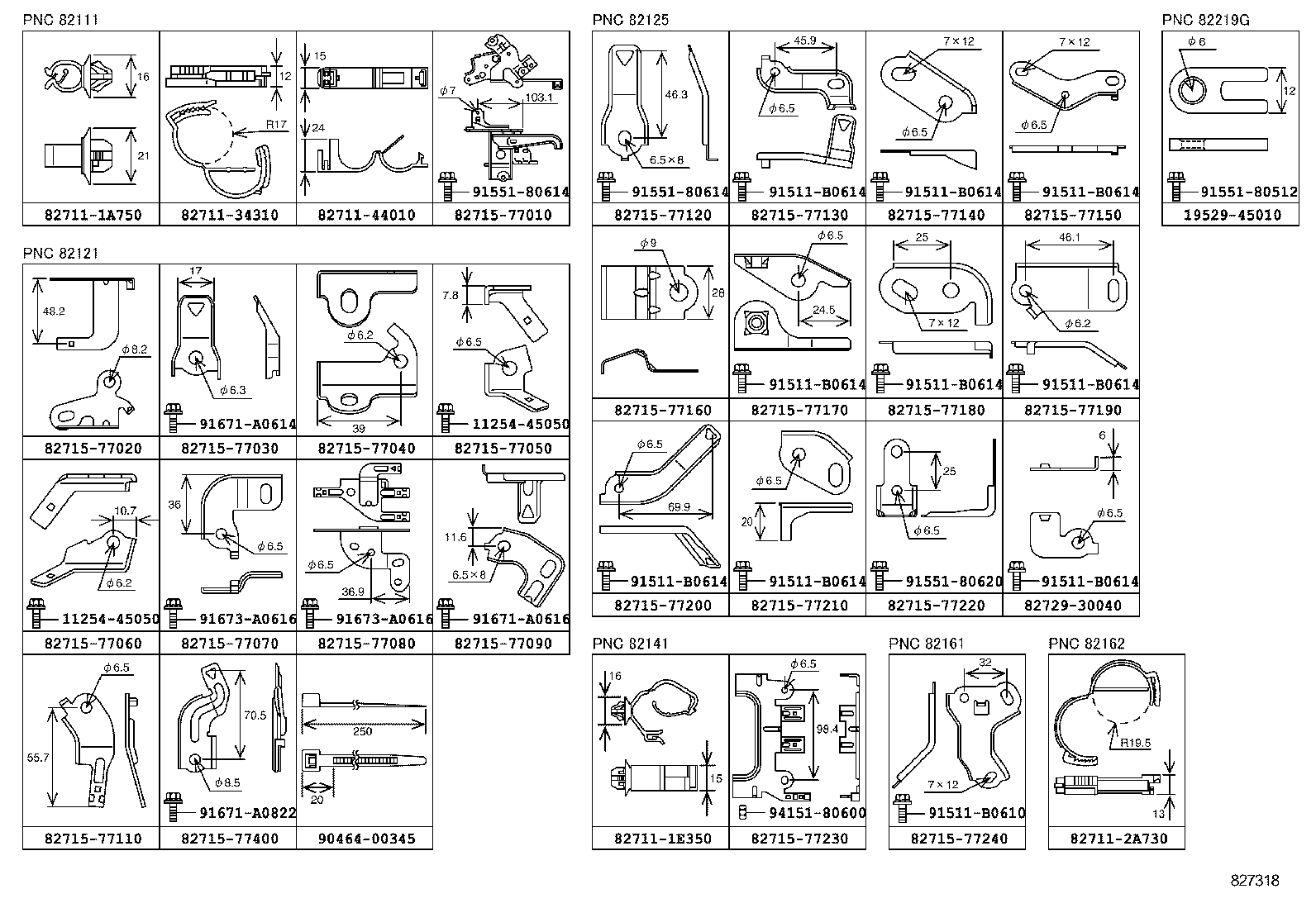

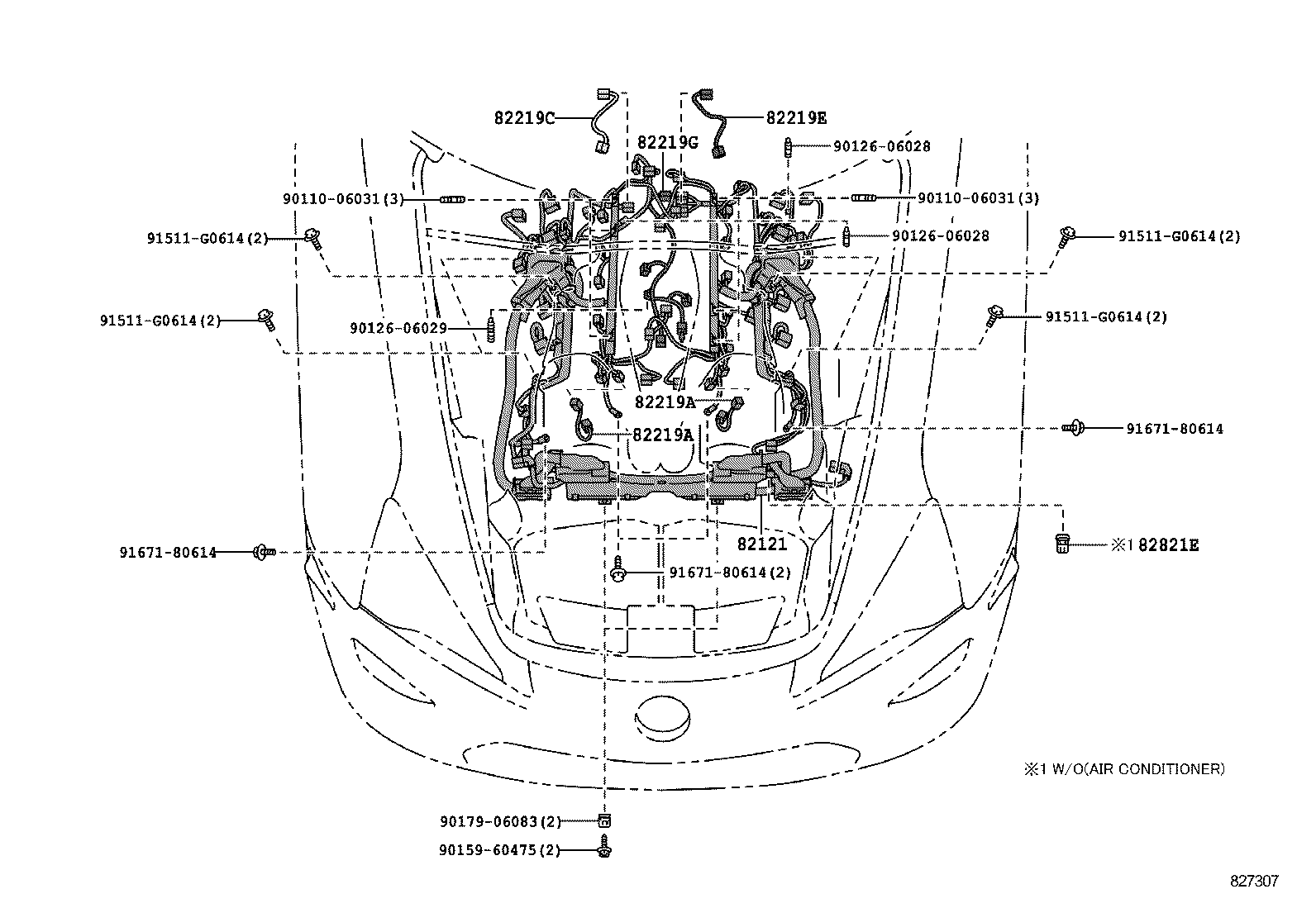

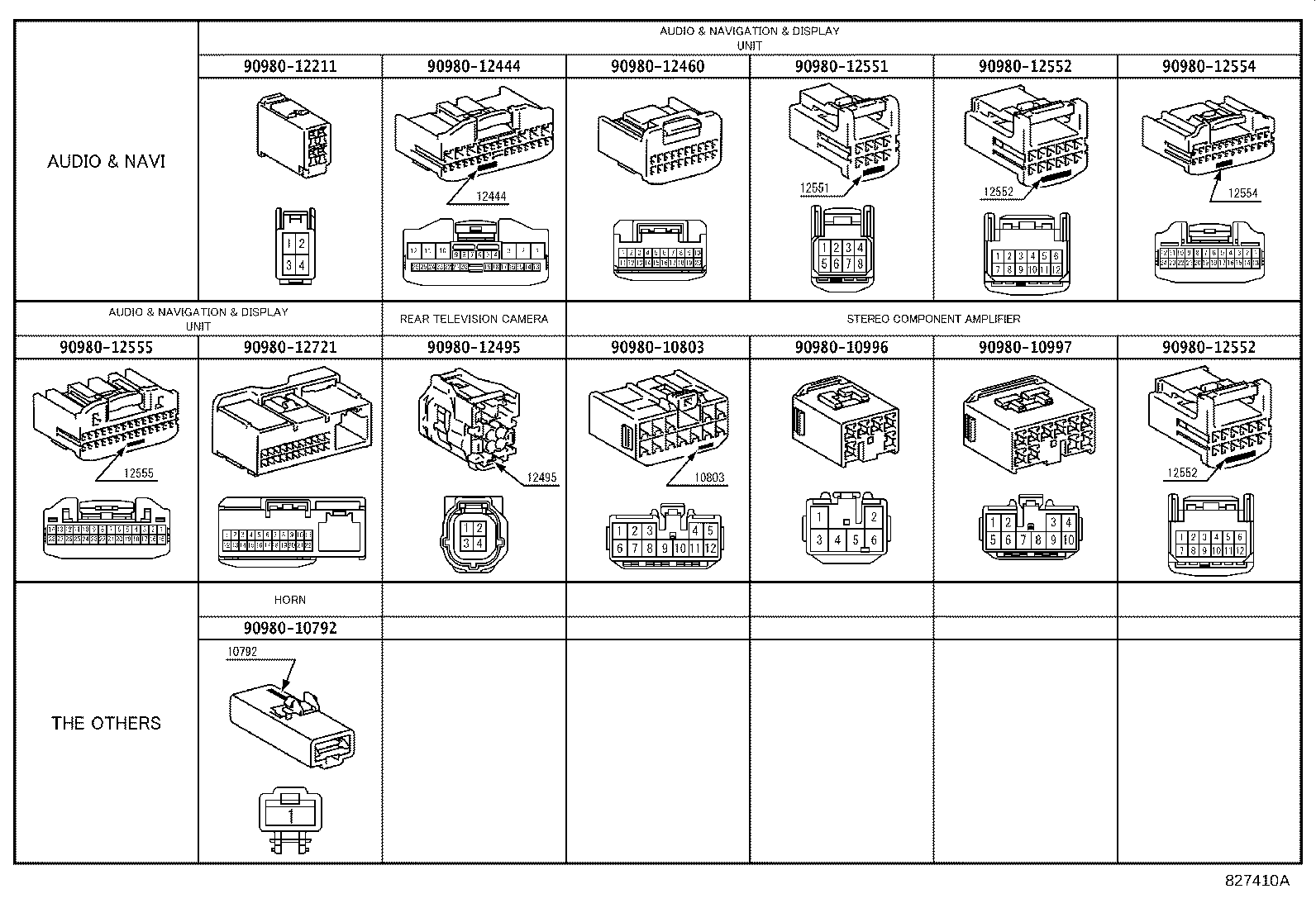

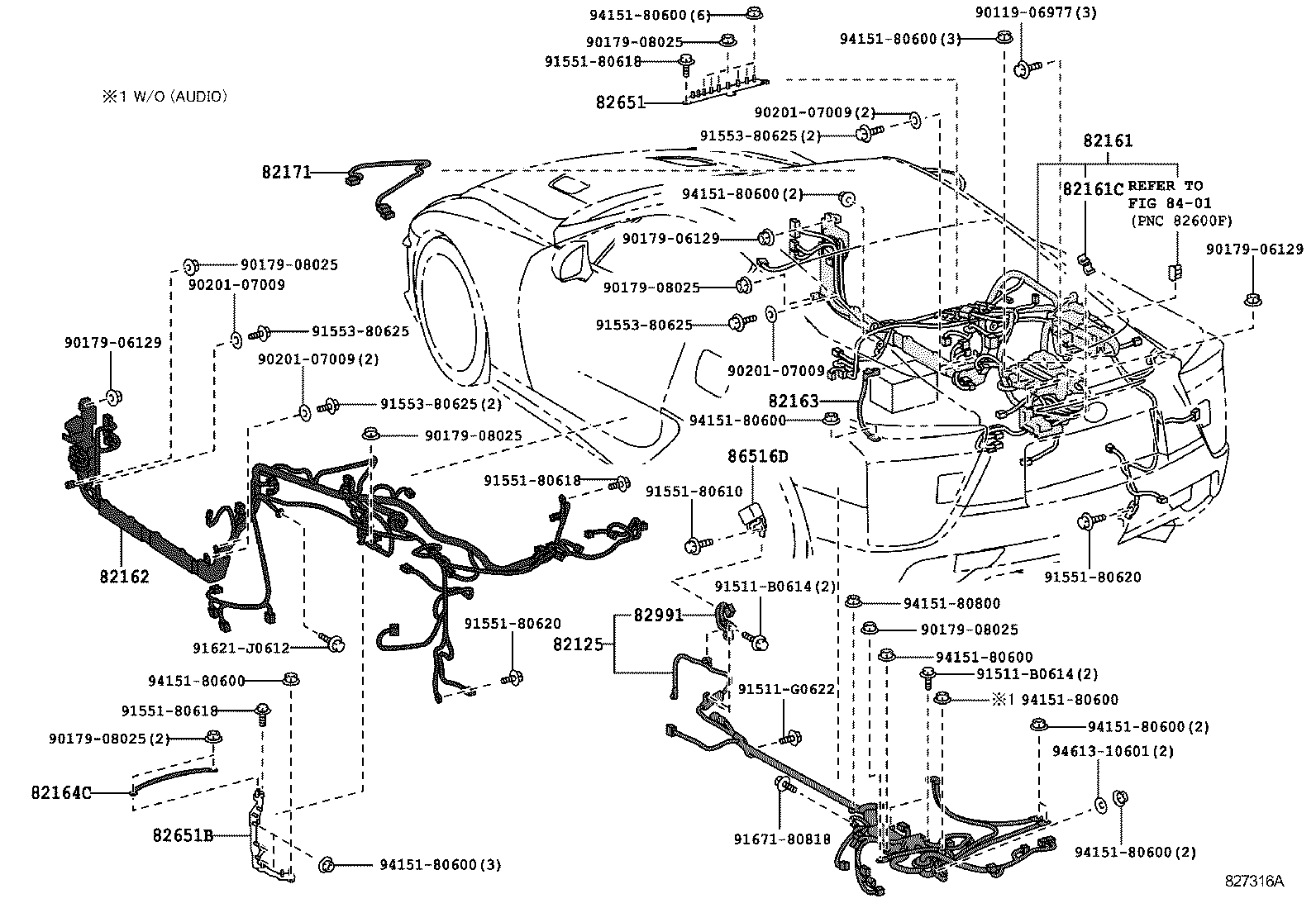

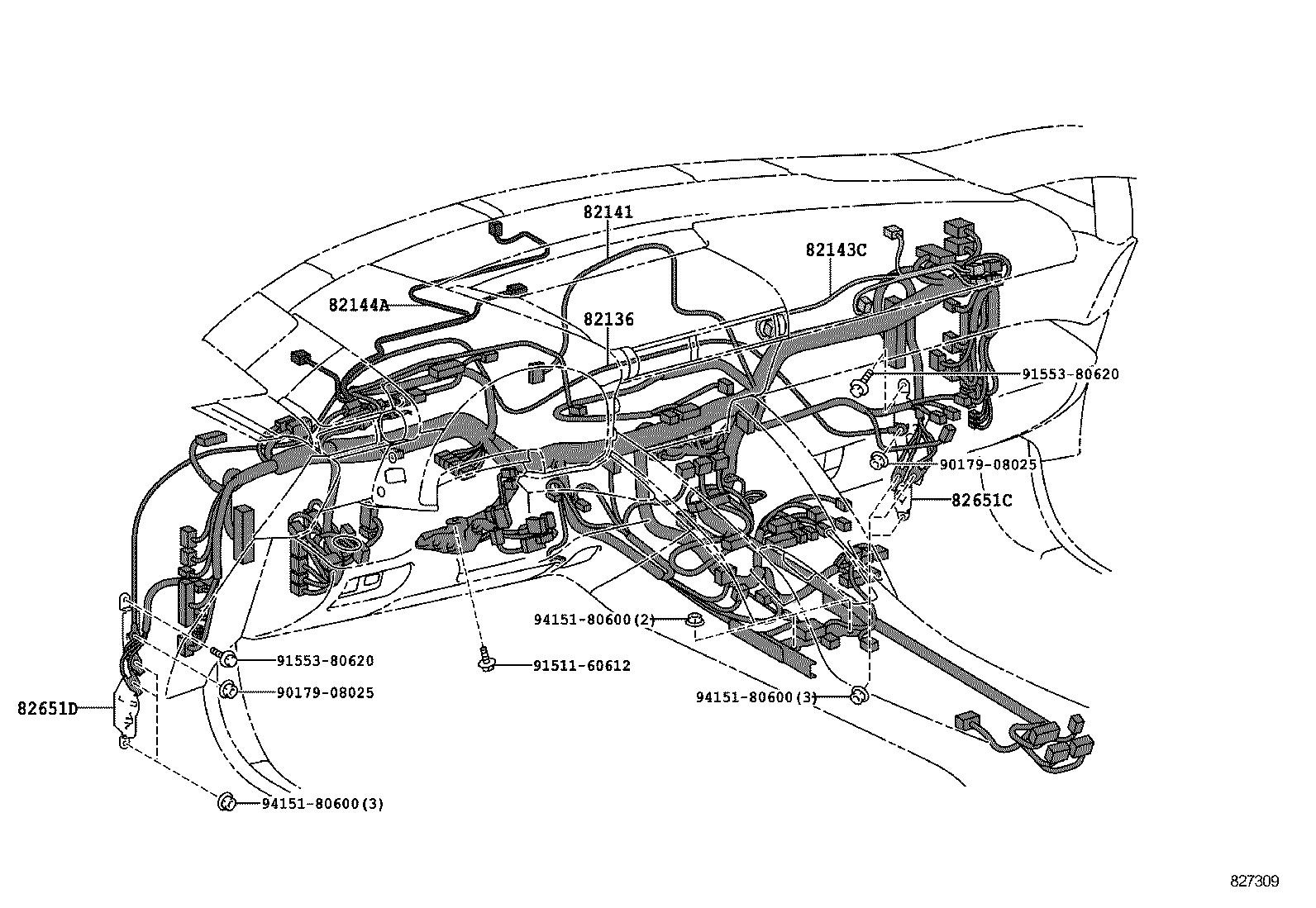

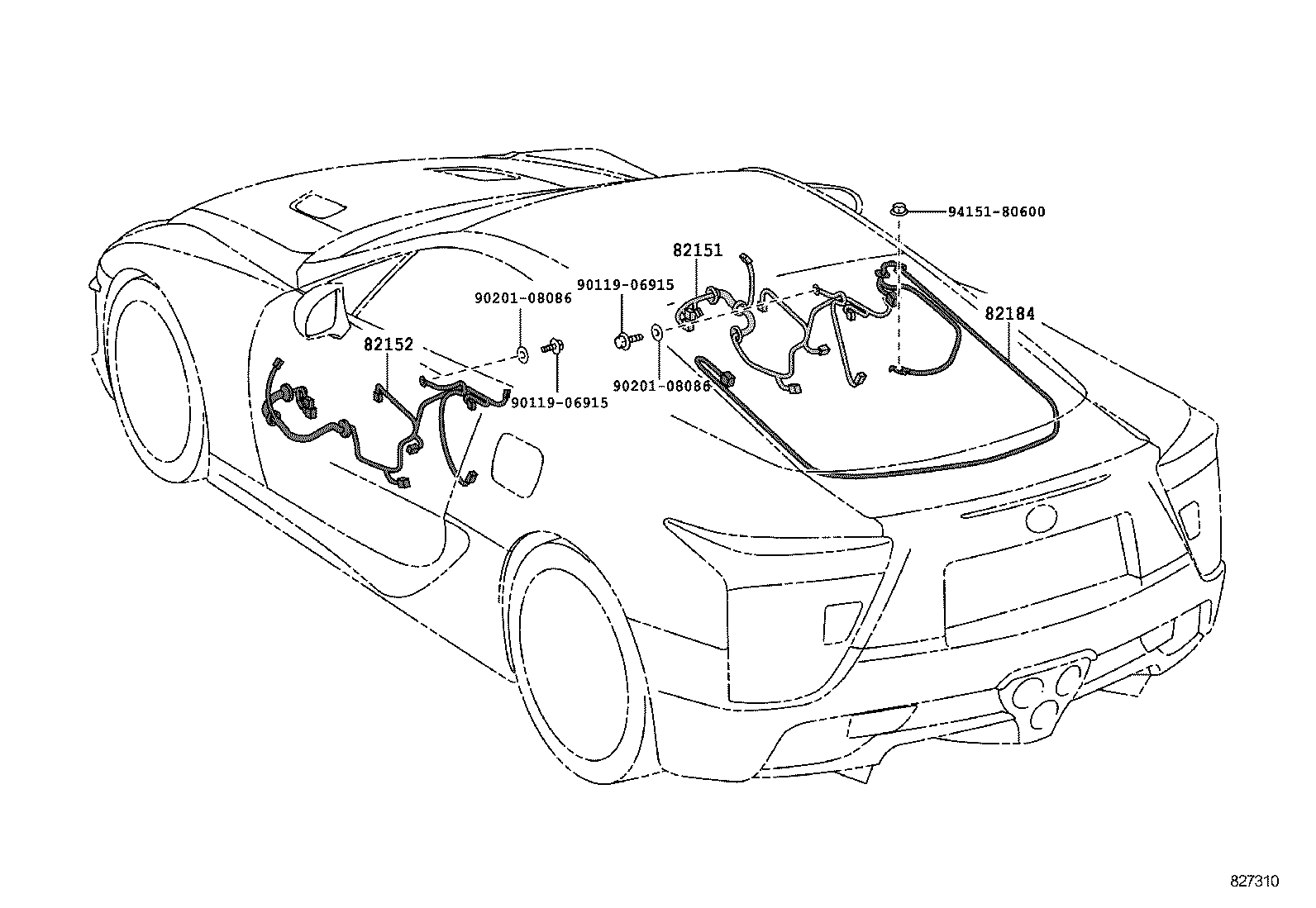

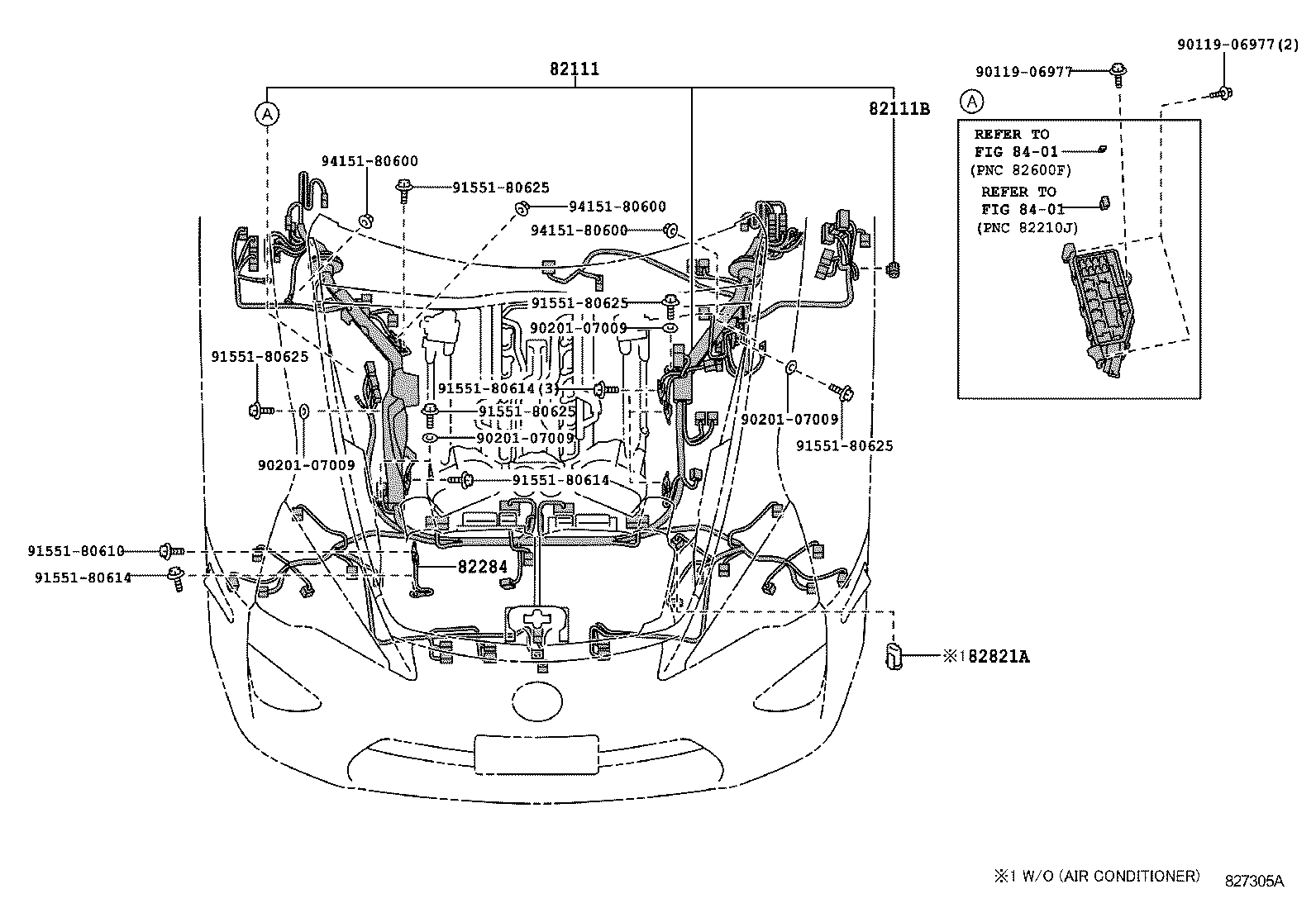

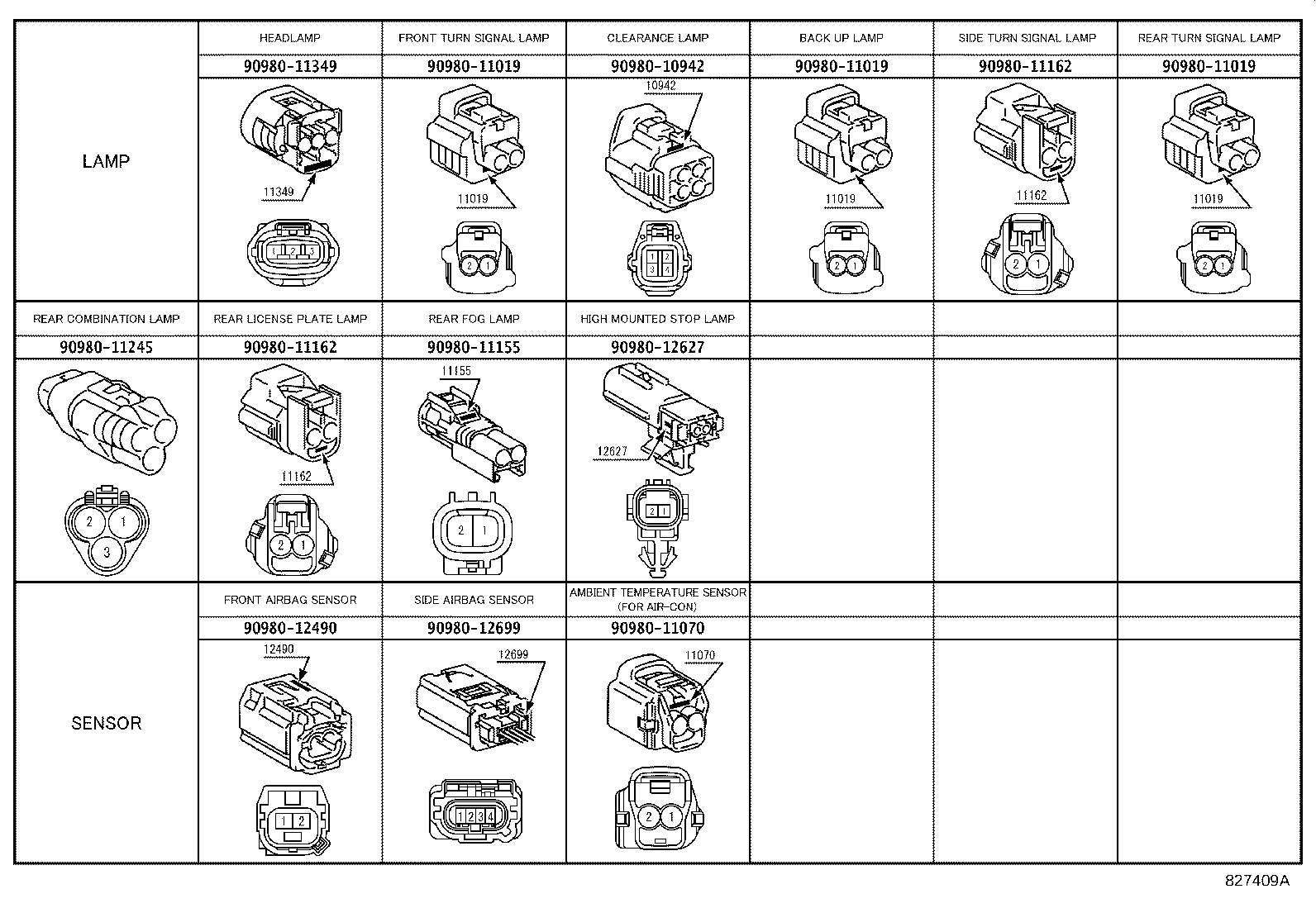

Figure 827303A 827303A 2010-12 → — Figure 827305A 827305A 2010-12 → — Figure 827307 827307 2010-12 → — Figure 827308 827308 2010-12 → — Figure 827309 827309 2010-12 → — Figure 827310 827310 2010-12 → — Figure 827315A 827315A 2010-12 → — Figure 827316A 827316A 2010-12 → — Figure 827318 827318 2010-12 → — Figure 827409A 827409A 2010-12 → — Figure 827410A 827410A 2010-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82111B Condenser
82121 Wire, Engine
82125 Wire, Transmission
82136 Wire, Dash
82141 Wire, Instrument Panel
82143C Wire, Instrument Panel, NO.3
82144A Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82161C Condenser
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82219A Wire, Sensor
82219C Wire, Sensor
82219E Wire, Sensor
82219G Wire, Sensor
82284 Wire, Earth
82651 Block, Terminal
82651B Block, Terminal NO.2
82651C Block, Terminal NO.3
82651D Block, Terminal NO.4
82821A Cover, Connector
82821E Cover, Connector
82991 Wire, Fusible Link Repair
86516D Condenser
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
