Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

16 part groups · 2 illustrations

Illustrations

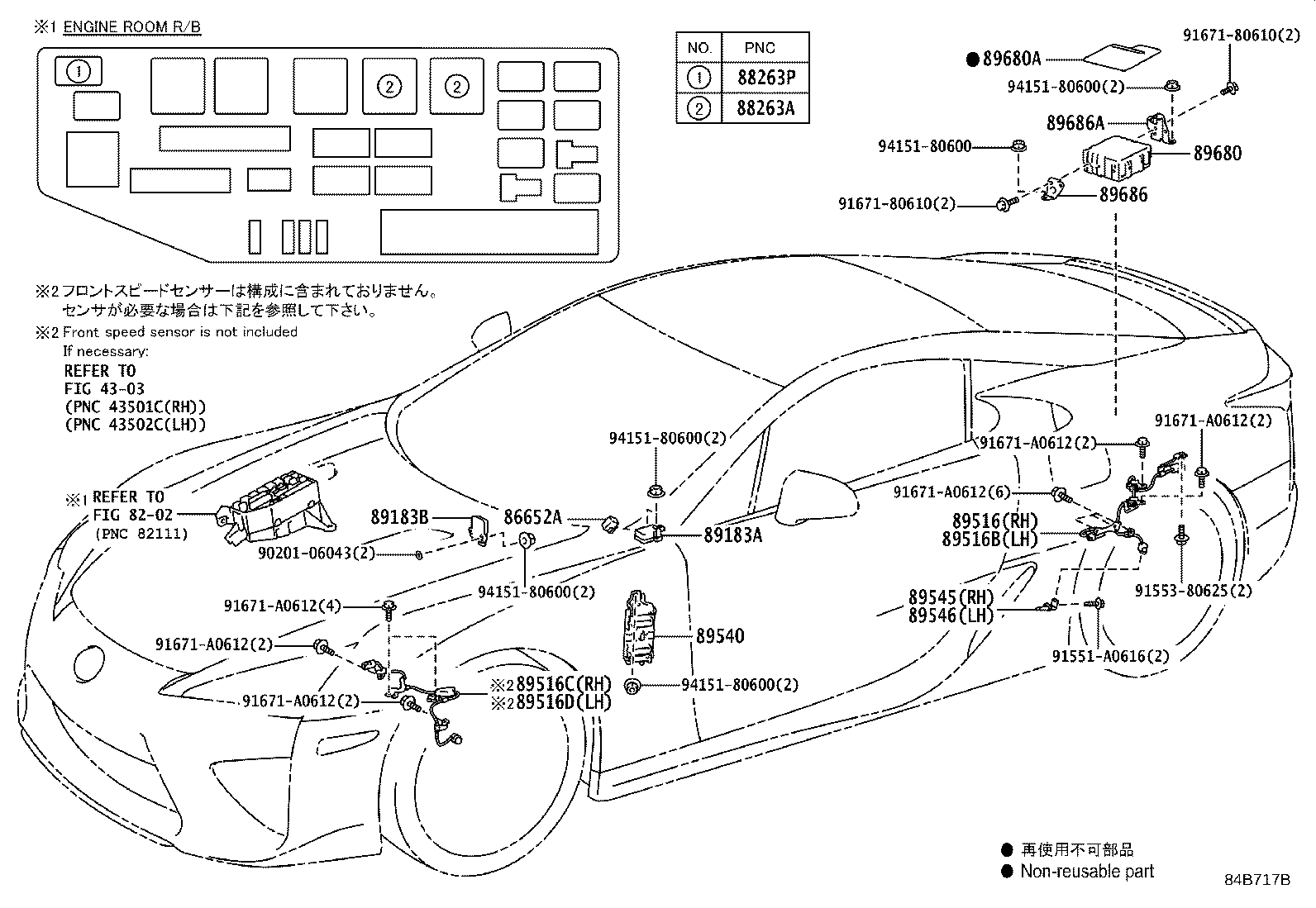

Figure 84B718B 84B718B 2010-12 → — Figure 84B717B 84B717B 2010-12 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263P Relay, Stop Lamp Control
89183A Sensor, Yawrate
89183B Sensor, Yawrate
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89540 Computer Assy, Skid Control
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89680 Supply Assy, Brake Control Power
89680A Cover, Brake Control Power Supply
89686 Bracket, Brake Control Power Supply, NO.1
89686A Bracket, Brake Control Power Supply, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
