Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tire Pressure Warning System

6 part groups · 2 illustrations

Illustrations

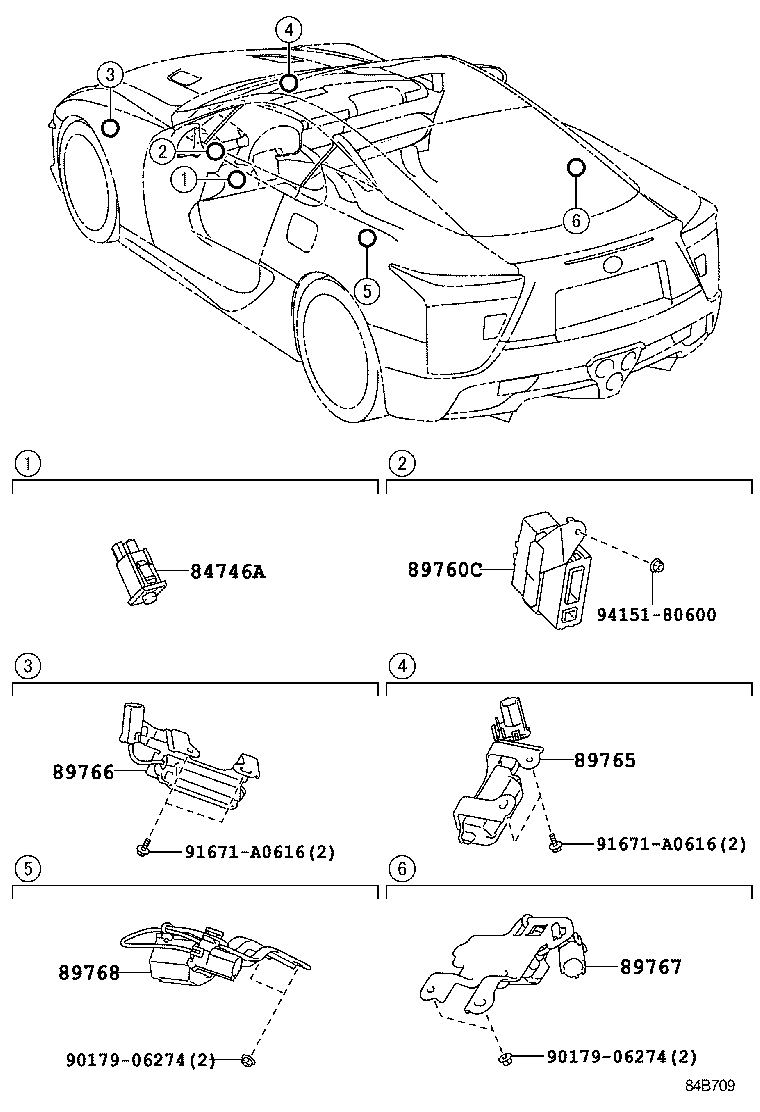

Figure 84B708 84B708 2010-12 → — Figure 84B709 84B709 2010-12 → —

Part groups

PNCDescription
84746A Switch, Tire Pressure Warning, NO.1
89760C Receiver Assy, Tire Pressure Monitor
89765 Antenna, Tire Pressure, Front RH
89766 Antenna, Tire Pressure, Front LH
89767 Antenna, Tire Pressure, Rear RH
89768 Antenna, Tire Pressure, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
