Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

11 part groups · 2 illustrations

Illustrations

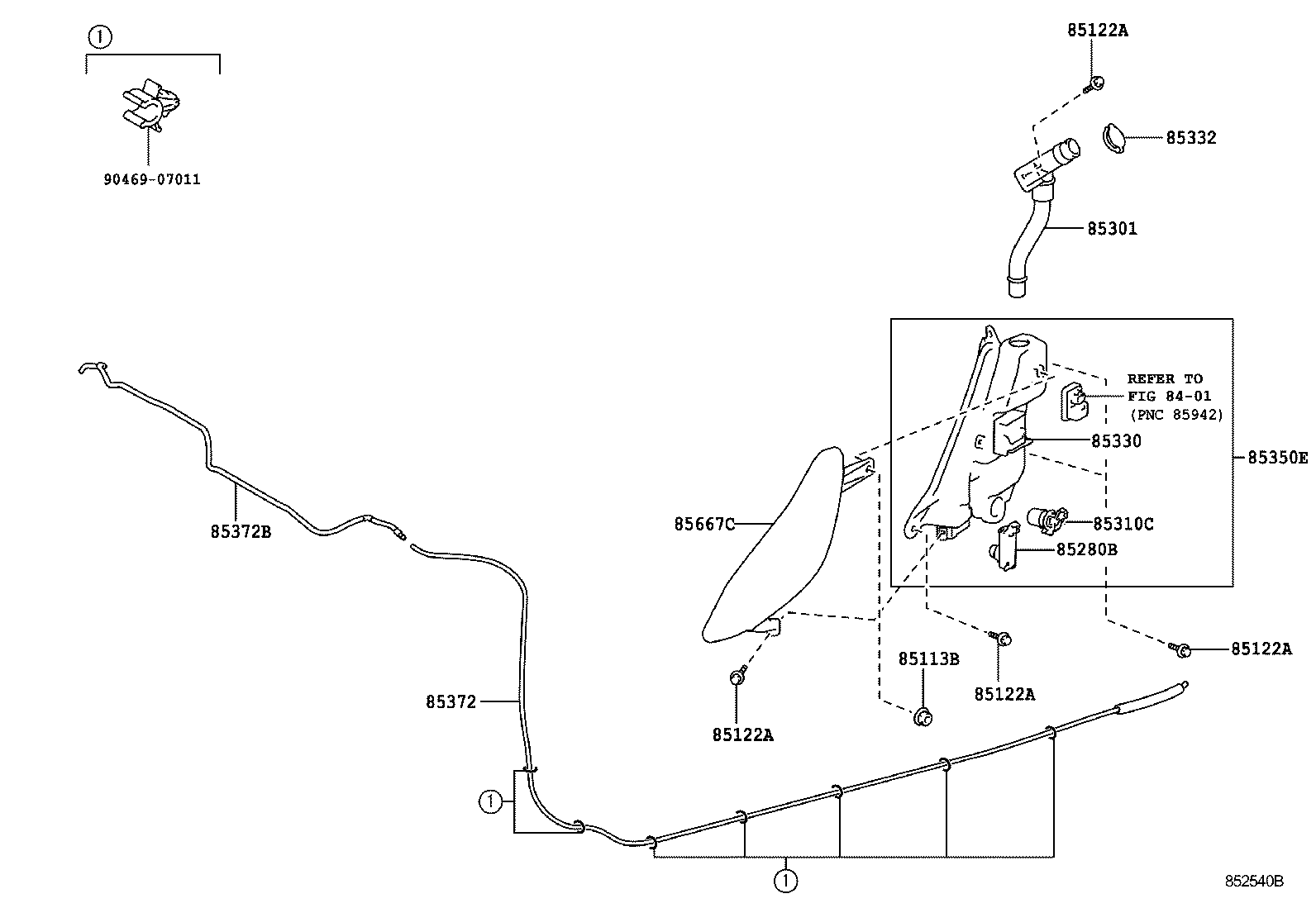

Figure 852539B 852539B 2010-12 → — Figure 852540B 852540B 2010-12 → —

Part groups

PNCDescription
85113B Nut
85122A Bolt
85280B Motor & Pump Assy, Headlamp Cleaner
85301 Inlet Sub-assy, Washer
85310C Motor & Pump Assy, Washer
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85350E Jar & Pump Assy, Headlamp Cleaner
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85667C Cover, Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
