Factory parts data · Europe

Toyota Lexus Lfa

2010-12 → 2012-12 · chassis LFA10 · catalogue 481210 · Europe

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 2 illustrations

Illustrations

Figure 86A23Z

86A23Z 2010-12 → —

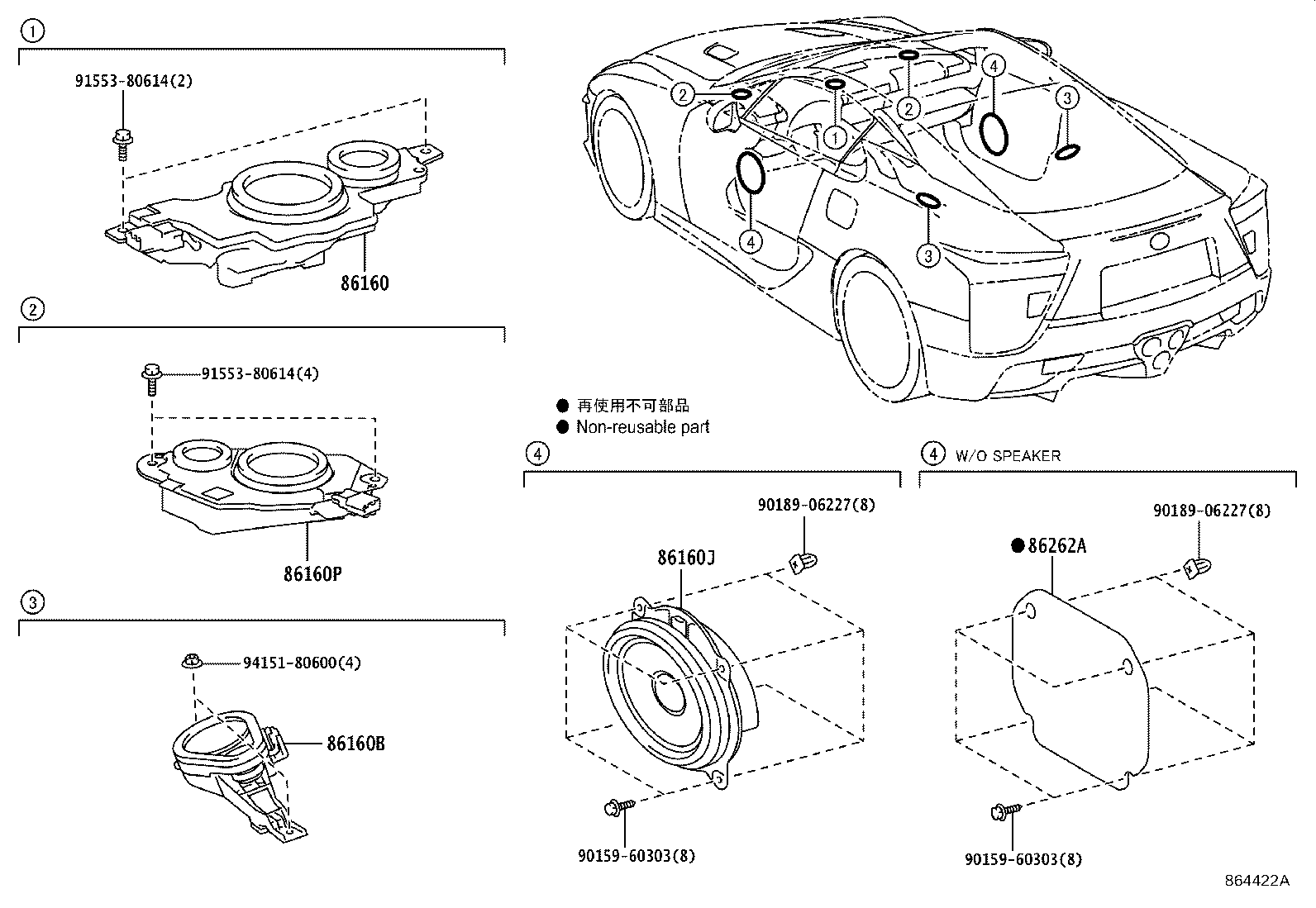

Figure 864422A

864422A 2010-12 → —

Part groups

PNC	Description
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160J	Speaker Assy, Front NO.3
86160P	Speaker Assy, Front NO.2
86262A	Cover, Speaker, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
