Heating & Air Conditioning - Cooler Unit

15 part groups · 2 illustrations

Illustrations

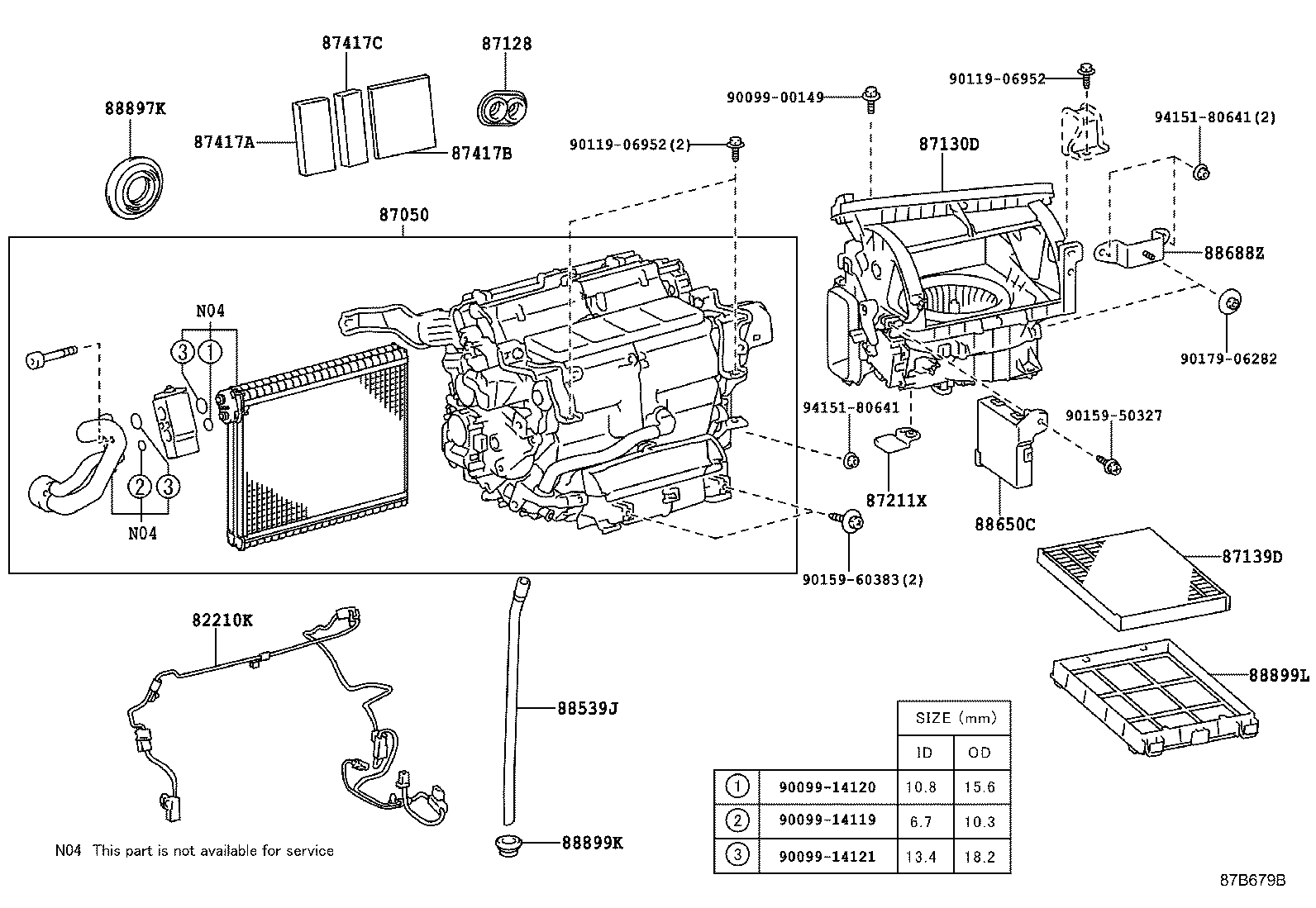

Figure 87B680B 87B680B 2010-12 → — Figure 87B679B 87B679B 2010-12 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87128 Grommet, Heater
87130D Blower Assy
87139D Element, Air Refiner
87211X Blower Cover
87417A Packing, Air Duct
87417B Packing, Air Duct
87417C Packing, Air Duct
88539J Hose, Drain Cooler
88650C Amplifier Sub-assy, Airconditioner
88688Z Bracket
88897K Grommet, (FOR COOLER PIPE)
88899K Plate, Cover
88899L Parts, Cooling Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
