Heating & Air Conditioning - Control & Air Duct

14 part groups · 6 illustrations

Illustrations

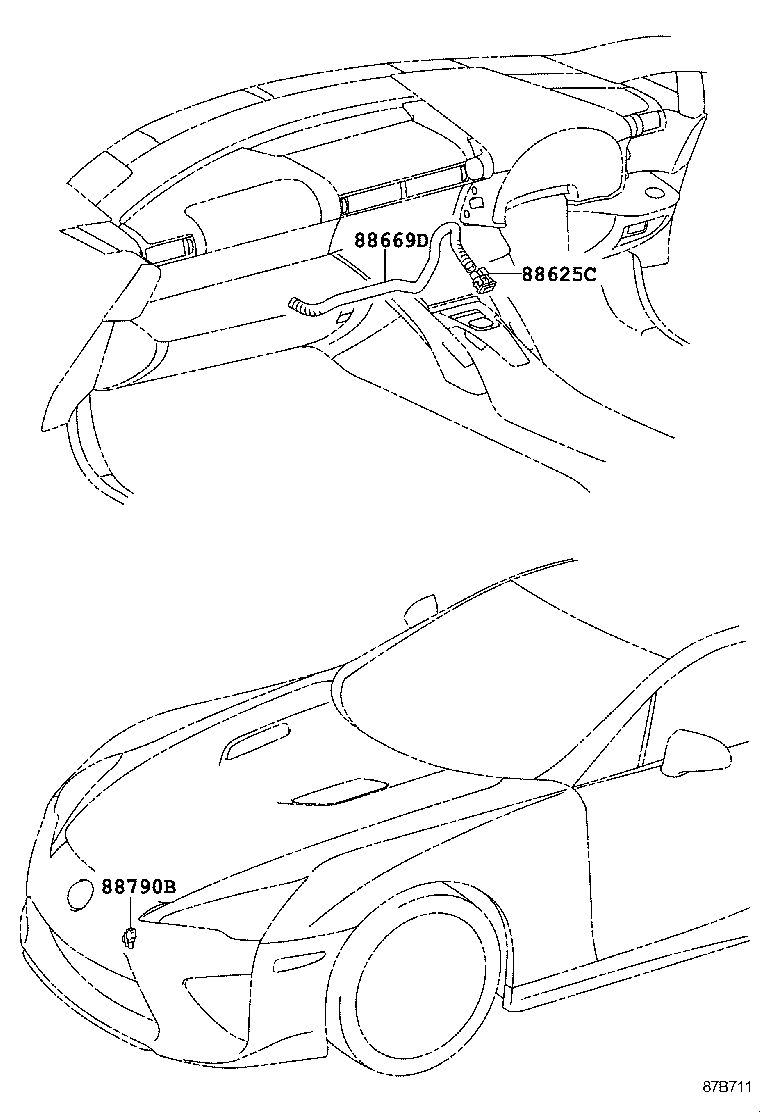

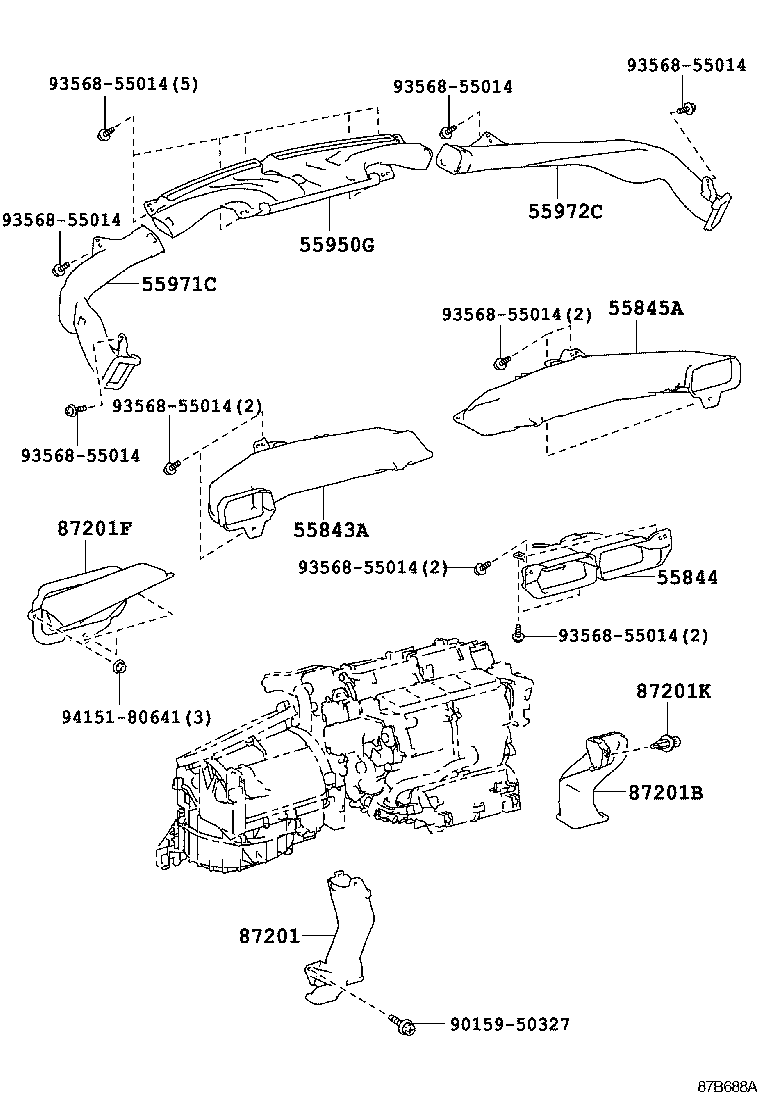

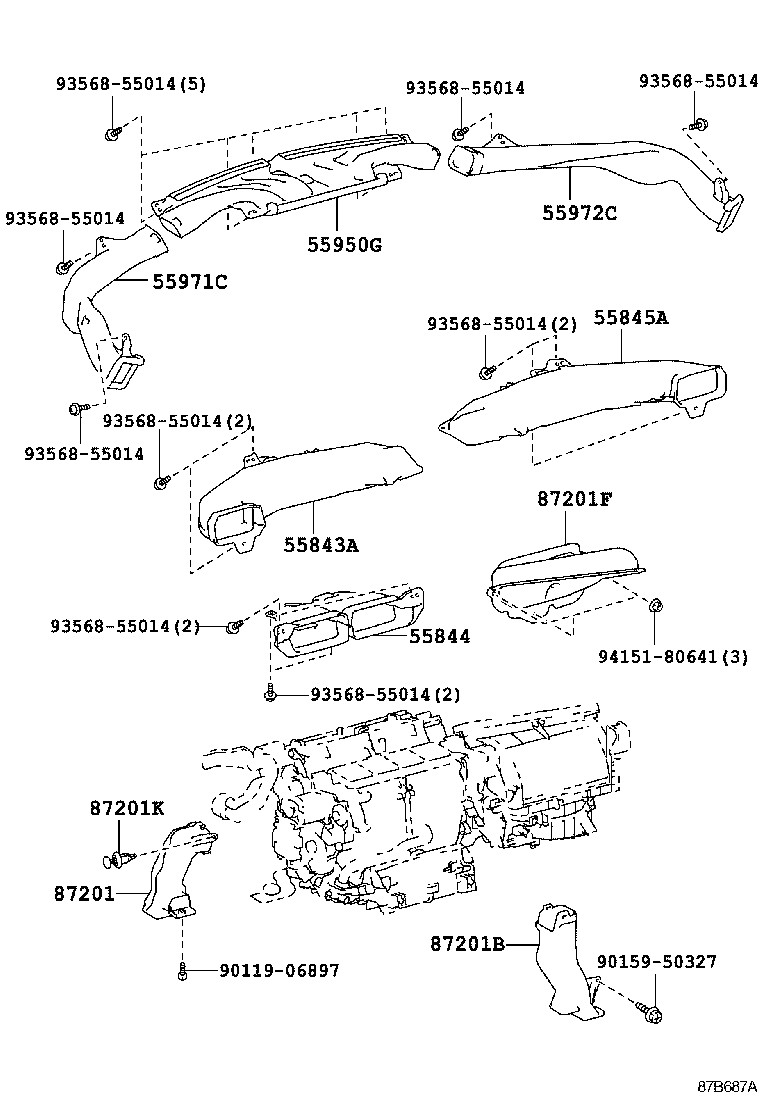

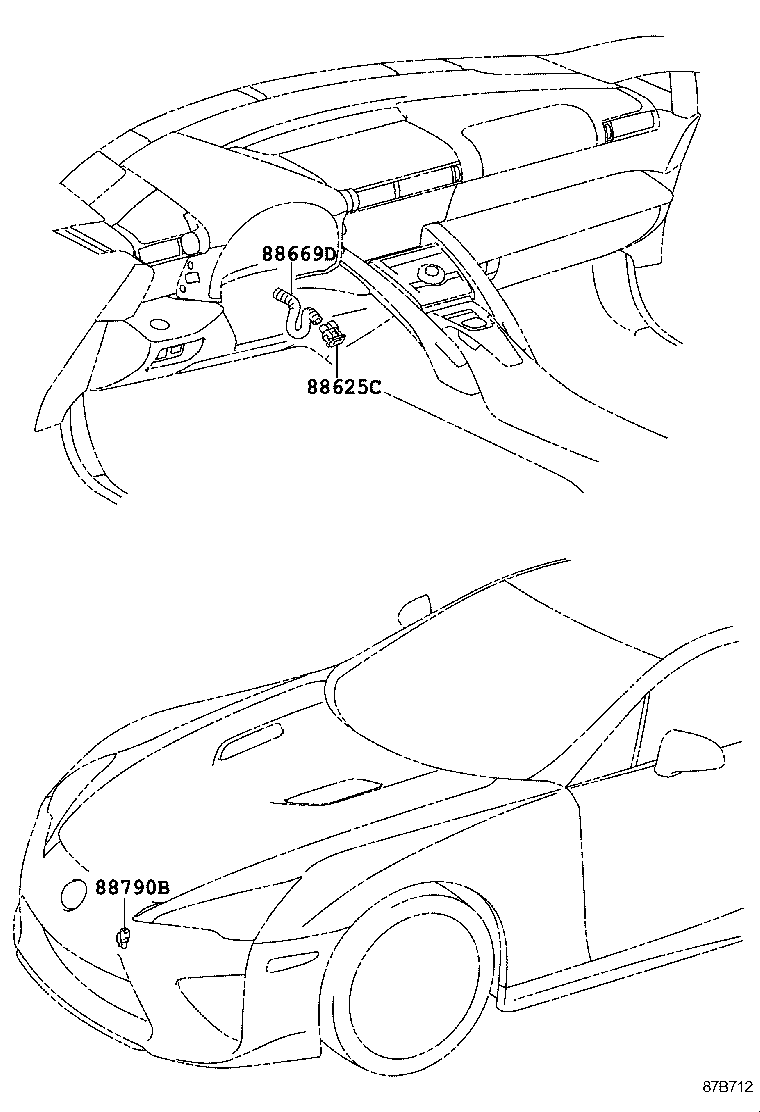

Figure 87B686A 87B686A 2010-12 → — Figure 87B688A 87B688A 2010-12 → — Figure 87B711 87B711 2010-12 → — Figure 87B689A 87B689A 2010-12 → — Figure 87B687A 87B687A 2010-12 → — Figure 87B712 87B712 2010-12 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
88625C Thermistor, Cooler
88669D Hose, Air
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
