Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · Europe
Discontinued model
Data version 2010-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

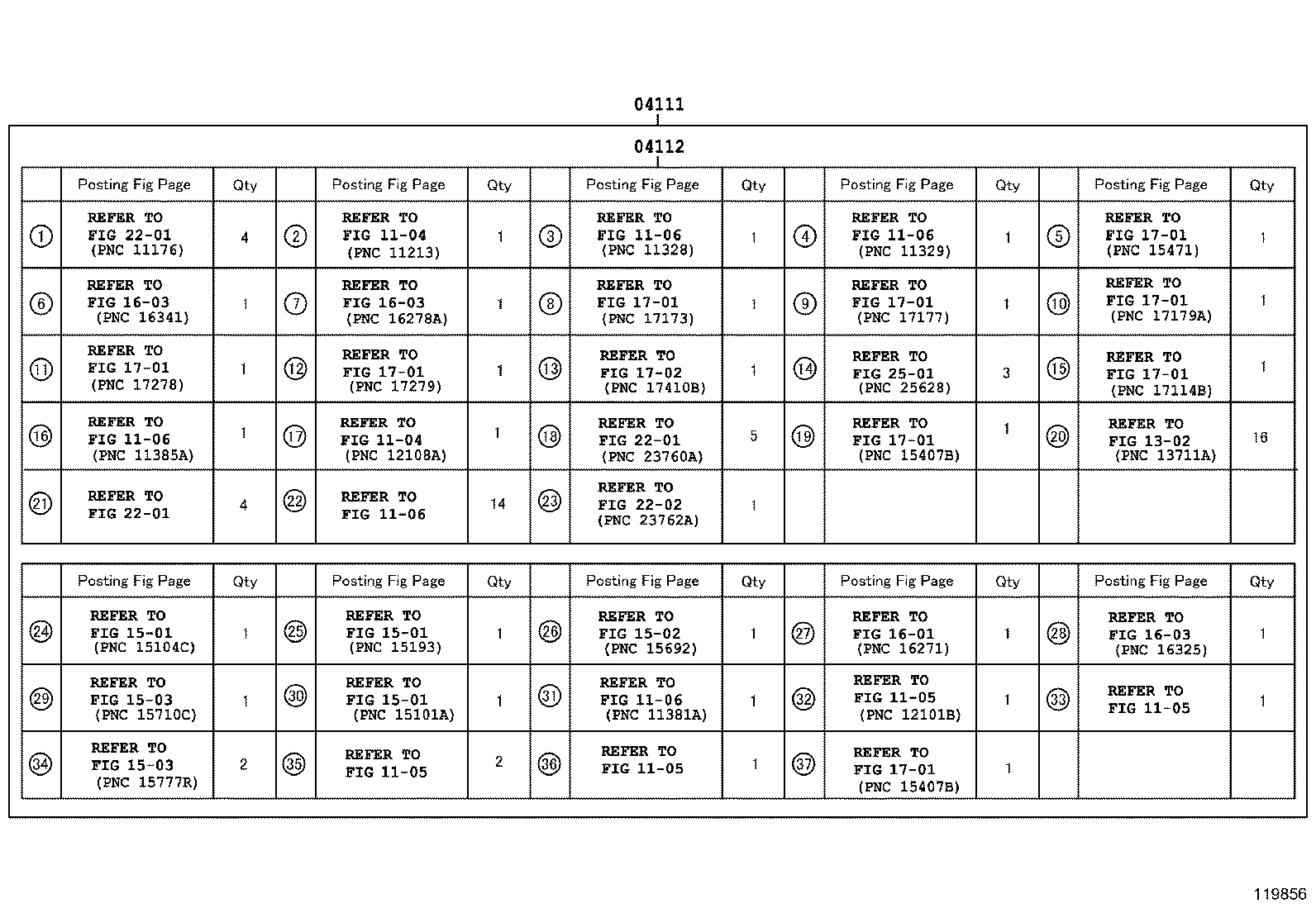

| 04111 — Gasket Kit, Engine Overhaul | ||||
| 04111-27080 |
Gasket Kit, Engine Overhaul
2001-05 → 2003-01
ended
|
1CDFTV CLM20 | — | |
| 04111-27081 |
Gasket Kit, Engine Overhaul
2003-01 → 2003-10
ended
|
1CDFTV CLM20 | — | |
| 04111-28120 |
Gasket Kit, Engine Overhaul
2001-05 → 2002-11
ended
|
1AZFE ACM20 | — | |
| 04111-28121 |
Gasket Kit, Engine Overhaul
2002-11 → 2002-12
ended
|
1AZFE ACM20 | — | |
| 04111-28122 |
Gasket Kit, Engine Overhaul
2002-12 → 2003-04
ended
|
1AZFE ACM20 | — | |
| 04111-28123 |
Gasket Kit, Engine Overhaul
2003-04 → 2003-10
ended
|
1AZFE ACM20 | — | |
| 04111-27081 |
Gasket Kit, Engine Overhaul
2003-10 → 2003-11
ended
|
1CDFTV CLM20 | — | |
| 04111-27130 |
Gasket Kit, Engine Overhaul
2003-11 → 2005-07
ended
|
1CDFTV CLM20 | — | |
| 04111-28056 |
Gasket Kit, Engine Overhaul
2003-10 → 2003-11
ended
|
2AZFE ACM21 | — | |
| 04111-28123 |
Gasket Kit, Engine Overhaul
2003-10 → 2003-11
ended
|
1AZFE ACM20 | — | |
| 04111-28360 |
Gasket Kit, Engine Overhaul
2003-11 → 2005-07
ended
|
1AZFE ACM20 MTM | — | |
| 04111-28370 |
Gasket Kit, Engine Overhaul
2003-11 → 2005-08
ended
|
2AZFE ACM21 | — | |
| 04111-28371 |
Gasket Kit, Engine Overhaul
2005-08 → 2005-11
ended
|
2AZFE ACM21 | — | |
| 04111-28372 |
Gasket Kit, Engine Overhaul
2005-11 → 2006-07
ended
|
2AZFE ACM21 | — | |
| 04111-28373 |
Gasket Kit, Engine Overhaul
2006-07 → 2007-10
ended
|
2AZFE ACM21 | — | |
| 04111-28380 |
Gasket Kit, Engine Overhaul
2003-11 → 2005-08
ended
|
1AZFE ACM20 ATM | — | |
| 04111-28381 |
Gasket Kit, Engine Overhaul
2005-08 → 2006-07
ended
|
1AZFE ACM20 | — | |
| 04111-28382 |
Gasket Kit, Engine Overhaul
2006-07 → 2007-10
ended
|
1AZFE ACM20 | — | |
| 04111-28383 |
Gasket Kit, Engine Overhaul
2007-10 → 2009-04
ended
|
1AZFE ACM20 | — | |
| 04111-28384 |
Gasket Kit, Engine Overhaul
2009-04 → —
|
1AZFE ACM20 | — | |
| 04111-28930 note |
Gasket Kit, Engine Overhaul
2003-10 → 2009-04
ended
|
2AZFE ACM21 | — | |
| 04111-28931 |
Gasket Kit, Engine Overhaul
2009-04 → —
|
2AZFE ACM21 | — | |
| 04112 — Gasket Kit, Engine Valve Grind | ||||
| 04112-27070 |
Gasket Kit, Engine Valve Grind
2001-05 → 2003-01
ended
|
1CDFTV CLM20 | — | |
| 04112-27071 |
Gasket Kit, Engine Valve Grind
2003-01 → 2003-10
ended
|
1CDFTV CLM20 | — | |
| 04112-28120 |
Gasket Kit, Engine Valve Grind
2001-05 → 2002-11
ended
|
1AZFE ACM20 | — | |
| 04112-28121 |
Gasket Kit, Engine Valve Grind
2002-11 → 2002-12
ended
|
1AZFE ACM20 | — | |
| 04112-28122 |
Gasket Kit, Engine Valve Grind
2002-12 → 2003-04
ended
|
1AZFE ACM20 | — | |
| 04112-28123 |
Gasket Kit, Engine Valve Grind
2003-04 → 2003-10
ended
|
1AZFE ACM20 | — | |
| 04112-27071 |
Gasket Kit, Engine Valve Grind
2003-10 → 2003-11
ended
|
1CDFTV CLM20 | — | |
| 04112-27120 |
Gasket Kit, Engine Valve Grind
2003-11 → 2005-07
ended
|
1CDFTV CLM20 | — | |
| 04112-28056 |
Gasket Kit, Engine Valve Grind
2003-10 → 2003-11
ended
|
2AZFE ACM21 | — | |
| 04112-28123 |
Gasket Kit, Engine Valve Grind
2003-10 → 2003-11
ended
|
1AZFE ACM20 | — | |
| 04112-28193 note |
Gasket Kit, Engine Valve Grind
2003-10 → 2009-04
ended
|
2AZFE ACM21 | — | |
| 04112-28194 |
Gasket Kit, Engine Valve Grind
2009-04 → —
|
2AZFE ACM21 | — | |
| 04112-28350 |
Gasket Kit, Engine Valve Grind
2003-11 → 2005-08
ended
|
1AZFE ACM20 | — | |
| 04112-28351 |
Gasket Kit, Engine Valve Grind
2005-08 → 2006-07
ended
|
1AZFE ACM20 | — | |
| 04112-28352 |
Gasket Kit, Engine Valve Grind
2006-07 → 2007-10
ended
|
1AZFE ACM20 | — | |
| 04112-28353 |
Gasket Kit, Engine Valve Grind
2007-10 → 2009-04
ended
|
1AZFE ACM20 | — | |
| 04112-28354 |
Gasket Kit, Engine Valve Grind
2009-04 → —
|
1AZFE ACM20 | — | |
| 04112-28360 |
Gasket Kit, Engine Valve Grind
2003-11 → 2005-08
ended
|
2AZFE ACM21 | — | |
| 04112-28361 |
Gasket Kit, Engine Valve Grind
2005-08 → 2005-11
ended
|
2AZFE ACM21 | — | |
| 04112-28362 |
Gasket Kit, Engine Valve Grind
2005-11 → 2006-07
ended
|
2AZFE ACM21 | — | |
| 04112-28363 |
Gasket Kit, Engine Valve Grind
2006-07 → 2007-10
ended
|
2AZFE ACM21 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
