Toyota Picnic/Avensis Verso
2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · Europe
Discontinued model
Data version 2010-04

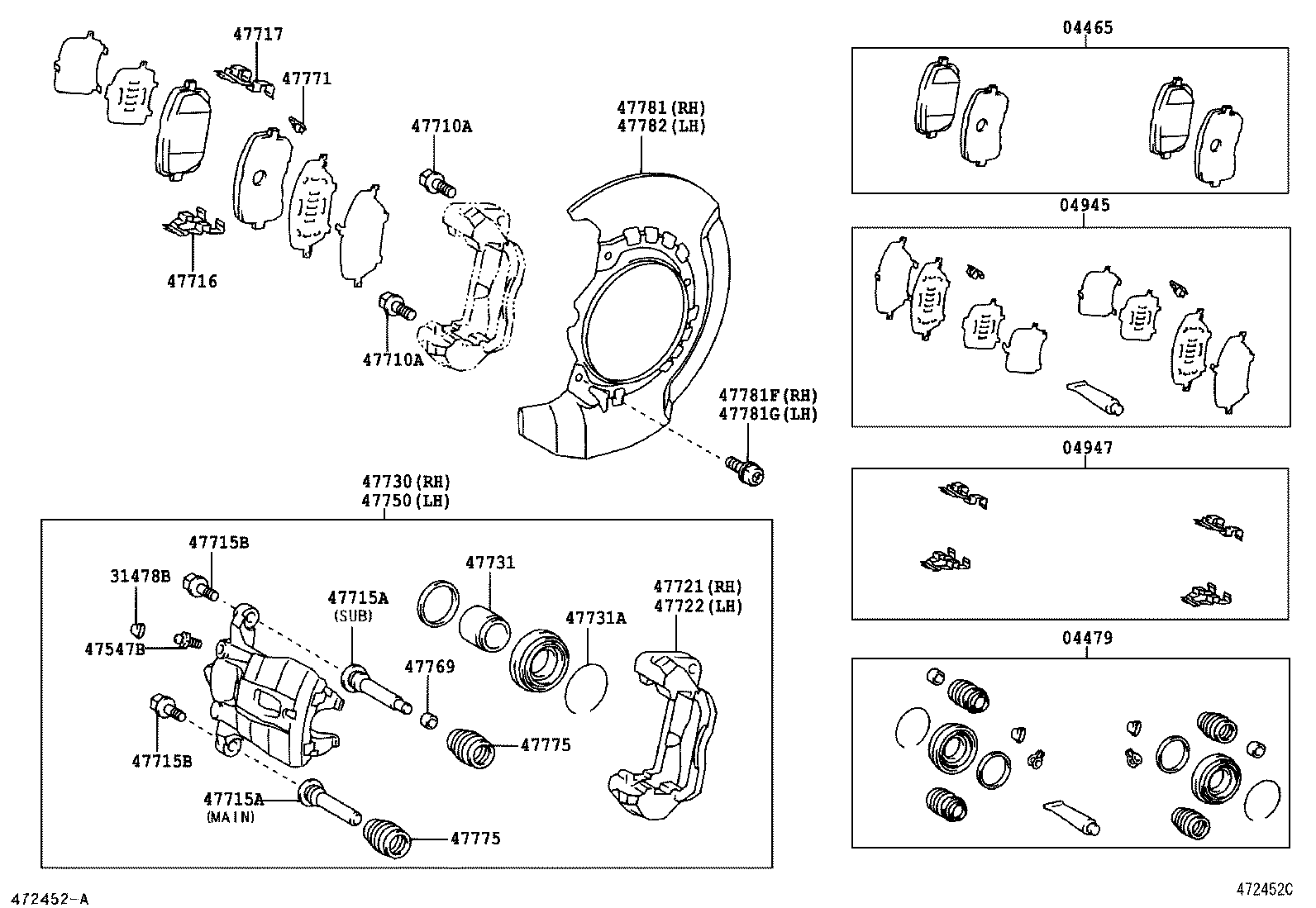

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04465 — Pad Kit, Disc Brake, Front | ||||
| 04465-44050 note |
Pad Kit, Disc Brake, Front
2002-06 → 2003-10
ended
|
ACM20 GEN | — | |
| 04465-44090 note |
Pad Kit, Disc Brake, Front
2001-05 → 2002-06
ended
|
ACM20,CLM20 | — | |
| 04465-44090 note |
Pad Kit, Disc Brake, Front
2002-06 → 2003-10
ended
|
ACM20,CLM20 ARL,EUR | — | |
| 04465-44050 note |
Pad Kit, Disc Brake, Front
2003-10 → 2009-12
ended
|
ACM20 GEN | — | |
| 04465-44090 note |
Pad Kit, Disc Brake, Front
2003-10 → 2009-12
ended
|
ACM2#,CLM20 ARL,EUR | — | |
| 04479 — Cylinder Kit, Disc Brake, Front | ||||
| 04479-44020 |
Cylinder Kit, Disc Brake, Front
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 04479-44020 |
Cylinder Kit, Disc Brake, Front
2003-10 → —
|
ACM2#,CLM20 | — | |
| 04945 — Shim Kit, Anti Squeal, Front | ||||
| 04945-44020 |
Shim Kit, Anti Squeal, Front
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 04945-44020 |
Shim Kit, Anti Squeal, Front
2003-10 → —
|
ACM2#,CLM20 | — | |
| 04947 — Fitting Kit, Disc Brake, Front | ||||
| 04947-44010 |
Fitting Kit, Disc Brake, Front
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 04947-44010 |
Fitting Kit, Disc Brake, Front
2003-10 → —
|
ACM2#,CLM20 | — | |
| 31478B — Cap, Bleeder Plug(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 31478-30010 |
Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47547B — Plug, Bleeder(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
Plug, Bleeder(FOR FRONT DISC BRAKE)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47547-20010 |
Plug, Bleeder(FOR FRONT DISC BRAKE)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47710A — Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 note |
Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 90105-12208 note |
Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
2003-10 → 2009-12
ended
|
ACM2#,CLM20 | — | |
| 47715A — Pin, Front Disc Brake Cylinder Slide | ||||
| 47714-48050 note |
Pin, Front Disc Brake Cylinder Slide
2002-12 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47715-48010 note |
Pin, Front Disc Brake Cylinder Slide
2001-05 → 2002-12
ended
|
ACM20,CLM20 | — | |
| 47715-48020 note |
Pin, Front Disc Brake Cylinder Slide
2001-05 → 2002-12
ended
|
ACM20,CLM20 | — | |
| 47715-48050 note |
Pin, Front Disc Brake Cylinder Slide
2002-12 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47714-48050 note |
Pin, Front Disc Brake Cylinder Slide
2003-10 → 2009-12
ended
|
ACM2#,CLM20 | — | |
| 47715-48050 note |
Pin, Front Disc Brake Cylinder Slide
2003-10 → 2009-12
ended
|
ACM2#,CLM20 | — | |
| 47715B — Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08346 |
Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 90105-08346 |
Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47716 — Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-44010 |
Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47716-44010 |
Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47717 — Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47717-44010 |
Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47717-44010 |
Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47721 — Mounting, Front Disc Brake Cylinder, RH | ||||
| 47721-44020 |
Mounting, Front Disc Brake Cylinder, RH
2001-05 → 2002-12
ended
|
ACM20,CLM20 | — | |
| 47721-44021 |
Mounting, Front Disc Brake Cylinder, RH
2002-12 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47721-44021 |
Mounting, Front Disc Brake Cylinder, RH
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47722 — Mounting, Front Disc Brake Cylinder, LH | ||||
| 47721-44020 |
Mounting, Front Disc Brake Cylinder, LH
2001-05 → 2002-12
ended
|
ACM20,CLM20 | — | |
| 47721-44021 |
Mounting, Front Disc Brake Cylinder, LH
2002-12 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47721-44021 |
Mounting, Front Disc Brake Cylinder, LH
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47730 — Cylinder Assy, Front Disc Brake, RH | ||||
| 47730-44020 |
Cylinder Assy, Front Disc Brake, RH
2001-05 → 2002-12
ended
|
ACM20,CLM20 | — | |
| 47730-44021 |
Cylinder Assy, Front Disc Brake, RH
2002-12 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47730-44021 |
Cylinder Assy, Front Disc Brake, RH
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47731 — Piston, Front Disc Brake | ||||
| 47731-28080 |
Piston, Front Disc Brake
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47731-28080 |
Piston, Front Disc Brake
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47731A — Ring, Set(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
Ring, Set(FOR FRONT DISC BRAKE PISTON)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 90522-67001 |
Ring, Set(FOR FRONT DISC BRAKE PISTON)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47750 — Cylinder Assy, Disc Brake, LH | ||||
| 47750-44020 |
Cylinder Assy, Disc Brake, LH
2001-05 → 2002-12
ended
|
ACM20,CLM20 | — | |
| 47750-44021 |
Cylinder Assy, Disc Brake, LH
2002-12 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47750-44021 |
Cylinder Assy, Disc Brake, LH
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47769 — Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-33020 |
Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47769-33020 |
Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47771 — Plate, Pad Wear Indicator, NO.1 | ||||
| 47771-48010 |
Plate, Pad Wear Indicator, NO.1
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47771-48010 |
Plate, Pad Wear Indicator, NO.1
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47775 — Boot, Bush Dust(FOR FRONT DISC BRAKE) | ||||
| 47775-48010 |
Boot, Bush Dust(FOR FRONT DISC BRAKE)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47775-48010 |
Boot, Bush Dust(FOR FRONT DISC BRAKE)
2003-10 → —
|
ACM2#,CLM20 | — | |
| 47781 — Cover, Disc Brake Dust, Front RH | ||||
| 47781-28200 |
Cover, Disc Brake Dust, Front RH
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47781-28200 |
Cover, Disc Brake Dust, Front RH
2003-10 → 2007-05
ended
|
ACM2#,CLM20 | — | |
| 47781-28240 |
Cover, Disc Brake Dust, Front RH
2007-06 → 2009-12
ended
|
ACM2# | — | |
| 47781F — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM RH) | ||||
| 90119-06227 |
Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 90119-06227 |
Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
2003-10 → 2009-12
ended
|
ACM2#,CLM20 | — | |
| 47781G — Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM LH) | ||||
| 90119-06227 |
Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 90119-06227 |
Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
2003-10 → 2009-12
ended
|
ACM2#,CLM20 | — | |
| 47782 — Cover, Disc Brake Dust, Front LH | ||||
| 47782-28200 |
Cover, Disc Brake Dust, Front LH
2001-05 → 2003-10
ended
|
ACM20,CLM20 | — | |
| 47782-28200 |
Cover, Disc Brake Dust, Front LH
2003-10 → 2007-05
ended
|
ACM2#,CLM20 | — | |
| 47782-28230 |
Cover, Disc Brake Dust, Front LH
2007-06 → 2009-12
ended
|
ACM2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
