Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · Europe

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

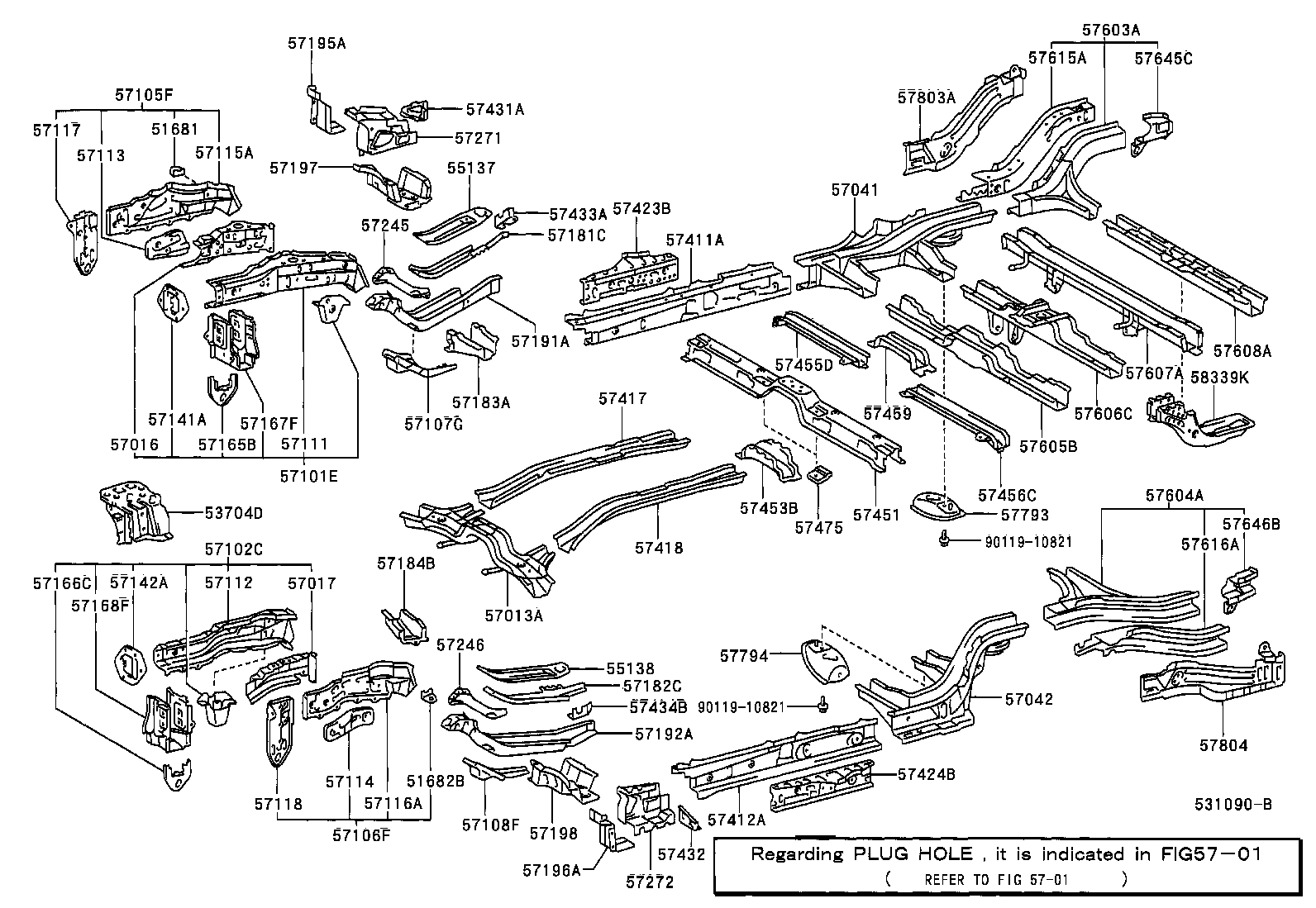

Exploded illustration 531090B 57603A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH (2 parts) 57195A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH (2 parts) 57615A — MEMBER, REAR FLOOR SIDE, REAR RH (4 parts) 57645C — REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 RH (4 parts) 57105F — PLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER RH (2 parts) 57803A — REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH (2 parts) 57431A — PATCH, STEP PANEL UNDER, RH (2 parts) 51681 — BRACKET, FLEXIBLE HOSE (2 parts) 57117 — PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH (2 parts) 57271 — EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH (2 parts) 57115A — PLATE, FRONT SIDE MEMBER, OUTER RH (2 parts) 57113 — EXTENSION, FRONT SIDE MEMBER, RH (2 parts) 57197 — BOX, TORQUE, FRONT RH (2 parts) 55137 — BRACE, DASH TO FRAME, RH (2 parts) 57041 — MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH (4 parts) 57423B — REINFORCEMENT, FRONT FLOOR UNDER, INNER RH (2 parts) 57433A — REINFORCEMENT, STEP PANEL, LOWER RH (2 parts) 57245 — REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH (2 parts) 57181C — REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 RH (2 parts) 57411A — MEMBER, FLOOR SIDE, INNER RH (2 parts) 57191A — MEMBER, FRONT SIDE, INNER REAR RH (2 parts) 57608A — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4 (4 parts) 57455D — GUSSET, FRONT FLOOR CROSSMEMBER, RH (2 parts) 57607A — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3 (2 parts) 58339K — BRACKET JACK UP (2 parts) 57417 — REINFORCEMENT, FRONT FLOOR UNDER, RH (2 parts) 57183A — EXTENSION, FRONT CROSSMEMBER, RR RH (2 parts) 57459 — MEMBER, FRONT FLOOR CROSS, NO.2 (2 parts) 57606C — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 (4 parts) 57141A — SUPPORT, FRONT BUMPER ARM, RH (2 parts) 57167F — REINFORCEMENT, FRONT CROSSMEMBER SIDE, RH (2 parts) 57107G — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH (2 parts) 57111 — MEMBER, FRONT SIDE, RH (4 parts) 57016 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH (4 parts) 57165B — REINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH (2 parts) 57605B — MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 (2 parts) 57101E — MEMBER SUB-ASSY, FRONT SIDE, INNER RH (4 parts) 57456C — GUSSET, FRONT FLOOR CROSSMEMBER, LH (2 parts) 57604A — MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH (2 parts) 57453B — MEMBER, FRONT FLOOR CROSS, NO.3 (2 parts) 53704D — SUPPORT SUB-ASSY, BATTERY, LH (3 parts) 57451 — MEMBER, FRONT FLOOR CROSS (2 parts) 57793 — BRACKET, REAR SUSPENSION ARM, REAR RH NO.1 (3 parts) 57646B — REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR NO.3 LH (4 parts) 57475 — PLATE, FRONT FLOOR CROSSMEMBER (4 parts) 9011910821 — not listed in this catalogue 57616A — MEMBER, REAR FLOOR SIDE, REAR LH (4 parts) 57418 — REINFORCEMENT, FRONT FLOOR UNDER, LH (2 parts) 57102C — MEMBER SUB-ASSY, FRONT SIDE, INNER LH (4 parts) 57184B — EXTENSION, FRONT CROSSMEMBER, RR LH (2 parts) 57166C — REINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH (2 parts) 57142A — SUPPORT, FRONT BUMPER ARM, LH (2 parts) 57112 — MEMBER, FRONT SIDE, LH (4 parts) 57017 — REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH (4 parts) 57168F — REINFORCEMENT, FRONT CROSSMEMBER SIDE, LH (2 parts) 57013A — MEMBER SUB-ASSY, FLOOR, FRONT RH (2 parts) 57246 — REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH (2 parts) 57794 — BRACKET, REAR SUSPENSION ARM, REAR LH NO.1 (2 parts) 55138 — BRACE, DASH TO FRAME, LH (2 parts) 57182C — REINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH (2 parts) 57042 — MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH (4 parts) 57434B — REINFORCEMENT, STEP PANEL, LOWER LH (2 parts) 9011910821 — not listed in this catalogue 57192A — MEMBER, FRONT SIDE, INNER REAR LH (2 parts) 57804 — REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH (2 parts) 57424B — REINFORCEMENT, FRONT FLOOR UNDER, INNER LH (2 parts) 51682B — BRACKET, FLEXIBLE HOSE, LH (2 parts) 57114 — EXTENSION, FRONT SIDE MEMBER, LH (2 parts) 57116A — PLATE, FRONT SIDE MEMBER, OUTER LH (2 parts) 57118 — PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH (2 parts) 57412A — MEMBER, FLOOR SIDE, INNER LH (2 parts) 57108F — BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH (2 parts) 57198 — BOX, TORQUE, FRONT LH (2 parts) 57106F — PLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER LH (2 parts) 57432 — PATCH, STEP PANEL UNDER, LH (2 parts) 57196A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH (2 parts) 5701 — not listed in this catalogue 57272 — EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH (2 parts)
531090B · 75 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
182 parts on this figure
Part number Description Fitment Price
51681 — Bracket, Flexible Hose
51681-32050 Bracket, Flexible Hose
2001-05 → 2003-10 ended
ACM20,CLM20 —
51681-32050 Bracket, Flexible Hose
2003-10 → —
ACM2#,CLM20 —
51682B — Bracket, Flexible Hose, LH
51682-32040 Bracket, Flexible Hose, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
51682-32040 Bracket, Flexible Hose, LH
2003-10 → —
ACM2#,CLM20 —
53704D — Support Sub-assy, Battery, LH
53704-44040 Support Sub-assy, Battery, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
53704-28090 Support Sub-assy, Battery, LH
2007-05 → —
ACM2# —
53704-44040 Support Sub-assy, Battery, LH
2003-10 → 2007-04 ended
ACM2#,CLM20 —
55137 — Brace, Dash TO Frame, RH
55137-44030 Brace, Dash TO Frame, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
55137-44030 Brace, Dash TO Frame, RH
2003-10 → —
ACM2#,CLM20 —
55138 — Brace, Dash TO Frame, LH
55138-44030 Brace, Dash TO Frame, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
55138-44030 Brace, Dash TO Frame, LH
2003-10 → —
ACM2#,CLM20 —
57013A — Member Sub-assy, Floor, Front RH
57013-44030 Member Sub-assy, Floor, Front RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57013-44030 Member Sub-assy, Floor, Front RH
2003-10 → —
ACM2#,CLM20 —
57016 — Reinforcement Sub-assy, Front Side Member, RH
57016-44030 Reinforcement Sub-assy, Front Side Member, RH
2001-05 → 2003-10 ended
ACM20 —
57016-44040 Reinforcement Sub-assy, Front Side Member, RH
2001-05 → 2003-10 ended
CLM20 —
57016-44030 Reinforcement Sub-assy, Front Side Member, RH
2003-10 → —
ACM2# —
57016-44040 Reinforcement Sub-assy, Front Side Member, RH
2003-10 → 2005-07 ended
CLM20 —
57017 — Reinforcement Sub-assy, Front Side Member, LH
57017-44030 Reinforcement Sub-assy, Front Side Member, LH
2001-05 → 2003-10 ended
ACM20 —
57017-44040 Reinforcement Sub-assy, Front Side Member, LH
2001-05 → 2003-10 ended
CLM20 —
57017-44030 Reinforcement Sub-assy, Front Side Member, LH
2003-10 → —
ACM2# —
57017-44040 Reinforcement Sub-assy, Front Side Member, LH
2003-10 → 2005-07 ended
CLM20 —
57041 — Member Sub-assy, Center Floor Side, RH
57041-44010 Member Sub-assy, Center Floor Side, RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
57041-44020 Member Sub-assy, Center Floor Side, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
57041-44010 Member Sub-assy, Center Floor Side, RH
2003-10 → —
ACM2# ARL,GEN —
57041-44020 Member Sub-assy, Center Floor Side, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
57042 — Member Sub-assy, Center Floor Side, LH
57042-44010 Member Sub-assy, Center Floor Side, LH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
57042-44020 Member Sub-assy, Center Floor Side, LH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
57042-44010 Member Sub-assy, Center Floor Side, LH
2003-10 → —
ACM2# ARL,GEN —
57042-44020 Member Sub-assy, Center Floor Side, LH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
57101E — Member Sub-assy, Front Side, Inner RH
57027-44010 Member Sub-assy, Front Side, Inner RH
2001-05 → 2003-10 ended
ACM20 —
57027-44020 Member Sub-assy, Front Side, Inner RH
2001-05 → 2003-10 ended
CLM20 —
57027-44010 Member Sub-assy, Front Side, Inner RH
2003-10 → —
ACM2# —
57027-44020 Member Sub-assy, Front Side, Inner RH
2003-10 → 2005-07 ended
CLM20 —
57102C — Member Sub-assy, Front Side, Inner LH
57028-44010 Member Sub-assy, Front Side, Inner LH
2001-05 → 2003-10 ended
ACM20 —
57028-44020 Member Sub-assy, Front Side, Inner LH
2001-05 → 2003-10 ended
CLM20 —
57028-44010 Member Sub-assy, Front Side, Inner LH
2003-10 → —
ACM2# —
57028-44020 Member Sub-assy, Front Side, Inner LH
2003-10 → 2005-07 ended
CLM20 —
57105F — Plate Sub-assy, Front Side Member, Outer RH
57025-44010 Plate Sub-assy, Front Side Member, Outer RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57025-44010 Plate Sub-assy, Front Side Member, Outer RH
2003-10 → —
ACM2#,CLM20 —
57106F — Plate Sub-assy, Front Side Member, Outer LH
57026-44010 Plate Sub-assy, Front Side Member, Outer LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57026-44010 Plate Sub-assy, Front Side Member, Outer LH
2003-10 → —
ACM2#,CLM20 —
57107G — Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
57107-44020 Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57107-44020 Bracket Sub-assy, Front Suspension Member Mounting, Rear RH
2003-10 → —
ACM2#,CLM20 —
57108F — Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
57108-44020 Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57108-44020 Bracket Sub-assy, Front Suspension Member Mounting, Rear LH
2003-10 → —
ACM2#,CLM20 —
57111 — Member, Front Side, RH
57111-44040 Member, Front Side, RH
2001-05 → 2003-10 ended
ACM20 —
57111-44050 Member, Front Side, RH
2001-05 → 2003-10 ended
CLM20 —
57111-44040 Member, Front Side, RH
2003-10 → —
ACM2# —
57111-44050 Member, Front Side, RH
2003-10 → 2005-07 ended
CLM20 —
57112 — Member, Front Side, LH
57112-44040 Member, Front Side, LH
2001-05 → 2003-10 ended
ACM20 —
57112-44050 Member, Front Side, LH
2001-05 → 2003-10 ended
CLM20 —
57112-44040 Member, Front Side, LH
2003-10 → —
ACM2# —
57112-44050 Member, Front Side, LH
2003-10 → 2005-07 ended
CLM20 —
57113 — Extension, Front Side Member, RH
57113-44040 Extension, Front Side Member, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57113-44040 Extension, Front Side Member, RH
2003-10 → —
ACM2#,CLM20 —
57114 — Extension, Front Side Member, LH
57114-44040 Extension, Front Side Member, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57114-44040 Extension, Front Side Member, LH
2003-10 → —
ACM2#,CLM20 —
57115A — Plate, Front Side Member, Outer RH
57115-44020 Plate, Front Side Member, Outer RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57115-44020 Plate, Front Side Member, Outer RH
2003-10 → —
ACM2#,CLM20 —
57116A — Plate, Front Side Member, Outer LH
57116-44020 Plate, Front Side Member, Outer LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57116-44020 Plate, Front Side Member, Outer LH
2003-10 → —
ACM2#,CLM20 —
57117 — Plate Sub-assy, Front Side Member, Front RH
57117-44020 Plate Sub-assy, Front Side Member, Front RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57117-44020 Plate Sub-assy, Front Side Member, Front RH
2003-10 → —
ACM2#,CLM20 —
57118 — Plate Sub-assy, Front Side Member, Front LH
57118-44030 Plate Sub-assy, Front Side Member, Front LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57118-44030 Plate Sub-assy, Front Side Member, Front LH
2003-10 → —
ACM2#,CLM20 —
57141A — Support, Front Bumper Arm, RH
57141-44020 Support, Front Bumper Arm, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57141-44020 Support, Front Bumper Arm, RH
2003-10 → —
ACM2#,CLM20 —
57142A — Support, Front Bumper Arm, LH
57142-44020 Support, Front Bumper Arm, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57142-44020 Support, Front Bumper Arm, LH
2003-10 → —
ACM2#,CLM20 —
57165B — Reinforcement, Front Crossmember, NO.2 RH
57165-32050 Reinforcement, Front Crossmember, NO.2 RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57165-32050 Reinforcement, Front Crossmember, NO.2 RH
2003-10 → —
ACM2#,CLM20 —
57166C — Reinforcement, Front Crossmember, NO.2 LH
57166-32010 Reinforcement, Front Crossmember, NO.2 LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57166-32010 Reinforcement, Front Crossmember, NO.2 LH
2003-10 → —
ACM2#,CLM20 —
57167F — Reinforcement, Front Crossmember Side, RH
57167-44020 Reinforcement, Front Crossmember Side, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57167-44020 Reinforcement, Front Crossmember Side, RH
2003-10 → —
ACM2#,CLM20 —
57168F — Reinforcement, Front Crossmember Side, LH
57168-44020 Reinforcement, Front Crossmember Side, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57168-44020 Reinforcement, Front Crossmember Side, LH
2003-10 → —
ACM2#,CLM20 —
57181C — Reinforcement, Front Side Member, Rear NO.1 RH
57181-44050 Reinforcement, Front Side Member, Rear NO.1 RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57181-44050 Reinforcement, Front Side Member, Rear NO.1 RH
2003-10 → —
ACM2#,CLM20 —
57182C — Reinforcement, Front Side Member, Rear NO.1 LH
57182-44050 Reinforcement, Front Side Member, Rear NO.1 LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57182-44050 Reinforcement, Front Side Member, Rear NO.1 LH
2003-10 → —
ACM2#,CLM20 —
57183A — Extension, Front Crossmember, RR RH
57183-44030 Extension, Front Crossmember, RR RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57183-44030 Extension, Front Crossmember, RR RH
2003-10 → —
ACM2#,CLM20 —
57184B — Extension, Front Crossmember, RR LH
57184-44030 Extension, Front Crossmember, RR LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57184-44030 Extension, Front Crossmember, RR LH
2003-10 → —
ACM2#,CLM20 —
57191A — Member, Front Side, Inner Rear RH
57191-44040 Member, Front Side, Inner Rear RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57191-44040 Member, Front Side, Inner Rear RH
2003-10 → —
ACM2#,CLM20 —
57192A — Member, Front Side, Inner Rear LH
57192-44040 Member, Front Side, Inner Rear LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57192-44040 Member, Front Side, Inner Rear LH
2003-10 → —
ACM2#,CLM20 —
57195A — Reinforcement, Front Side Member, Front RH
57195-44020 Reinforcement, Front Side Member, Front RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57195-44020 Reinforcement, Front Side Member, Front RH
2003-10 → —
ACM2#,CLM20 —
57196A — Reinforcement, Front Side Member, Front LH
57196-44020 Reinforcement, Front Side Member, Front LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57196-44020 Reinforcement, Front Side Member, Front LH
2003-10 → —
ACM2#,CLM20 —
57197 — Box, Torque, Front RH
57197-44050 Box, Torque, Front RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57197-44050 Box, Torque, Front RH
2003-10 → —
ACM2#,CLM20 —
57198 — Box, Torque, Front LH
57198-44050 Box, Torque, Front LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57198-44050 Box, Torque, Front LH
2003-10 → —
ACM2#,CLM20 —
57245 — Reinforcement, Front Side Member, NO.9 RH
57245-44020 Reinforcement, Front Side Member, NO.9 RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57245-44020 Reinforcement, Front Side Member, NO.9 RH
2003-10 → —
ACM2#,CLM20 —
57246 — Reinforcement, Front Side Member, NO.9 LH
57246-44020 Reinforcement, Front Side Member, NO.9 LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57246-44020 Reinforcement, Front Side Member, NO.9 LH
2003-10 → —
ACM2#,CLM20 —
57271 — Extension, Steering Gear Box Support Member, RH
57271-44040 Extension, Steering Gear Box Support Member, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57271-44040 Extension, Steering Gear Box Support Member, RH
2003-10 → —
ACM2#,CLM20 —
57272 — Extension, Steering Gear Box Suport Member, LH
57272-44040 Extension, Steering Gear Box Suport Member, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57272-44040 Extension, Steering Gear Box Suport Member, LH
2003-10 → —
ACM2#,CLM20 —
57411A — Member, Floor Side, Inner RH
57411-44020 Member, Floor Side, Inner RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57411-44020 Member, Floor Side, Inner RH
2003-10 → —
ACM2#,CLM20 —
57412A — Member, Floor Side, Inner LH
57412-44020 Member, Floor Side, Inner LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57412-44020 Member, Floor Side, Inner LH
2003-10 → —
ACM2#,CLM20 —
57417 — Reinforcement, Front Floor Under, RH
57417-44020 Reinforcement, Front Floor Under, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57417-44020 Reinforcement, Front Floor Under, RH
2003-10 → —
ACM2#,CLM20 —
57418 — Reinforcement, Front Floor Under, LH
57418-44010 Reinforcement, Front Floor Under, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57418-44010 Reinforcement, Front Floor Under, LH
2003-10 → —
ACM2#,CLM20 —
57423B — Reinforcement, Front Floor Under, Inner RH
57423-44010 Reinforcement, Front Floor Under, Inner RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57423-44010 Reinforcement, Front Floor Under, Inner RH
2003-10 → —
ACM2#,CLM20 —
57424B — Reinforcement, Front Floor Under, Inner LH
57424-44010 Reinforcement, Front Floor Under, Inner LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57424-44010 Reinforcement, Front Floor Under, Inner LH
2003-10 → —
ACM2#,CLM20 —
57431A — Patch, Step Panel Under, RH
57431-44030 Patch, Step Panel Under, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57431-44030 Patch, Step Panel Under, RH
2003-10 → —
ACM2#,CLM20 —
57432 — Patch, Step Panel Under, LH
57432-44030 Patch, Step Panel Under, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57432-44030 Patch, Step Panel Under, LH
2003-10 → —
ACM2#,CLM20 —
57433A — Reinforcement, Step Panel, Lower RH
57433-44020 Reinforcement, Step Panel, Lower RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57433-44020 Reinforcement, Step Panel, Lower RH
2003-10 → —
ACM2#,CLM20 —
57434B — Reinforcement, Step Panel, Lower LH
57434-44020 Reinforcement, Step Panel, Lower LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57434-44020 Reinforcement, Step Panel, Lower LH
2003-10 → —
ACM2#,CLM20 —
57451 — Member, Front Floor Cross
57451-44030 Member, Front Floor Cross
2001-05 → 2003-10 ended
ACM20,CLM20 —
57451-44030 Member, Front Floor Cross
2003-10 → —
ACM2#,CLM20 —
57453B — Member, Front Floor Cross, NO.3
57453-44020 Member, Front Floor Cross, NO.3
2001-05 → 2003-10 ended
ACM20,CLM20 —
57453-44020 Member, Front Floor Cross, NO.3
2003-10 → —
ACM2#,CLM20 —
57455D — Gusset, Front Floor Crossmember, RH
57455-44020 Gusset, Front Floor Crossmember, RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57455-44020 Gusset, Front Floor Crossmember, RH
2003-10 → —
ACM2#,CLM20 —
57456C — Gusset, Front Floor Crossmember, LH
57456-44020 Gusset, Front Floor Crossmember, LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57456-44020 Gusset, Front Floor Crossmember, LH
2003-10 → —
ACM2#,CLM20 —
57459 — Member, Front Floor Cross, NO.2
57459-44020 Member, Front Floor Cross, NO.2
2001-05 → 2003-10 ended
ACM20,CLM20 —
57459-44020 Member, Front Floor Cross, NO.2
2003-10 → —
ACM2#,CLM20 —
57475 — Plate, Front Floor Crossmember
57475-44020 note Plate, Front Floor Crossmember
2001-05 → 2003-10 ended
ACM20,CLM20 —
57476-44010 note Plate, Front Floor Crossmember
2001-05 → 2003-10 ended
ACM20,CLM20 —
57475-44020 note Plate, Front Floor Crossmember
2003-10 → —
ACM2#,CLM20 —
57476-44010 note Plate, Front Floor Crossmember
2003-10 → —
ACM2#,CLM20 —
57603A — Member Sub-assy, Rear Floor Side, Rear RH
57603-44020 Member Sub-assy, Rear Floor Side, Rear RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57603-44020 Member Sub-assy, Rear Floor Side, Rear RH
2003-10 → —
ACM2#,CLM20 —
57604A — Member Sub-assy, Rear Floor Side, Rear LH
57604-44030 Member Sub-assy, Rear Floor Side, Rear LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57604-44030 Member Sub-assy, Rear Floor Side, Rear LH
2003-10 → —
ACM2#,CLM20 —
57605B — Member Sub-assy, Rear Floor Cross, NO.1
57605-44030 Member Sub-assy, Rear Floor Cross, NO.1
2001-05 → 2003-10 ended
ACM20,CLM20 —
57605-44030 Member Sub-assy, Rear Floor Cross, NO.1
2003-10 → —
ACM2#,CLM20 —
57606C — Member Sub-assy, Rear Floor Cross, NO.2
57606-44090 Member Sub-assy, Rear Floor Cross, NO.2
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
57606-44110 Member Sub-assy, Rear Floor Cross, NO.2
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
57606-44090 Member Sub-assy, Rear Floor Cross, NO.2
2003-10 → —
ACM2# ARL,GEN —
57606-44110 Member Sub-assy, Rear Floor Cross, NO.2
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
57607A — Member Sub-assy, Rear Floor Cross, NO.3
57607-44070 Member Sub-assy, Rear Floor Cross, NO.3
2001-05 → 2003-10 ended
ACM20,CLM20 —
57607-44070 Member Sub-assy, Rear Floor Cross, NO.3
2003-10 → —
ACM2#,CLM20 —
57608A — Member Sub-assy, Rear Floor Cross, NO.4
57608-44040 Member Sub-assy, Rear Floor Cross, NO.4
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
57608-44050 Member Sub-assy, Rear Floor Cross, NO.4
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
57608-44040 Member Sub-assy, Rear Floor Cross, NO.4
2003-10 → —
ACM2# ARL,GEN —
57608-44050 Member Sub-assy, Rear Floor Cross, NO.4
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
57615A — Member, Rear Floor Side, Rear RH
57615-44020 Member, Rear Floor Side, Rear RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57615-44020 Member, Rear Floor Side, Rear RH
2003-10 → 2004-02 ended
ACM20,CLM20 RHD EUR —
57615-44020 Member, Rear Floor Side, Rear RH
2003-10 → 2005-07 ended
ACM20,CLM20 LHD —
57615-44020 Member, Rear Floor Side, Rear RH
2003-10 → —
ACM2# ARL,GEN —
57616A — Member, Rear Floor Side, Rear LH
57616-44010 Member, Rear Floor Side, Rear LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57616-44010 Member, Rear Floor Side, Rear LH
2003-10 → 2004-02 ended
ACM20,CLM20 RHD EUR —
57616-44010 Member, Rear Floor Side, Rear LH
2003-10 → —
ACM2# ARL,GEN —
57616-44010 Member, Rear Floor Side, Rear LH
2003-10 → 2005-07 ended
ACM20,CLM20 LHD —
57645C — Reinforcement, Rear Floor Side Member, Rear NO.3 RH
57645-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57645-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 RH
2003-10 → 2004-02 ended
ACM20,CLM20 RHD EUR —
57645-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 RH
2003-10 → 2005-07 ended
ACM20,CLM20 LHD —
57645-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 RH
2003-10 → —
ACM2# ARL,GEN —
57646B — Reinforcement, Rear Floor Side Member, Rear NO.3 LH
57646-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57646-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 LH
2003-10 → 2004-02 ended
ACM20,CLM20 RHD EUR —
57646-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 LH
2003-10 → 2005-07 ended
ACM20,CLM20 LHD —
57646-44020 Reinforcement, Rear Floor Side Member, Rear NO.3 LH
2003-10 → —
ACM2# ARL,GEN —
57793 — Bracket, Rear Suspension Arm, Rear RH NO.1
57793-44030 Bracket, Rear Suspension Arm, Rear RH NO.1
2001-05 → 2003-10 ended
ACM20,CLM20 —
57793-44030 Bracket, Rear Suspension Arm, Rear RH NO.1
2003-10 → 2005-06 ended
ACM2#,CLM20 —
57793-44040 Bracket, Rear Suspension Arm, Rear RH NO.1
2005-06 → —
ACM2#,CLM20 —
57794 — Bracket, Rear Suspension Arm, Rear LH NO.1
57794-44030 Bracket, Rear Suspension Arm, Rear LH NO.1
2001-05 → 2003-10 ended
ACM20,CLM20 —
57794-44030 Bracket, Rear Suspension Arm, Rear LH NO.1
2003-10 → —
ACM2#,CLM20 —
57803A — Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
57803-44010 Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57803-44010 Reinforcement Sub-assy, Rear Floor Side Member, Rear RH
2003-10 → —
ACM2#,CLM20 —
57804 — Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
57804-44010 Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
2001-05 → 2003-10 ended
ACM20,CLM20 —
57804-44010 Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
2003-10 → —
ACM2#,CLM20 —
58339K — Bracket Jack UP
58706-44010 Bracket Jack UP
2001-05 → 2003-10 ended
ACM20,CLM20 —
58706-44010 Bracket Jack UP
2003-10 → —
ACM2#,CLM20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
