Toyota Picnic/Avensis Verso

2001-05 → 2009-12 · chassis ACM20,CLM20 · catalogue 511220 · Europe

Discontinued model Data version 2010-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

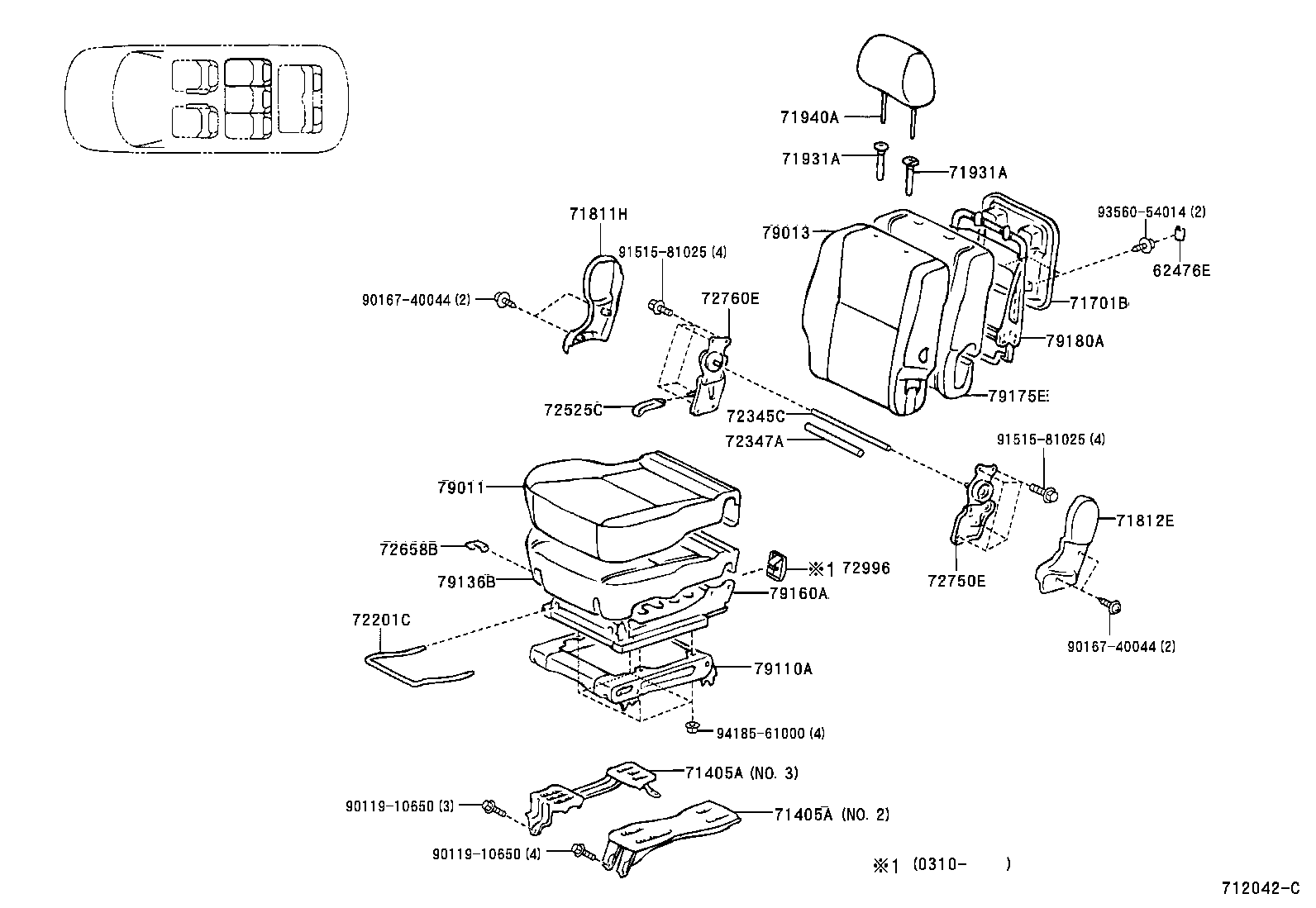

Exploded illustration 712042C 71940A — HEADREST ASSY, REAR SEAT (5 parts) 71931A — SUPPORT, REAR SEAT HEADREST (10 parts) 71931A — SUPPORT, REAR SEAT HEADREST (10 parts) 9356054014 — not listed in this catalogue 71811H — COVER, RECLINING ADJUSTER, RH (5 parts) 79013 — COVER SUB-ASSY, NO.1 SEATBACK, RH (8 parts) 9151581025 — not listed in this catalogue 62476E — CAP, REAR SEAT (9 parts) 72760E — ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH (4 parts) 9016740044 — not listed in this catalogue 71701B — BOARD SUB-ASSY, REAR SEATBACK, RH (5 parts) 79180A — SPRING ASSY, NO.1 SEATBACK, RH (8 parts) 79175E — PAD, NO.1 SEATBACK, RH (7 parts) 72525C — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH (5 parts) 72345C — PIPE,RECLINING CONNECTING, RH (2 parts) 9151581025 — not listed in this catalogue 72347A — COVER, RECLINING CONNECTING HOOK (2 parts) 79011 — COVER SUB-ASSY, NO.1 SEAT CUSHION, RH (5 parts) 71812E — COVER, RECLINING ADJUSTER, LH (5 parts) 72658B — KNOB, REAR SEAT LOCK HANDLE (6 parts) 72996 — COVER, REAR SEATBACK, RH (4 parts) 72750E — ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH (6 parts) 79136B — PAD, NO.1 SEAT CUSHION, LH (4 parts) 79160A — SPRING ASSY, NO.1 SEAT CUSHION, RH (2 parts) 72201C — HANDLE SUB-ASSY, SEAT TRACK, RH (4 parts) 9016740044 — not listed in this catalogue 79110A — LEG ASSY, NO.1 SEAT, RH (3 parts) 9418561000 — not listed in this catalogue 71405A — STRIKER SUB-ASSY, REAR SEAT LOCK, RH (6 parts) 9011910650 — not listed in this catalogue 71405A — STRIKER SUB-ASSY, REAR SEAT LOCK, RH (6 parts) 9011910650 — not listed in this catalogue
712042C · 24 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
115 parts on this figure
Part number Description Fitment Price
62476E — Cap, Rear Seat
62476-26010-A0 note Cap, Rear Seat
2001-05 → 2001-07 ended
ACM20 GEN —
62476-26010-C0 note Cap, Rear Seat
2001-05 → 2001-07 ended
ACM20,CLM20 EUR —
71884-44010-A0 note Cap, Rear Seat
2001-07 → 2003-10 ended
ACM20 ARL,GEN —
71884-44010-C0 note Cap, Rear Seat
2001-07 → 2003-10 ended
ACM20,CLM20 EUR —
71884-44010-A0 note Cap, Rear Seat
2003-10 → 2009-12 ended
ACM20 GEN —
71884-44010-C0 note Cap, Rear Seat
2003-10 → 2005-07 ended
ACM20,CLM20 06S —
71884-44010-C0 note Cap, Rear Seat
2003-10 → 2005-07 ended
ACM20,CLM20 07S EUR —
71884-44010-C0 note Cap, Rear Seat
2003-10 → 2009-12 ended
ACM21 —
71884-44010-C0 note Cap, Rear Seat
2003-10 → 2005-07 ended
ACM20,CLM20 07S EUR —
71405A — Striker Sub-assy, Rear Seat Lock, RH
71405-44010 note Striker Sub-assy, Rear Seat Lock, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71405-44020 note Striker Sub-assy, Rear Seat Lock, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71405-44030 note Striker Sub-assy, Rear Seat Lock, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71405-44010 note Striker Sub-assy, Rear Seat Lock, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
71405-44020 note Striker Sub-assy, Rear Seat Lock, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
71405-44030 note Striker Sub-assy, Rear Seat Lock, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
71701B — Board Sub-assy, Rear Seatback, RH
71701-44020-A0 note Board Sub-assy, Rear Seatback, RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
71881-28030-C0 note Board Sub-assy, Rear Seatback, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71701-44020-A0 note Board Sub-assy, Rear Seatback, RH
2003-10 → 2009-12 ended
ACM20 GEN —
71701-44020-B1 note Board Sub-assy, Rear Seatback, RH
2003-10 → 2009-12 ended
ACM21 —
71881-28030-C0 note Board Sub-assy, Rear Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
71811H — Cover, Reclining Adjuster, RH
71811-44050-A0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
71811-44070-C0 note Cover, Reclining Adjuster, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71811-44050-A0 note Cover, Reclining Adjuster, RH
2003-10 → 2009-12 ended
ACM20 GEN —
71811-44050-C0 note Cover, Reclining Adjuster, RH
2003-10 → 2009-12 ended
ACM21 —
71811-44070-C0 note Cover, Reclining Adjuster, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
71812E — Cover, Reclining Adjuster, LH
71812-44050-A0 note Cover, Reclining Adjuster, LH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
71812-44070-C0 note Cover, Reclining Adjuster, LH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71812-44050-A0 note Cover, Reclining Adjuster, LH
2003-10 → 2009-12 ended
ACM20 GEN —
71812-44050-C0 note Cover, Reclining Adjuster, LH
2003-10 → 2009-12 ended
ACM21 —
71812-44070-C0 note Cover, Reclining Adjuster, LH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
71931A — Support, Rear Seat Headrest
71930-42020-A0 note Support, Rear Seat Headrest
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
71930-42020-C0 note Support, Rear Seat Headrest
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71931-42020-A0 note Support, Rear Seat Headrest
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
71931-42020-C0 note Support, Rear Seat Headrest
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71930-42020-A0 note Support, Rear Seat Headrest
2003-10 → 2007-05 ended
ACM20 GEN —
71930-42020-C0 note Support, Rear Seat Headrest
2003-10 → 2007-05 ended
ACM2#,CLM20 ARL,EUR —
71930-52030-A0 note Support, Rear Seat Headrest
2007-06 → 2009-12 ended
ACM20 —
71930-52030-C0 note Support, Rear Seat Headrest
2007-06 → 2009-12 ended
ACM21 —
71931-42020-A0 note Support, Rear Seat Headrest
2003-10 → 2009-12 ended
ACM20 GEN —
71931-42020-C0 note Support, Rear Seat Headrest
2003-10 → 2009-12 ended
ACM2#,CLM20 ARL,EUR —
71940A — Headrest Assy, Rear Seat
71940-44180-A0 note Headrest Assy, Rear Seat
2001-05 → 2003-10 ended
ACM20 GEN —
71940-44250-B0 note Headrest Assy, Rear Seat
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
71910-44420-B1 note Headrest Assy, Rear Seat
2003-10 → 2009-12 ended
ACM21 —
71940-44250-B2 note Headrest Assy, Rear Seat
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
71940-44340-A0 note Headrest Assy, Rear Seat
2003-10 → 2009-12 ended
ACM20 GEN —
72201C — Handle Sub-assy, Seat Track, RH
72201-44040 Handle Sub-assy, Seat Track, RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
72211-44030 Handle Sub-assy, Seat Track, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72201-44040 Handle Sub-assy, Seat Track, RH
2003-10 → —
ACM2# ARL,GEN —
72211-44030 Handle Sub-assy, Seat Track, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72345C — Pipe,Reclining Connecting, RH
72345-28110 Pipe,Reclining Connecting, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72345-28110 Pipe,Reclining Connecting, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72347A — Cover, Reclining Connecting Hook
72347-28060 Cover, Reclining Connecting Hook
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72347-28060 Cover, Reclining Connecting Hook
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72525C — Handle, Reclining Adjuster Release, NO.1 RH
72525-28030-C0 note Handle, Reclining Adjuster Release, NO.1 RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72525-47020-A0 note Handle, Reclining Adjuster Release, NO.1 RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
72525-28030-C0 note Handle, Reclining Adjuster Release, NO.1 RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72525-47020-A0 note Handle, Reclining Adjuster Release, NO.1 RH
2003-10 → 2009-12 ended
ACM20 GEN —
72525-47020-C0 note Handle, Reclining Adjuster Release, NO.1 RH
2003-10 → 2009-12 ended
ACM21 —
72658B — Knob, Rear Seat Lock Handle
72658-44020-D0 note Knob, Rear Seat Lock Handle
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72658-44030-D0 note Knob, Rear Seat Lock Handle
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72658-44040-D0 note Knob, Rear Seat Lock Handle
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72658-44020-D0 note Knob, Rear Seat Lock Handle
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72658-44030-D0 note Knob, Rear Seat Lock Handle
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72658-44040-D0 note Knob, Rear Seat Lock Handle
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72750E — Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
72730-44040 Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
72740-28620 Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72730-44040 Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
2003-10 → 2006-07 ended
ACM2# ARL,GEN —
72730-44040 Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
2008-03 → —
ACM2# —
72730-44090 Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
2006-07 → 2008-02 ended
ACM2# —
72740-28620 Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72760E — Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
72640-44020 Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
72730-44050 Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
72640-44020 Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
2003-10 → —
ACM2# ARL,GEN —
72730-44050 Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72996 — Cover, Rear Seatback, RH
72996-44040-A0 note Cover, Rear Seatback, RH
2001-10 → 2003-10 ended
ACM20 ARL —
72996-28160-C0 note Cover, Rear Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
72996-44050-A0 note Cover, Rear Seatback, RH
2003-10 → 2009-12 ended
ACM20 GEN —
72996-44050-C0 note Cover, Rear Seatback, RH
2003-10 → 2009-12 ended
ACM21 —
79011 — Cover Sub-assy, NO.1 Seat Cushion, RH
79011-44360-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
79021-44190-A0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
79011-44660-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
79021-44340-A0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2003-10 → 2009-12 ended
ACM20 GEN —
79021-44360-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2003-10 → 2009-12 ended
ACM21 —
79013 — Cover Sub-assy, NO.1 Seatback, RH
79013-44360-B0 note Cover Sub-assy, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20,CLM20 06S —
79013-44380-B0 note Cover Sub-assy, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20,CLM20 07S EUR —
79023-44250-A0 note Cover Sub-assy, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20 GEN —
79023-44300-A0 note Cover Sub-assy, NO.1 Seatback, RH
2001-10 → 2003-10 ended
ACM20 ARL —
79013-44360-B1 note Cover Sub-assy, NO.1 Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 06S —
79013-44380-B1 note Cover Sub-assy, NO.1 Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 07S EUR —
79023-44410-A0 note Cover Sub-assy, NO.1 Seatback, RH
2003-10 → 2009-12 ended
ACM20 GEN —
79023-44460-B1 note Cover Sub-assy, NO.1 Seatback, RH
2003-10 → 2009-12 ended
ACM21 —
79110A — Leg Assy, NO.1 Seat, RH
79110-44200-C0 note Leg Assy, NO.1 Seat, RH
2001-05 → 2001-12 ended
ACM20,CLM20 EUR —
79110-44201 Leg Assy, NO.1 Seat, RH
2001-12 → 2003-10 ended
ACM20,CLM20 EUR —
79110-44201 Leg Assy, NO.1 Seat, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
79136B — Pad, NO.1 Seat Cushion, LH
79135-44050 Pad, NO.1 Seat Cushion, LH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
79136-44020 Pad, NO.1 Seat Cushion, LH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
79135-44050 Pad, NO.1 Seat Cushion, LH
2003-10 → —
ACM2# ARL,GEN —
79136-44050 Pad, NO.1 Seat Cushion, LH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
79160A — Spring Assy, NO.1 Seat Cushion, RH
79160-44030 Spring Assy, NO.1 Seat Cushion, RH
2001-05 → 2003-10 ended
ACM20,CLM20 EUR —
79160-44050 Spring Assy, NO.1 Seat Cushion, RH
2003-10 → 2005-07 ended
ACM20,CLM20 EUR —
79175E — Pad, NO.1 Seatback, RH
79175-44080 Pad, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20,CLM20 06S —
79175-44090 Pad, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20,CLM20 07S EUR —
79275-44060 Pad, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20 ARL,GEN —
79175-44080 Pad, NO.1 Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 06S —
79175-44090 Pad, NO.1 Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 07S EUR —
79275-44080 Pad, NO.1 Seatback, RH
2003-10 → 2006-06 ended
ACM2# ARL,GEN —
79275-44081 Pad, NO.1 Seatback, RH
2006-07 → —
ACM2# —
79180A — Spring Assy, NO.1 Seatback, RH
79180-44050 Spring Assy, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20,CLM20 06S —
79180-44060 Spring Assy, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20,CLM20 07S EUR —
79280-44010 Spring Assy, NO.1 Seatback, RH
2001-05 → 2003-10 ended
ACM20 GEN —
79280-44020 Spring Assy, NO.1 Seatback, RH
2001-10 → 2003-10 ended
ACM20 ARL —
79180-44050 Spring Assy, NO.1 Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 06S —
79180-44060 Spring Assy, NO.1 Seatback, RH
2003-10 → 2005-07 ended
ACM20,CLM20 07S EUR —
79280-44040 Spring Assy, NO.1 Seatback, RH
2003-10 → —
ACM20 GEN —
79280-44050 Spring Assy, NO.1 Seatback, RH
2003-10 → —
ACM21 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
