Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

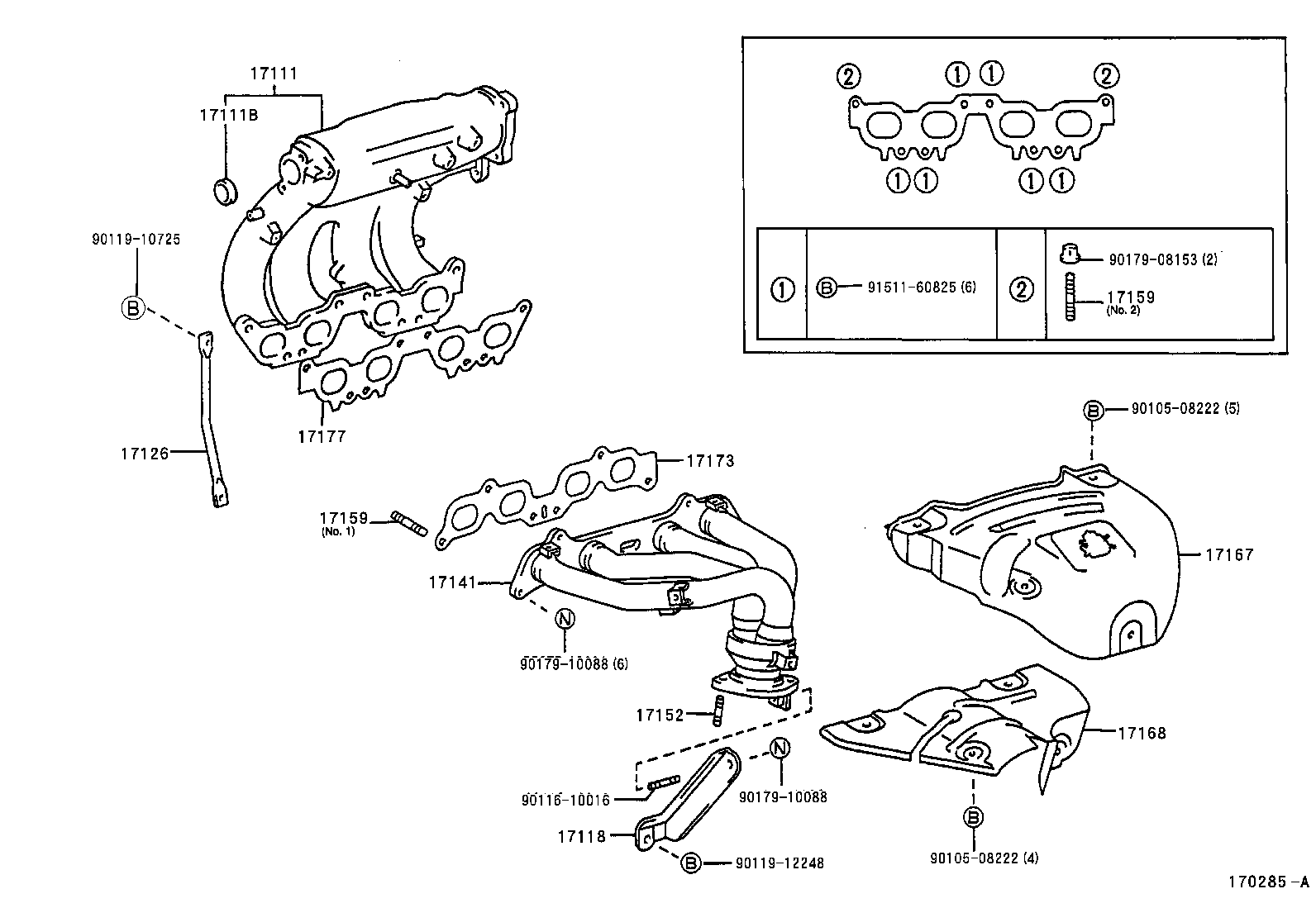

28 parts on this figure

Part number	Description	Fitment	Price
17111 — Manifold, Intake
17101-64190	Manifold, Intake 1997-09 → 1999-05 ended	3CTE CXM10	—
17101-64191	Manifold, Intake 1999-05 → —	3CTE CXM10	—
17101-74320	Manifold, Intake 2000-05 → —	3SFE SXM10	—
17101-74330	Manifold, Intake 1996-09 → 2000-05 ended	3SFE SXM10	—
17111B — Plug, NO.2
96411-44000	Plug, NO.2 1996-09 → —	3SFE SXM10	—
17118 — Stay, Manifold
17118-64050	Stay, Manifold 1997-09 → —	3CTE CXM10	—
17118-74360	Stay, Manifold 1996-09 → 2000-05 ended	3SFE SXM10	—
17118-74420	Stay, Manifold 2000-05 → —	3SFE SXM10	—
17126 — Stay, Surge Tank, NO.2
17126-74030	Stay, Surge Tank, NO.2 1996-09 → —	3SFE SXM10	—
17141 — Manifold, Exhaust
17104-64030	Manifold, Exhaust 1997-09 → —	3CTE CXM10	—
17140-74020	Manifold, Exhaust 2000-05 → —	3SFE SXM10	—
17141-74190	Manifold, Exhaust 1996-09 → 1999-04 ended	3SFE SXM10	—
17141-74290	Manifold, Exhaust 1999-04 → 2000-05 ended	3SFE SXM10	—
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) 1996-09 → 2000-05 ended	3SFE SXM10	—
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1996-09 → —	3SFE SXM10	—
90126-10017 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1997-09 → —	3CTE CXM10	—
92122-60820 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1997-09 → —	3CTE CXM10	—
92122-60822 note	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) 1996-09 → —	3SFE SXM10	—
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-64031	Insulator, Exhaust Manifold Heat, NO.1 1997-09 → —	3CTE CXM10	—
17167-74220	Insulator, Exhaust Manifold Heat, NO.1 1996-09 → 2000-05 ended	3SFE SXM10	—
17167-74250	Insulator, Exhaust Manifold Heat, NO.1 2000-05 → —	3SFE SXM10	—
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-64071	Insulator, Exhaust Manifold Heat, NO.2 1997-09 → —	3CTE CXM10	—
17168-74120	Insulator, Exhaust Manifold Heat, NO.2 1996-09 → 2000-05 ended	3SFE SXM10	—
17168-74150	Insulator, Exhaust Manifold Heat, NO.2 2000-05 → —	3SFE SXM10	—
17173 — Gasket, Exhaust Manifold TO Head
17173-64090	Gasket, Exhaust Manifold TO Head 1997-09 → —	3CTE CXM10	—
17173-74040	Gasket, Exhaust Manifold TO Head 1996-09 → —	3SFE SXM10	—
17177 — Gasket, Intake Manifold TO Head, NO.1
17177-64020	Gasket, Intake Manifold TO Head, NO.1 1997-09 → —	3CTE CXM10	—
17177-74070	Gasket, Intake Manifold TO Head, NO.1 1996-09 → —	3SFE SXM10	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
