Toyota Picnic
1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe
Discontinued model
Data version 2001-11

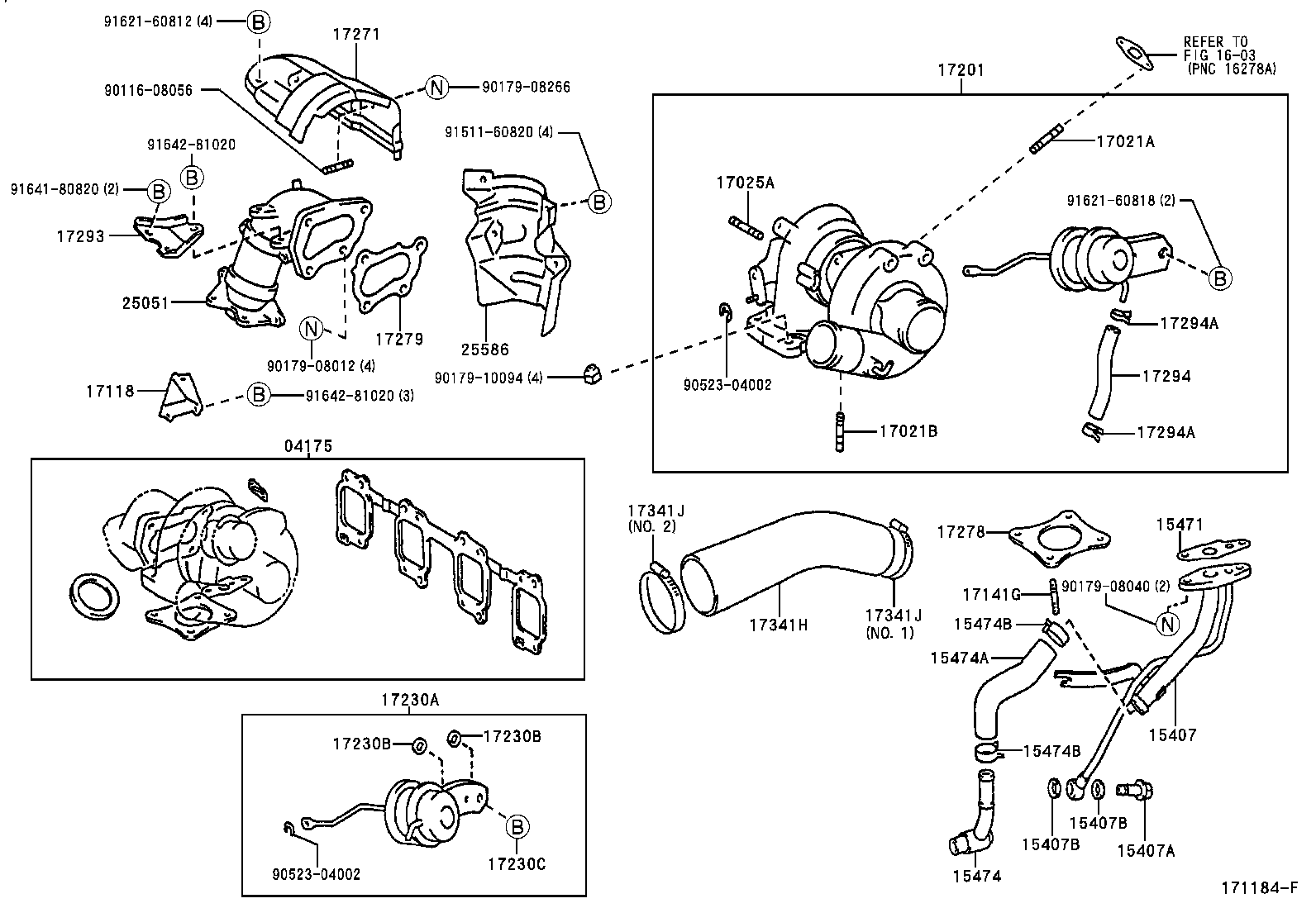

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04175 — Gasket Kit, Turbocharger | ||||
| 04175-64060 |
Gasket Kit, Turbocharger
1997-09 → —
|
3CTE CXM10 | — | |
| 15407 — Pipe Sub-assy, Turbo Oil Inlet | ||||
| 15407-64061 |
Pipe Sub-assy, Turbo Oil Inlet
1997-09 → —
|
3CTE CXM10 | — | |
| 15407A — Bolt, Union(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
Bolt, Union(FOR TURBO OIL INLET PIPE)
1997-09 → —
|
3CTE CXM10 | — | |
| 15407B — Gasket(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10027 |
Gasket(FOR TURBO OIL INLET PIPE)
1997-09 → —
|
3CTE CXM10 | — | |
| 15471 — Gasket, Turbo Oil Inlet | ||||
| 15471-64010 |
Gasket, Turbo Oil Inlet
1997-09 → —
|
3CTE CXM10 | — | |
| 15474 — Pipe, Turbo Oil Outlet | ||||
| 15476-64010 |
Pipe, Turbo Oil Outlet
1997-09 → —
|
3CTE CXM10 | — | |
| 15474A — Hose, Turbo Oil Outlet | ||||
| 15491-64020 |
Hose, Turbo Oil Outlet
1997-09 → —
|
3CTE CXM10 | — | |
| 15474B — Clamp OR Clip(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-23003 |
Clamp OR Clip(FOR TURBO OIL OUTLET HOSE)
1997-09 → —
|
3CTE CXM10 | — | |
| 17021A — Bolt, Stud(FOR BEARING HOUSING) | ||||
| 90116-08158 |
Bolt, Stud(FOR BEARING HOUSING)
1997-09 → —
|
3CTE CXM10 | — | |
| 17021B — Bolt, Stud | ||||
| 90116-06048 |
Bolt, Stud
1997-09 → —
|
3CTE CXM10 | — | |
| 17025A — Bolt, Stud(FOR TURBINE HOUSING) | ||||
| 90116-08384 |
Bolt, Stud(FOR TURBINE HOUSING)
1997-09 → —
|
3CTE CXM10 | — | |
| 17118 — Stay, Manifold | ||||
| 17118-64050 |
Stay, Manifold
1997-09 → —
|
3CTE CXM10 | — | |
| 17118-74360 |
Stay, Manifold
1996-09 → 2000-05
ended
|
3SFE SXM10 | — | |
| 17118-74420 |
Stay, Manifold
2000-05 → —
|
3SFE SXM10 | — | |
| 17141G — Bolt, Stud(FOR TURBOCHARGER) | ||||
| 90116-10148 |
Bolt, Stud(FOR TURBOCHARGER)
1997-09 → —
|
3CTE CXM10 | — | |
| 17201 — Turbocharger Sub-assy | ||||
| 17201-64170 |
Turbocharger Sub-assy
1997-09 → —
|
3CTE CXM10 | — | |
| 17230A — Repair Actuaor Assy, W/Bracket | ||||
| 17230-69135 |
Repair Actuaor Assy, W/Bracket
1997-09 → —
|
3CTE CXM10 | — | |
| 17230B — Washer, Plate(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08081 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
1997-09 → —
|
3CTE CXM10 | — | |
| 90201-08082 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
1997-09 → —
|
3CTE CXM10 | — | |
| 90201-08086 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
1997-09 → —
|
3CTE CXM10 | — | |
| 90201-08087 note |
Washer, Plate(FOR REPAIR ACTUATOR SET)
1997-09 → —
|
3CTE CXM10 | — | |
| 17230C — Bolt, W/Washer(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60822 |
Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
1997-09 → —
|
3CTE CXM10 | — | |
| 17271 — Insulator, Turbo, NO.1 | ||||
| 17271-64080 |
Insulator, Turbo, NO.1
1997-09 → —
|
3CTE CXM10 | — | |
| 17278 — Gasket, Turbo TO Exhaust Manifold | ||||
| 17278-64030 |
Gasket, Turbo TO Exhaust Manifold
1997-09 → 1998-12
ended
|
3CTE CXM10 | — | |
| 17278-64031 |
Gasket, Turbo TO Exhaust Manifold
1998-12 → —
|
3CTE CXM10 | — | |
| 17279 — Gasket, Turbine Outlet Elbow | ||||
| 17279-64020 |
Gasket, Turbine Outlet Elbow
1997-09 → —
|
3CTE CXM10 | — | |
| 17293 — Stay, Turbocharger | ||||
| 17293-64060 |
Stay, Turbocharger
1997-09 → —
|
3CTE CXM10 | — | |
| 17294 — Hose, Actuator | ||||
| 90445-12158 |
Hose, Actuator
1997-09 → —
|
3CTE CXM10 | — | |
| 17294A — Clip(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
Clip(FOR ACTUATOR HOSE)
1997-09 → —
|
3CTE CXM10 | — | |
| 17341H — Hose, Air | ||||
| 17341-64090 |
Hose, Air
1997-09 → —
|
3CTE CXM10 | — | |
| 17341J — Clamp, Hose | ||||
| 90467-48002 note |
Clamp, Hose
1997-09 → —
|
3CTE CXM10 | — | |
| 90467-56001 note |
Clamp, Hose
1997-09 → —
|
3CTE CXM10 | — | |
| 25051 — Converter Sub-assy, Exhaust Manifold | ||||
| 25051-64040 note |
Converter Sub-assy, Exhaust Manifold
1997-09 → 2001-05
ended
|
3CTE CXM10 | — | |
| 25586 — Insulator, Manifold Converter, NO.1 | ||||
| 25586-64020 |
Insulator, Manifold Converter, NO.1
1997-09 → —
|
3CTE CXM10 | — | |
| 25586-74070 |
Insulator, Manifold Converter, NO.1
2000-05 → —
|
3SFE SXM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
