Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 710227D 72637A — HANDLE, REAR SEAT LOCK (1 parts) 72638 — HANDLE, REAR SEAT LOCK, LH (1 parts) 72525D — HANDLE, RECLINING ADJUSTER RELEASE, NO.2 RH (2 parts) 72526D — HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH (2 parts) 79188 — COVER, NO.1 SEAT OUTER BRACKET (2 parts) 79188A — COVER, NO.1 SEAT OUTER BRACKET, LH (2 parts) 72996 — COVER, REAR SEATBACK, RH (2 parts) 72997 — COVER, REAR SEATBACK, LH (2 parts) 79169 — ROD, REAR SEAT HINGE CONNECTOR (2 parts) 9016740044 — not listed in this catalogue 9356754512 — not listed in this catalogue 71833B — CLIP (FOR REAR SEAT RECLINING COVER) (1 parts) 9151160816 — not listed in this catalogue 9151560845 — not listed in this catalogue 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (2 parts) 71811G — SHIELD, REAR SEAT CUSHION, RH (1 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (2 parts) 71812F — SHIELD, REAR SEAT CUSHION, LH (1 parts) 9016740044 — not listed in this catalogue 72345C — PIPE,RECLINING CONNECTING, RH (2 parts) 72345D — PIPE, RECLINING CONNECTING, LH (2 parts) 9016740044 — not listed in this catalogue 9151160816 — not listed in this catalogue 72265A — COVER, SEAT TRACK UPPER RAIL, RH (2 parts) 9016840043 — not listed in this catalogue 72266A — COVER, SEAT TRACK UPPER RAIL, LH (2 parts) 9151160816 — not listed in this catalogue 79956B — COVER, REAR SEAT LEG SIDE, RH (1 parts) 79956C — COVER, REAR SEAT LEG SIDE, LH (1 parts) 79957A — COVER, REAR SEAT REAR BRACKET, RH (1 parts) 79958A — COVER, REAR SEAT REAR BRACKET, LH (1 parts) 9151560845 — not listed in this catalogue 79187 — COVER, NO.1 SEAT INNER BRACKET (3 parts) 79187A — COVER, NO.1 SEAT INNER BRACKET, LH (3 parts) 9151160816 — not listed in this catalogue 9011910826 — not listed in this catalogue 72160 — TRACK ASSY, REAR SEAT, OUTER RH (3 parts) 72170 — TRACK ASSY, REAR SEAT, OUTER LH (3 parts) 72996B — COVER, REAR SEATBACK, INNER RH (2 parts) 9011910473 — not listed in this catalogue 72997A — COVER, REAR SEATBACK, INNER LH (2 parts) 9011910827 — not listed in this catalogue 79955A — COVER, REAR SEAT FRONT BRACKET, RH (1 parts) 79956D — COVER, REAR SEAT FRONT BRACKET, LH (1 parts) 72210F — CABLE ASSY, SEAT TRACK CONTROL (2 parts) 72129B — PROTECTOR, SEAT TRACK LOWER RAIL (3 parts) 72129B — PROTECTOR, SEAT TRACK LOWER RAIL (3 parts) 71833B — CLIP (FOR REAR SEAT RECLINING COVER) (1 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (3 parts) 9356754512 — not listed in this catalogue 72530B — ADJUSTER ASSY, RECLINING SEAT, INNER RH (2 parts) 72540B — ADJUSTER ASSY, RECLINING SEAT, INNER LH (2 parts) 79959A — COVER, REAR SEAT LEG, RH (1 parts) 9016740044 — not listed in this catalogue 79959B — COVER, REAR SEAT LEG, LH (1 parts) 71861A — SHIELD, REAR SEAT CUSHION, INNER RH (1 parts) 71862A — SHIELD, REAR SEAT CUSHION, INNER LH (1 parts) 72995B — COVER, NO.1 SEAT CUSHION, RH (1 parts) 72998A — COVER, NO.1 SEAT CUSHION, LH (1 parts)

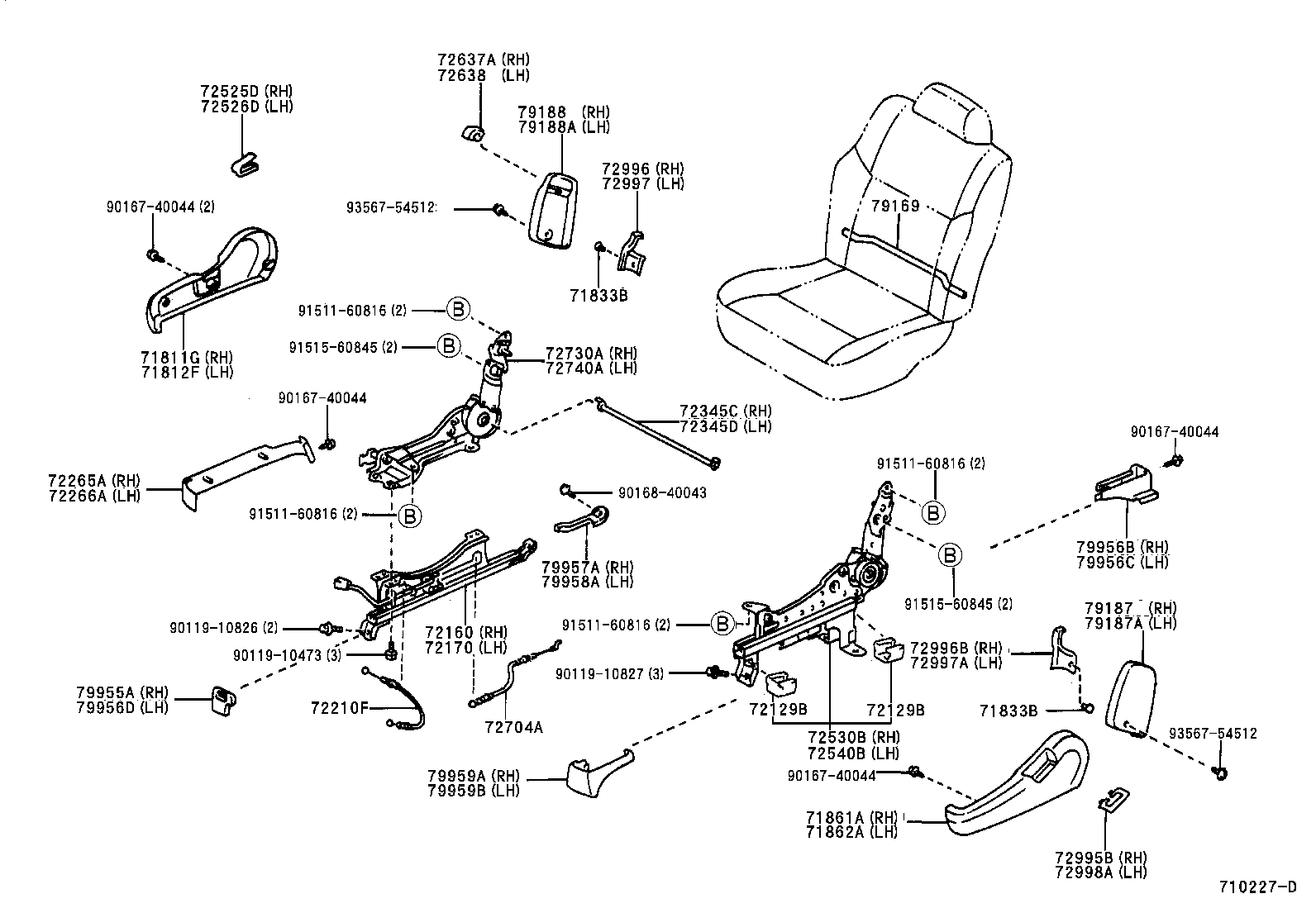

710227D · 43 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
71 parts on this figure
Part number Description Fitment Price
71811G — Shield, Rear Seat Cushion, RH
71811-44020-B0 note Shield, Rear Seat Cushion, RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
71812F — Shield, Rear Seat Cushion, LH
71812-44020-B0 note Shield, Rear Seat Cushion, LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
71833B — Clip (FOR REAR SEAT RECLINING COVER)
90467-05017-B4 note Clip (FOR REAR SEAT RECLINING COVER)
1996-09 → 2001-05 ended
CXM10,SXM10 —
71861A — Shield, Rear Seat Cushion, Inner RH
71861-44020-B0 note Shield, Rear Seat Cushion, Inner RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
71862A — Shield, Rear Seat Cushion, Inner LH
71862-44020-B0 note Shield, Rear Seat Cushion, Inner LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72129B — Protector, Seat Track Lower Rail
72129-44020 Protector, Seat Track Lower Rail
1997-08 → 1998-04 ended
CXM10,SXM10 —
72129-44020 note Protector, Seat Track Lower Rail
1998-04 → —
CXM10,SXM10 06S —
72129-44040 note Protector, Seat Track Lower Rail
1998-04 → —
CXM10,SXM10 06S —
72160 — Track Assy, Rear Seat, Outer RH
72160-44011 Track Assy, Rear Seat, Outer RH
1998-04 → —
CXM10,SXM10 07S —
72160-44020 Track Assy, Rear Seat, Outer RH
1996-09 → 1997-08 ended
SXM10 —
72160-44021 Track Assy, Rear Seat, Outer RH
1997-08 → —
CXM10,SXM10 06S —
72170 — Track Assy, Rear Seat, Outer LH
72170-44011 Track Assy, Rear Seat, Outer LH
1998-04 → —
CXM10,SXM10 07S —
72170-44020 Track Assy, Rear Seat, Outer LH
1996-09 → 1997-08 ended
SXM10 —
72170-44021 Track Assy, Rear Seat, Outer LH
1997-08 → —
CXM10,SXM10 06S —
72210F — Cable Assy, Seat Track Control
72210-44010 Cable Assy, Seat Track Control
1996-09 → 1997-08 ended
SXM10 —
72210-44011 Cable Assy, Seat Track Control
1997-08 → —
CXM10,SXM10 06S —
72265A — Cover, Seat Track Upper Rail, RH
72265-44010-B0 note Cover, Seat Track Upper Rail, RH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72265-44020-B0 note Cover, Seat Track Upper Rail, RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72266A — Cover, Seat Track Upper Rail, LH
72266-44010-B0 note Cover, Seat Track Upper Rail, LH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72266-44020-B0 note Cover, Seat Track Upper Rail, LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72345C — Pipe,Reclining Connecting, RH
72345-44010 Pipe,Reclining Connecting, RH
1998-04 → —
CXM10,SXM10 07S —
72345-44020 Pipe,Reclining Connecting, RH
1996-09 → —
CXM10,SXM10 06S —
72345D — Pipe, Reclining Connecting, LH
72345-44010 Pipe, Reclining Connecting, LH
1998-04 → —
CXM10,SXM10 07S —
72345-44020 Pipe, Reclining Connecting, LH
1996-09 → —
CXM10,SXM10 06S —
72525D — Handle, Reclining Adjuster Release, NO.2 RH
72525-16010-B7 note Handle, Reclining Adjuster Release, NO.2 RH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72525-44010-B0 note Handle, Reclining Adjuster Release, NO.2 RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72526D — Handle, Reclining Adjuster Release, NO.3 LH
72526-16010-B7 note Handle, Reclining Adjuster Release, NO.3 LH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72526-44010-B0 note Handle, Reclining Adjuster Release, NO.3 LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72530B — Adjuster Assy, Reclining Seat, Inner RH
72530-44010 Adjuster Assy, Reclining Seat, Inner RH
1996-09 → 1998-04 ended
CXM10,SXM10 —
72530-44020 Adjuster Assy, Reclining Seat, Inner RH
1998-04 → —
CXM10,SXM10 06S —
72540B — Adjuster Assy, Reclining Seat, Inner LH
72540-44010 Adjuster Assy, Reclining Seat, Inner LH
1996-09 → 1998-04 ended
CXM10,SXM10 —
72540-44020 Adjuster Assy, Reclining Seat, Inner LH
1998-04 → —
CXM10,SXM10 06S —
72637A — Handle, Rear Seat Lock
72637-44030-B0 note Handle, Rear Seat Lock
1996-09 → 2001-05 ended
CXM10,SXM10 —
72638 — Handle, Rear Seat Lock, LH
72638-44030-B0 note Handle, Rear Seat Lock, LH
1996-09 → 2001-05 ended
CXM10,SXM10 —
72704A — Cable, Rear Seat Reclining Control
72704-44010 Cable, Rear Seat Reclining Control
1998-04 → —
CXM10,SXM10 07S —
72704-44030 Cable, Rear Seat Reclining Control
1996-09 → 1997-08 ended
SXM10 —
72704-44031 Cable, Rear Seat Reclining Control
1997-08 → —
CXM10,SXM10 06S —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72510-44010 Adjuster Assy, Rear Seat Reclining, RH
1996-09 → —
CXM10,SXM10 06S —
72710-44010 Adjuster Assy, Rear Seat Reclining, RH
1998-04 → —
CXM10,SXM10 07S —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72520-44010 Adjuster Assy, Rear Seat Reclining, LH
1996-09 → —
CXM10,SXM10 06S —
72720-44010 Adjuster Assy, Rear Seat Reclining, LH
1998-04 → —
CXM10,SXM10 07S —
72995B — Cover, NO.1 Seat Cushion, RH
72995-44010-B0 note Cover, NO.1 Seat Cushion, RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72996 — Cover, Rear Seatback, RH
72996-44010-B0 note Cover, Rear Seatback, RH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72996-44030-B0 note Cover, Rear Seatback, RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72996B — Cover, Rear Seatback, Inner RH
72996-44030-B0 note Cover, Rear Seatback, Inner RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72997-44010-B0 note Cover, Rear Seatback, Inner RH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72997 — Cover, Rear Seatback, LH
72997-44020-B0 note Cover, Rear Seatback, LH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72997-44030-B0 note Cover, Rear Seatback, LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72997A — Cover, Rear Seatback, Inner LH
72996-44020-B0 note Cover, Rear Seatback, Inner LH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
72997-44030-B0 note Cover, Rear Seatback, Inner LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
72998A — Cover, NO.1 Seat Cushion, LH
72998-44010-B0 note Cover, NO.1 Seat Cushion, LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
79169 — Rod, Rear Seat Hinge Connector
79169-44010 Rod, Rear Seat Hinge Connector
1998-04 → —
CXM10,SXM10 07S —
79169-44020 Rod, Rear Seat Hinge Connector
1996-09 → —
CXM10,SXM10 06S —
79187 — Cover, NO.1 Seat Inner Bracket
79187-44010-B0 note Cover, NO.1 Seat Inner Bracket
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
79187-44030-B0 note Cover, NO.1 Seat Inner Bracket
1996-09 → 1998-04 ended
CXM10,SXM10 —
79187-44050-B0 note Cover, NO.1 Seat Inner Bracket
1998-04 → 2001-05 ended
CXM10,SXM10 06S —
79187A — Cover, NO.1 Seat Inner Bracket, LH
79187-44020-B0 note Cover, NO.1 Seat Inner Bracket, LH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
79187-44040-B0 note Cover, NO.1 Seat Inner Bracket, LH
1996-09 → 1998-04 ended
CXM10,SXM10 —
79187-44060-B0 note Cover, NO.1 Seat Inner Bracket, LH
1998-04 → 2001-05 ended
CXM10,SXM10 06S —
79188 — Cover, NO.1 Seat Outer Bracket
79188-44010-B0 note Cover, NO.1 Seat Outer Bracket
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
79188-44030-B0 note Cover, NO.1 Seat Outer Bracket
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
79188A — Cover, NO.1 Seat Outer Bracket, LH
79188-44020-B0 note Cover, NO.1 Seat Outer Bracket, LH
1998-04 → 2001-05 ended
CXM10,SXM10 07S —
79188-44040-B0 note Cover, NO.1 Seat Outer Bracket, LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
79955A — Cover, Rear Seat Front Bracket, RH
79955-44010-B0 note Cover, Rear Seat Front Bracket, RH
1996-09 → 2001-05 ended
CXM10,SXM10 —
79956B — Cover, Rear Seat Leg Side, RH
79966-44010-B0 note Cover, Rear Seat Leg Side, RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
79956C — Cover, Rear Seat Leg Side, LH
79966-44020-B0 note Cover, Rear Seat Leg Side, LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
79956D — Cover, Rear Seat Front Bracket, LH
79956-44010-B0 note Cover, Rear Seat Front Bracket, LH
1996-09 → 2001-05 ended
CXM10,SXM10 —
79957A — Cover, Rear Seat Rear Bracket, RH
79957-44010-B0 note Cover, Rear Seat Rear Bracket, RH
1996-09 → 2001-05 ended
CXM10,SXM10 —
79958A — Cover, Rear Seat Rear Bracket, LH
79958-44010-B0 note Cover, Rear Seat Rear Bracket, LH
1996-09 → 2001-05 ended
CXM10,SXM10 —
79959A — Cover, Rear Seat Leg, RH
79959-44010-B0 note Cover, Rear Seat Leg, RH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
79959B — Cover, Rear Seat Leg, LH
79959-44020-B0 note Cover, Rear Seat Leg, LH
1996-09 → 2001-05 ended
CXM10,SXM10 06S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
