Toyota Picnic
1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe
Discontinued model
Data version 2001-11

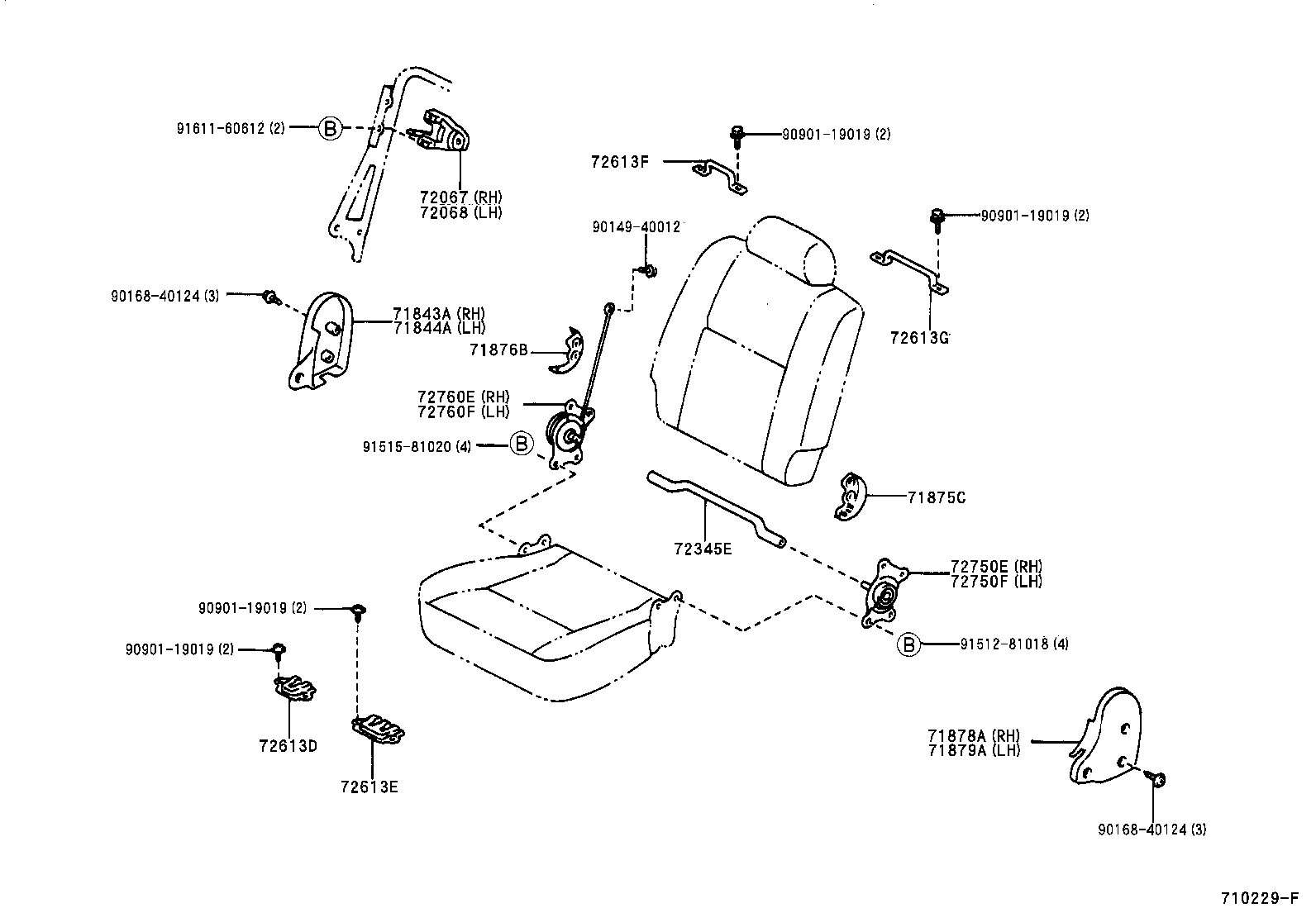

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71843A — Cover, Rear Seat Reclining, NO.2 RH | ||||
| 71843-44010-B0 note |
Cover, Rear Seat Reclining, NO.2 RH
1996-09 → 2001-05
ended
|
CXM10,SXM10 | — | |
| 71844A — Cover, Rear Seat Reclining, NO.2 LH | ||||
| 71844-44010-B0 note |
Cover, Rear Seat Reclining, NO.2 LH
1996-09 → 2001-05
ended
|
CXM10,SXM10 | — | |
| 71875C — Cover, Reclining Adjuster Inside, RH | ||||
| 71875-44010-B0 note |
Cover, Reclining Adjuster Inside, RH
1996-09 → 2001-05
ended
|
CXM10,SXM10 | — | |
| 71876B — Cover, Reclining Adjuster Inside, LH | ||||
| 71876-44010-B0 note |
Cover, Reclining Adjuster Inside, LH
1996-09 → 2001-05
ended
|
CXM10,SXM10 | — | |
| 71878A — Cover, Rear Seat Reclining, Inner RH | ||||
| 71878-44010-B0 note |
Cover, Rear Seat Reclining, Inner RH
1996-09 → 2001-05
ended
|
CXM10,SXM10 | — | |
| 71879A — Cover, Rear Seat Reclining, Inner LH | ||||
| 71879-44010-B0 note |
Cover, Rear Seat Reclining, Inner LH
1996-09 → 2001-05
ended
|
CXM10,SXM10 | — | |
| 72067 — Lever Sub-assy, Rear Back Lock Control, RH | ||||
| 72067-44010 |
Lever Sub-assy, Rear Back Lock Control, RH
1996-09 → —
|
CXM10,SXM10 | — | |
| 72068 — Lever Sub-assy, Rear Back Lock Control, LH | ||||
| 72068-44010 |
Lever Sub-assy, Rear Back Lock Control, LH
1996-09 → —
|
CXM10,SXM10 | — | |
| 72345E — Pipe, Reclining Connecting | ||||
| 72345-44040 |
Pipe, Reclining Connecting
1996-09 → —
|
CXM10,SXM10 | — | |
| 72613D — Striker, Rear Seat Lock, Front Outer | ||||
| 72613-44010 |
Striker, Rear Seat Lock, Front Outer
1996-09 → —
|
CXM10,SXM10 | — | |
| 72613E — Striker, Rear Seat Lock, Front Inner | ||||
| 72614-44010 |
Striker, Rear Seat Lock, Front Inner
1996-09 → —
|
CXM10,SXM10 | — | |
| 72613F — Striker, Rear Seat Lock, Rear Outer | ||||
| 72613-44020 |
Striker, Rear Seat Lock, Rear Outer
1996-09 → —
|
CXM10,SXM10 | — | |
| 72613G — Striker, Rear Seat Lock, Rear Inner | ||||
| 72614-44020 |
Striker, Rear Seat Lock, Rear Inner
1996-09 → 1998-04
ended
|
CXM10,SXM10 | — | |
| 72614-44030 |
Striker, Rear Seat Lock, Rear Inner
1998-04 → —
|
CXM10,SXM10 | — | |
| 72750E — Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH | ||||
| 72073-44010 |
Adjuster Assy, Rear NO.2 Seat Reclining, Outer RH
1996-09 → —
|
CXM10,SXM10 | — | |
| 72750F — Adjuster Assy, Rear NO.2 Seat Reclining, Inner LH | ||||
| 72074-44020 |
Adjuster Assy, Rear NO.2 Seat Reclining, Inner LH
1996-09 → —
|
CXM10,SXM10 | — | |
| 72760E — Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH | ||||
| 72073-44020 |
Adjuster Assy, Rear NO.2 Seat Reclining, Inner RH
1996-09 → —
|
CXM10,SXM10 | — | |
| 72760F — Adjuster Assy, Rear NO.2 Seat Reclining, Outer LH | ||||
| 72074-44010 |
Adjuster Assy, Rear NO.2 Seat Reclining, Outer LH
1996-09 → —
|
CXM10,SXM10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
