Toyota Picnic
1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe
Discontinued model
Data version 2001-11

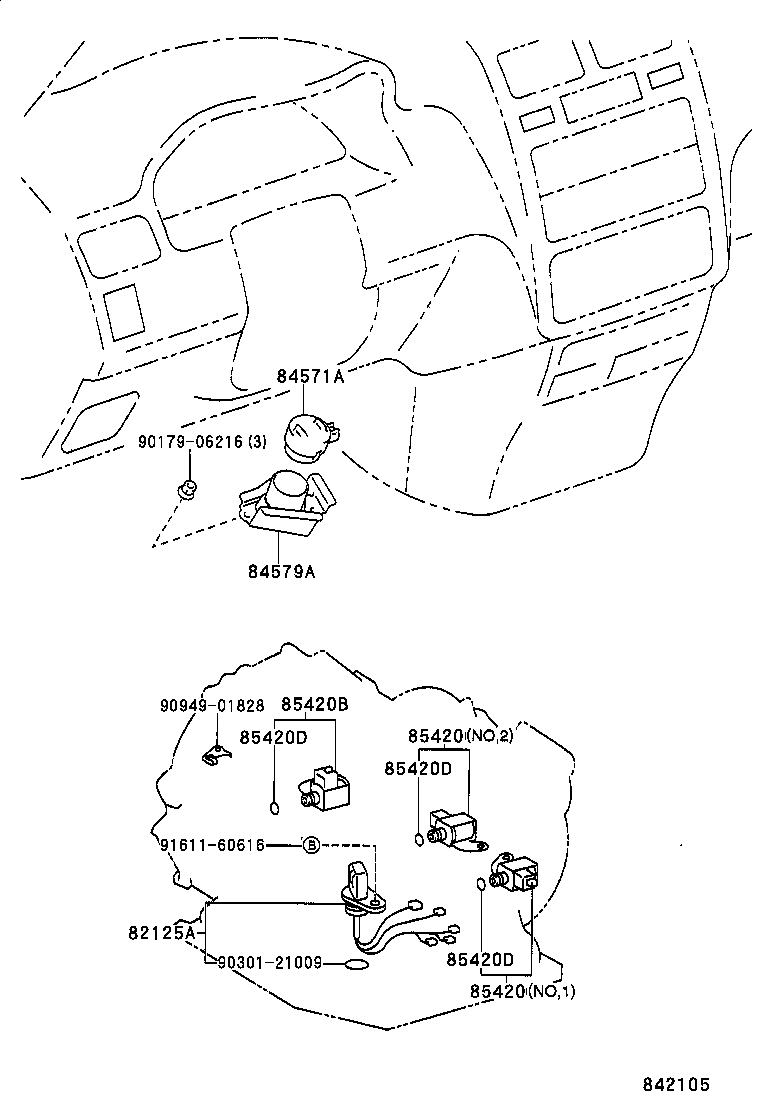

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82125A — Wire, Transmission | ||||
| 82125-12350 |
Wire, Transmission
1998-04 → —
|
SXM10 ATM | — | |
| 82125-20220 |
Wire, Transmission
1996-09 → 1998-04
ended
|
SXM10 ATM | — | |
| 84571A — Switch, Kick Down | ||||
| 84571-24010 |
Switch, Kick Down
1996-09 → —
|
SXM10 LHD ATM | — | |
| 84579A — Bracket, Kick Down Switch | ||||
| 84579-44010 |
Bracket, Kick Down Switch
1996-09 → —
|
SXM10 LHD ATM | — | |
| 85420 — Solenoid Assy, Transmission | ||||
| 85420-12100 note |
Solenoid Assy, Transmission
1998-04 → 1998-09
ended
|
SXM10 ATM | — | |
| 85420-12120 note |
Solenoid Assy, Transmission
1998-04 → 1998-09
ended
|
SXM10 ATM | — | |
| 85420-21010 note |
Solenoid Assy, Transmission
1998-09 → —
|
SXM10 ATM | — | |
| 85420-21020 note |
Solenoid Assy, Transmission
1998-09 → —
|
SXM10 ATM | — | |
| 85420-21030 note |
Solenoid Assy, Transmission
1998-09 → —
|
SXM10 ATM | — | |
| 85420-21040 note |
Solenoid Assy, Transmission
1998-09 → —
|
SXM10 ATM | — | |
| 85420-30200 |
Solenoid Assy, Transmission
1996-09 → 1998-04
ended
|
SXM10 ATM | — | |
| 85420B — Solenoid Assy, Transmission | ||||
| 85420-12140 |
Solenoid Assy, Transmission
1998-04 → 1998-09
ended
|
SXM10 ATM | — | |
| 85420-20140 |
Solenoid Assy, Transmission
1996-09 → 1998-04
ended
|
SXM10 ATM | — | |
| 85420-21050 note |
Solenoid Assy, Transmission
1998-09 → —
|
SXM10 ATM | — | |
| 85420-21060 note |
Solenoid Assy, Transmission
1998-09 → —
|
SXM10 ATM | — | |
| 85420D — Ring, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
Ring, O (FOR TRANSMISSION SOLENOID)
1996-09 → 1998-04
ended
|
SXM10 ATM | — | |
| 90301-06004 |
Ring, O (FOR TRANSMISSION SOLENOID)
1998-04 → —
|
SXM10 ATM | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
