Toyota Picnic
1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe
Discontinued model
Data version 2001-11

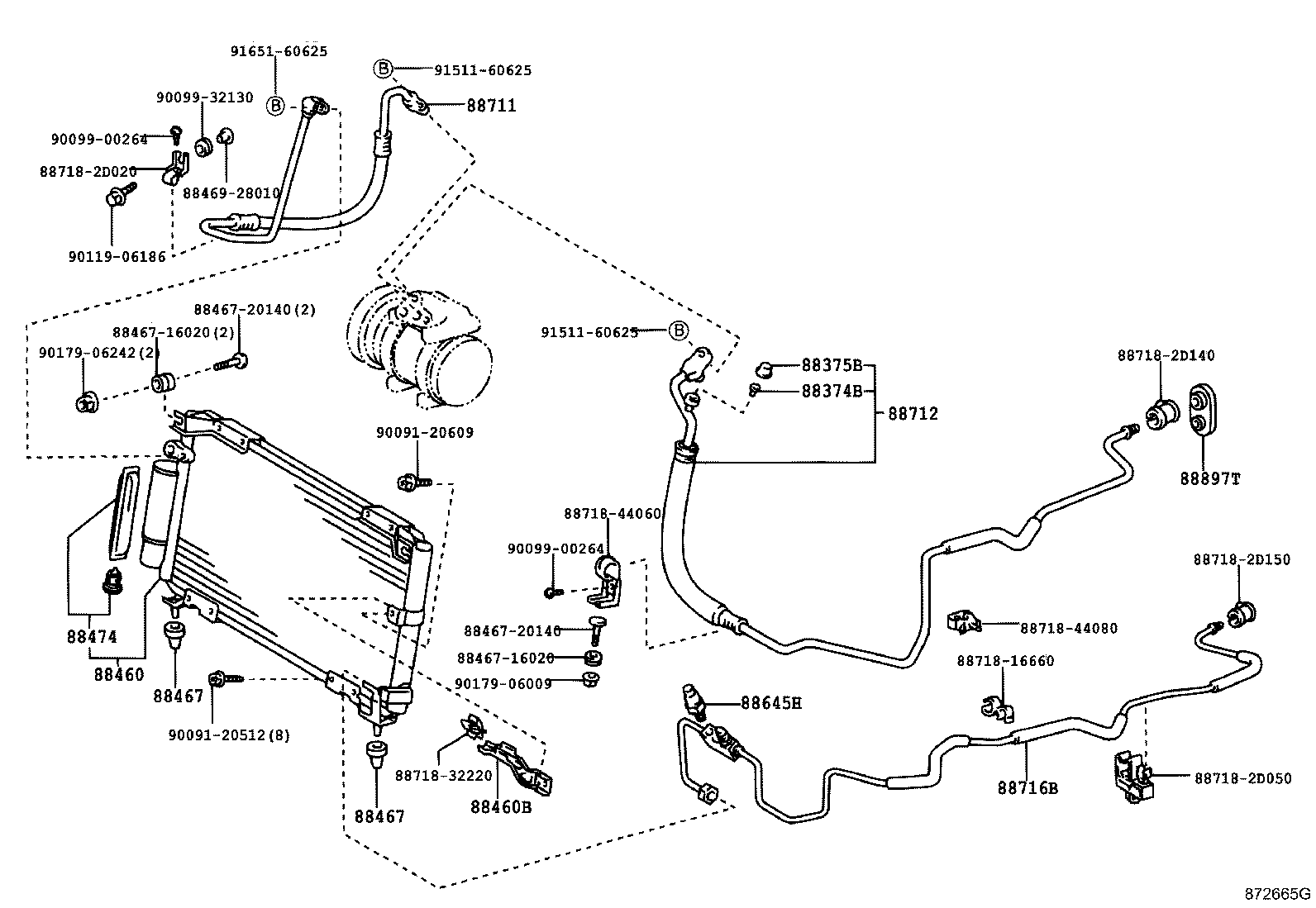

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 |
Valve, Service, NO.1
1997-09 → 1998-04
ended
|
CXM10 | — | |
| 88374-30010 note |
Valve, Service, NO.1
1996-09 → 1998-04
ended
|
SXM10;CXM10 RHD | — | |
| 88374-30010 |
Valve, Service, NO.1
2000-08 → —
|
CXM10,SXM10 | — | |
| 88374-30010 |
Valve, Service, NO.1
1998-04 → 2000-08
ended
|
CXM10,SXM10 | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-30290 |
Cap, Service Valve, NO.1
1996-09 → 2000-08
ended
|
CXM10,SXM10 | — | |
| 88375-30290 |
Cap, Service Valve, NO.1
2000-08 → —
|
CXM10,SXM10 | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-44020 |
Condenser Assy, Cooler
1996-09 → 1998-04
ended
|
SXM10 LHD | — | |
| 88460-44030 |
Condenser Assy, Cooler
1996-09 → 1998-04
ended
|
SXM10 RHD | — | |
| 88460-44040 |
Condenser Assy, Cooler
1997-09 → 1998-04
ended
|
CXM10 RHD | — | |
| 88460-44050 |
Condenser Assy, Cooler
1997-09 → 1998-04
ended
|
CXM10 LHD | — | |
| 88460-44330 |
Condenser Assy, Cooler
1998-04 → —
|
SXM10 RHD | — | |
| 88460-44340 |
Condenser Assy, Cooler
1998-04 → 2000-08
ended
|
CXM10 RHD | — | |
| 88460-44340 |
Condenser Assy, Cooler
2000-08 → —
|
CXM10 RHD | — | |
| 88460-44350 |
Condenser Assy, Cooler
1998-04 → —
|
SXM10 LHD | — | |
| 88460-44360 |
Condenser Assy, Cooler
2000-08 → —
|
CXM10 LHD | — | |
| 88460-44360 |
Condenser Assy, Cooler
1998-04 → 2000-08
ended
|
CXM10 LHD | — | |
| 88460B — Bracket, Cooler Condenser, NO.1 | ||||
| 88688-44070 |
Bracket, Cooler Condenser, NO.1
1996-09 → 1998-04
ended
|
CXM10,SXM10 | — | |
| 88688-44130 |
Bracket, Cooler Condenser, NO.1
1998-04 → 2000-08
ended
|
CXM10,SXM10 LHD | — | |
| 88688-44130 |
Bracket, Cooler Condenser, NO.1
2000-08 → —
|
CXM10,SXM10 LHD | — | |
| 88688-44160 |
Bracket, Cooler Condenser, NO.1
1998-04 → 2000-08
ended
|
CXM10,SXM10 RHD | — | |
| 88688-44160 |
Bracket, Cooler Condenser, NO.1
2000-08 → —
|
CXM10,SXM10 RHD | — | |
| 88467 — Cushion, Cooler Condenser, NO.1 | ||||
| 88467-32060 |
Cushion, Cooler Condenser, NO.1
1996-09 → 2000-08
ended
|
CXM10,SXM10 | — | |
| 88467-32060 |
Cushion, Cooler Condenser, NO.1
2000-08 → —
|
CXM10,SXM10 | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-47010 |
Dryer, Cooler
1998-04 → 2000-08
ended
|
CXM10,SXM10 | — | |
| 88474-47010 |
Dryer, Cooler
2000-08 → —
|
CXM10,SXM10 | — | |
| 88645H — Switch, Pressure NO.1 | ||||
| 88645-20050 note |
Switch, Pressure NO.1
1998-04 → —
|
SXM10 07S;SXM10 LHD 06S | — | |
| 88645-20050 |
Switch, Pressure NO.1
1998-04 → —
|
SXM10 RHD 06S | — | |
| 88645-20050 |
Switch, Pressure NO.1
1996-09 → 1998-04
ended
|
SXM10 | — | |
| 88645-36050 |
Switch, Pressure NO.1
2000-08 → —
|
CXM10 | — | |
| 88645-36050 |
Switch, Pressure NO.1
1997-09 → 2000-08
ended
|
CXM10 | — | |
| 88645-44010 note |
Switch, Pressure NO.1
1998-04 → —
|
SXM10 | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-44010 |
Hose, Cooler Refrigerant Discharge, NO.1
1996-09 → 1998-04
ended
|
SXM10 RHD | — | |
| 88711-44020 |
Hose, Cooler Refrigerant Discharge, NO.1
1996-09 → 1998-04
ended
|
SXM10 LHD | — | |
| 88711-44030 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-09 → 1998-04
ended
|
SXM10 RHD | — | |
| 88711-44040 note |
Hose, Cooler Refrigerant Discharge, NO.1
1996-09 → 1998-04
ended
|
SXM10 LHD | — | |
| 88711-44050 |
Hose, Cooler Refrigerant Discharge, NO.1
1997-09 → 1998-04
ended
|
CXM10 RHD | — | |
| 88711-44060 |
Hose, Cooler Refrigerant Discharge, NO.1
1997-09 → 1998-04
ended
|
CXM10 LHD | — | |
| 88711-44070 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-09 → 1998-04
ended
|
CXM10 RHD | — | |
| 88711-44080 note |
Hose, Cooler Refrigerant Discharge, NO.1
1997-09 → 1998-04
ended
|
CXM10 LHD | — | |
| 88711-44110 |
Hose, Cooler Refrigerant Discharge, NO.1
1998-04 → 1998-07
ended
|
SXM10 RHD | — | |
| 88711-44110 note |
Hose, Cooler Refrigerant Discharge, NO.1
1998-07 → 1998-08
ended
|
SXM10 RHD | — | |
| 88711-44120 |
Hose, Cooler Refrigerant Discharge, NO.1
1998-04 → 1998-07
ended
|
CXM10 RHD | — | |
| 88711-44120 note |
Hose, Cooler Refrigerant Discharge, NO.1
1998-07 → 1998-08
ended
|
CXM10 RHD | — | |
| 88711-44130 |
Hose, Cooler Refrigerant Discharge, NO.1
1998-04 → 1998-07
ended
|
SXM10 LHD | — | |
| 88711-44130 note |
Hose, Cooler Refrigerant Discharge, NO.1
1998-07 → 1998-08
ended
|
SXM10 LHD | — | |
| 88711-44140 |
Hose, Cooler Refrigerant Discharge, NO.1
1998-04 → 1998-07
ended
|
CXM10 LHD | — | |
| 88711-44140 note |
Hose, Cooler Refrigerant Discharge, NO.1
1998-07 → 1998-08
ended
|
CXM10 LHD | — | |
| 88711-44180 |
Hose, Cooler Refrigerant Discharge, NO.1
1998-07 → 1999-09
ended
|
CXM10,SXM10 LHD | — | |
| 88711-44190 |
Hose, Cooler Refrigerant Discharge, NO.1
1998-07 → 1999-09
ended
|
CXM10,SXM10 RHD | — | |
| 88711-44210 note |
Hose, Cooler Refrigerant Discharge, NO.1
1999-09 → 2000-08
ended
|
CXM10,SXM10 RHD | — | |
| 88711-44210 note |
Hose, Cooler Refrigerant Discharge, NO.1
2000-08 → —
|
CXM10,SXM10 RHD | — | |
| 88711-44230 note |
Hose, Cooler Refrigerant Discharge, NO.1
1999-09 → 2000-08
ended
|
CXM10,SXM10 LHD | — | |
| 88711-44230 note |
Hose, Cooler Refrigerant Discharge, NO.1
2000-08 → —
|
CXM10,SXM10 LHD | — | |
| 88712 — Hose, Cooler Refrigerant Suction, NO.1 | ||||
| 88712-44010 |
Hose, Cooler Refrigerant Suction, NO.1
1996-09 → 1997-08
ended
|
SXM10 RHD | — | |
| 88712-44020 note |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1998-08
ended
|
SXM10 RHD | — | |
| 88712-44030 |
Hose, Cooler Refrigerant Suction, NO.1
1996-09 → 1998-04
ended
|
SXM10 LHD | — | |
| 88712-44040 note |
Hose, Cooler Refrigerant Suction, NO.1
1996-09 → 1998-04
ended
|
SXM10 LHD | — | |
| 88712-44050 note |
Hose, Cooler Refrigerant Suction, NO.1
1996-09 → 1998-04
ended
|
SXM10 RHD | — | |
| 88712-44060 |
Hose, Cooler Refrigerant Suction, NO.1
1997-09 → 1998-04
ended
|
CXM10 LHD | — | |
| 88712-44070 |
Hose, Cooler Refrigerant Suction, NO.1
1997-09 → 1998-04
ended
|
CXM10 RHD | — | |
| 88712-44080 note |
Hose, Cooler Refrigerant Suction, NO.1
1997-09 → 1998-04
ended
|
CXM10 RHD | — | |
| 88712-44090 note |
Hose, Cooler Refrigerant Suction, NO.1
1997-09 → 1998-04
ended
|
CXM10 LHD | — | |
| 88712-44100 |
Hose, Cooler Refrigerant Suction, NO.1
1997-08 → 1998-04
ended
|
SXM10 RHD | — | |
| 88712-44110 |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1998-07
ended
|
SXM10 RHD | — | |
| 88712-44120 |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1999-09
ended
|
CXM10 RHD | — | |
| 88712-44130 |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1998-07
ended
|
SXM10 LHD | — | |
| 88712-44140 |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1999-09
ended
|
CXM10 LHD | — | |
| 88712-44150 note |
Hose, Cooler Refrigerant Suction, NO.1
1998-08 → 1999-09
ended
|
SXM10 RHD | — | |
| 88712-44160 note |
Hose, Cooler Refrigerant Suction, NO.1
1998-08 → 1999-09
ended
|
CXM10 RHD | — | |
| 88712-44170 |
Hose, Cooler Refrigerant Suction, NO.1
1998-07 → 1999-09
ended
|
SXM10 RHD | — | |
| 88712-44190 note |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1998-08
ended
|
CXM10 RHD | — | |
| 88712-44210 note |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1998-08
ended
|
SXM10 LHD | — | |
| 88712-44220 note |
Hose, Cooler Refrigerant Suction, NO.1
1998-04 → 1998-08
ended
|
CXM10 LHD | — | |
| 88712-44250 |
Hose, Cooler Refrigerant Suction, NO.1
1998-07 → 1999-09
ended
|
SXM10 LHD | — | |
| 88712-44280 note |
Hose, Cooler Refrigerant Suction, NO.1
1999-09 → —
|
SXM10 RHD | — | |
| 88712-44290 note |
Hose, Cooler Refrigerant Suction, NO.1
1999-09 → —
|
SXM10 RHD | — | |
| 88712-44300 |
Hose, Cooler Refrigerant Suction, NO.1
1999-09 → —
|
SXM10 LHD | — | |
| 88712-44310 note |
Hose, Cooler Refrigerant Suction, NO.1
2000-08 → —
|
CXM10 RHD | — | |
| 88712-44310 note |
Hose, Cooler Refrigerant Suction, NO.1
1999-09 → 2000-08
ended
|
CXM10 RHD | — | |
| 88712-44320 note |
Hose, Cooler Refrigerant Suction, NO.1
1999-09 → 2000-08
ended
|
CXM10 RHD | — | |
| 88712-44320 note |
Hose, Cooler Refrigerant Suction, NO.1
2000-08 → —
|
CXM10 RHD | — | |
| 88712-44330 |
Hose, Cooler Refrigerant Suction, NO.1
2000-08 → —
|
CXM10 LHD | — | |
| 88712-44330 |
Hose, Cooler Refrigerant Suction, NO.1
1999-09 → 2000-08
ended
|
CXM10 LHD | — | |
| 88716B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88716-44030 |
Pipe, Cooler Refrigerant Liquid, B
1996-09 → 1998-04
ended
|
SXM10 LHD | — | |
| 88716-44040 |
Pipe, Cooler Refrigerant Liquid, B
1996-09 → 1997-08
ended
|
SXM10 RHD | — | |
| 88716-44100 note |
Pipe, Cooler Refrigerant Liquid, B
1996-09 → 1997-08
ended
|
SXM10 RHD | — | |
| 88716-44110 note |
Pipe, Cooler Refrigerant Liquid, B
1996-09 → 1998-04
ended
|
CXM10,SXM10 LHD | — | |
| 88716-44130 |
Pipe, Cooler Refrigerant Liquid, B
1997-09 → 1998-04
ended
|
CXM10 LHD | — | |
| 88716-44140 note |
Pipe, Cooler Refrigerant Liquid, B
1997-09 → 1998-04
ended
|
CXM10 RHD | — | |
| 88716-44190 |
Pipe, Cooler Refrigerant Liquid, B
1997-08 → 1998-04
ended
|
SXM10 RHD | — | |
| 88716-44200 note |
Pipe, Cooler Refrigerant Liquid, B
1997-08 → 1998-04
ended
|
SXM10 RHD | — | |
| 88716-44250 |
Pipe, Cooler Refrigerant Liquid, B
1997-09 → 1998-04
ended
|
CXM10 RHD | — | |
| 88716-44300 |
Pipe, Cooler Refrigerant Liquid, B
1998-04 → —
|
SXM10 RHD | — | |
| 88716-44310 |
Pipe, Cooler Refrigerant Liquid, B
1998-04 → 2000-08
ended
|
CXM10 RHD | — | |
| 88716-44310 |
Pipe, Cooler Refrigerant Liquid, B
2000-08 → —
|
CXM10 RHD | — | |
| 88716-44320 |
Pipe, Cooler Refrigerant Liquid, B
1998-04 → —
|
SXM10 LHD | — | |
| 88716-44330 |
Pipe, Cooler Refrigerant Liquid, B
1998-04 → 2000-08
ended
|
CXM10 LHD | — | |
| 88716-44330 |
Pipe, Cooler Refrigerant Liquid, B
2000-08 → —
|
CXM10 LHD | — | |
| 88716-44420 note |
Pipe, Cooler Refrigerant Liquid, B
1998-04 → 2000-08
ended
|
CXM10,SXM10 RHD | — | |
| 88716-44420 note |
Pipe, Cooler Refrigerant Liquid, B
2000-08 → —
|
CXM10,SXM10 RHD | — | |
| 88716-44430 note |
Pipe, Cooler Refrigerant Liquid, B
1998-04 → 2000-08
ended
|
CXM10,SXM10 LHD | — | |
| 88716-44430 note |
Pipe, Cooler Refrigerant Liquid, B
2000-08 → —
|
CXM10,SXM10 LHD | — | |
| 88897T — Grommet, Cooler | ||||
| 88897-44010 |
Grommet, Cooler
1996-09 → 2000-08
ended
|
CXM10,SXM10 RHD | — | |
| 88897-44010 |
Grommet, Cooler
2000-08 → —
|
CXM10,SXM10 RHD | — | |
| 88897-44020 |
Grommet, Cooler
1996-09 → 2000-08
ended
|
CXM10,SXM10 LHD | — | |
| 88897-44020 |
Grommet, Cooler
2000-08 → —
|
CXM10,SXM10 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
