Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

16 part groups · 3 illustrations

Illustrations

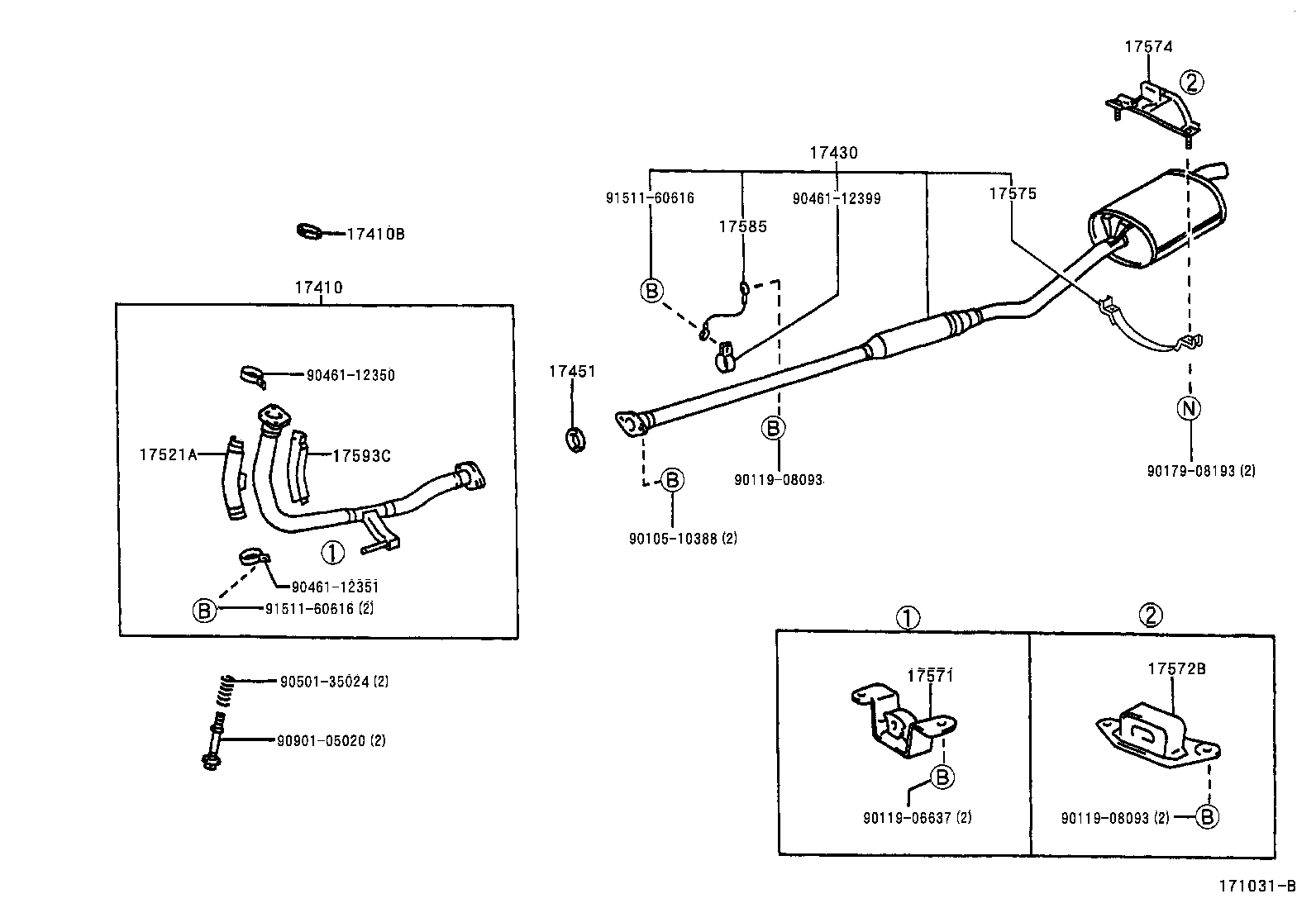

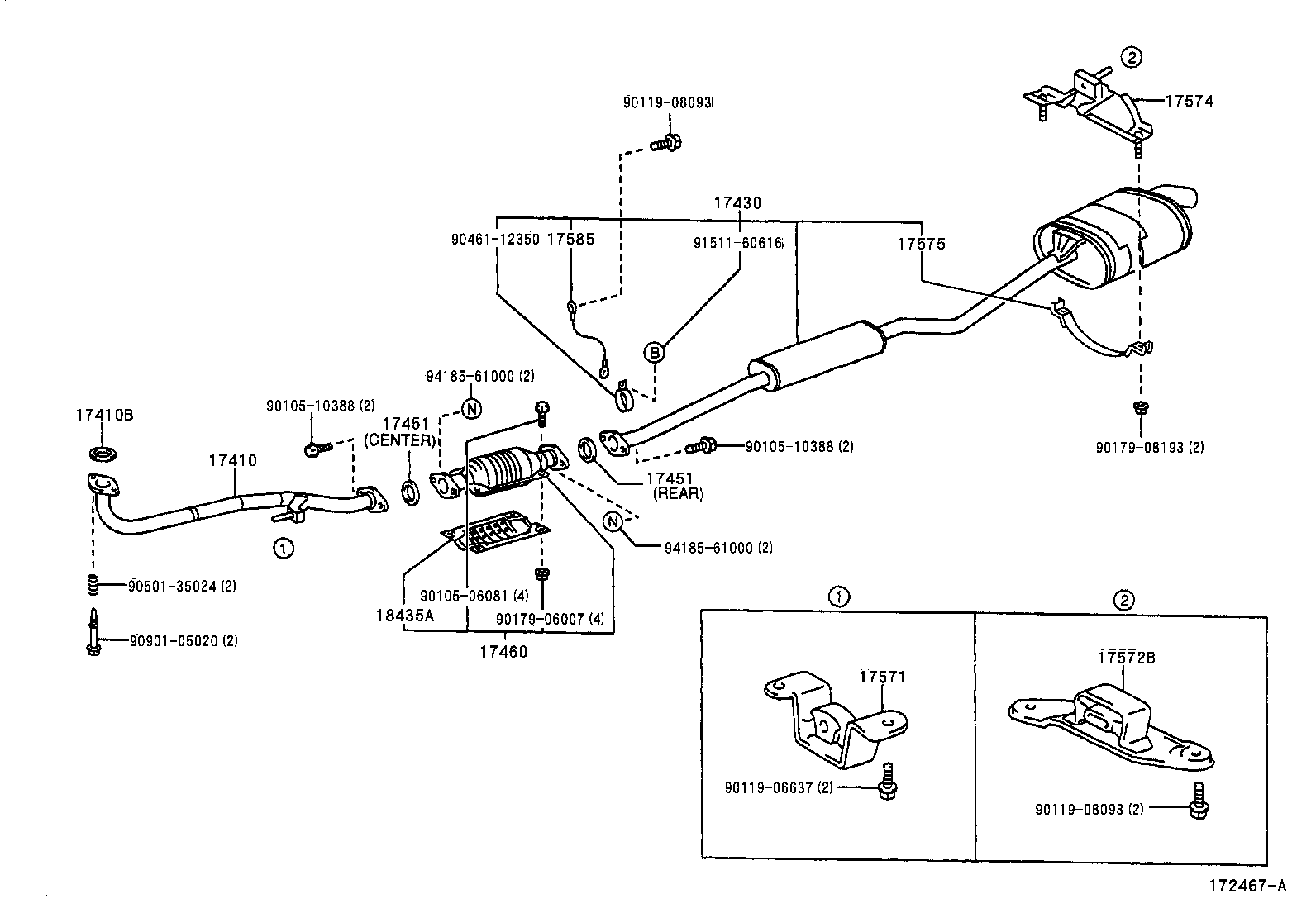

Figure 170229C 170229C 1996-09 → 2000-05 Figure 172467A 172467A 2000-05 → — Figure 171031B 171031B 1997-09 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17402 Pipe Sub-assy, Exhaust, Front NO.2
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
17585 Hanger, Exhaust Pipe
17593C Protector, Exhaust Pipe, Lower NO.1
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
