Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Control Shaft & Crossshaft

14 part groups · 2 illustrations

Illustrations

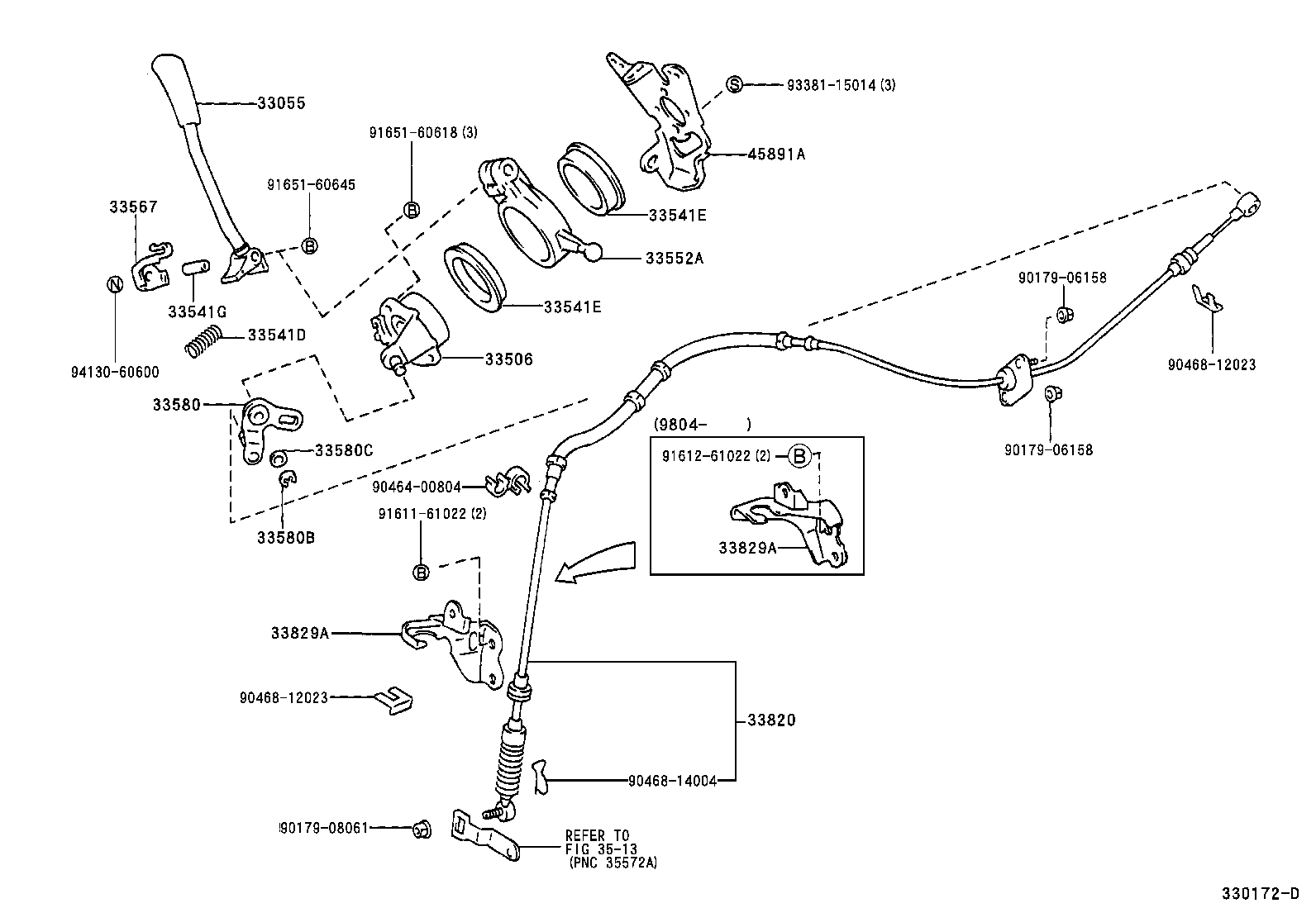

Figure 330171D 330171D 1996-09 → — Figure 330172D 330172D 1996-09 → —

Part groups

PNCDescription
33055 Lever Sub-assy, Column Shift
33506 Retainer Sub-assy, Control Shift Lever (FOR COLUMN SHIFT)
33541D Collar (FOR COLUMN SHIFT LEVER)
33541E Bush (FOR COLUMN SHIFT LEVER)
33541G Spring, Compression (FOR COLUMN SHIFT LEVER)
33552A Arm, Shift Lever
33567 Clamp, Control Shaft Tube
33580 Bellcrank Assy, Shifting (FOR COLUMN SHIFT)
33580B Ring, Shaft Snap (FOR SHIFTING BELLCRANK)
33580C Washer, Plate (FOR SHIFTING BELL CRANK)
33820 Cable Assy, Transmission Control (FOR COLUMN SHIFT)
33826 Bracket, Transmission Control Cable, NO.2
33829A Support, Transmission Control Cable
45891A Bracket, Turn Signal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
