Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

40 part groups · 3 illustrations

Illustrations

430009B 1996-09 → —

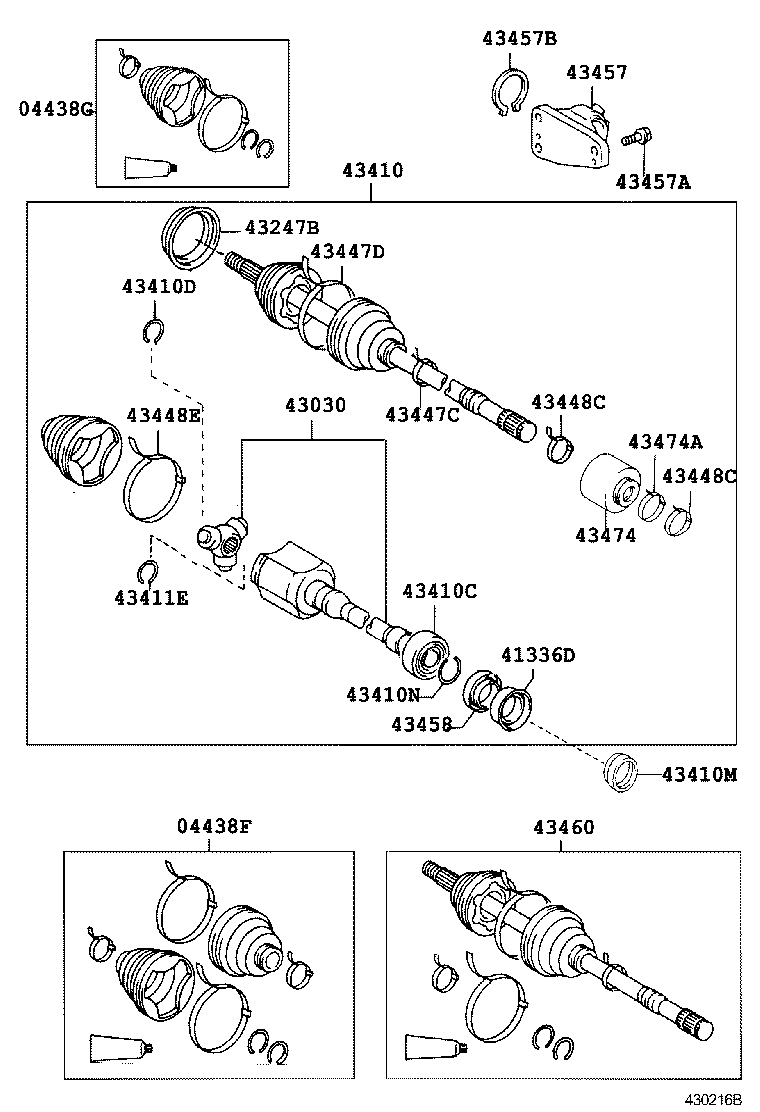

430216B 1997-09 → —

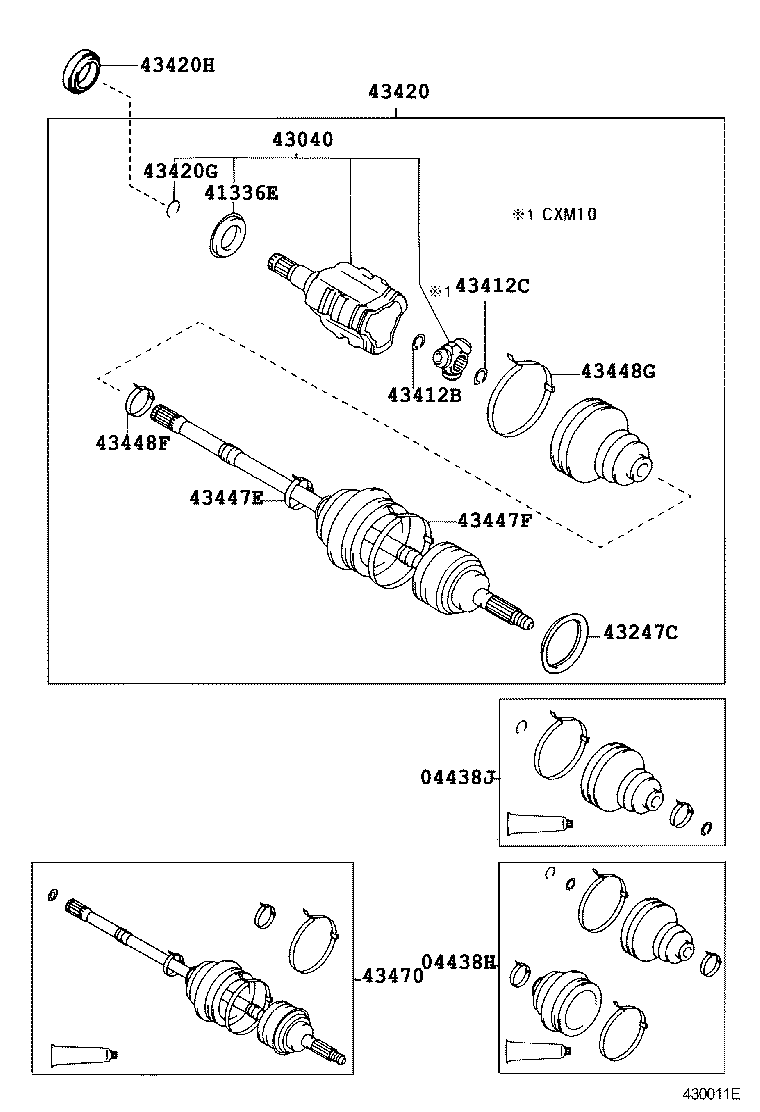

430011E 1996-09 → —

Part groups

PNC	Description
04438F	Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G	Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H	Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J	Boot Kit, Front Drive Shaft Inboard Joint, LH
41336D	Cover, Front Drive Shaft Dust, RH
41336E	Cover, Front Drive Shaft Dust, LH
43030	Joint Assy, Front Drive Inboard, RH
43040	Joint Assy, Front Drive Inboard, LH
43045	Case Sub Assy, Drive Shaft Bearing
43045A	Ring, Snap (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)
43247B	Deflector, Front Wheel Bearing Dust, RH NO.2
43247C	Deflector, Front Wheel Bearing Dust, LH NO.2
43410	Shaft Assy, Front Drive, RH
43410C	Bearing (FOR FRONT DRIVE SHAFT)
43410D	Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
43410G	Pin, Straight (FOR FRONT DRIVE SHAFT)
43410M	Oil Seal, Front Drive Shaft, RH
43410N	Ring, Hole Snap (FOR FRONT DRIVE SHAFT RH)
43411E	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43412C	Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT OUTER LH)
43420	Shaft Assy, Front Drive, LH
43420G	Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H	Oil Seal, Front Drive Shaft, LH
43447C	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E	Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F	Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F	Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G	Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457	Bracket, Drive Shaft Bearing
43457A	Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457B	Ring, Hole Snap (FOR DRIVE SHAFT BEARING BRACKET)
43458	Cover, Front Drive Shaft Dust
43460	Shaft Assy, Front Drive Outboard Joint, RH
43470	Shaft Assy, Front Drive Outboard Joint, LH
43474	Damper, Drive Shaft
43474A	Clamp (FOR DRIVE SHAFT DAMPER SETTING)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
