Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

31 part groups · 9 illustrations

Illustrations

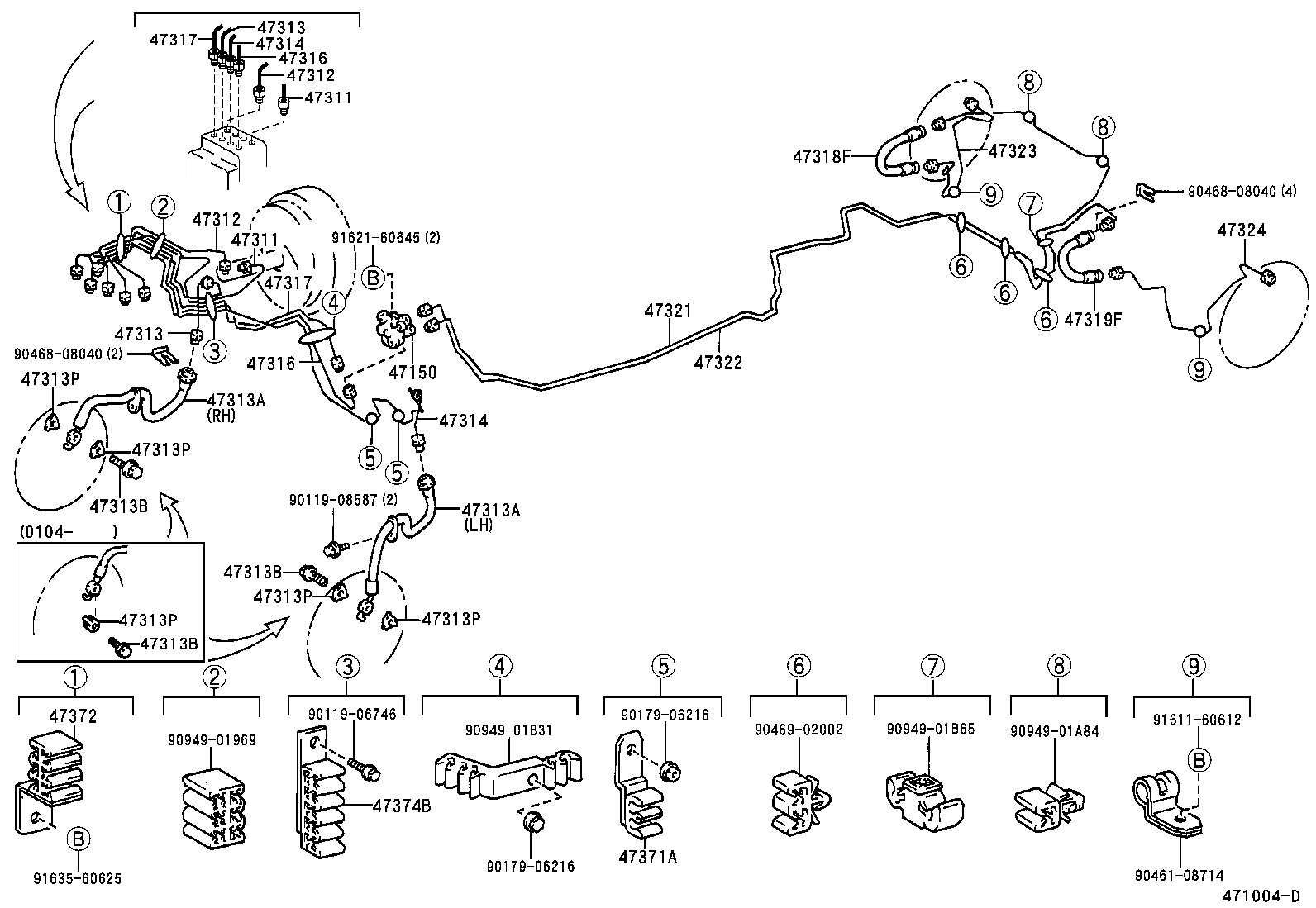

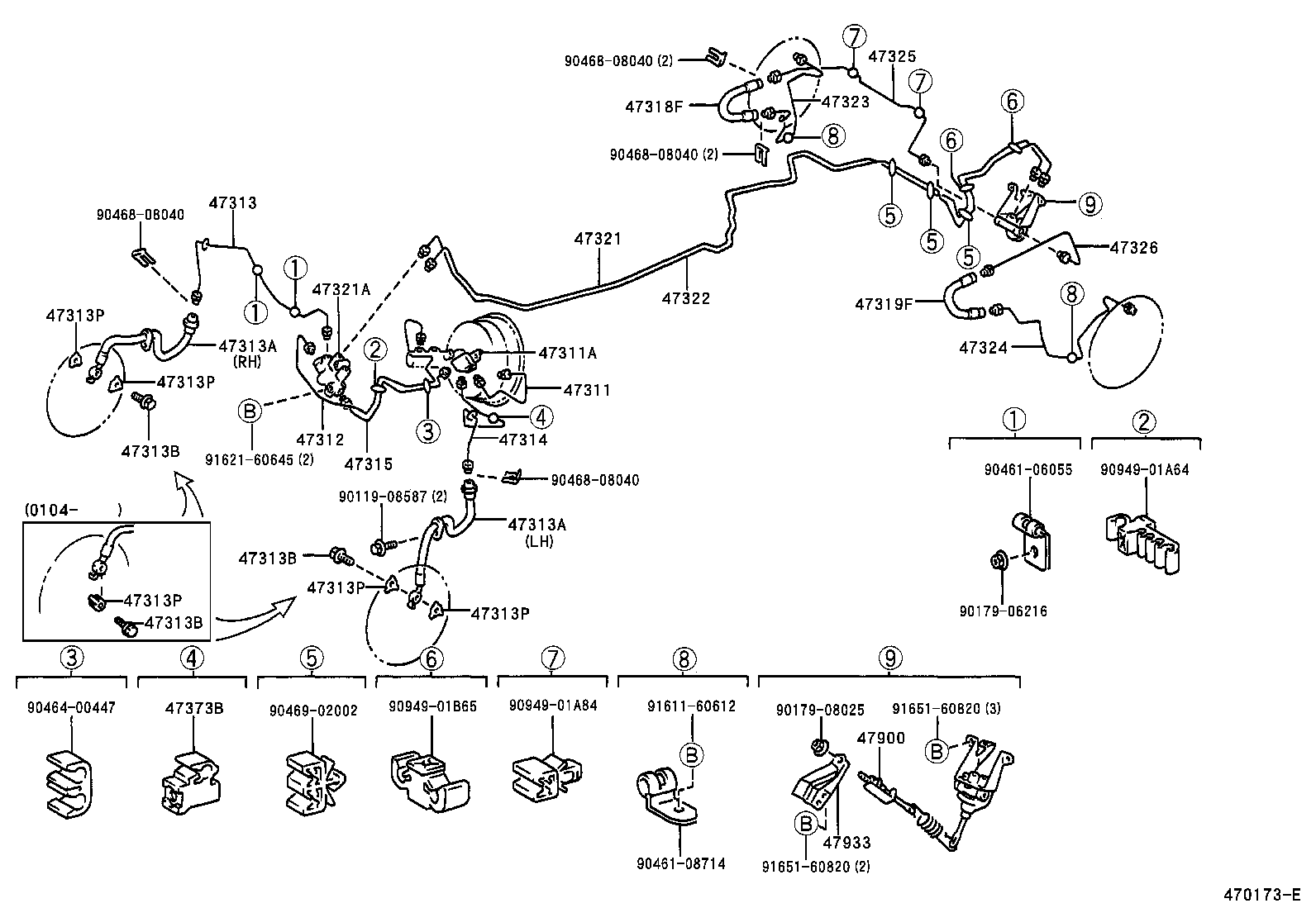

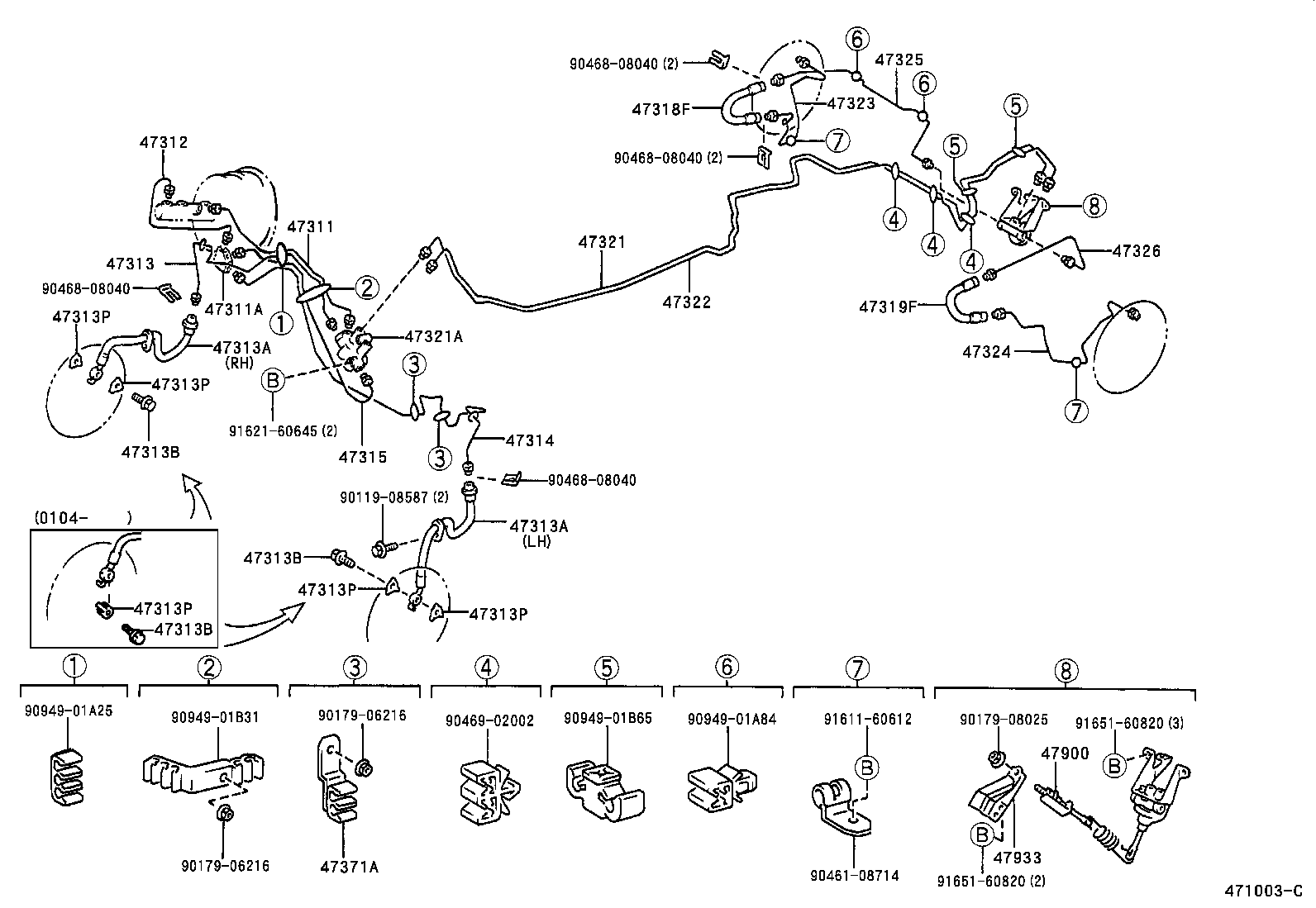

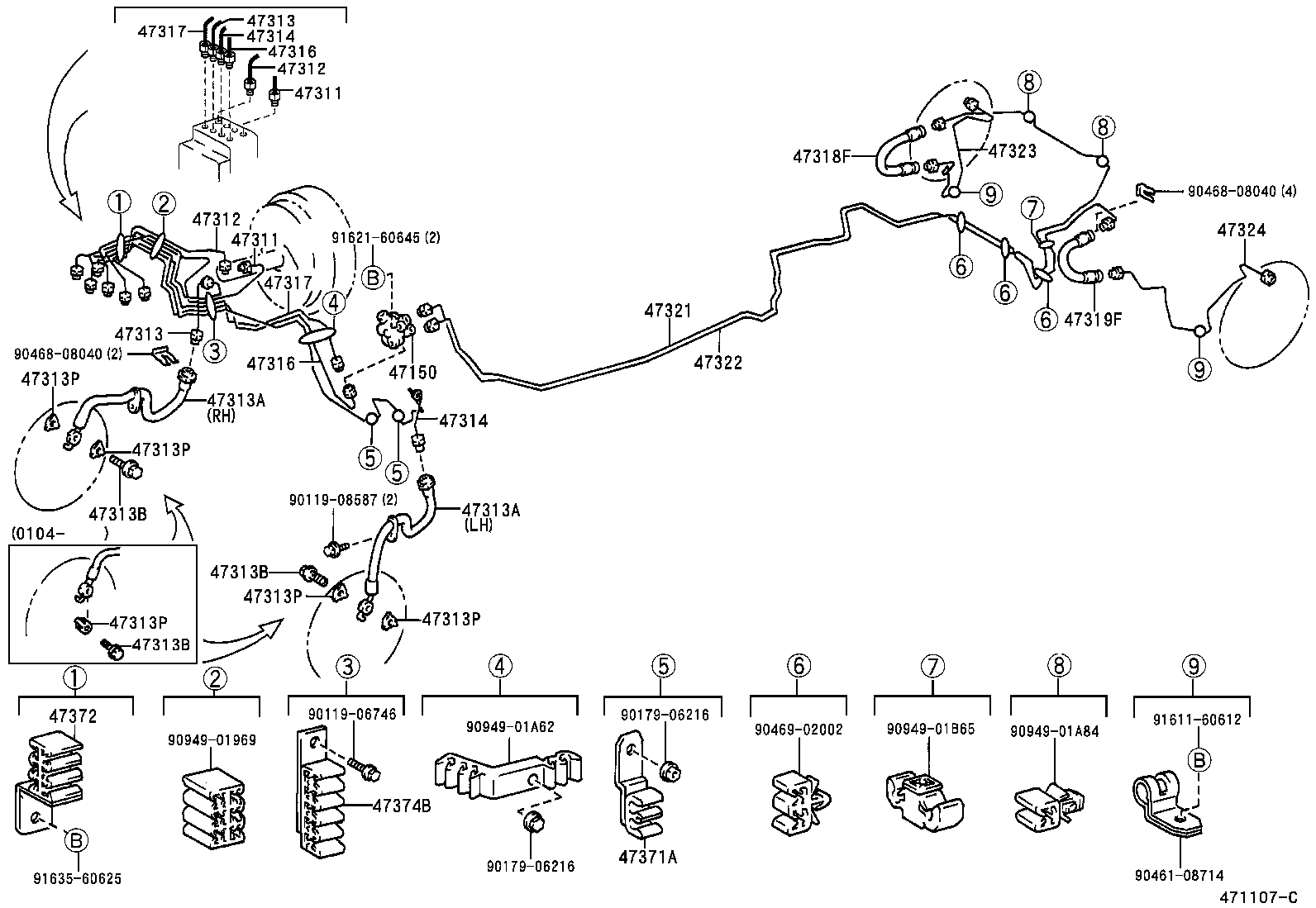

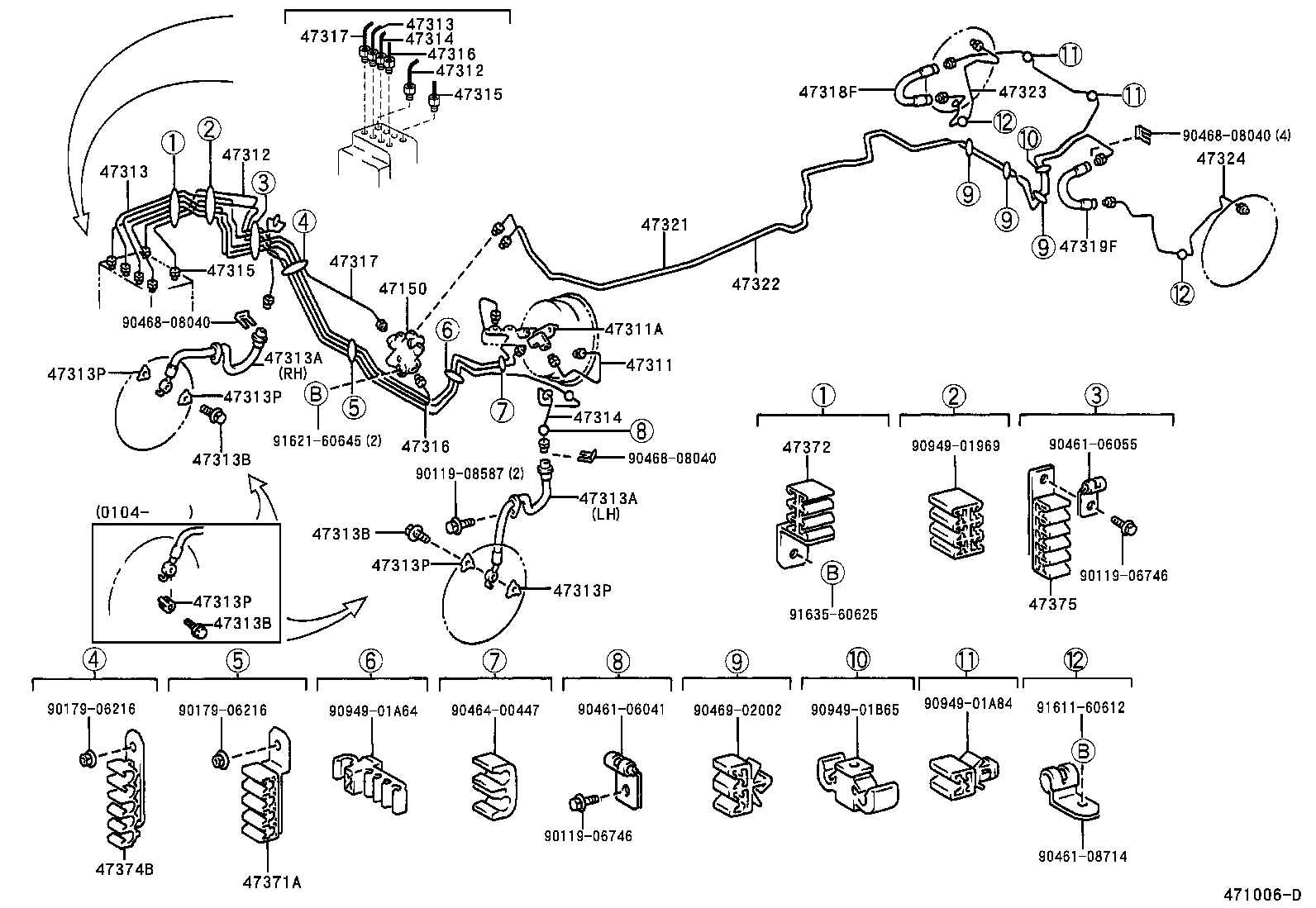

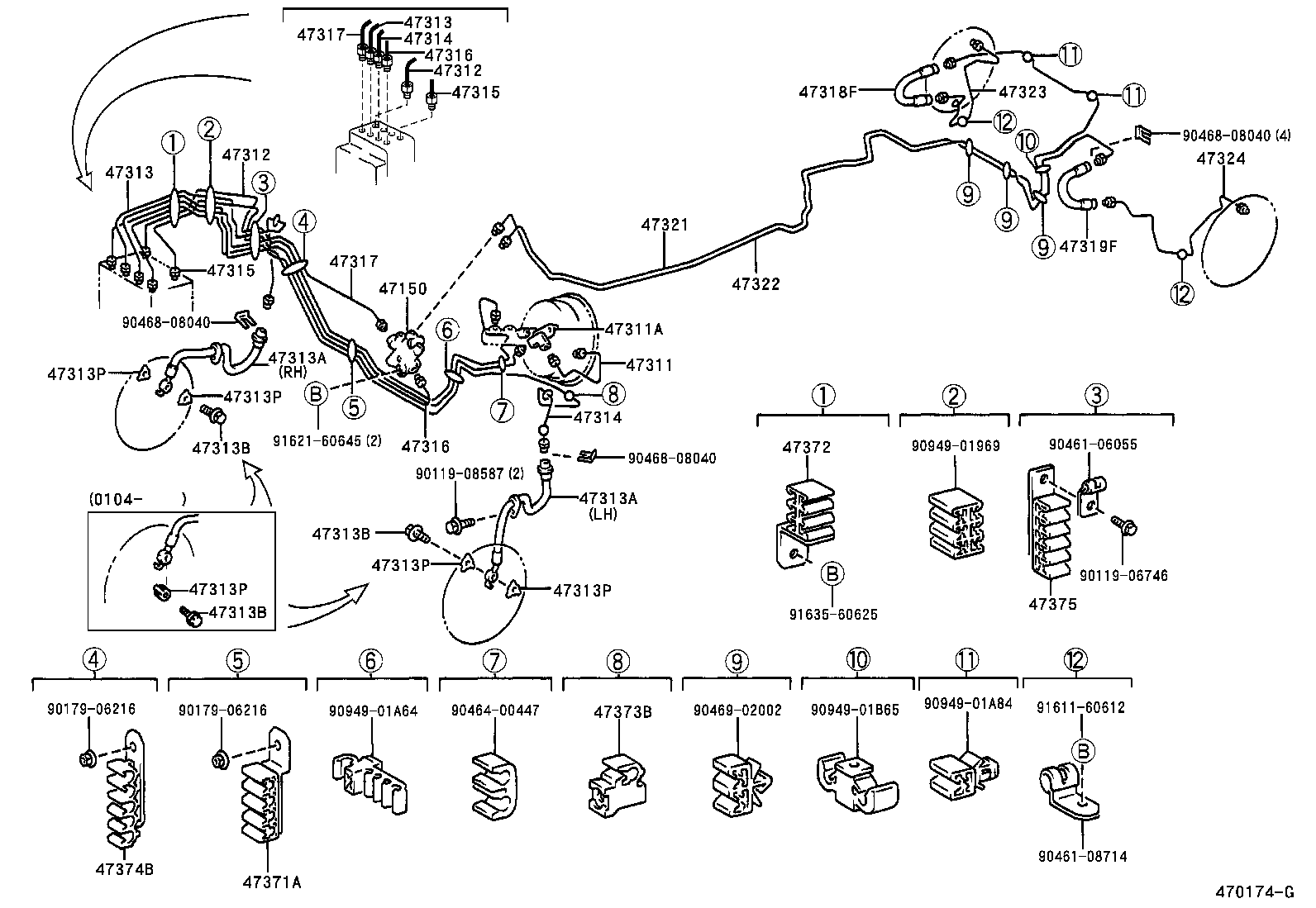

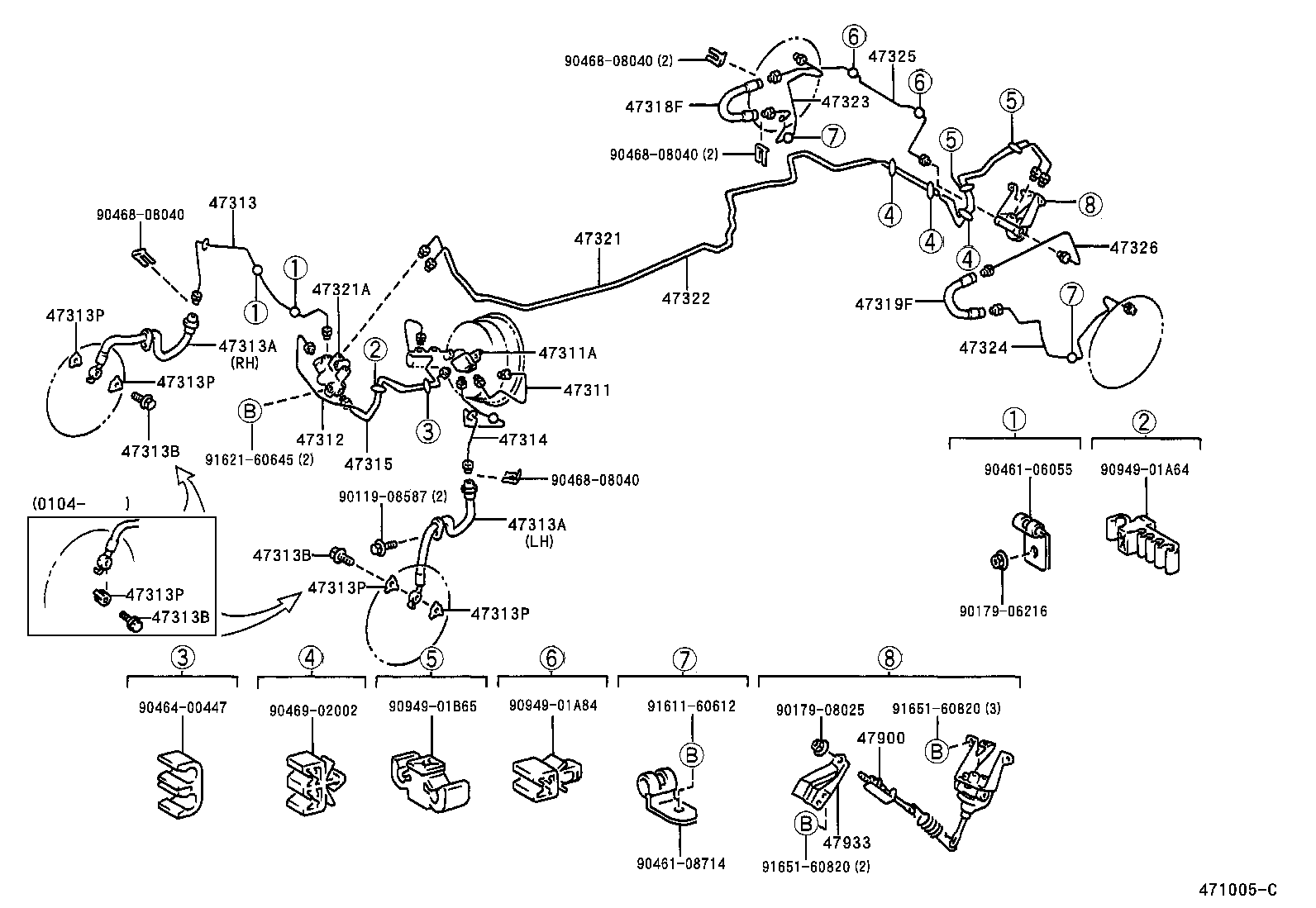

Figure 470172E 470172E 1996-09 → — Figure 471003C 471003C 1997-09 → — Figure 471107C 471107C 1996-09 → — Figure 471004D 471004D 1997-09 → — Figure 470173E 470173E 1996-09 → — Figure 471005C 471005C 1997-09 → — Figure 470174G 470174G 1996-09 → — Figure 471006D 471006D 1997-09 → — Figure 470035C 470035C 1996-09 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44546A Cushion, Brake Actuator Bolt
44591 Bracket, Brake Actuator, NO.1
47150 Valve Assy, Proportioning
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47321A Way(FOR REAR BRAKE TUBE)
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47325 Tube, Rear Brake, NO.5
47326 Tube, Rear Brake, NO.6
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
47373B Clamp, Brake Tube, NO.3
47374B Clamp, Brake Tube, NO.4
47375 Clamp, Brake Tube, NO.5
47900 Valve Assy, Load Sensing W/Spring
47933 Bracket, Load Sensing Shackle, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
