Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 2 illustrations

Illustrations

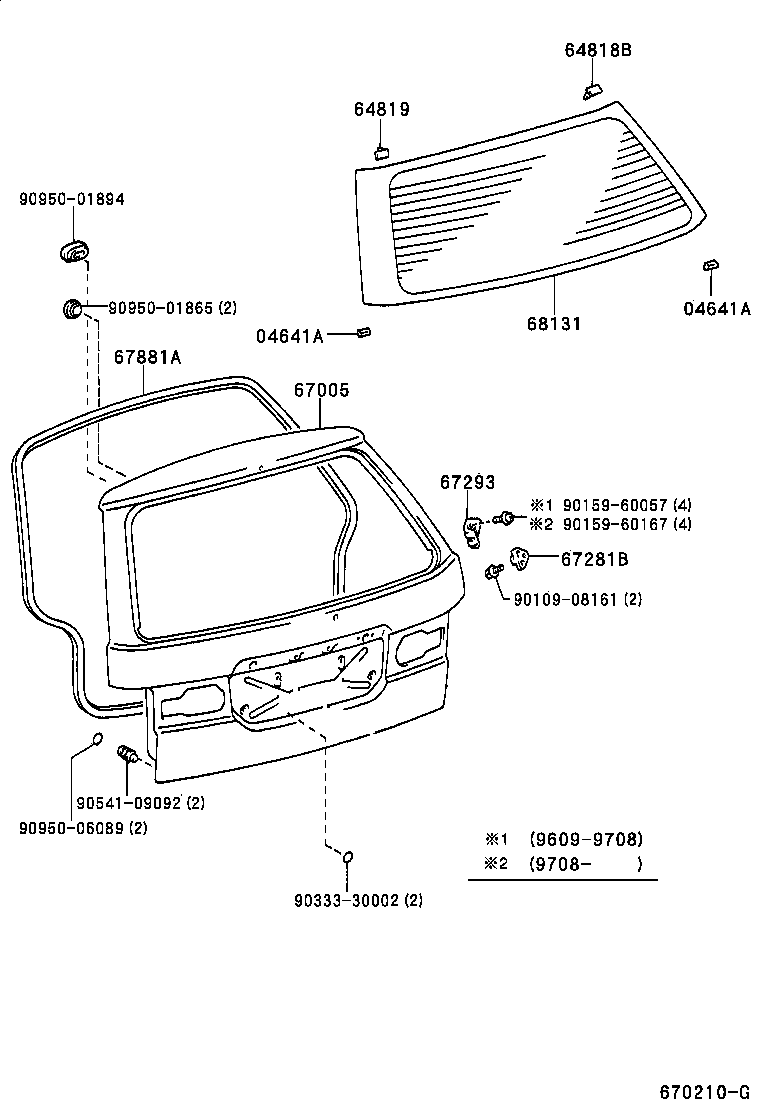

Figure 670028 670028 1996-09 → — Figure 670210G 670210G 1996-09 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
62581H Garnish, Rear Window Side, RH
62582H Garnish, Rear Window Side, LH
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67687B Garnish, Back Window
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67847E Cover, Back Door Service Hole, RH
67848E Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
