Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 13 illustrations

Illustrations

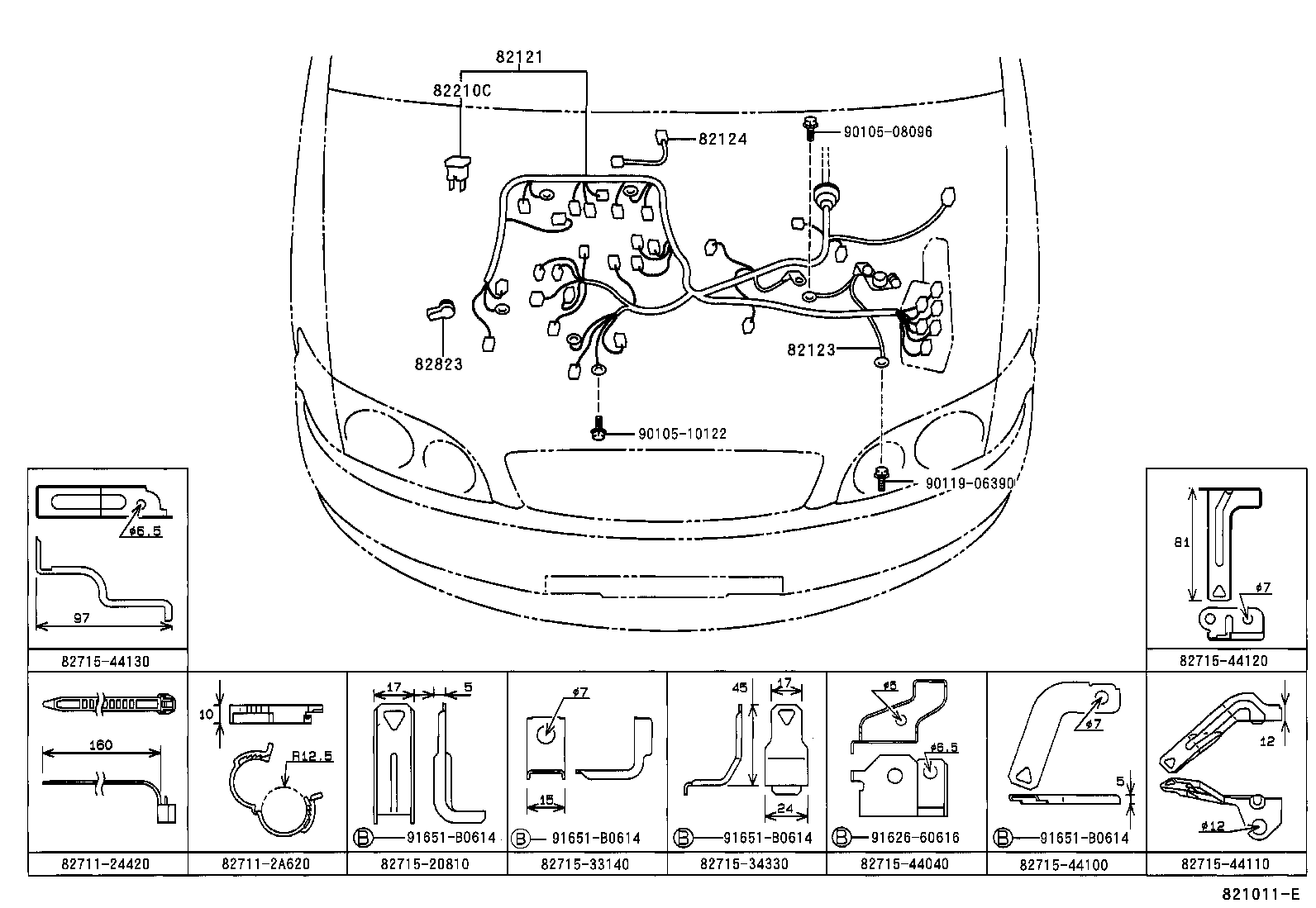

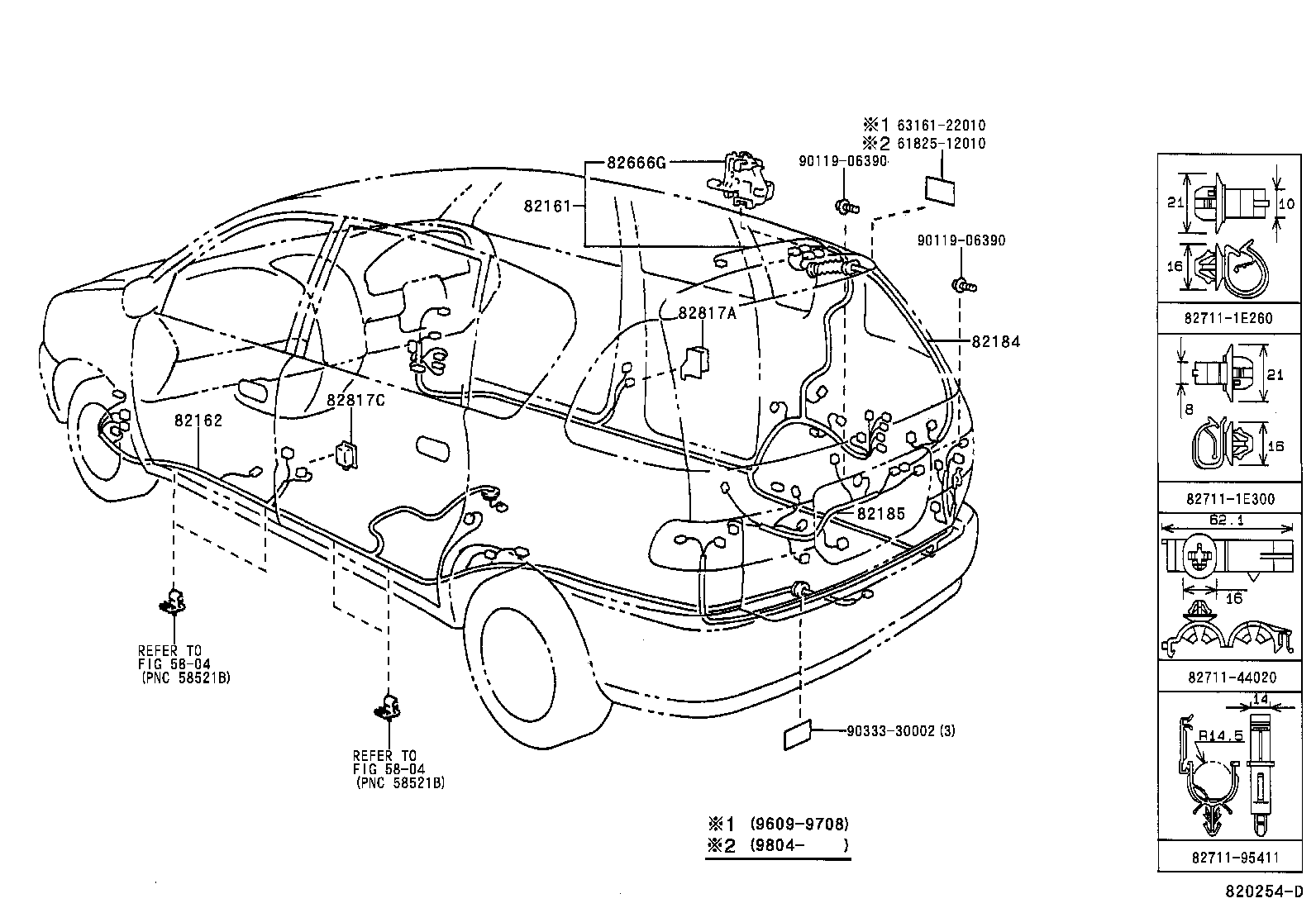

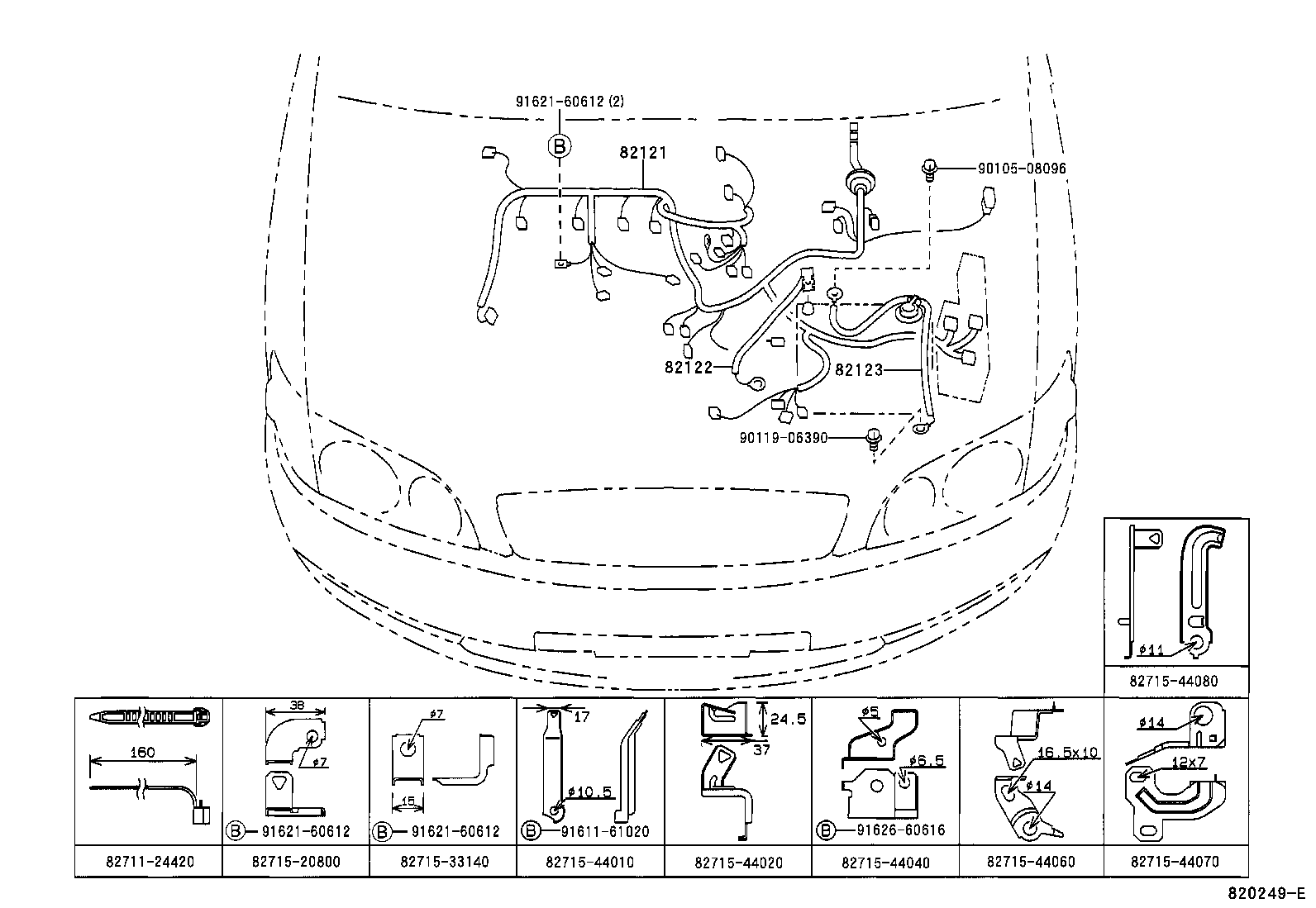

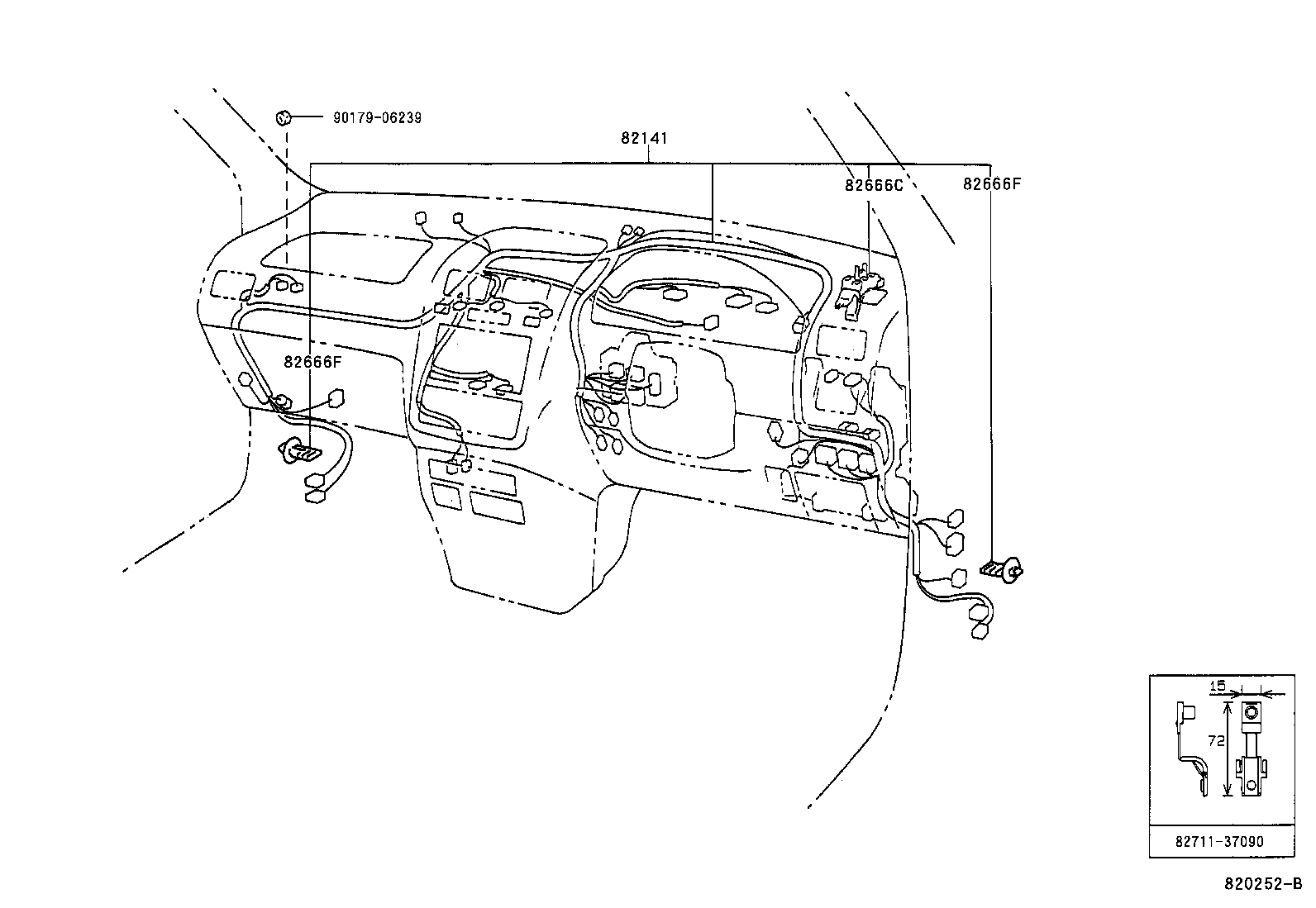

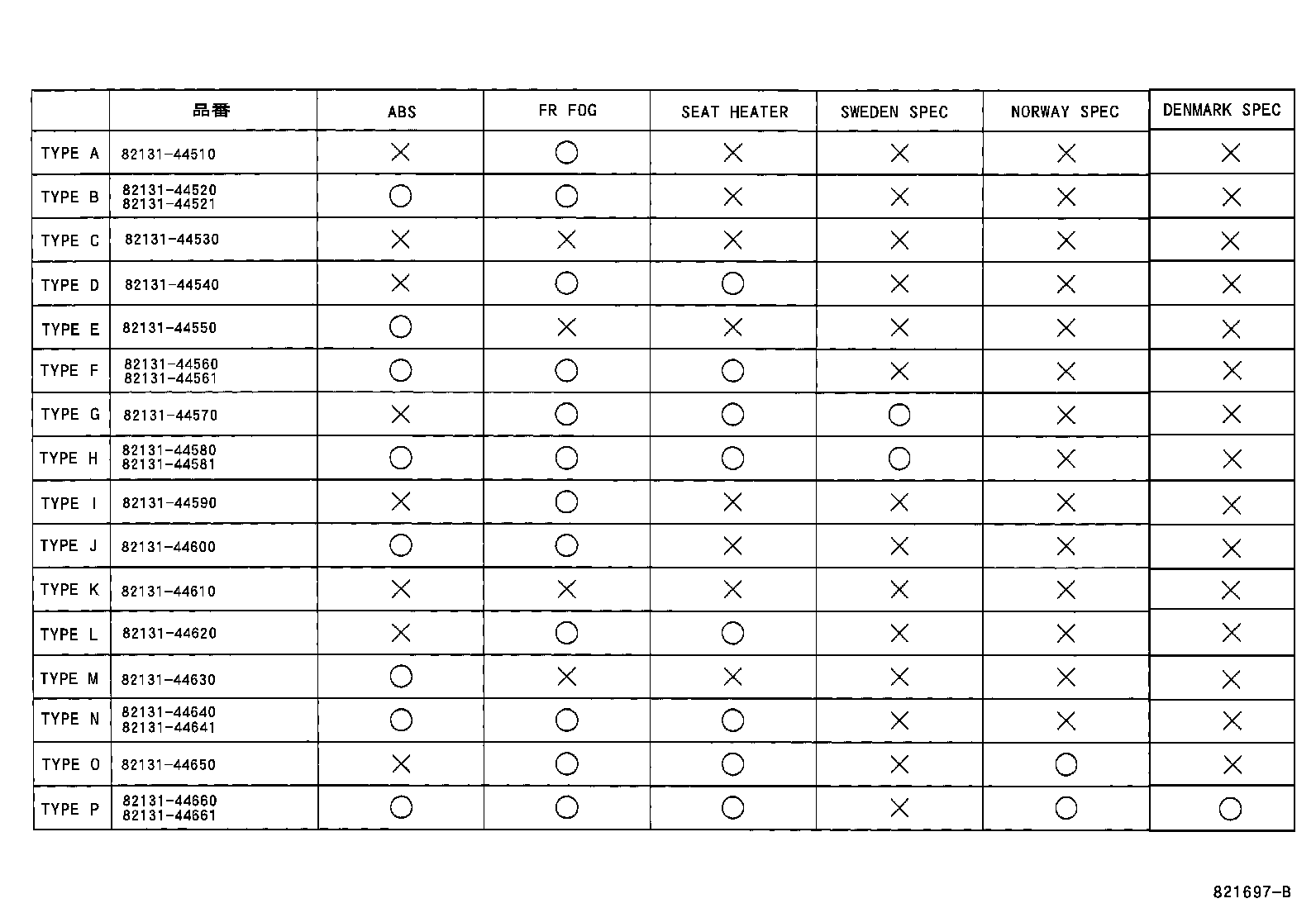

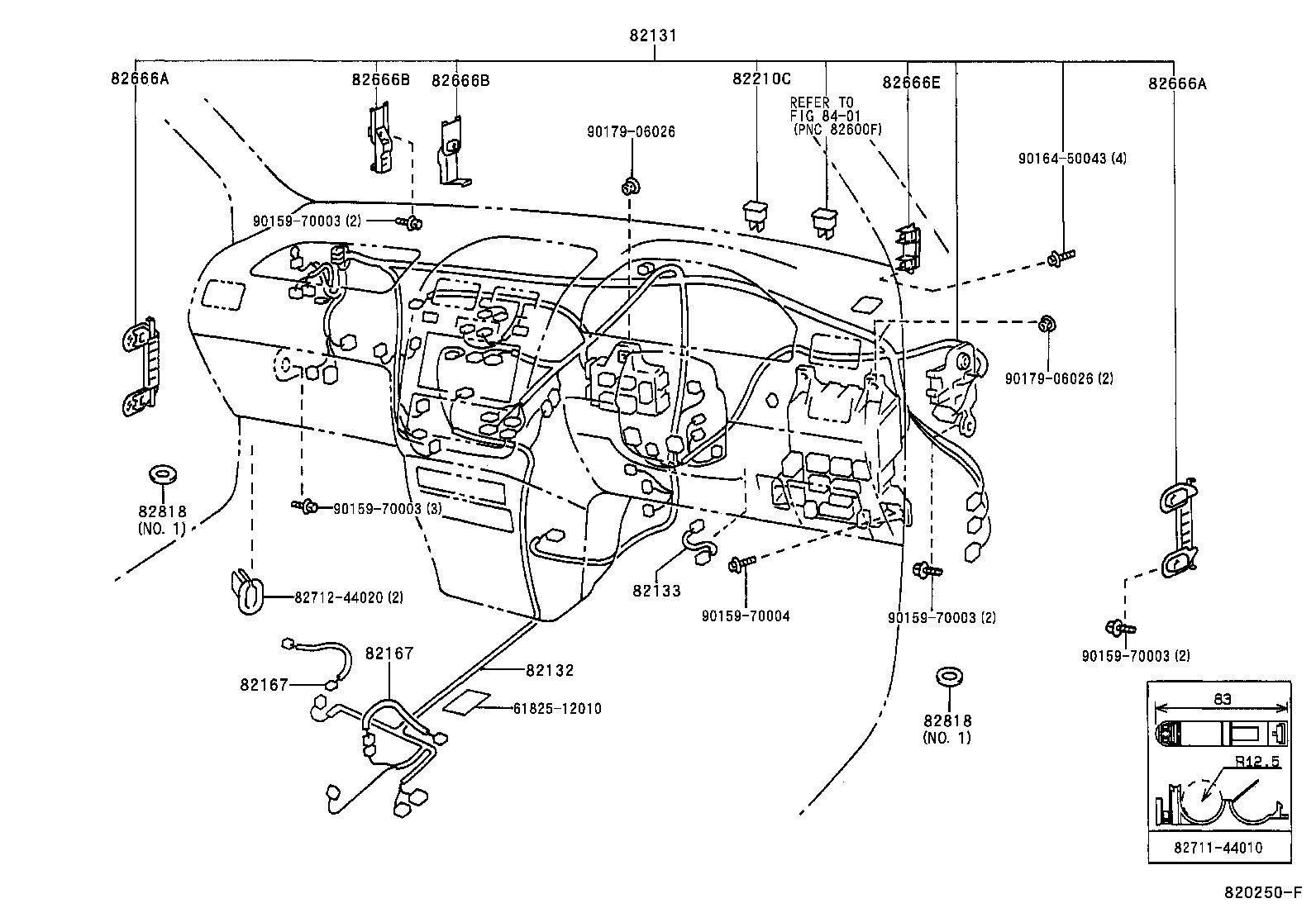

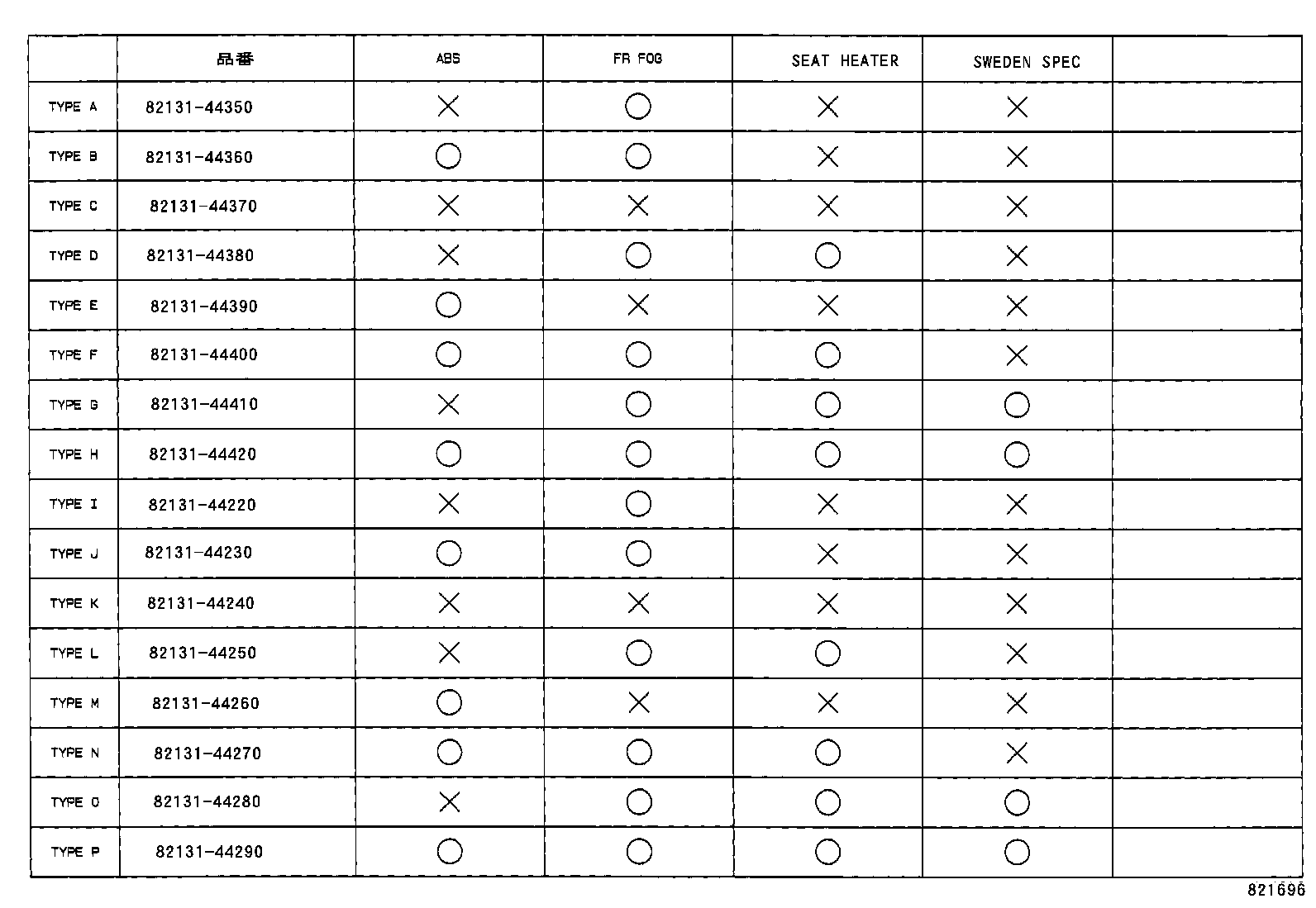

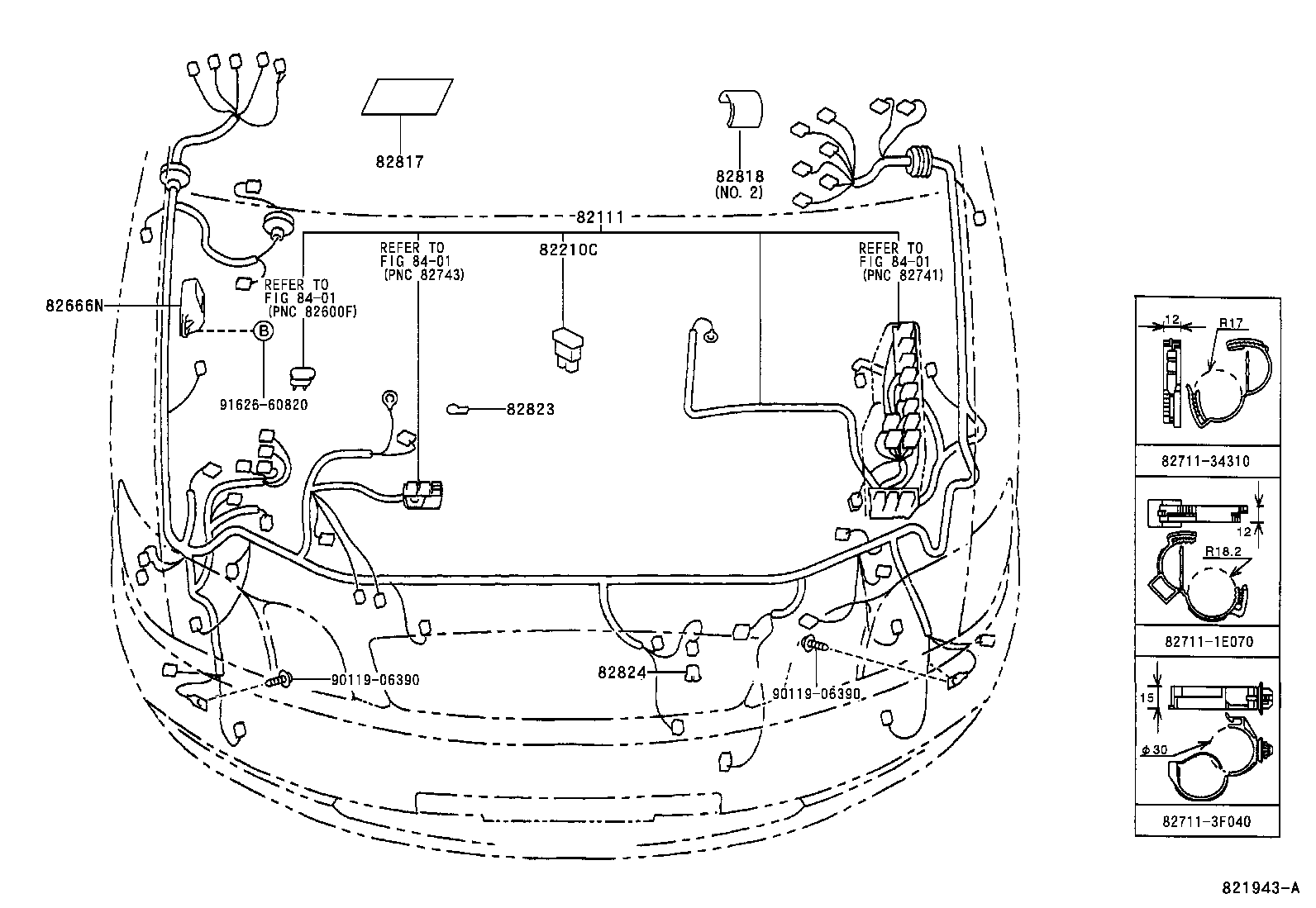

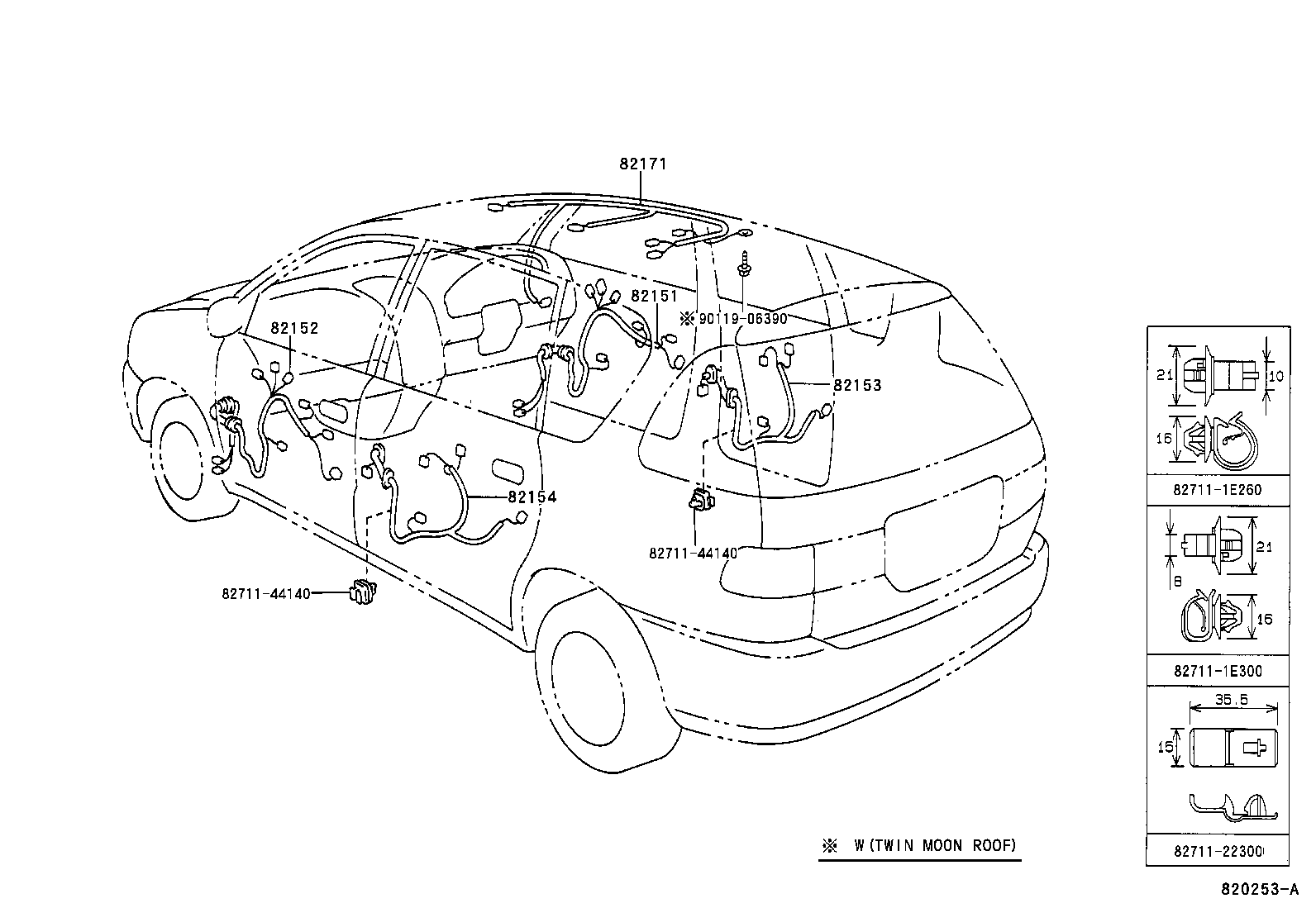

Figure 821944A 821944A 1996-09 → — Figure 821943A 821943A 1996-09 → — Figure 820249E 820249E 1996-09 → — Figure 821011E 821011E 1997-09 → — Figure 820250F 820250F 1996-09 → — Figure 821695 821695 1996-09 → 1997-08 Figure 821696 821696 1997-08 → 1998-04 Figure 821697B 821697B 1998-04 → — Figure 820252B 820252B 1996-09 → — Figure 820873A 820873A 1996-09 → — Figure 820253A 820253A 1996-09 → — Figure 820254D 820254D 1996-09 → — Figure 820042 820042 1996-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666N Holder, Connector NO.10
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82818 Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
