Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

19 part groups · 3 illustrations

Illustrations

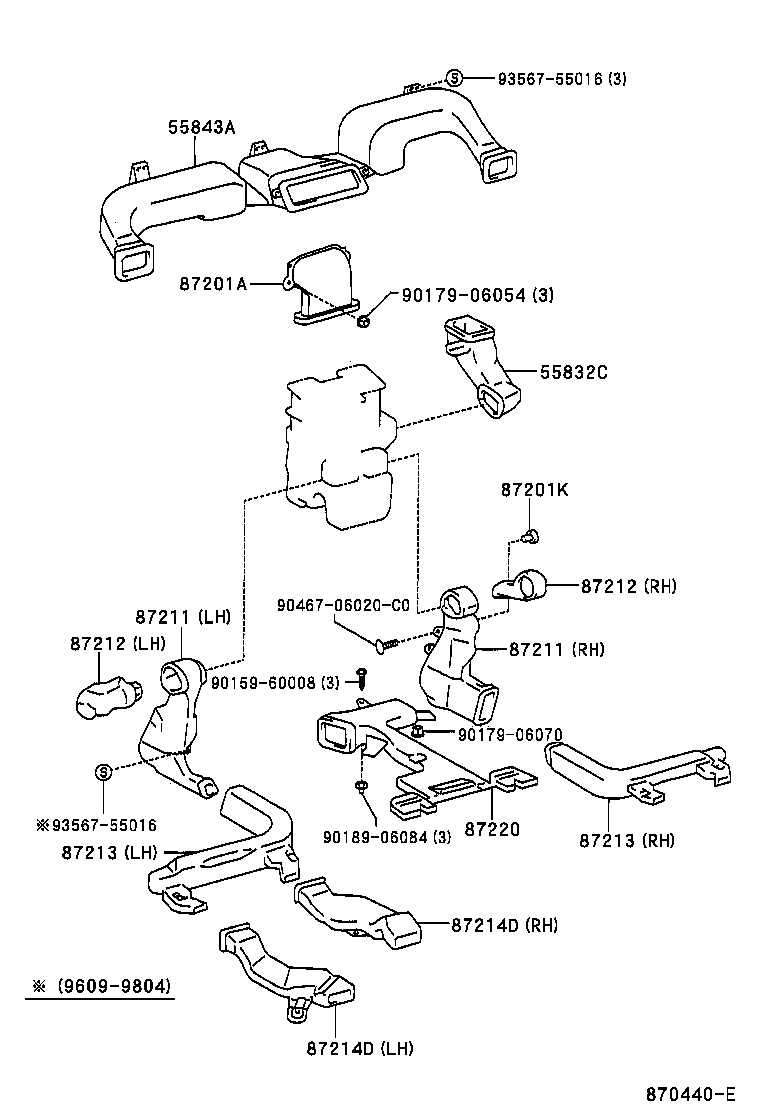

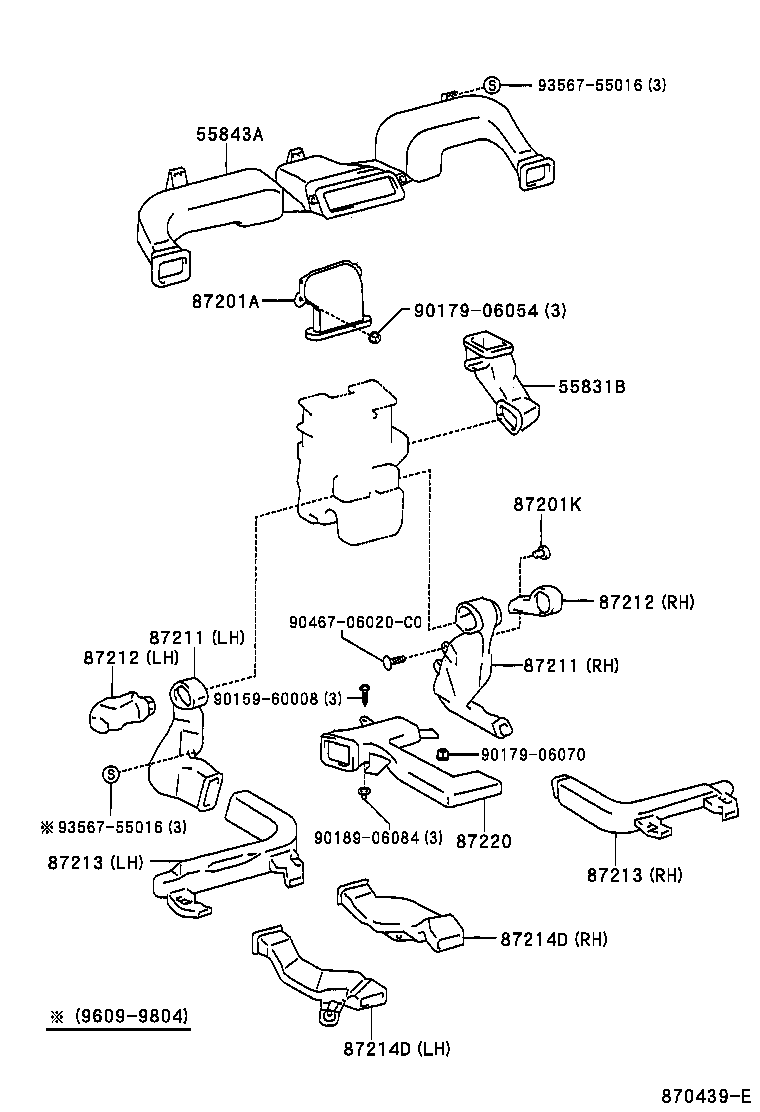

Figure 870438A 870438A 1996-09 → — Figure 870439E 870439E 1996-09 → — Figure 870440E 870440E 1996-09 → —

Part groups

PNCDescription
55519 Plate, Heater Control Name
55831B Connector, Instrument Panel Register, RH
55832C Connector, Instrument Panel Register, LH
55843A Duct, Heater TO Register, NO.1
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
81942A Sheet, Heater Control Name, NO.1
87201A Duct Sub-assy, Air
87201K Clip (FOR AIR DUCT)
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214D Duct, Air, Rear NO.3
87220 Duct Assy, Air
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
