Toyota Picnic

1996-09 → 2001-05 · chassis CXM10,SXM10 · catalogue 511510 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

14 part groups · 7 illustrations

Illustrations

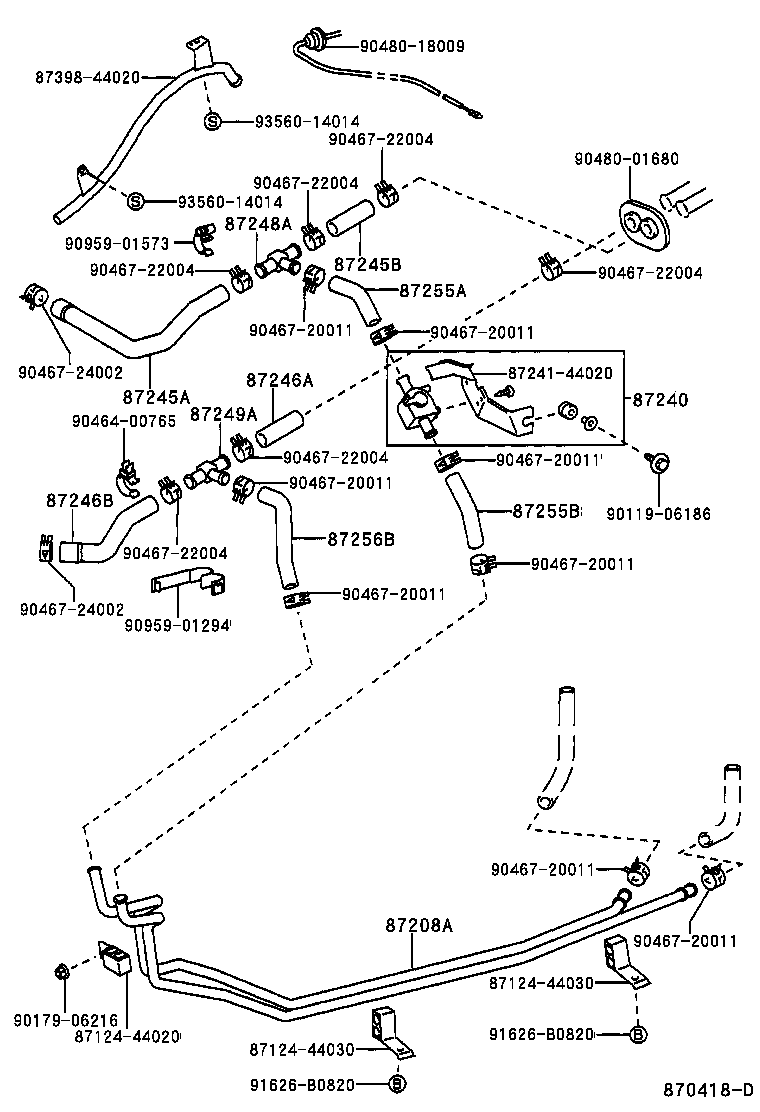

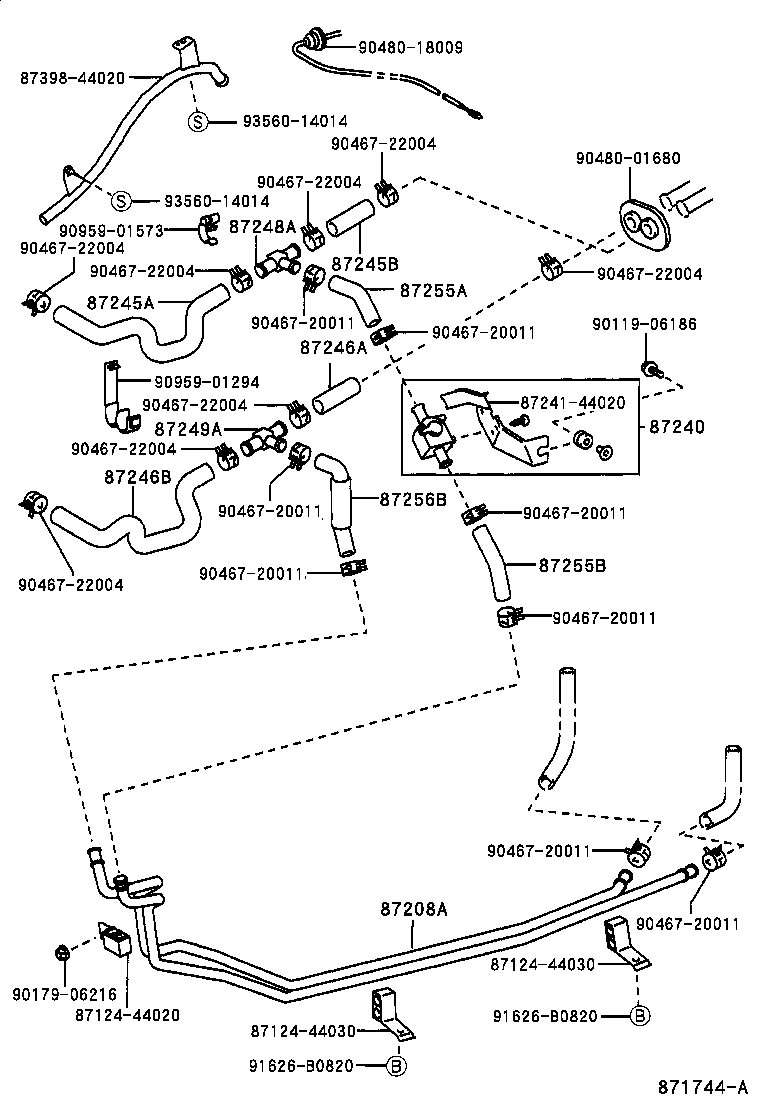

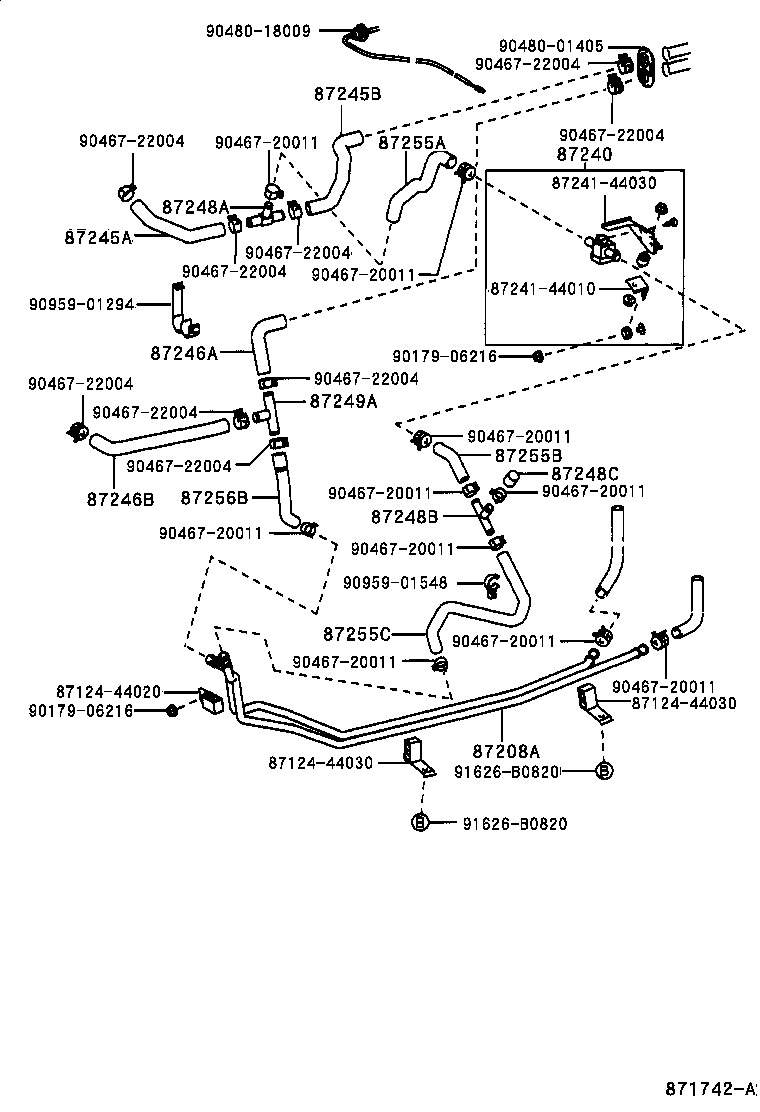

Figure 870417D 870417D 1996-09 → — Figure 872662 872662 1996-09 → — Figure 871742A 871742A 1997-09 → — Figure 871743A 871743A 1997-09 → — Figure 870418D 870418D 1996-09 → — Figure 871744A 871744A 1997-09 → — Figure 872663A 872663A 1996-09 → —

Part groups

PNCDescription
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87249A Pipe, Heater Water Outlet, A
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87256B Hose, Rear Heater Water Outlet, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
