Toyota Lexus RX300
2000-07 → 2003-02 · chassis MCU15 · catalogue 521210 · Europe
Discontinued model
Data version 2003-10

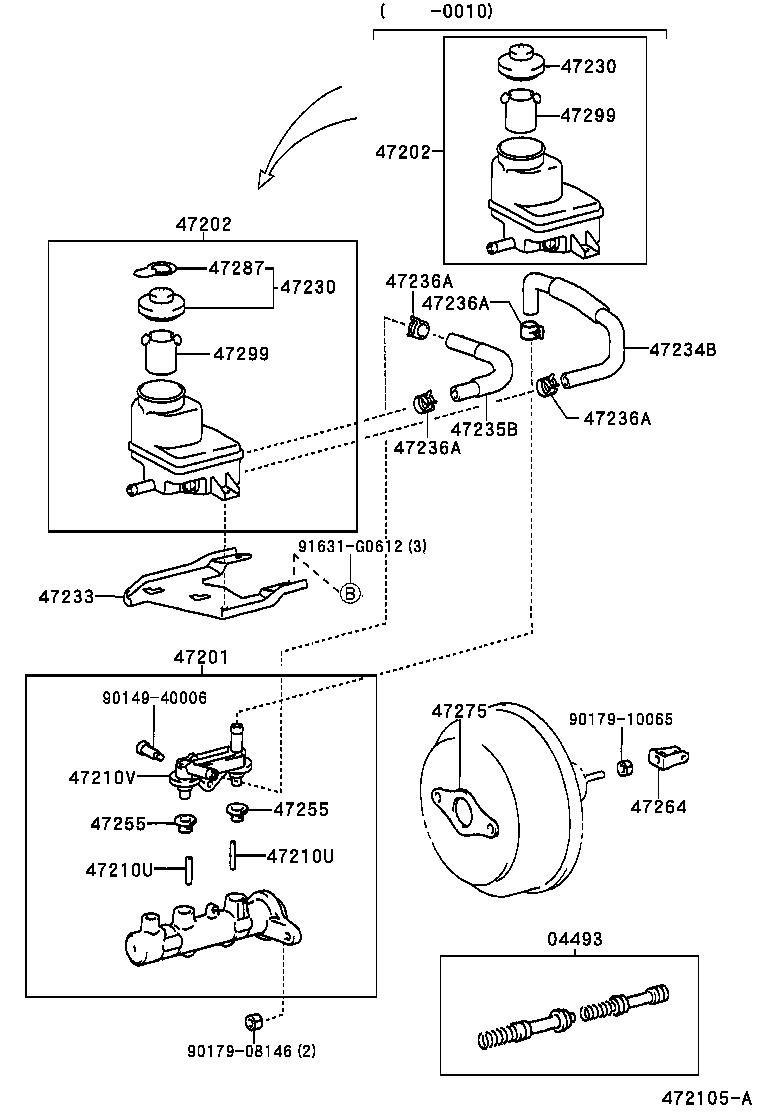

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04493 — Cylinder Kit, Brake Master | ||||
| 04493-48020 note |
Cylinder Kit, Brake Master
2000-07 → —
|
MCU15 RHD | — | |
| 04493-48030 |
Cylinder Kit, Brake Master
2000-07 → —
|
MCU15 | — | |
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-48060 note |
Cylinder Sub-assy, Brake Master
2000-07 → —
|
MCU15 RHD | — | |
| 47201-48080 |
Cylinder Sub-assy, Brake Master
2000-07 → —
|
MCU15 RHD | — | |
| 47201-48090 |
Cylinder Sub-assy, Brake Master
2000-07 → —
|
MCU15 LHD | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-48040 note |
Reservoir Sub-assy, Brake Master Cylinder
2000-07 → 2000-10
ended
|
MCU15 RHD | — | |
| 47220-48070 |
Reservoir Sub-assy, Brake Master Cylinder
2000-07 → —
|
MCU15 RHD | — | |
| 47220-48080 |
Reservoir Sub-assy, Brake Master Cylinder
2000-07 → —
|
MCU15 LHD | — | |
| 47210U — Pin, Straight(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-14204 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2000-07 → —
|
MCU15 | — | |
| 90029-14204 note |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2000-07 → —
|
MCU15 RHD | — | |
| 47210V — Union(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40405 note |
Union(FOR BRAKE MASTER CYLINDER)
2000-07 → —
|
MCU15 RHD | — | |
| 90029-40406 |
Union(FOR BRAKE MASTER CYLINDER)
2000-07 → —
|
MCU15 RHD | — | |
| 90029-40407 |
Union(FOR BRAKE MASTER CYLINDER)
2000-07 → —
|
MCU15 LHD | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-12040 note |
Cap Assy, Brake Master Cylinder Reservoir Filler
2000-07 → 2000-10
ended
|
MCU15 RHD | — | |
| 47230-20100 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2000-07 → —
|
MCU15 LHD | — | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2000-07 → —
|
MCU15 RHD | — | |
| 47233 — Bracket, Reservoir | ||||
| 47233-48030 |
Bracket, Reservoir
2000-07 → —
|
MCU15 RHD | — | |
| 47233-48040 |
Bracket, Reservoir
2000-07 → —
|
MCU15 LHD | — | |
| 47234B — Tube, Reservoir, NO.1 | ||||
| 47234-48030 |
Tube, Reservoir, NO.1
2000-07 → —
|
MCU15 RHD | — | |
| 47234-48040 |
Tube, Reservoir, NO.1
2000-07 → —
|
MCU15 LHD | — | |
| 47235B — Tube, Brake Master Cyrinder Reservoir, NO.2 | ||||
| 47235-48020 |
Tube, Brake Master Cyrinder Reservoir, NO.2
2000-07 → —
|
MCU15 LHD | — | |
| 47235-48030 |
Tube, Brake Master Cyrinder Reservoir, NO.2
2000-07 → —
|
MCU15 RHD | — | |
| 47236A — Clip(FOR RESERVOIR TUBE) | ||||
| 90467-16003 |
Clip(FOR RESERVOIR TUBE)
2000-07 → —
|
MCU15 | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 31417-35010 |
Grommet, Master Cylinder Reservoir
2000-07 → —
|
MCU15 | — | |
| 47255-16010 note |
Grommet, Master Cylinder Reservoir
2000-07 → —
|
MCU15 RHD | — | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-48010 |
Clevis, Master Cylinder Push Rod
2000-07 → —
|
MCU15 | — | |
| 47275 — Gasket, Brake Master Cylinder | ||||
| 47275-12020 |
Gasket, Brake Master Cylinder
2000-07 → —
|
MCU15 RHD | — | |
| 47287 — Label, Brake Fluid Information | ||||
| 47287-20010 |
Label, Brake Fluid Information
2000-07 → —
|
MCU15 | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2000-07 → —
|
MCU15 LHD | — | |
| 47299-24010 |
Strainer, Brake Master Cylinder Reservoir
2000-07 → —
|
MCU15 RHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
