Toyota Lexus RX300

2000-07 → 2003-02 · chassis MCU15 · catalogue 521210 · Europe

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

15 part groups · 2 illustrations

Illustrations

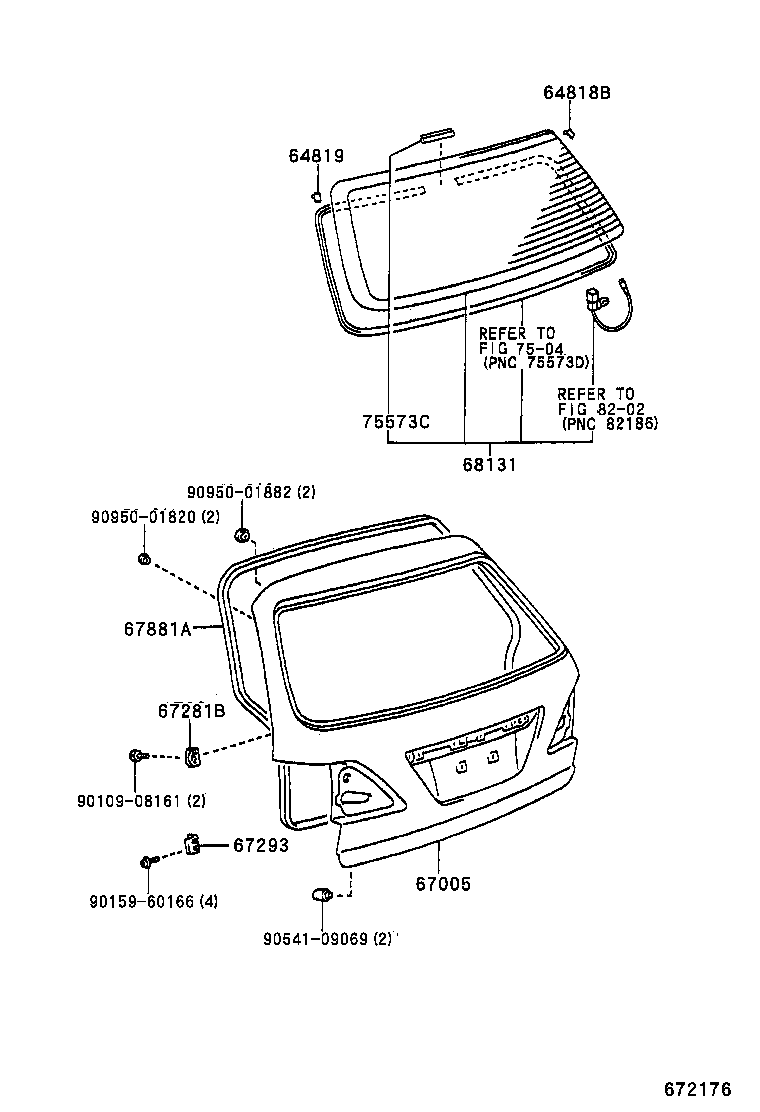

Figure 671205A 671205A 2000-07 → — Figure 672176 672176 2000-07 → —

Part groups

PNCDescription
64276A Bracket, Back Panel Trim, Upper
64780A Panel Assy, Back Door Trim
64783A Trim, Back Window Panel, Upper
64790B Panel Assy, Back Door Trim, Upper
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67881A Weatherstrip, Back Door
68131 Glass, Back Door
74811D Handle, Door Pull
75573C Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
