Toyota Lexus RX300
2000-07 → 2003-02 · chassis MCU15 · catalogue 521210 · Europe
Discontinued model
Data version 2003-10
Wiring & Clamp
43 part groups · 14 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 63293D | Protector, Slide Roof Silencer, NO.1 |
| 82001 | Cable, Bond, NO.1 |
| 82001C | Cable, Bond, NO.2 |
| 82001D | Cable, Bond, NO.3 |
| 82001G | Cable, Bond, NO.4 |

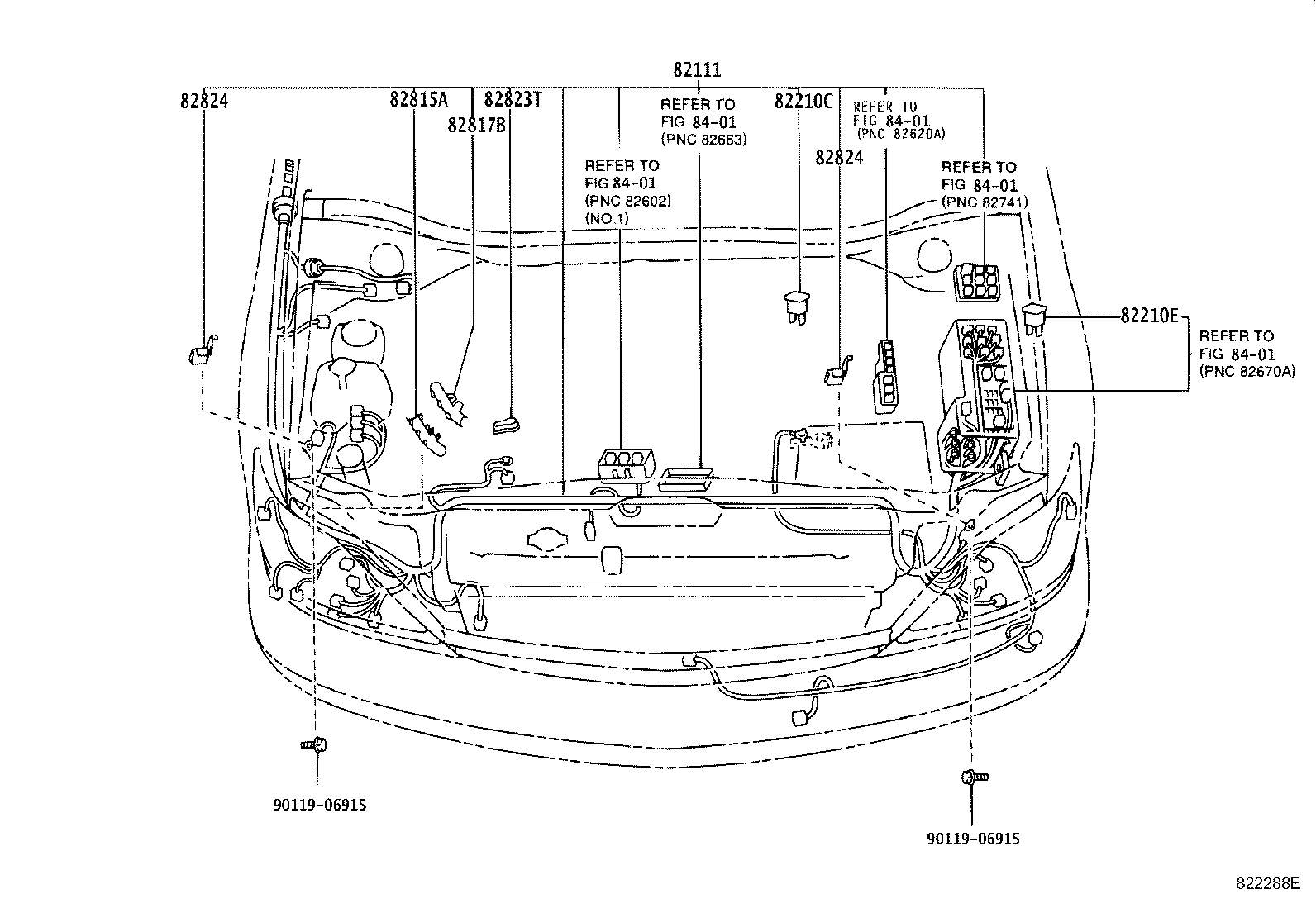

| 82111 | Wire, Engine Room Main |

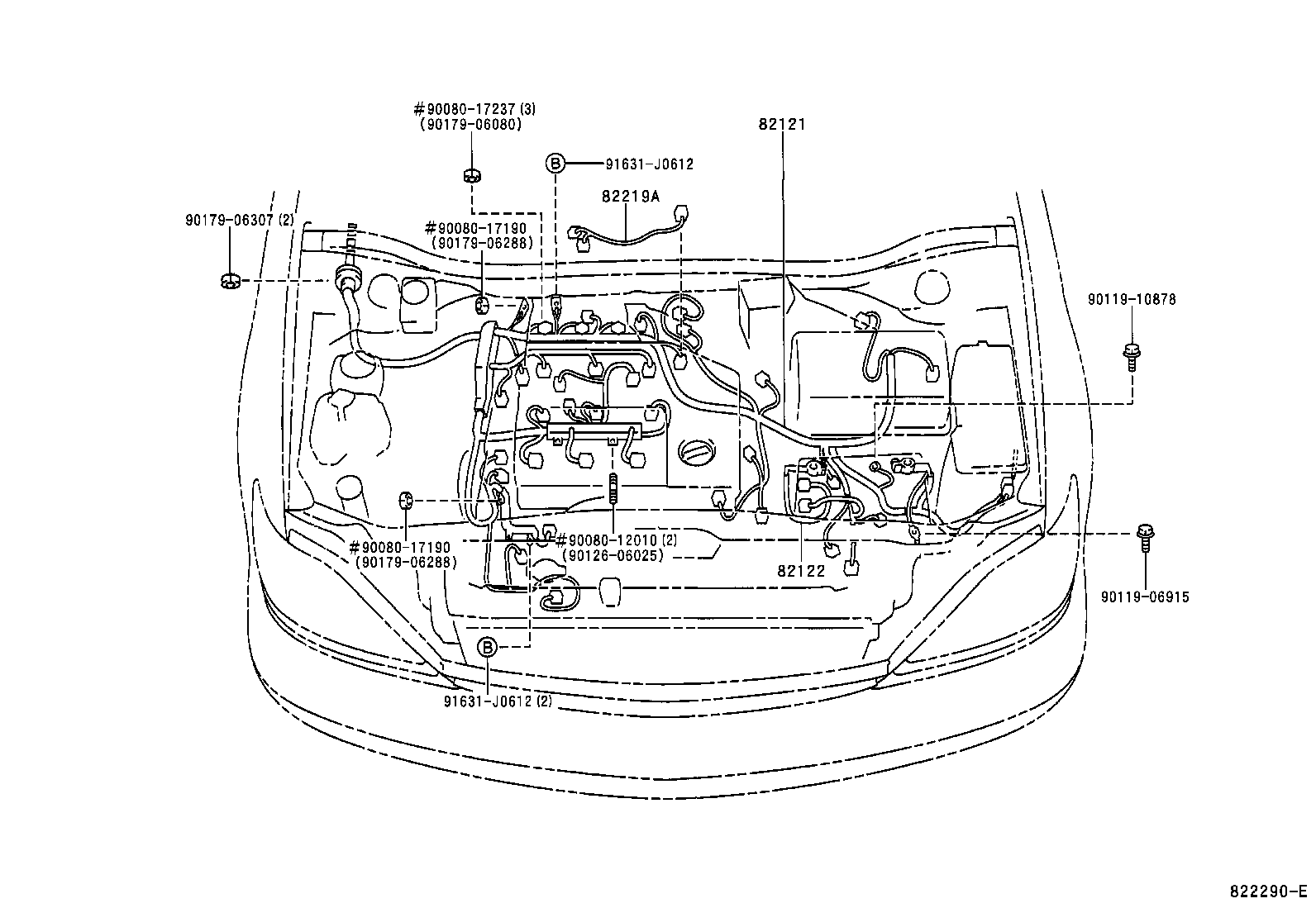

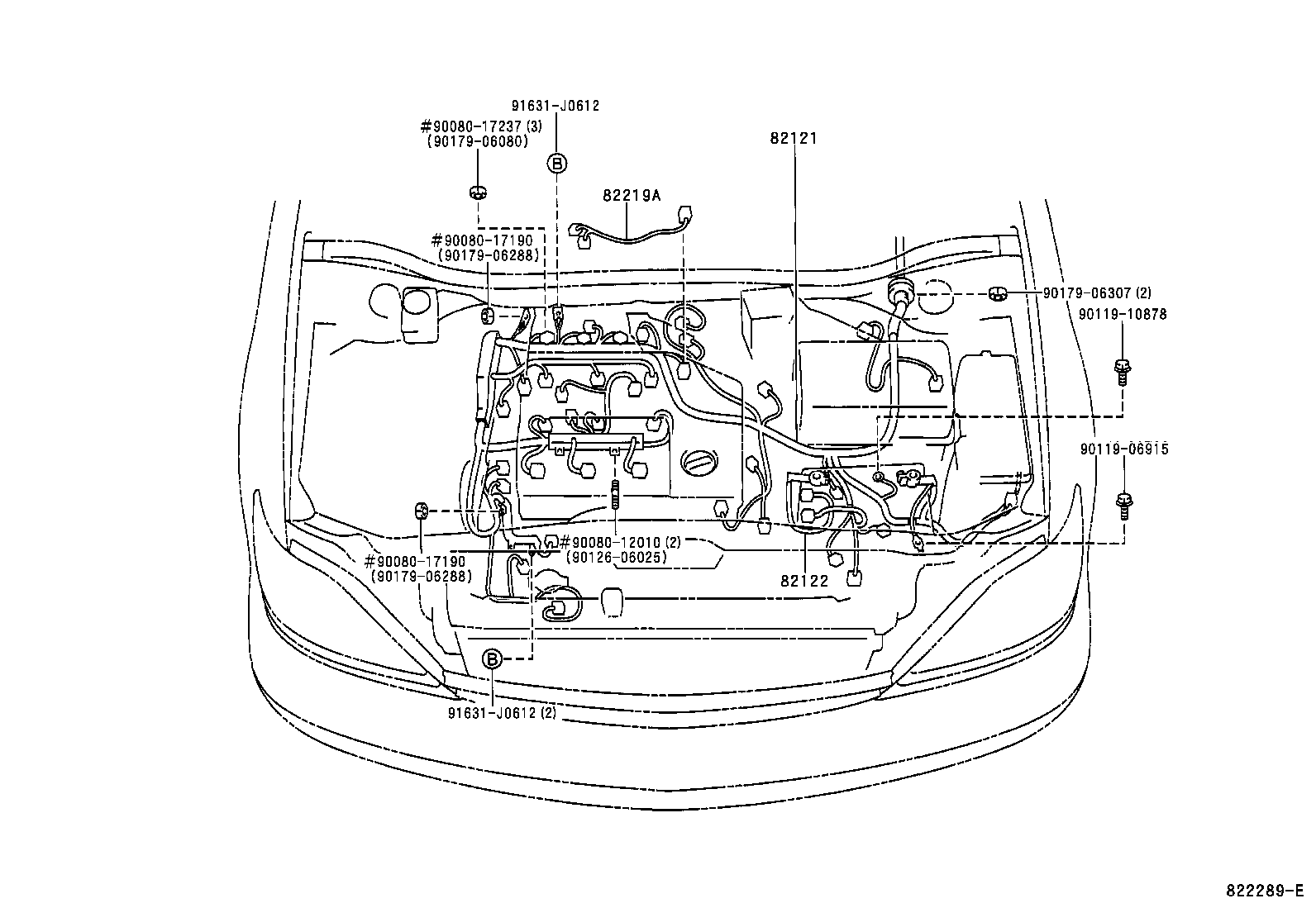

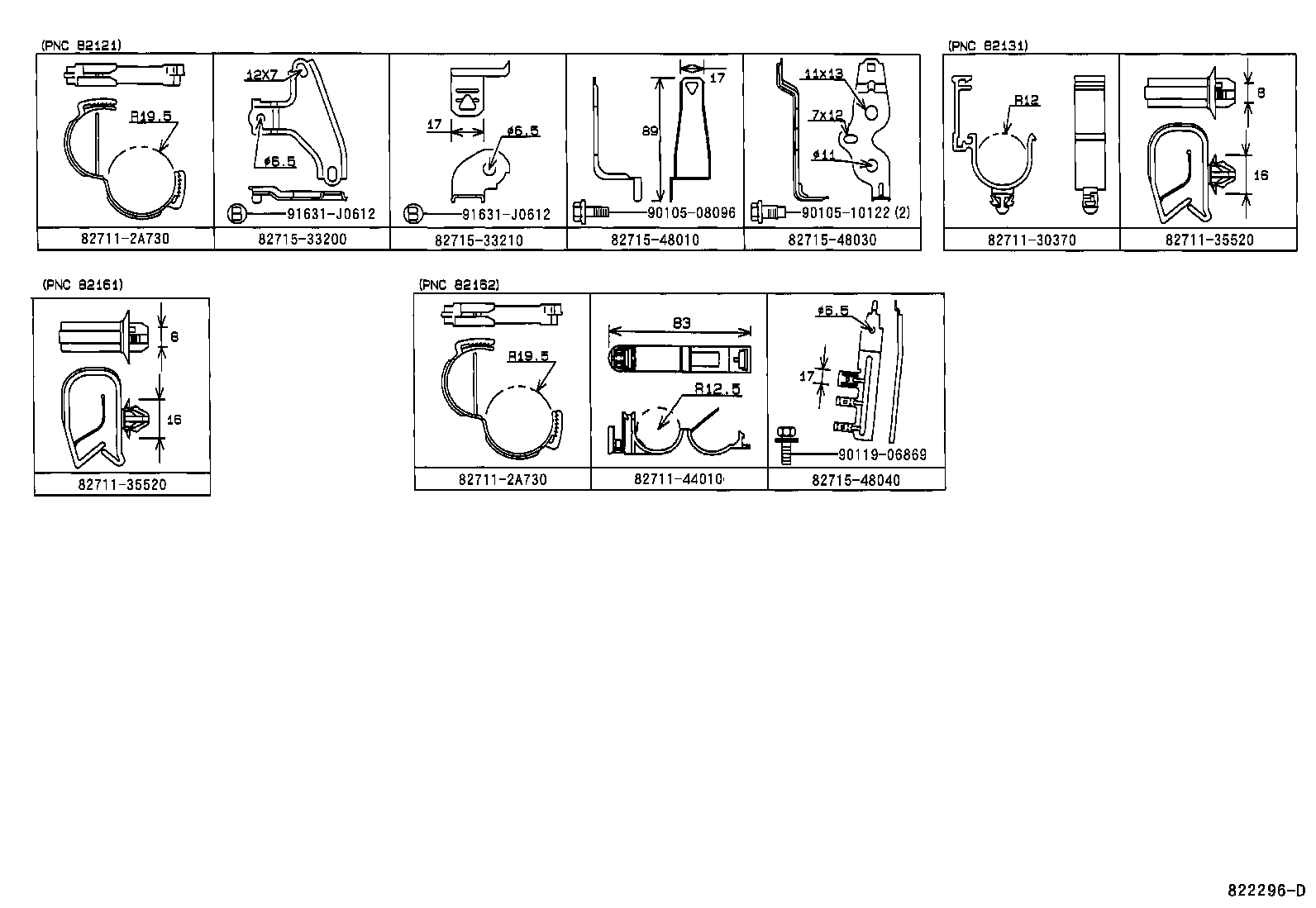

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |

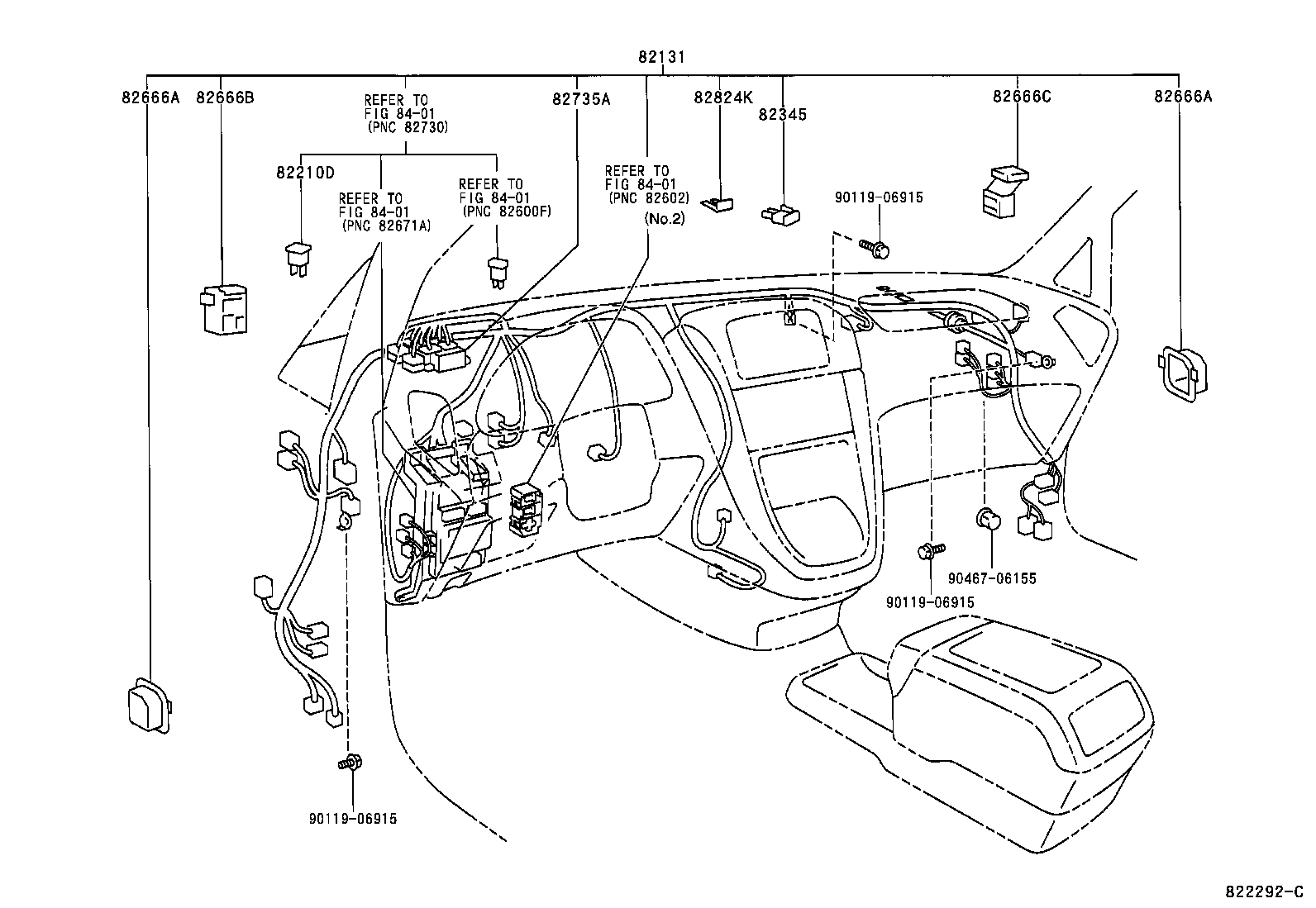

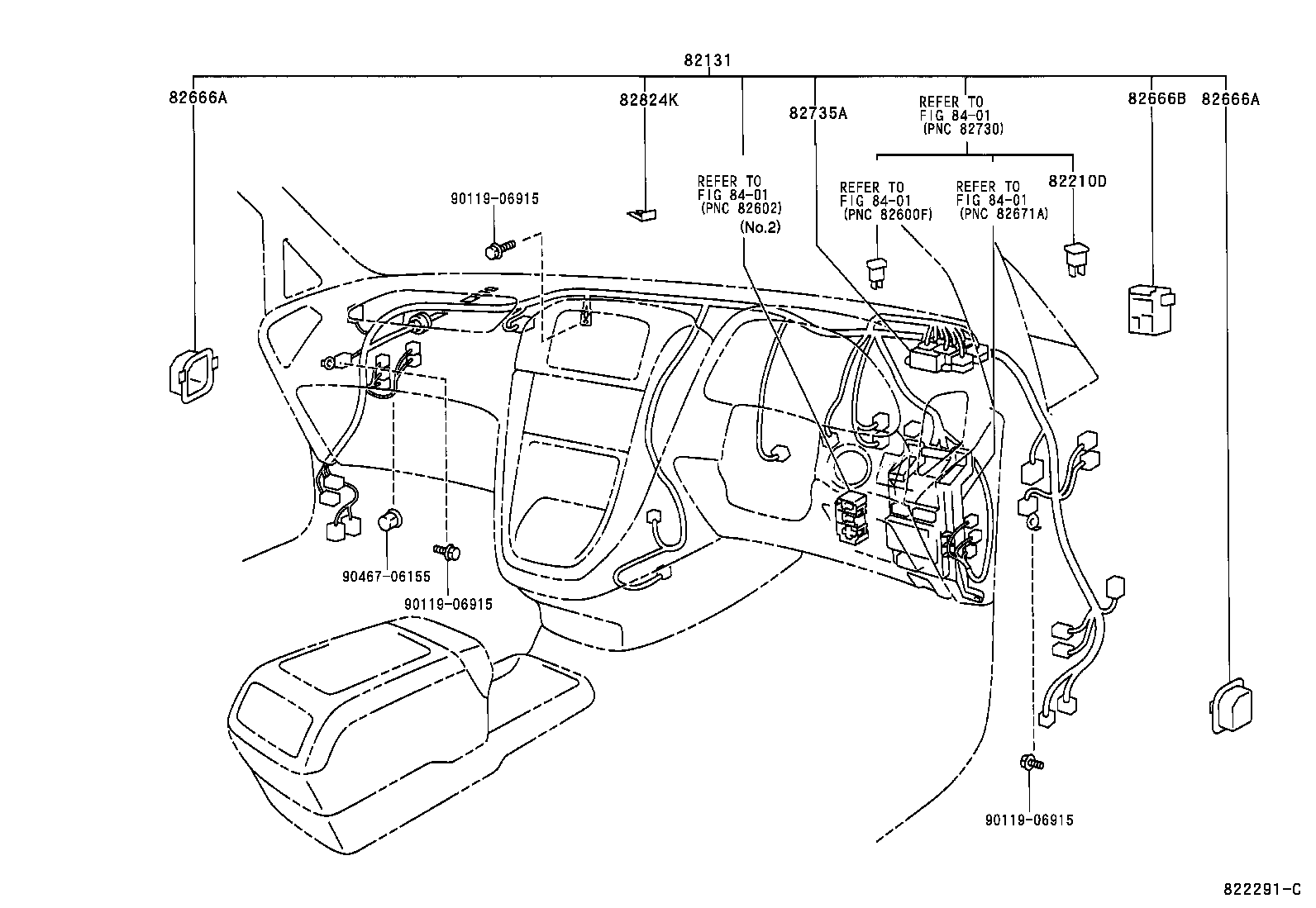

| 82131 | Wire, Cowl |

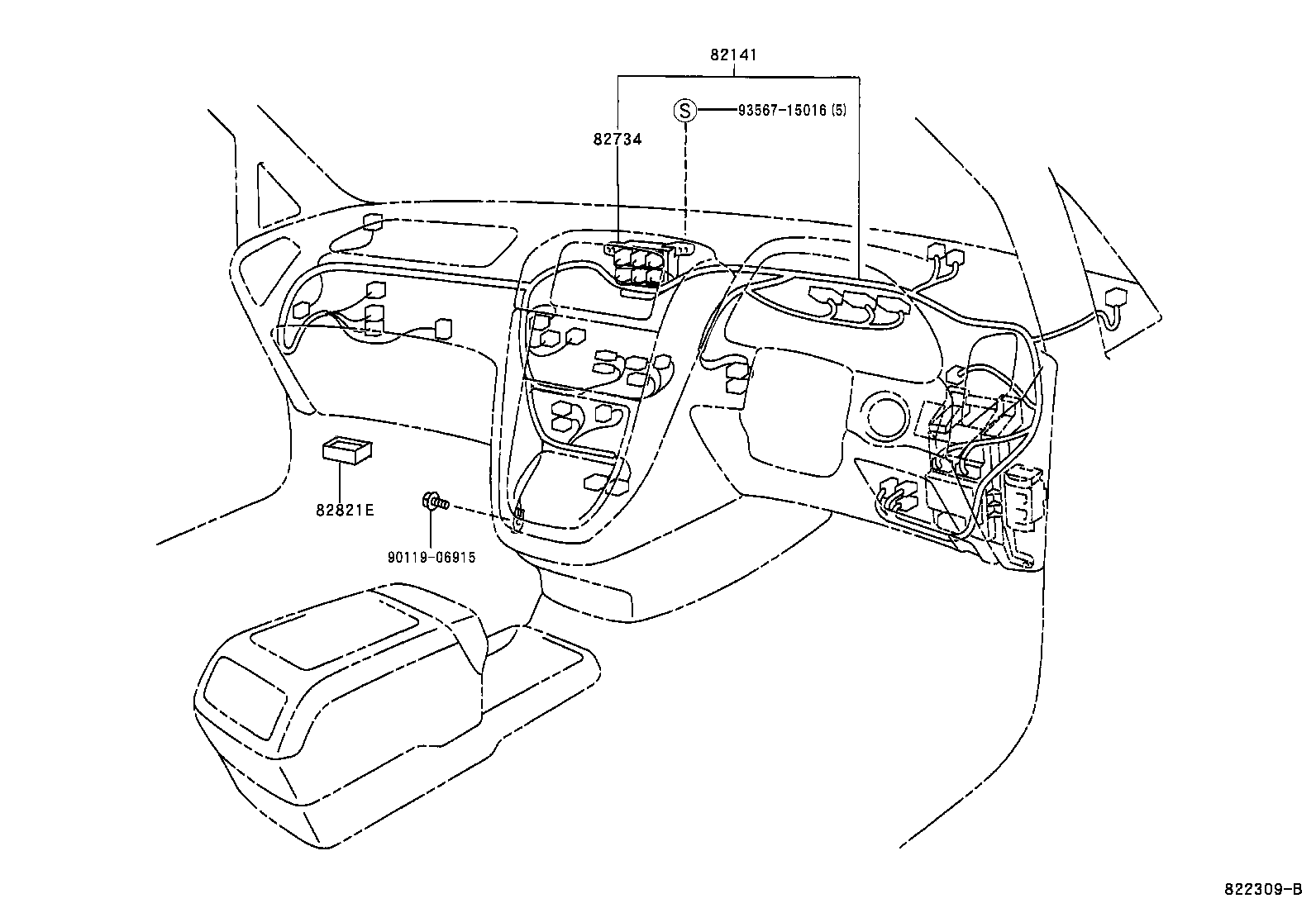

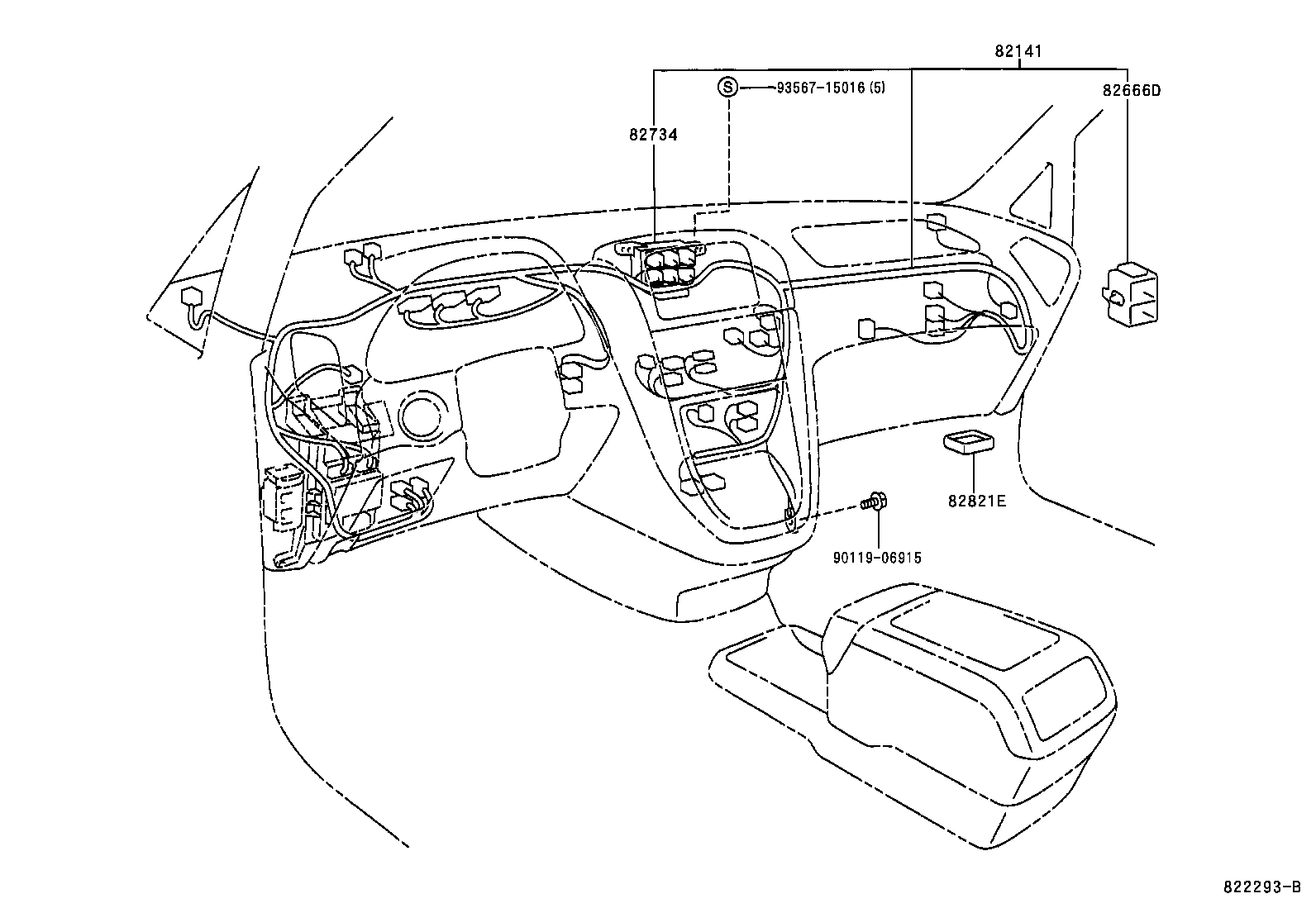

| 82141 | Wire, Instrument Panel |

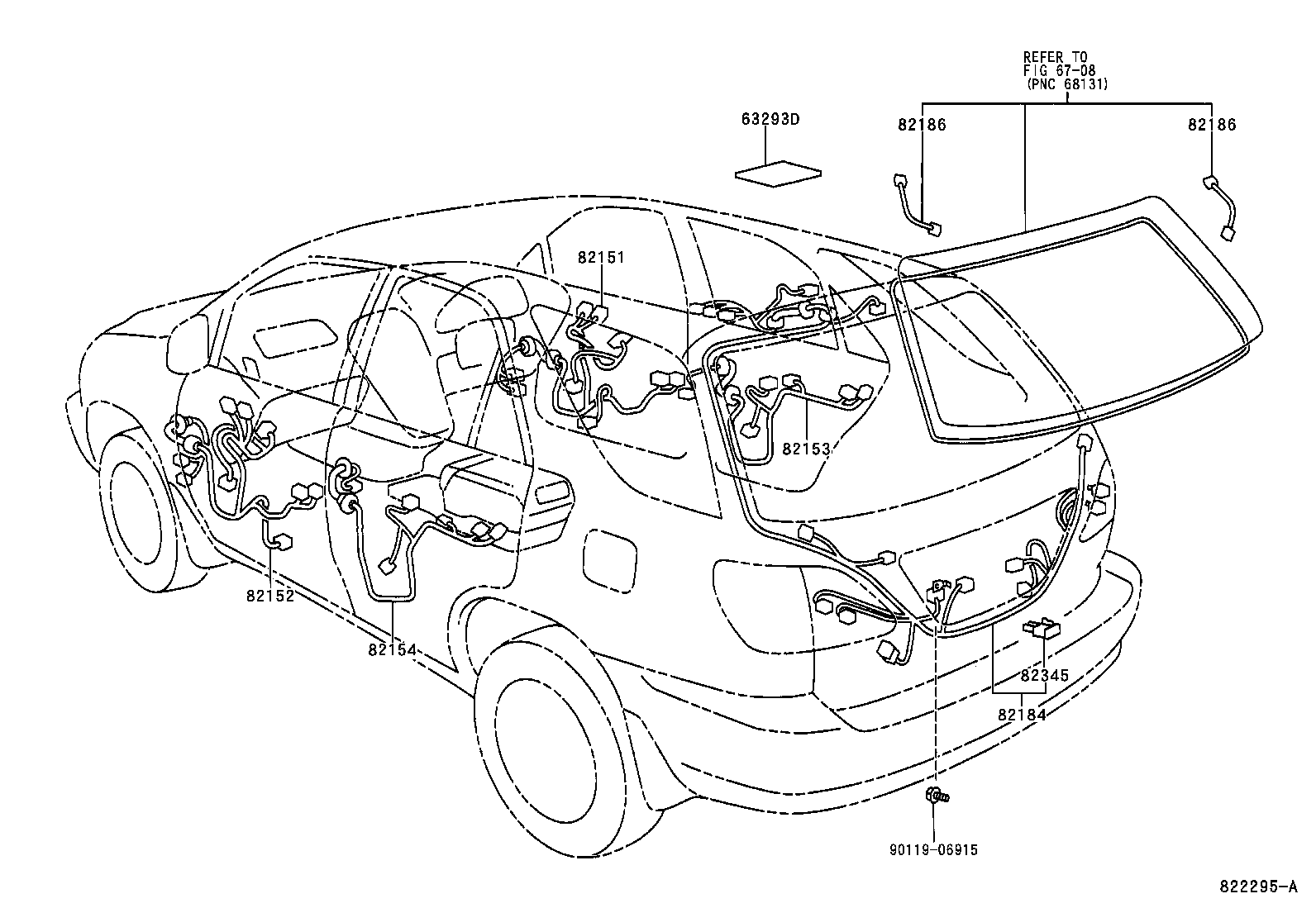

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |

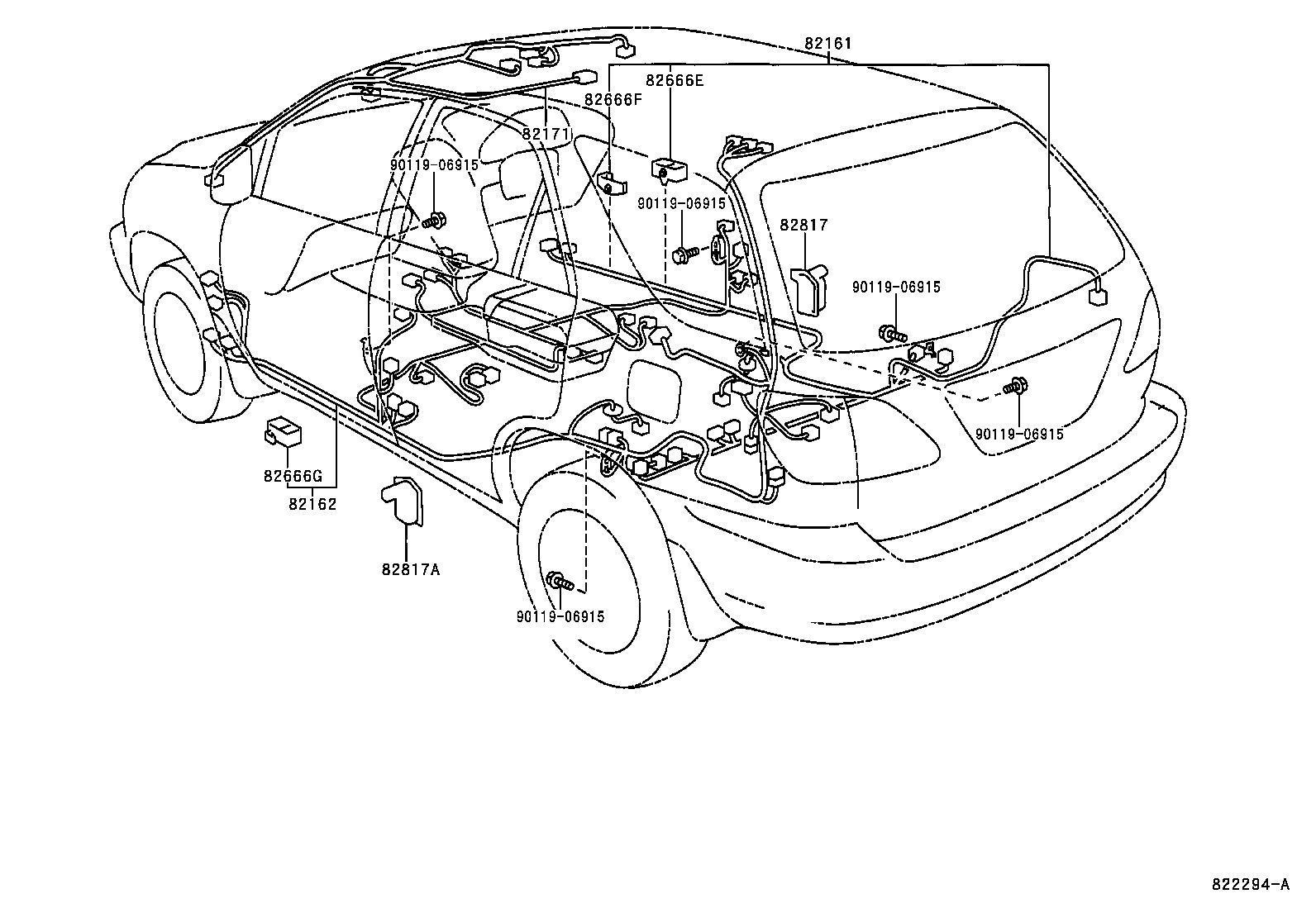

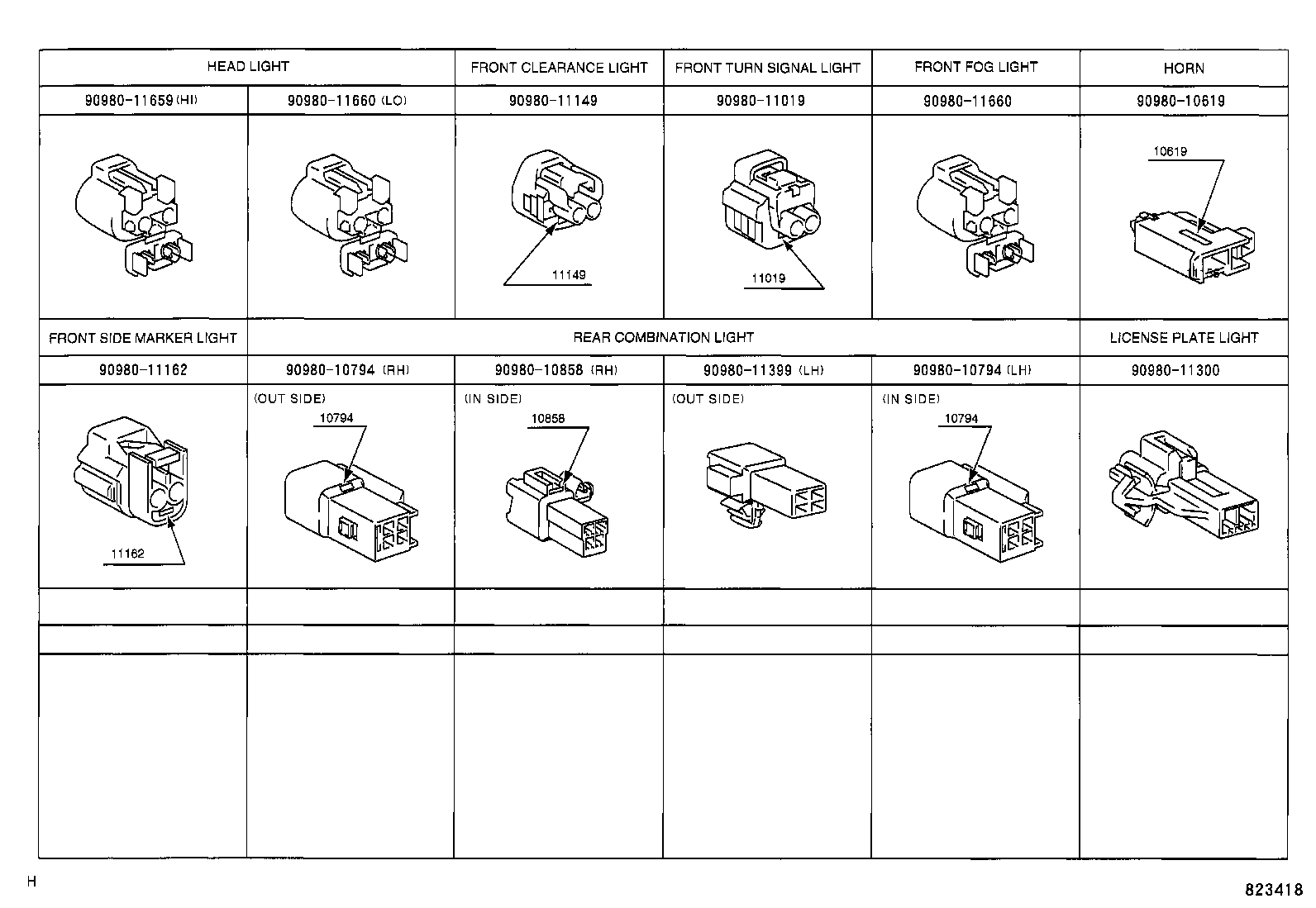

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82171 | Wire, Roof, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82186 | Wire, Rear Window, NO.1 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 82210C | Fusible Link |
| 82210D | Fusible Link |
| 82210E | Fusible Link |
| 82219A | Wire, Sensor |
| 82345 | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82734 | Block, Center Junction |
| 82735A | Block, Driver Side Junction |
| 82815A | Cover, Wiring Harness Protector |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82821E | Cover, Connector |
| 82823T | Cap, Alternator Terminal |
| 82824 | Connector, Wiring Harness |
| 82824K | Connector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
