Toyota Lexus RX300

2000-07 → 2003-02 · chassis MCU15 · catalogue 521210 · Europe

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

7 part groups · 2 illustrations

Illustrations

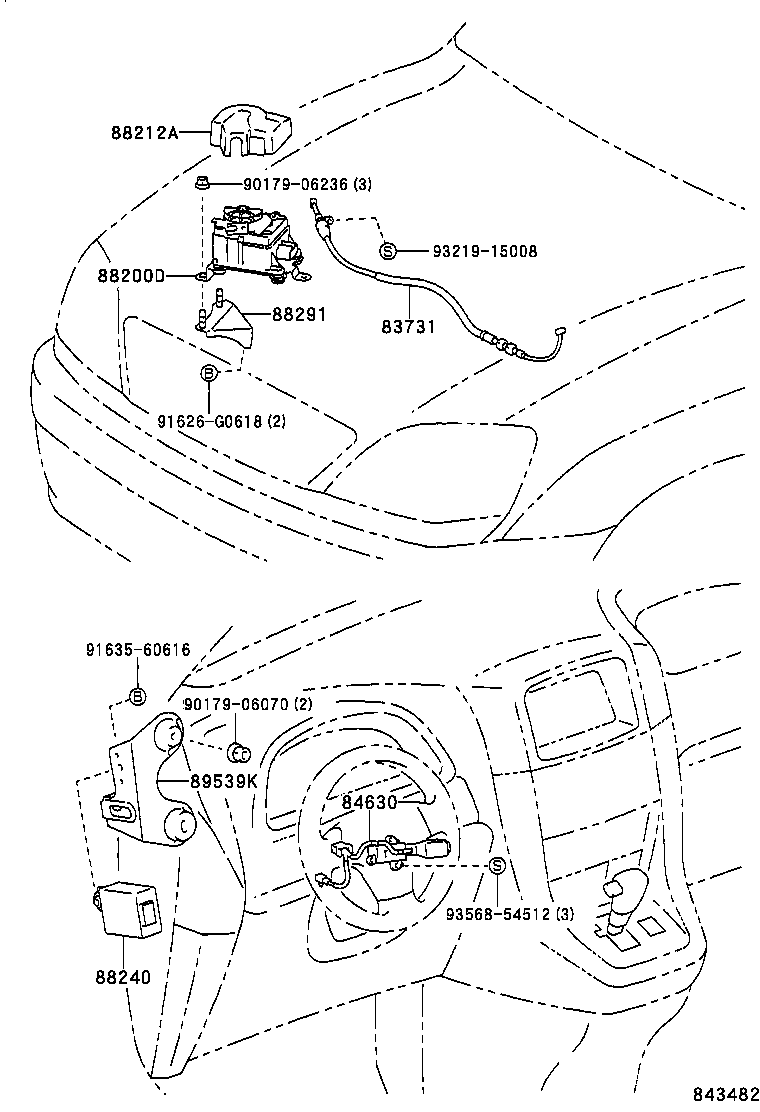

Figure 843481 843481 2000-07 → — Figure 843482 843482 2000-07 → —

Part groups

PNCDescription
83731 Cable, Cruise Control
84630 Switch Assy, Cruise Control Main
88200D Actuator Assy, Cruise Control
88212A Cover, Cruise Control Actuator
88240 Computer Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
89539K Bracket, Computer NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
