Toyota Lexus RX300
2000-07 → 2003-02 · chassis MCU15 · catalogue 521210 · Europe
Discontinued model
Data version 2003-10

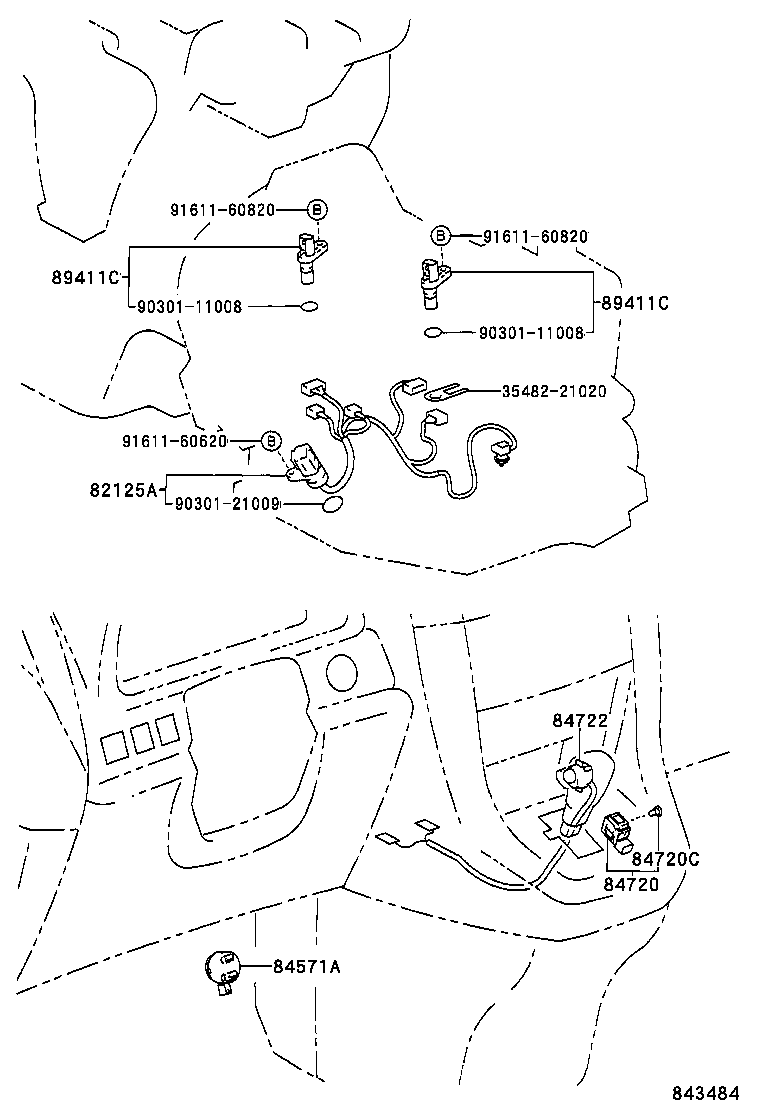

Overdrive & Electronic Controlled Transmission
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 84571A | Switch, Kick Down |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 89411C | Sensor, Speed |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
