Toyota Lexus RX300
2000-07 → 2003-02 · chassis MCU15 · catalogue 521210 · Europe
Discontinued model
Data version 2003-10

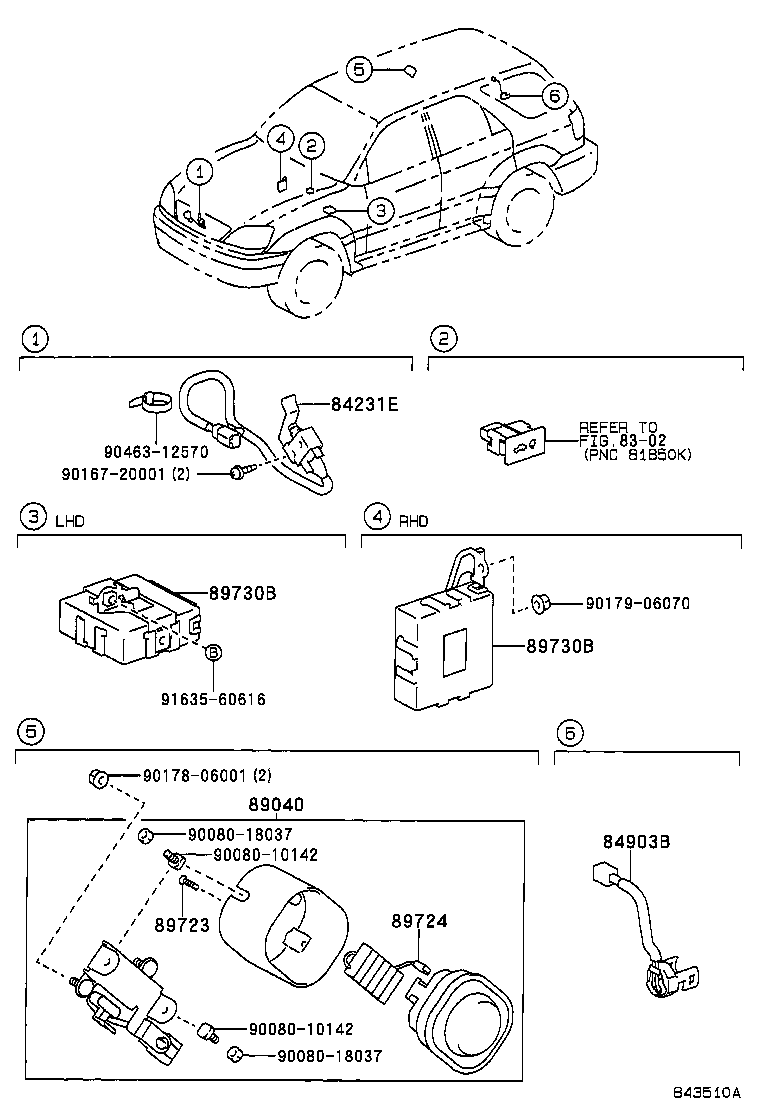

Anti-theft Device
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84231E | Switch, Courtesy(FOR SECURITY) |
| 84903B | Switch Sub-assy, Door Unlock |
| 89040 | Siren Assy, Theft Warning |
| 89723 | Screw, Theft Warning Siren |
| 89724 | Battery, Theft Warning Siren |
| 89730B | Computer Assy, Theft Warning |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
