Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

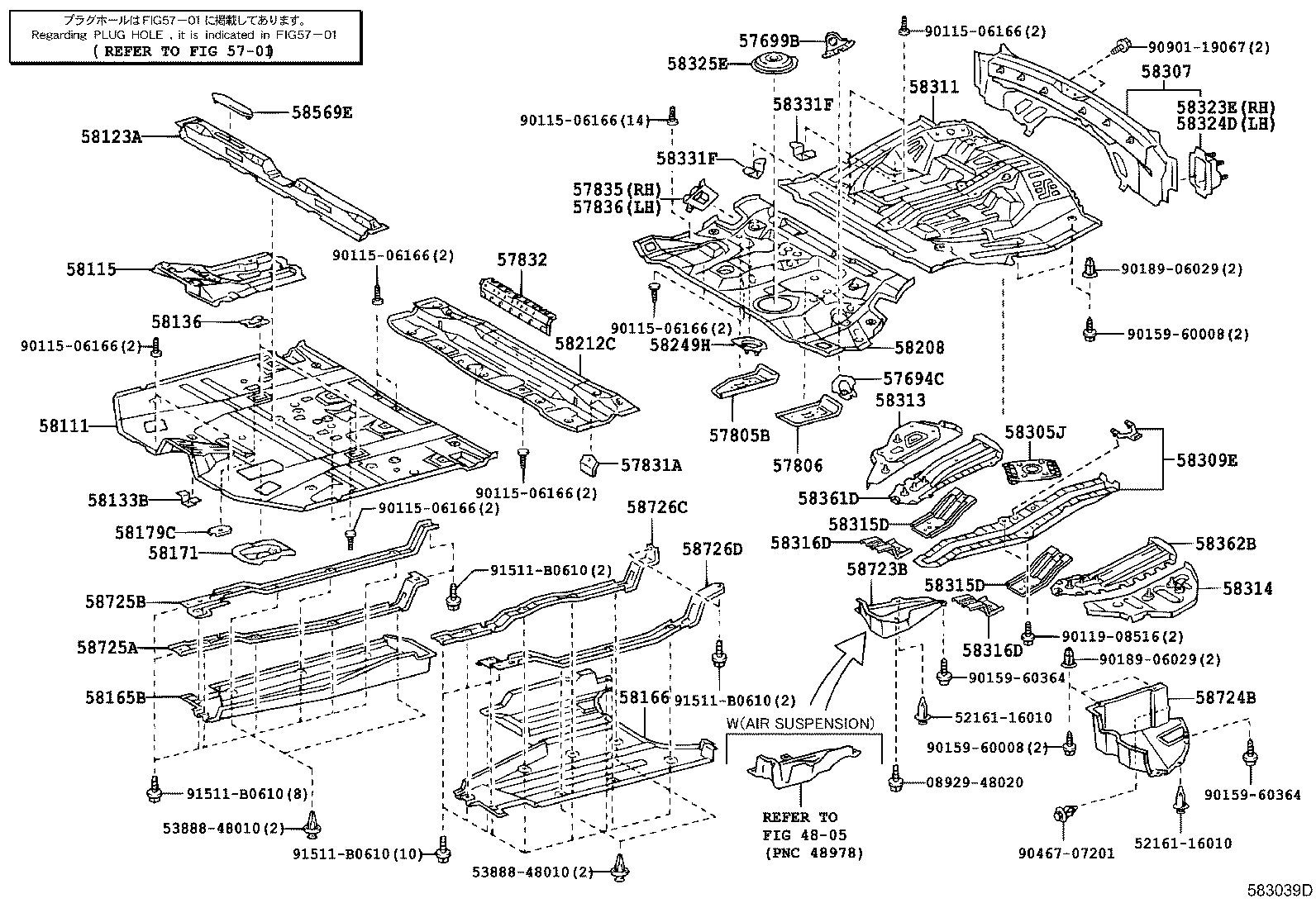

Exploded illustration 583039D 5701 — not listed in this catalogue 0892948020 — not listed in this catalogue 58315D — EXTENSION, REAR FLOOR PAN, RH (3 parts) 57806 — REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH (2 parts) 57805B — REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH (2 parts) 58249H — BRACKET, CENTER FLOOR BOARD SUPPORT (2 parts) 9011506166 — not listed in this catalogue 58313 — PANEL, REAR FLOOR SIDE, RH (4 parts) 57694C — REINFORCEMENT, FUEL TANK MOUNTING BRACKET, LH (2 parts) 58208 — PAN, CENTER FLOOR (4 parts) 57836 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2 (2 parts) 57835 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 (2 parts) 58331F — BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 (3 parts) 9011506166 — not listed in this catalogue 58331F — BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 (3 parts) 58311 — PAN, REAR FLOOR (2 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (2 parts) 57699B — REINFORCE, FUEL TANK MOUNTING BRACKET, NO.3 (2 parts) 9011506166 — not listed in this catalogue 58307 — PANEL SUB-ASSY, BODY LOWER BACK (2 parts) 58323E — REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH (2 parts) 58324D — REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH (2 parts) 9018906029 — not listed in this catalogue 9015960008 — not listed in this catalogue 58316D — EXTENSION, REAR FLOOR PAN, LH (3 parts) 58361D — REINFORCEMENT, REAR FLOOR PANEL, NO.1 RH (2 parts) 58305J — BRACKET, SPARE WHEEL CARRIER (3 parts) 58309E — PLATE SUB-ASSY, REAR FLOOR (1 parts) 58362B — REINFORCEMENT, REAR FLOOR PANEL, NO.1 LH (2 parts) 58314 — PANEL, REAR FLOOR SIDE, LH (2 parts) 58723B — PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 (2 parts) 58315D — EXTENSION, REAR FLOOR PAN, RH (3 parts) 9011908516 — not listed in this catalogue 9018906029 — not listed in this catalogue 58724B — PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 (2 parts) 9015960364 — not listed in this catalogue 9015960364 — not listed in this catalogue 5216116010 — not listed in this catalogue 9015960008 — not listed in this catalogue 5216116010 — not listed in this catalogue 9046707201 — not listed in this catalogue 9090119067 — not listed in this catalogue 58316D — EXTENSION, REAR FLOOR PAN, LH (3 parts) 58123A — SUPPORT, SHIFT & SELECT LEVER (2 parts) 58115 — REINFORCEMENT, FRONT FLOOR PANEL, FRONT (2 parts) 58136 — COVER, FRONT FLOOR HOLE (2 parts) 9011506166 — not listed in this catalogue 58569E — COVER, FRONT FLOOR CAUTION PLATE (6 parts) 9011506166 — not listed in this catalogue 57832 — REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2 (2 parts) 58133B — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3 (2 parts) 58111 — PAN, FRONT FLOOR (3 parts) 58179C — BRACKET, CLAMP FLOOR (2 parts) 58171 — REINFORCEMENT, PARKING BRAKE BASE (2 parts) 58725B — REINFORCEMENT, LUGGAGE COMPARTMENT SIDE COVER, RH (2 parts) 58725A — STAY, ENGINE SERVICE COVER (2 parts) 58165B — COVER, FRONT FLOOR, RH (2 parts) 91511B0610 — not listed in this catalogue 5388848010 — not listed in this catalogue 91511B0610 — not listed in this catalogue 9011506166 — not listed in this catalogue 9011506166 — not listed in this catalogue 57831A — REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1 (2 parts) 91511B0610 — not listed in this catalogue 91511B0610 — not listed in this catalogue 58726D — STAY, ENGINE SERVICE COVER CATCH, REAR LH (2 parts) 58166 — COVER, FRONT FLOOR, LH (2 parts) 58726C — STAY, ENGINE SERVICE COVER, NO.2 (2 parts) 5388848010 — not listed in this catalogue 58212C — PAN, CENTER FLOOR, FRONT (2 parts) 4805 — not listed in this catalogue
583039D · 44 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
57694C — Reinforcement, Fuel Tank Mounting Bracket, LH
57693-48010 Reinforcement, Fuel Tank Mounting Bracket, LH
2003-02 → 2006-01 ended
MCU3# —
57693-48010 Reinforcement, Fuel Tank Mounting Bracket, LH
2006-01 → 2008-12 ended
GSU35 —
57699B — Reinforce, Fuel Tank Mounting Bracket, NO.3
57699-48010 Reinforce, Fuel Tank Mounting Bracket, NO.3
2003-02 → 2006-01 ended
MCU3# —
57699-48010 Reinforce, Fuel Tank Mounting Bracket, NO.3
2006-01 → 2008-12 ended
GSU35 —
57805B — Reinforcement Sub-assy, Belt Anchor, RH
57805-48030 Reinforcement Sub-assy, Belt Anchor, RH
2003-02 → 2006-01 ended
MCU3# —
57805-48030 Reinforcement Sub-assy, Belt Anchor, RH
2006-01 → 2008-12 ended
GSU35 —
57806 — Reinforcement Sub-assy, Belt Anchor, LH
57806-48010 Reinforcement Sub-assy, Belt Anchor, LH
2003-02 → 2006-01 ended
MCU3# —
57806-48010 Reinforcement Sub-assy, Belt Anchor, LH
2006-01 → 2008-12 ended
GSU35 —
57831A — Reinforcement, Rear NO.1 Seat Leg, Front NO.1
57831-48010 Reinforcement, Rear NO.1 Seat Leg, Front NO.1
2003-02 → 2006-01 ended
MCU3# —
57831-48010 Reinforcement, Rear NO.1 Seat Leg, Front NO.1
2006-01 → 2008-12 ended
GSU35 —
57832 — Reinforcement, Rear NO.1 Seat Leg, Front NO.2
57832-48020 Reinforcement, Rear NO.1 Seat Leg, Front NO.2
2003-02 → 2006-01 ended
MCU3# —
57832-48020 Reinforcement, Rear NO.1 Seat Leg, Front NO.2
2006-01 → 2008-12 ended
GSU35 —
57835 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
57835-48020 Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
2003-02 → 2006-01 ended
MCU3# —
57835-48020 Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
2006-01 → 2008-12 ended
GSU35 —
57836 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
57836-48020 Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
2003-02 → 2006-01 ended
MCU3# —
57836-48020 Reinforcement, Rear NO.1 Seat Leg, Rear NO.2
2006-01 → 2008-12 ended
GSU35 —
58111 — Pan, Front Floor
58111-48907 Pan, Front Floor
2003-02 → 2004-09 ended
MCU3# —
58111-48912 Pan, Front Floor
2004-09 → 2006-01 ended
MCU3# —
58111-48916 Pan, Front Floor
2006-01 → 2008-12 ended
GSU35 —
58115 — Reinforcement, Front Floor Panel, Front
58115-48040 Reinforcement, Front Floor Panel, Front
2003-02 → 2006-01 ended
MCU3# —
58115-48040 Reinforcement, Front Floor Panel, Front
2006-01 → 2008-12 ended
GSU35 —
58123A — Support, Shift & Select Lever
58013-48010 Support, Shift & Select Lever
2003-02 → 2006-01 ended
MCU3# —
58013-48010 Support, Shift & Select Lever
2006-01 → 2008-12 ended
GSU35 —
58133B — Bracket, Front Floor Heat Insulator, NO.3
58133-22040 Bracket, Front Floor Heat Insulator, NO.3
2003-02 → 2006-01 ended
MCU3# —
58133-22040 Bracket, Front Floor Heat Insulator, NO.3
2006-01 → 2008-12 ended
GSU35 —
58136 — Cover, Front Floor Hole
58136-48030 Cover, Front Floor Hole
2003-02 → 2006-01 ended
MCU3# —
58136-48030 Cover, Front Floor Hole
2006-01 → 2008-12 ended
GSU35 —
58165B — Cover, Front Floor, RH
58165-48010 Cover, Front Floor, RH
2003-02 → 2006-01 ended
MCU35 —
58165-48010 Cover, Front Floor, RH
2006-01 → 2008-12 ended
GSU35 EUR —
58166 — Cover, Front Floor, LH
58166-48010 Cover, Front Floor, LH
2003-02 → 2006-01 ended
MCU35 —
58166-48010 Cover, Front Floor, LH
2006-01 → 2008-12 ended
GSU35 EUR —
58171 — Reinforcement, Parking Brake Base
58171-48030 Reinforcement, Parking Brake Base
2003-02 → 2006-01 ended
MCU3# —
58171-48030 Reinforcement, Parking Brake Base
2006-01 → 2008-12 ended
GSU35 —
58179C — Bracket, Clamp Floor
58179-48010 Bracket, Clamp Floor
2003-02 → 2006-01 ended
MCU3# —
58179-48010 Bracket, Clamp Floor
2006-01 → 2008-12 ended
GSU35 —
58208 — Pan, Center Floor
58211-48903 Pan, Center Floor
2003-02 → 2006-01 ended
MCU3# —
58211-48903 Pan, Center Floor
2006-01 → 2006-08 ended
GSU35 —
58211-48908 Pan, Center Floor
2006-08 → 2008-08 ended
GSU35 —
58211-48917 Pan, Center Floor
2008-08 → 2008-12 ended
GSU35 —
58212C — Pan, Center Floor, Front
58212-48904 Pan, Center Floor, Front
2003-02 → 2006-01 ended
MCU3# —
58212-48904 Pan, Center Floor, Front
2006-01 → 2008-12 ended
GSU35 —
58249H — Bracket, Center Floor Board Support
58249-48010 Bracket, Center Floor Board Support
2003-02 → 2006-01 ended
MCU3# —
58249-48010 Bracket, Center Floor Board Support
2006-01 → 2008-12 ended
GSU35 —
58305J — Bracket, Spare Wheel Carrier
58305-48010 Bracket, Spare Wheel Carrier
2003-02 → 2006-01 ended
MCU3# —
58305-48010 Bracket, Spare Wheel Carrier
2006-01 → 2007-03 ended
GSU35 —
58305-48011 Bracket, Spare Wheel Carrier
2007-03 → 2008-12 ended
GSU35 —
58307 — Panel Sub-assy, Body Lower Back
58307-48060 Panel Sub-assy, Body Lower Back
2003-02 → 2006-01 ended
MCU3# —
58307-48060 Panel Sub-assy, Body Lower Back
2006-01 → 2008-12 ended
GSU35 —
58309E — Plate Sub-assy, Rear Floor
58309-48010 Plate Sub-assy, Rear Floor
2006-09 → 2008-12 ended
GSU35 —
58311 — Pan, Rear Floor
58311-48905 Pan, Rear Floor
2003-02 → 2006-01 ended
MCU3# —
58311-48905 Pan, Rear Floor
2006-01 → 2008-12 ended
GSU35 —
58313 — Panel, Rear Floor Side, RH
58313-48030 Panel, Rear Floor Side, RH
2003-02 → 2006-01 ended
MCU3# —
58313-48040 note Panel, Rear Floor Side, RH
2003-02 → 2006-01 ended
MCU35 —
58313-48030 Panel, Rear Floor Side, RH
2006-01 → 2008-12 ended
GSU35 —
58313-48040 note Panel, Rear Floor Side, RH
2006-01 → 2008-12 ended
GSU35 EUR —
58314 — Panel, Rear Floor Side, LH
58314-48020 Panel, Rear Floor Side, LH
2003-02 → 2006-01 ended
MCU3# —
58314-48020 Panel, Rear Floor Side, LH
2006-01 → 2008-12 ended
GSU35 —
58315D — Extension, Rear Floor Pan, RH
58315-48011 Extension, Rear Floor Pan, RH
2003-02 → 2006-01 ended
MCU3# —
58315-48011 Extension, Rear Floor Pan, RH
2006-01 → 2007-03 ended
GSU35 —
58315-48020 Extension, Rear Floor Pan, RH
2007-03 → 2008-12 ended
GSU35 —
58316D — Extension, Rear Floor Pan, LH
58316-48010 Extension, Rear Floor Pan, LH
2003-02 → 2006-01 ended
MCU3# —
58316-48010 Extension, Rear Floor Pan, LH
2006-01 → 2007-03 ended
GSU35 —
58316-48020 Extension, Rear Floor Pan, LH
2007-03 → 2008-12 ended
GSU35 —
58323E — Reinforcement, Rear Bumper Arm Support, RH
58323-48040 Reinforcement, Rear Bumper Arm Support, RH
2003-02 → 2006-01 ended
MCU3# —
58323-48040 Reinforcement, Rear Bumper Arm Support, RH
2006-01 → 2008-12 ended
GSU35 —
58324D — Reinforcement, Rear Bumper Arm Support, LH
58324-48030 Reinforcement, Rear Bumper Arm Support, LH
2003-02 → 2006-01 ended
MCU3# —
58324-48030 Reinforcement, Rear Bumper Arm Support, LH
2006-01 → 2008-12 ended
GSU35 —
58325E — Cover, Rear Floor Service Hole
58325-48020 Cover, Rear Floor Service Hole
2003-02 → 2006-01 ended
MCU3# —
58325-48020 Cover, Rear Floor Service Hole
2006-01 → 2008-12 ended
GSU35 —
58331F — Bracket, Rear Floor Heat Insulator, NO.3
58331-10011 Bracket, Rear Floor Heat Insulator, NO.3
2003-02 → 2006-01 ended
MCU3# —
58331-10010 Bracket, Rear Floor Heat Insulator, NO.3
2007-03 → 2008-12 ended
GSU35 —
58331-10011 Bracket, Rear Floor Heat Insulator, NO.3
2006-01 → 2007-03 ended
GSU35 —
58361D — Reinforcement, Rear Floor Panel, NO.1 RH
58361-48010 Reinforcement, Rear Floor Panel, NO.1 RH
2003-02 → 2006-01 ended
MCU3# —
58361-48010 Reinforcement, Rear Floor Panel, NO.1 RH
2006-01 → 2008-12 ended
GSU35 —
58362B — Reinforcement, Rear Floor Panel, NO.1 LH
58362-48010 Reinforcement, Rear Floor Panel, NO.1 LH
2003-02 → 2006-01 ended
MCU3# —
58362-48010 Reinforcement, Rear Floor Panel, NO.1 LH
2006-01 → 2008-12 ended
GSU35 —
58569E — Cover, Front Floor Caution Plate
58569-48010-A0 note Cover, Front Floor Caution Plate
2003-02 → 2006-01 ended
MCU3# —
58569-48010-B1 note Cover, Front Floor Caution Plate
2003-02 → 2006-01 ended
MCU3# —
58569-48010-C0 note Cover, Front Floor Caution Plate
2003-02 → 2006-01 ended
MCU3# —
58569-48010-A0 note Cover, Front Floor Caution Plate
2006-01 → 2008-12 ended
GSU35 —
58569-48010-B1 note Cover, Front Floor Caution Plate
2006-01 → 2008-12 ended
GSU35 —
58569-48010-C0 note Cover, Front Floor Caution Plate
2006-01 → 2008-12 ended
GSU35 —
58723B — Protector, Luggage Compartment Side Cover, NO.1
58723-48010 Protector, Luggage Compartment Side Cover, NO.1
2003-02 → 2006-01 ended
MCU35 —
58723-48010 Protector, Luggage Compartment Side Cover, NO.1
2006-01 → 2008-12 ended
GSU35 EUR —
58724B — Protector, Luggage Compartment Side Cover, NO.2
58724-48010 Protector, Luggage Compartment Side Cover, NO.2
2003-02 → 2006-01 ended
MCU35 —
58724-48010 Protector, Luggage Compartment Side Cover, NO.2
2006-01 → 2008-12 ended
GSU35 EUR —
58725A — Stay, Engine Service Cover
58725-48020 Stay, Engine Service Cover
2003-02 → 2006-01 ended
MCU35 —
58725-48020 Stay, Engine Service Cover
2006-01 → 2008-12 ended
GSU35 EUR —
58725B — Reinforcement, Luggage Compartment Side Cover, RH
58725-48010 Reinforcement, Luggage Compartment Side Cover, RH
2003-02 → 2006-01 ended
MCU35 —
58725-48010 Reinforcement, Luggage Compartment Side Cover, RH
2006-01 → 2008-12 ended
GSU35 EUR —
58726C — Stay, Engine Service Cover, NO.2
58726-48010 Stay, Engine Service Cover, NO.2
2003-02 → 2006-01 ended
MCU35 —
58726-48010 Stay, Engine Service Cover, NO.2
2006-01 → 2008-12 ended
GSU35 EUR —
58726D — Stay, Engine Service Cover Catch, Rear LH
58726-48020 Stay, Engine Service Cover Catch, Rear LH
2003-02 → 2006-01 ended
MCU35 —
58726-48020 Stay, Engine Service Cover Catch, Rear LH
2006-01 → 2008-12 ended
GSU35 EUR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
