Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

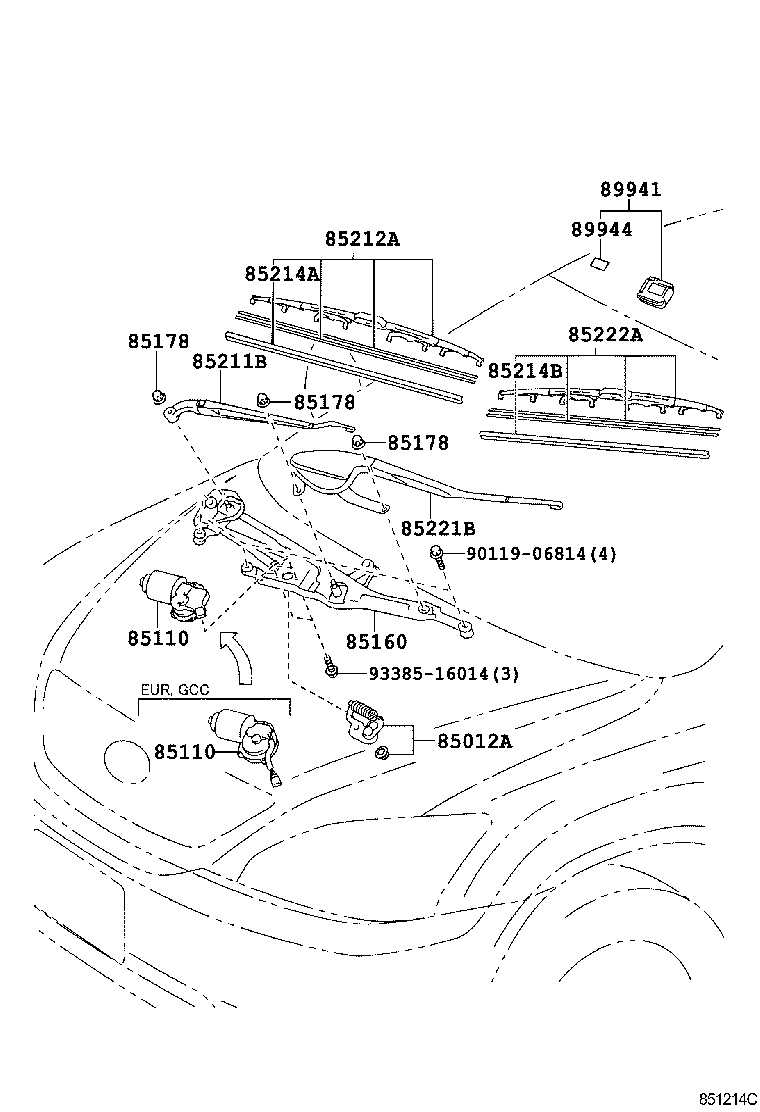

Exploded illustration 851214C 89941 — SENSOR, RAIN (36 parts) 89944 — TAPE, RAIN SENSOR (22 parts) 85160 — LINK ASSY, WINDSHIELD WIPER (10 parts) 85110 — MOTOR ASSY, WINDSHIELD WIPER (10 parts) 85214A — RUBBER, WIPER, RH (4 parts) 85212A — BLADE, FR WIPER, RH (8 parts) 85221B — ARM, FRONT WIPER, LH (8 parts) 9011906814 — not listed in this catalogue 85214B — RUBBER, WIPER, LH (4 parts) 85222A — BLADE, FR WIPER, LH (8 parts) 85178 — NUT (FOR FRONT WIPER ARM SETTING) (2 parts) 85178 — NUT (FOR FRONT WIPER ARM SETTING) (2 parts) 85178 — NUT (FOR FRONT WIPER ARM SETTING) (2 parts) 85211B — ARM, FRONT WIPER, RH (8 parts) 85110 — MOTOR ASSY, WINDSHIELD WIPER (10 parts) 9338516014 — not listed in this catalogue 85012A — CRANK SUB-ASSY, FRONT WIPER (4 parts)
851214C · 15 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
124 parts on this figure
Part number Description Fitment Price
85012A — Crank Sub-assy, Front Wiper
85012-28010 Crank Sub-assy, Front Wiper
2003-02 → 2006-01 ended
MCU3# RHD —
85012-58010 Crank Sub-assy, Front Wiper
2003-02 → 2006-01 ended
MCU3# LHD —
85012-28010 Crank Sub-assy, Front Wiper
2006-01 → 2008-12 ended
GSU35 RHD —
85012-58010 Crank Sub-assy, Front Wiper
2006-01 → 2008-12 ended
GSU35 LHD —
85110 — Motor Assy, Windshield Wiper
85110-48100 Motor Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU38 ARL —
85110-48110 Motor Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU38 GCC —
85110-48120 Motor Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU35 RHD —
85110-48130 Motor Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU35 LHD —
85110-48100 Motor Assy, Windshield Wiper
2006-01 → 2008-12 ended
GSU35 ARL —
85110-48110 Motor Assy, Windshield Wiper
2006-01 → 2008-12 ended
GSU35 GCC —
85110-48120 Motor Assy, Windshield Wiper
2006-01 → 2006-12 ended
GSU35 RHD EUR —
85110-48130 Motor Assy, Windshield Wiper
2006-01 → 2006-12 ended
GSU35 LHD EUR —
85110-48150 Motor Assy, Windshield Wiper
2007-01 → 2008-12 ended
GSU35 RHD EUR —
85110-48160 Motor Assy, Windshield Wiper
2007-01 → 2008-12 ended
GSU35 LHD EUR —
85160 — Link Assy, Windshield Wiper
85150-48090 Link Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU38 ARL —
85150-48110 Link Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU38 GCC —
85150-48120 Link Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU35 RHD —
85150-48130 Link Assy, Windshield Wiper
2003-02 → 2006-01 ended
MCU35 LHD —
85150-48090 Link Assy, Windshield Wiper
2006-01 → 2008-12 ended
GSU35 ARL —
85150-48110 Link Assy, Windshield Wiper
2006-01 → 2008-12 ended
GSU35 GCC —
85150-48120 Link Assy, Windshield Wiper
2006-01 → 2007-01 ended
GSU35 RHD EUR —
85150-48130 Link Assy, Windshield Wiper
2006-01 → 2007-01 ended
GSU35 LHD EUR —
85150-48140 Link Assy, Windshield Wiper
2007-01 → 2008-12 ended
GSU35 RHD EUR —
85150-48150 Link Assy, Windshield Wiper
2007-01 → 2008-12 ended
GSU35 LHD EUR —
85178 — Nut (FOR FRONT WIPER ARM SETTING)
90176-10005 Nut (FOR FRONT WIPER ARM SETTING)
2003-02 → 2006-01 ended
MCU3# —
90176-10005 Nut (FOR FRONT WIPER ARM SETTING)
2006-01 → 2008-12 ended
GSU35 —
85211B — Arm, Front Wiper, RH
85211-48070 Arm, Front Wiper, RH
2003-02 → 2006-01 ended
MCU38 ARL —
85211-48080 Arm, Front Wiper, RH
2003-02 → 2006-01 ended
MCU38 GCC —
85211-48090 Arm, Front Wiper, RH
2003-02 → 2006-01 ended
MCU35 RHD —
85211-48100 Arm, Front Wiper, RH
2003-02 → 2006-01 ended
MCU35 LHD —
85211-48070 Arm, Front Wiper, RH
2006-01 → 2008-12 ended
GSU35 ARL —
85211-48080 Arm, Front Wiper, RH
2006-01 → 2008-12 ended
GSU35 GCC —
85211-48090 Arm, Front Wiper, RH
2006-01 → 2008-12 ended
GSU35 RHD EUR —
85211-48100 Arm, Front Wiper, RH
2006-01 → 2008-12 ended
GSU35 LHD EUR —
85212A — Blade, FR Wiper, RH
85212-48080 Blade, FR Wiper, RH
2003-02 → 2006-01 ended
MCU38 ARL —
85212-48090 Blade, FR Wiper, RH
2003-02 → 2006-01 ended
MCU38 GCC —
85212-48100 Blade, FR Wiper, RH
2003-02 → 2006-01 ended
MCU35 RHD —
85212-48110 Blade, FR Wiper, RH
2003-02 → 2006-01 ended
MCU35 LHD —
85212-48080 Blade, FR Wiper, RH
2006-01 → 2008-12 ended
GSU35 ARL —
85212-48090 Blade, FR Wiper, RH
2006-01 → 2008-12 ended
GSU35 GCC —
85212-48100 Blade, FR Wiper, RH
2006-01 → 2008-12 ended
GSU35 RHD EUR —
85212-48110 Blade, FR Wiper, RH
2006-01 → 2008-12 ended
GSU35 LHD EUR —
85214A — Rubber, Wiper, RH
85214-44140 Rubber, Wiper, RH
2003-02 → 2006-01 ended
MCU3# RHD —
85214-48010 Rubber, Wiper, RH
2003-02 → 2006-01 ended
MCU3# LHD —
85214-44140 Rubber, Wiper, RH
2006-01 → 2008-12 ended
GSU35 RHD —
85214-48010 Rubber, Wiper, RH
2006-01 → 2008-12 ended
GSU35 LHD —
85214B — Rubber, Wiper, LH
85214-44140 Rubber, Wiper, LH
2003-02 → 2006-01 ended
MCU3# LHD —
85214-48010 Rubber, Wiper, LH
2003-02 → 2006-01 ended
MCU3# RHD —
85214-44140 Rubber, Wiper, LH
2006-01 → 2008-12 ended
GSU35 LHD —
85214-48010 Rubber, Wiper, LH
2006-01 → 2008-12 ended
GSU35 RHD —
85221B — Arm, Front Wiper, LH
85221-48070 Arm, Front Wiper, LH
2003-02 → 2006-01 ended
MCU38 ARL —
85221-48080 Arm, Front Wiper, LH
2003-02 → 2006-01 ended
MCU38 GCC —
85221-48090 Arm, Front Wiper, LH
2003-02 → 2006-01 ended
MCU35 RHD —
85221-48100 Arm, Front Wiper, LH
2003-02 → 2006-01 ended
MCU35 LHD —
85221-48070 Arm, Front Wiper, LH
2006-01 → 2008-12 ended
GSU35 ARL —
85221-48080 Arm, Front Wiper, LH
2006-01 → 2008-12 ended
GSU35 GCC —
85221-48090 Arm, Front Wiper, LH
2006-01 → 2008-12 ended
GSU35 RHD EUR —
85221-48100 Arm, Front Wiper, LH
2006-01 → 2008-12 ended
GSU35 LHD EUR —
85222A — Blade, FR Wiper, LH
85222-48070 Blade, FR Wiper, LH
2003-02 → 2006-01 ended
MCU38 ARL —
85222-48080 Blade, FR Wiper, LH
2003-02 → 2006-01 ended
MCU38 GCC —
85222-48090 Blade, FR Wiper, LH
2003-02 → 2006-01 ended
MCU35 RHD —
85222-48100 Blade, FR Wiper, LH
2003-02 → 2006-01 ended
MCU35 LHD —
85222-48070 Blade, FR Wiper, LH
2006-01 → 2008-12 ended
GSU35 ARL —
85222-48080 Blade, FR Wiper, LH
2006-01 → 2008-12 ended
GSU35 GCC —
85222-48090 Blade, FR Wiper, LH
2006-01 → 2008-12 ended
GSU35 RHD EUR —
85222-48100 Blade, FR Wiper, LH
2006-01 → 2008-12 ended
GSU35 LHD EUR —
89941 — Sensor, Rain
89941-48010 note Sensor, Rain
2003-02 → 2004-08 ended
MCU38 ARL —
89941-48010 note Sensor, Rain
2003-02 → 2006-01 ended
MCU3# EUR,GCC —
89941-48010 Sensor, Rain
2004-08 → 2006-01 ended
MCU38 ARL —
89941-48010 note Sensor, Rain
2004-08 → 2006-01 ended
MCU35 —
89941-48010 note Sensor, Rain
2004-08 → 2006-01 ended
MCU35 —
89941-48030 note Sensor, Rain
2006-01 → 2006-07 ended
GSU35 EUR —
89941-48030 note Sensor, Rain
2006-01 → 2006-07 ended
GSU35 EUR —
89941-48030 note Sensor, Rain
2006-01 → 2006-07 ended
GSU35 EUR,GCC —
89941-48030 Sensor, Rain
2006-01 → 2006-07 ended
GSU35 ARL —
89941-48031 Sensor, Rain
2006-08 → 2007-08 ended
GSU35 ARL —
89941-48031 note Sensor, Rain
2006-08 → 2007-08 ended
GSU35 EUR,GCC —
89941-48031 note Sensor, Rain
2006-08 → 2007-08 ended
GSU35 EUR —
89941-48031 note Sensor, Rain
2006-08 → 2007-08 ended
GSU35 EUR —
89941-48033 Sensor, Rain
2007-08 → 2008-09 ended
GSU35 ARL —
89941-48033 note Sensor, Rain
2008-10 → 2008-11 ended
GSU35 EUR —
89941-48033 note Sensor, Rain
2008-10 → 2008-11 ended
GSU35 LHD EUR —
89941-48033 note Sensor, Rain
2008-10 → 2008-11 ended
GSU35 RHD EUR —
89941-48033 note Sensor, Rain
2007-08 → 2008-10 ended
GSU35 EUR —
89941-48033 note Sensor, Rain
2007-08 → 2008-10 ended
GSU35 EUR —
89941-48033 note Sensor, Rain
2007-08 → 2008-10 ended
GSU35 EUR —
89941-48033 note Sensor, Rain
2007-08 → 2008-09 ended
GSU35 GCC —
89941-48060 note Sensor, Rain
2008-11 → 2008-12 ended
GSU35 EUR —
89941-48060 note Sensor, Rain
2008-11 → 2008-12 ended
GSU35 LHD EUR —
89941-48060 note Sensor, Rain
2008-11 → 2008-12 ended
GSU35 RHD EUR —
89941-48060 note Sensor, Rain
2008-10 → 2008-12 ended
GSU35 GCC —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 LHD EUR —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 LHD EUR —
89941-48060 Sensor, Rain
2008-09 → 2008-12 ended
GSU35 ARL —
89941-48060 note Sensor, Rain
2008-09 → 2008-10 ended
GSU35 GCC —
89941-48060 note Sensor, Rain
2008-09 → 2008-12 ended
GSU35 LHD EUR —
89944 — Tape, Rain Sensor
89944-50011 note Tape, Rain Sensor
2004-08 → 2006-01 ended
MCU35 —
89944-50011 note Tape, Rain Sensor
2004-08 → 2006-01 ended
MCU35 —
89944-50011 Tape, Rain Sensor
2004-08 → 2006-01 ended
MCU38 ARL —
89944-50011 note Tape, Rain Sensor
2003-02 → 2006-01 ended
MCU3# EUR,GCC —
89944-50011 note Tape, Rain Sensor
2003-02 → 2004-08 ended
MCU38 ARL —
89944-50011 note Tape, Rain Sensor
2008-10 → 2008-12 ended
GSU35 EUR —
89944-50011 note Tape, Rain Sensor
2008-10 → 2008-12 ended
GSU35 LHD EUR —
89944-50011 note Tape, Rain Sensor
2008-10 → 2008-12 ended
GSU35 RHD EUR —
89944-50011 note Tape, Rain Sensor
2008-10 → 2008-12 ended
GSU35 GCC —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 LHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 LHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 RHD EUR —
89944-50011 note Tape, Rain Sensor
2008-09 → 2008-12 ended
GSU35 LHD EUR —
89944-50011 Tape, Rain Sensor
2006-01 → 2008-12 ended
GSU35 ARL —
89944-50011 note Tape, Rain Sensor
2006-01 → 2008-10 ended
GSU35 EUR —
89944-50011 note Tape, Rain Sensor
2006-01 → 2008-10 ended
GSU35 EUR —
89944-50011 note Tape, Rain Sensor
2006-01 → 2008-10 ended
GSU35 EUR,GCC —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
