Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

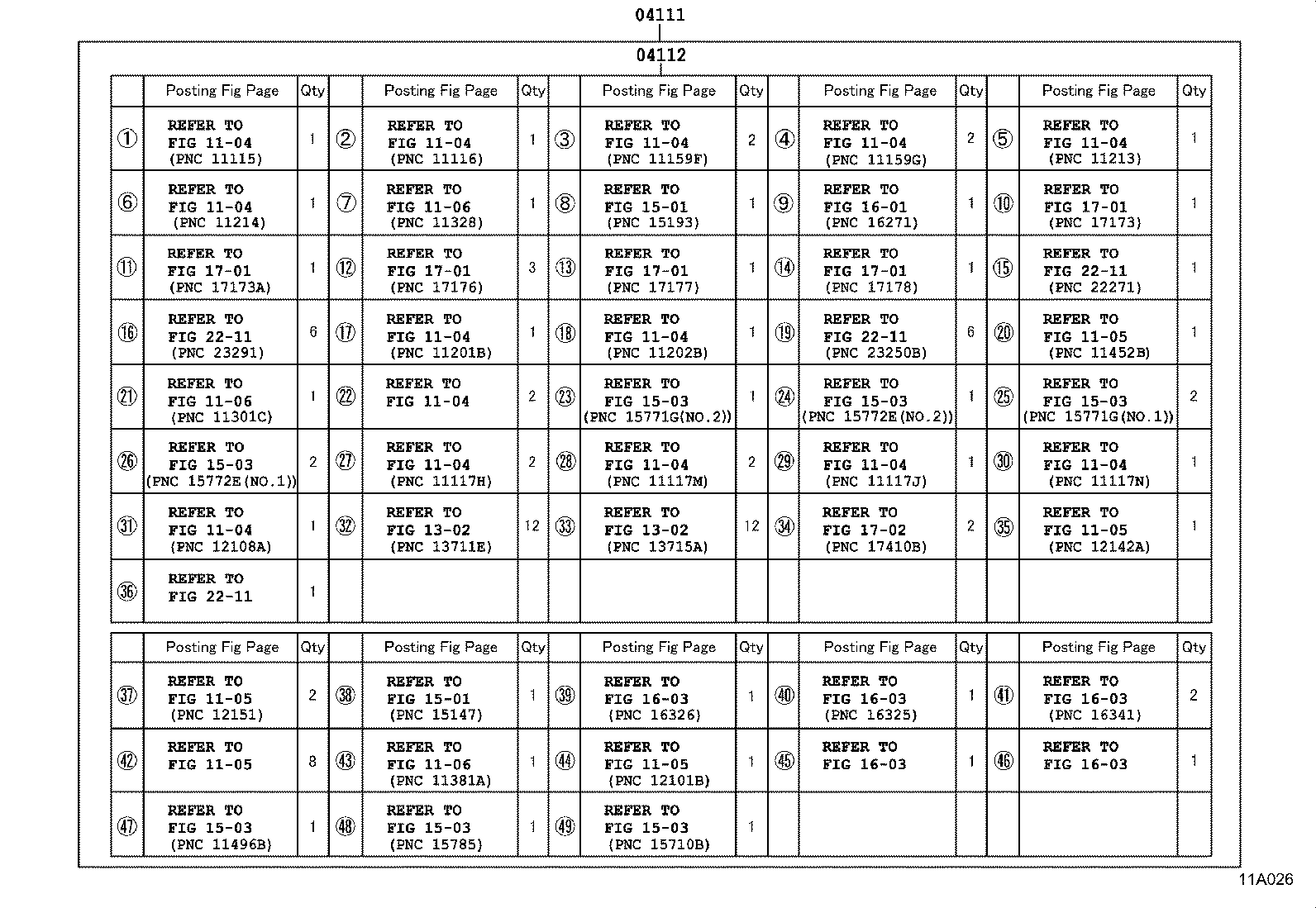

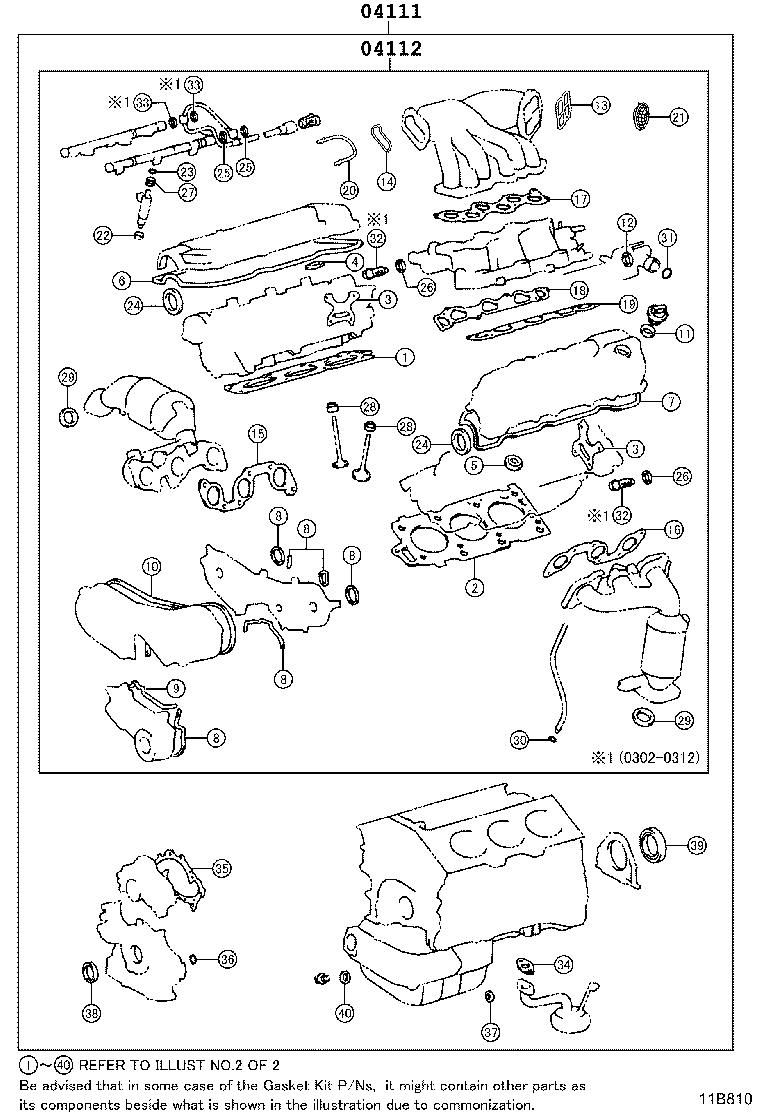

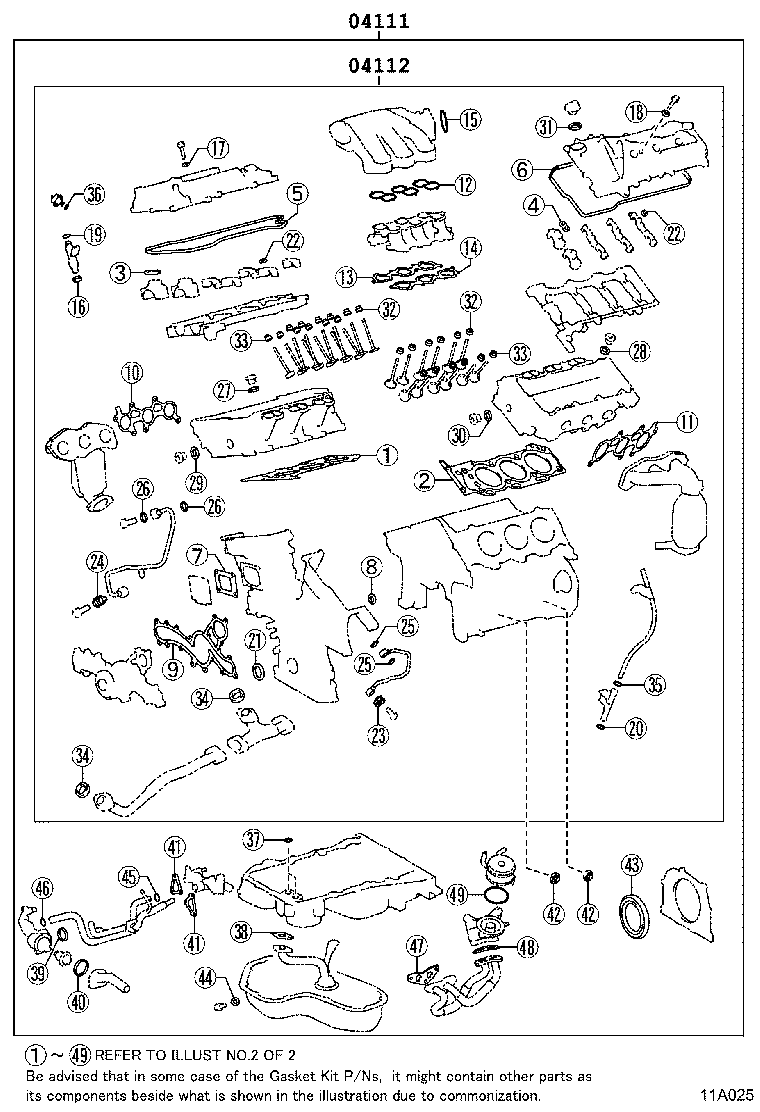

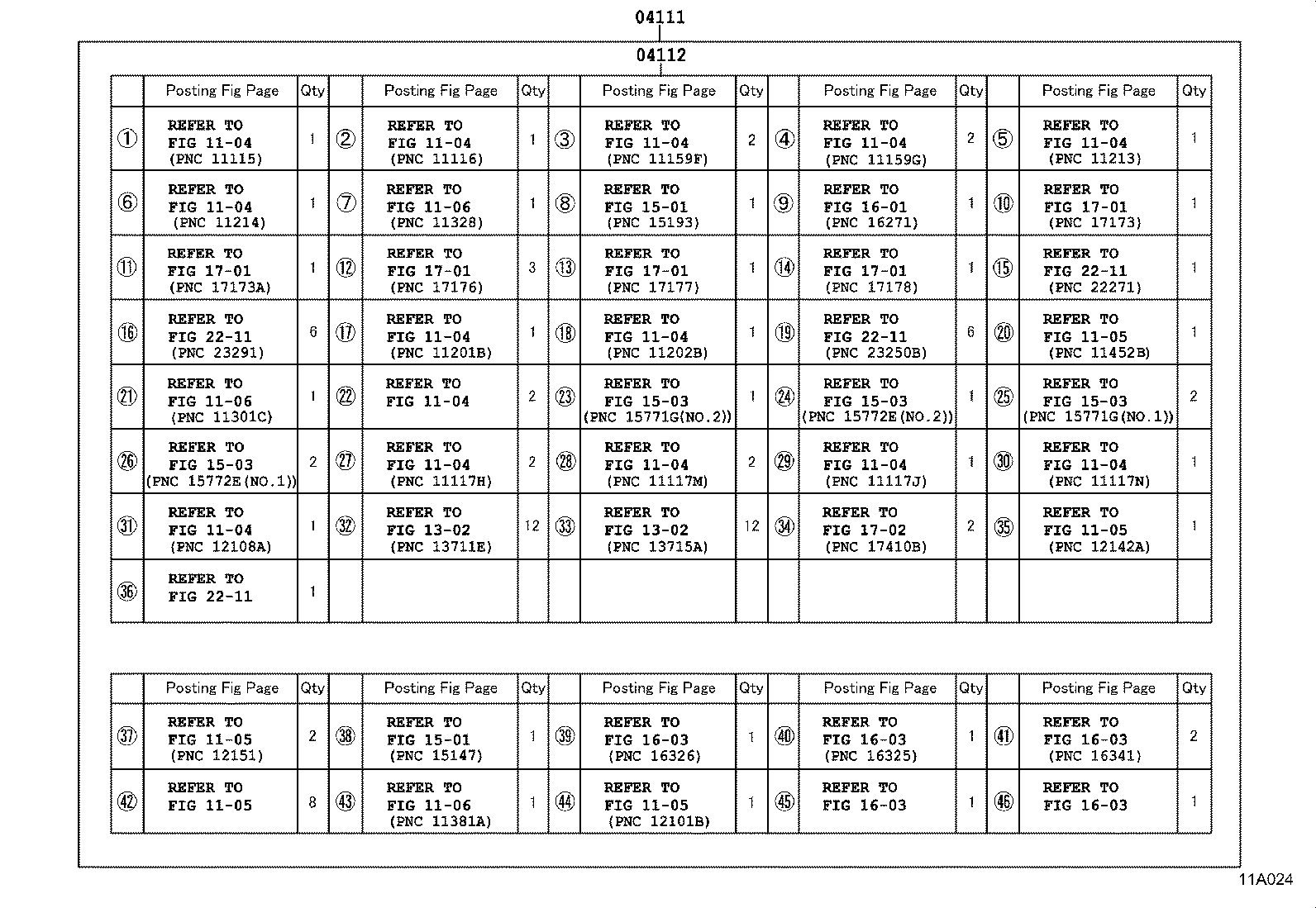

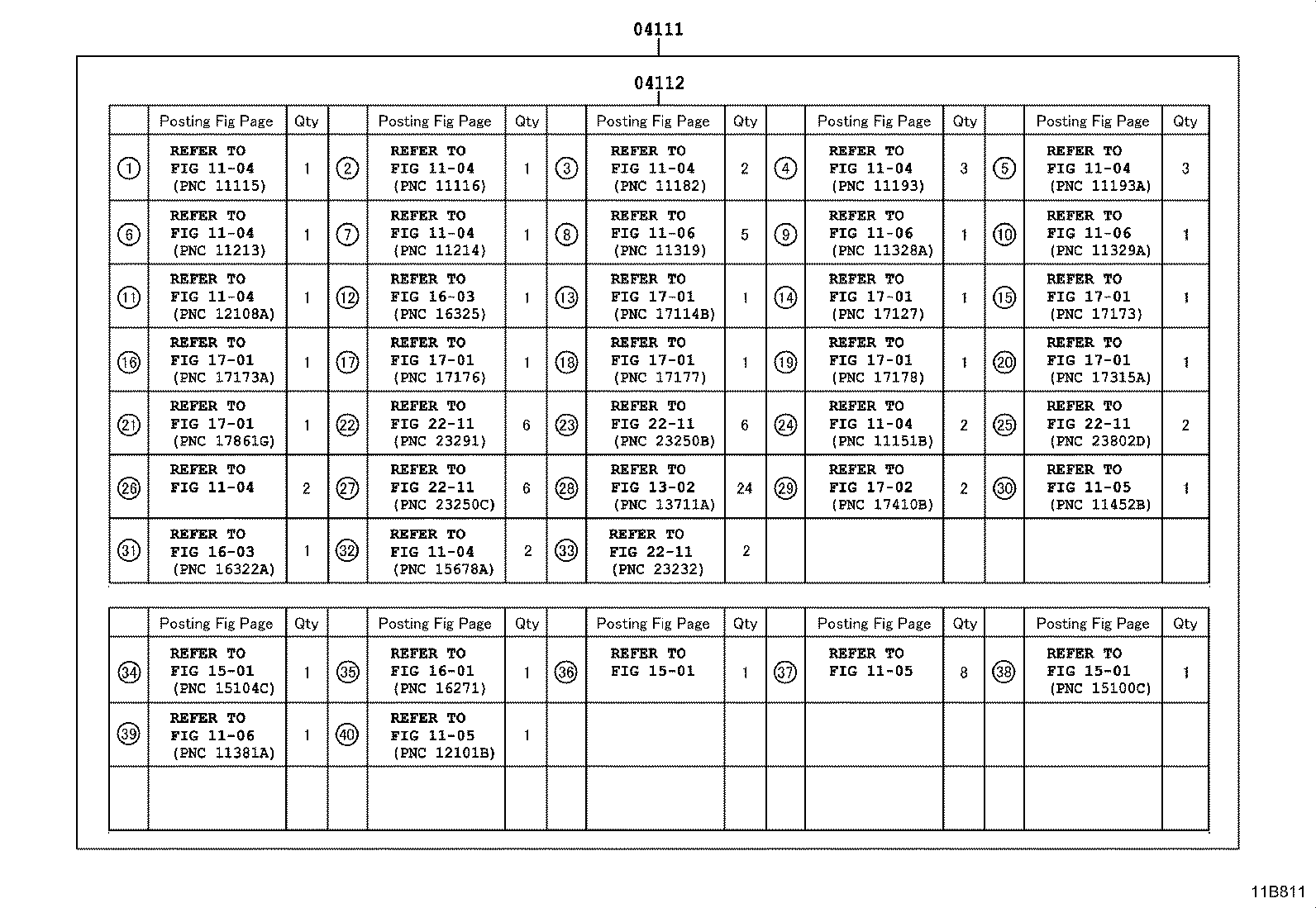

Figure 11A023 11A023 2006-01 → 2008-12 Figure 11A024 11A024 2006-01 → 2008-12 Figure 11A025 11A025 2006-01 → 2008-12 Figure 11A026 11A026 2006-01 → 2008-12 Figure 11B810 11B810 2003-02 → 2006-01 Figure 11B811 11B811 2003-02 → 2006-01

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
