Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

19 part groups · 2 illustrations

Illustrations

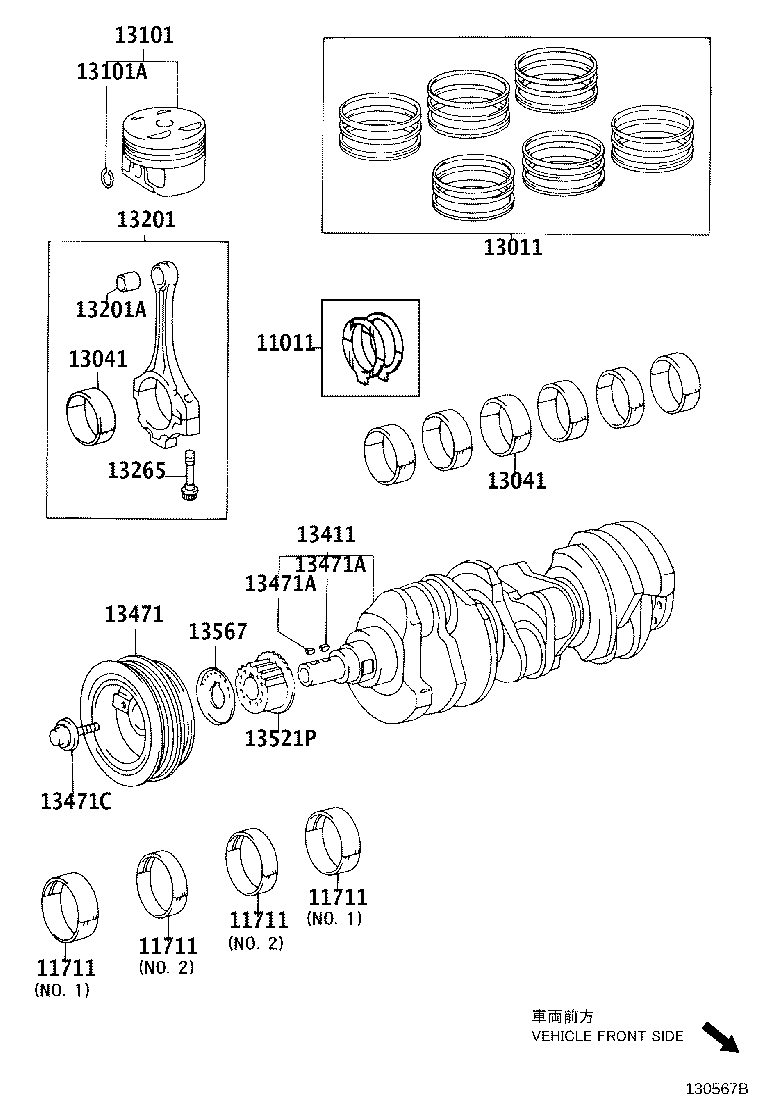

Figure 132596 132596 2006-01 → 2008-12 Figure 130567B 130567B 2003-02 → —

Part groups

PNCDescription
11011 Washer Set, Crankshaft Thrust
11711 Bearing, Crankshaft
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13265 Bolt, Connecting Rod
13411 Crankshaft
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
13521P Pulley, Crankshaft Timing
13567 Guide, Timing Belt, NO.2
13581 Shaft, Idle Gear, NO.1
13582 Shaft, Idle Gear, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
