Toyota Lexus RX300/330/350

2003-02 → 2008-12 · chassis MCU3#,GSU35 · catalogue 521220 · Europe

Supported model Data version 2009-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

13 part groups · 2 illustrations

Illustrations

Figure 152392A

152392A 2006-01 → 2008-12

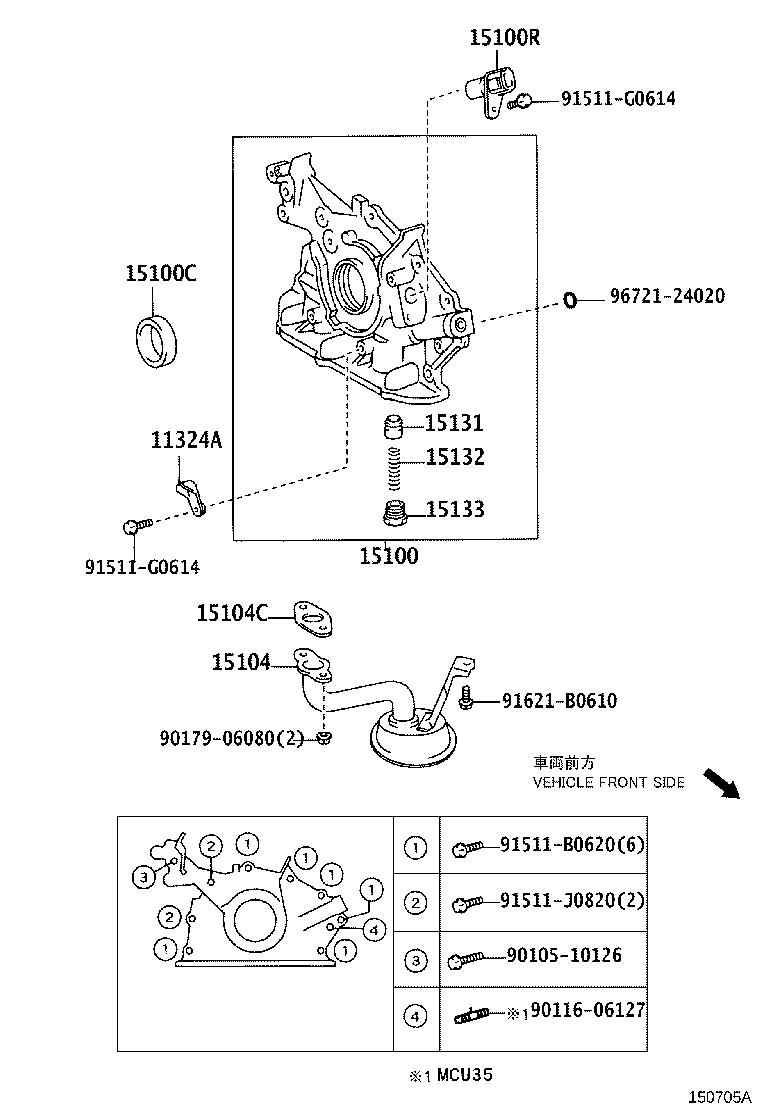

Figure 150705A

150705A 2003-02 → —

Part groups

PNC	Description
11324A	Plate, Timing Belt
15100	Pump Assy, Oil
15100C	Seal(FOR OIL PUMP)
15100R	Sensor, Crank Position
15102	Rotor Set, Oil Pump
15104	Strainer Sub-assy, Oil
15104C	Gasket(FOR OIL STRAINER)
15115	Cover, Oil Pump
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
